| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSC70SM120JCU3SICFET N-CH 1.2KV 89A SOT227 |
2,772 | 69.81 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 89A (Tc) | 20V | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232 nC @ 20 V | +25V, -10V | 3020 pF @ 1000 V | - | 395W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
MSCSM120DAM31CTBL1NGPM-MOSFET-SIC-SBD-BL1 |
3,495 | 125.80 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 79A | 20V | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232 nC @ 20 V | +25V, -10V | 3020 pF @ 1000 V | - | 310W | -55°C ~ 175°C (TJ) | Chassis Mount |
|
APT10M19SVRGMOSFET N-CH 100V 75A D3PAK |
2,536 | 13.72 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 75A (Tc) | - | 19mOhm @ 500mA, 10V | 4V @ 1mA | 300 nC @ 10 V | - | 6120 pF @ 25 V | - | - | - | Surface Mount |
|
APT6025BVRGMOSFET N-CH 600V 25A TO247 |
3,243 | 15.95 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | - | 250mOhm @ 500mA, 10V | 4V @ 1mA | 275 nC @ 10 V | - | 5160 pF @ 25 V | - | - | - | Through Hole |
|
APT38F80B2MOSFET N-CH 800V 41A T-MAX |
2,446 | 19.14 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 41A (Tc) | 10V | 240mOhm @ 20A, 10V | 5V @ 2.5mA | 260 nC @ 10 V | ±30V | 8070 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
APT10050LVRGMOSFET N-CH 1000V 21A TO264 |
2,653 | 24.87 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 21A (Tc) | - | 500mOhm @ 500mA, 10V | 4V @ 2.5mA | 500 nC @ 10 V | - | 7900 pF @ 25 V | - | - | - | Through Hole |
|
APT5010JVRMOSFET N-CH 500V 44A ISOTOP |
2,899 | 38.70 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | - | 100mOhm @ 500mA, 10V | 4V @ 2.5mA | 470 nC @ 10 V | - | 8900 pF @ 25 V | - | - | - | Chassis Mount |
|
MSC035SMA170SMOSFET SIC 1700V 35 MOHM TO-268 |
2,622 | 42.71 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1700 V | 59A (Tc) | 20V | 45mOhm @ 30A, 20V | 3.25V @ 2.5mA (Typ) | 178 nC @ 20 V | +23V, -10V | 3300 pF @ 1000 V | - | 278W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
MSC080SMA120JS15MOSFET SIC 1200V 80 MOHM 15A SOT |
3,594 | 46.46 |
RFQ |
Bulk | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 31A (Tc) | 20V | 100mOhm @ 15A, 20V | 2.8V @ 1mA | 64 nC @ 20 V | +23V, -10V | 838 pF @ 1000 V | - | 143W (Tc) | -55°C ~ 175°C (TJ) | Chassis Mount | |
|
|
APT50M50JVFRMOSFET N-CH 500V 77A ISOTOP |
3,166 | 70.97 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 77A (Tc) | - | 50mOhm @ 500mA, 10V | 4V @ 5mA | 1000 nC @ 10 V | - | 19600 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT37M100B2MOSFET N-CH 1000V 37A T-MAX |
2,943 | 23.16 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 37A (Tc) | 10V | 330mOhm @ 18A, 10V | 5V @ 2.5mA | 305 nC @ 10 V | ±30V | 9835 pF @ 25 V | - | 1135W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
APT47M60JMOSFET N-CH 600V 49A ISOTOP |
3,336 | 34.71 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 49A (Tc) | 10V | 90mOhm @ 33A, 10V | 5V @ 2.5mA | 330 nC @ 10 V | ±30V | 13190 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT50M50JLLMOSFET N-CH 500V 71A ISOTOP |
3,558 | 52.48 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 71A (Tc) | 10V | 50mOhm @ 35.5A, 10V | 5V @ 5mA | 200 nC @ 10 V | ±30V | 10550 pF @ 25 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT40M35JVRMOSFET N-CH 400V 93A SOT227 |
3,463 | 72.80 |
RFQ |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 93A (Tc) | 10V | 35mOhm @ 46.5A, 10V | 4V @ 5mA | 1065 nC @ 10 V | ±30V | 20160 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount | |
|

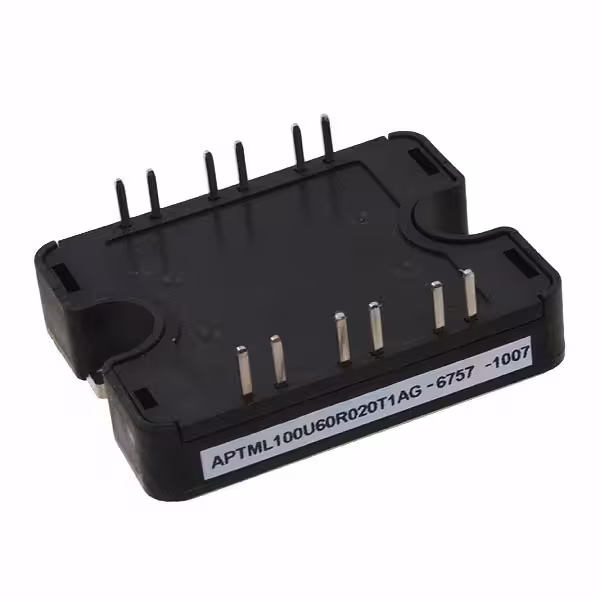

APTML100U60R020T1AGMOSFET N-CH 1000V 20A SP1 |
3,544 | 146.44 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 20A (Tc) | 10V | 720mOhm @ 10A, 10V | 4V @ 2.5mA | - | ±30V | 6000 pF @ 25 V | - | 520W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
LND150K1-GMOSFET N-CH 500V 13MA SOT23-3 |
2,375 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 13mA (Tj) | 0V | 1000Ohm @ 500µA, 0V | - | - | ±20V | 10 pF @ 25 V | Depletion Mode | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
;;3.jpg)
|
TN2106K1-GMOSFET N-CH 60V 280MA TO236AB |
2,098 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 280mA (Tj) | 4.5V, 10V | 2.5Ohm @ 500mA, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 360mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DN3135K1-GMOSFET N-CH 350V 72MA SOT23-3 |
2,835 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 350 V | 72mA (Tj) | 0V | 35Ohm @ 150mA, 0V | - | - | ±20V | 120 pF @ 25 V | Depletion Mode | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
LND150N8-GMOSFET N-CH 500V 30MA SOT89-3 |
3,826 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 30mA (Tj) | 0V | 1000Ohm @ 500µA, 0V | - | - | ±20V | 10 pF @ 25 V | Depletion Mode | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DN3135N8-GMOSFET N-CH 350V 135MA TO243AA |
3,609 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 350 V | 135mA (Tj) | 0V | 35Ohm @ 150mA, 0V | - | - | ±20V | 120 pF @ 25 V | Depletion Mode | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
