| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U1GWJ49(TE12L,F)DIODE SCHOTTKY 40V 1A PWMINI |
2,331 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 1A | -40°C ~ 125°C | 550 mV @ 1 A | |
|
DSF07S30U(TPH3,F)DIODE SCHOTTKY 30V 700MA USC |
3,570 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 170pF @ 0V, 1MHz | - | 50 µA @ 30 V | 30 V | 700mA | 125°C (Max) | 450 mV @ 700 mA | |
|
|
DSF05S30U(TPH3,F)DIODE SCHOTTKY 30V 500MA USC |
3,374 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | - | 30 V | 500mA | 125°C (Max) | 450 mV @ 500 mA | |
|

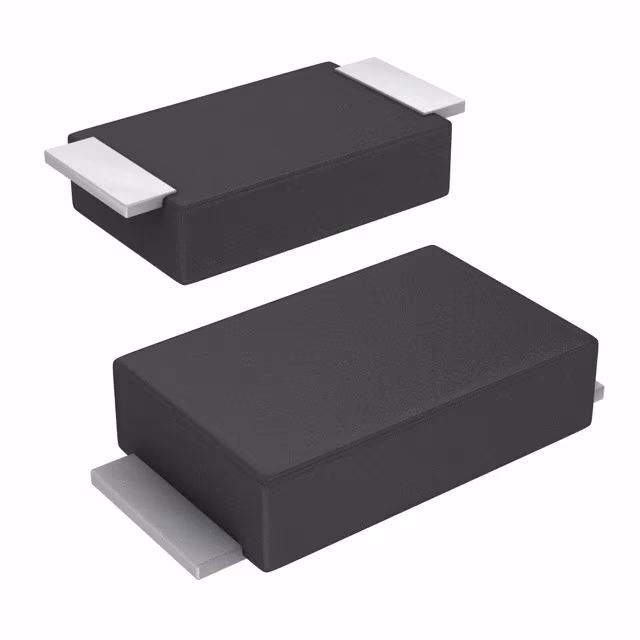

CMH05A(TE12L,Q,M)DIODE GEN PURP 400V 1A MFLAT |
3,375 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 10 µA @ 400 V | 400 V | 1A | -40°C ~ 150°C | 1.8 V @ 1 A | |
.JPG)
|
CMH08A(TE12L,Q,M)DIODE GEN PURP 400V 2A MFLAT |
2,008 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 10 µA @ 400 V | 400 V | 2A | -40°C ~ 150°C | 1.8 V @ 2 A | |
 SC2.jpg)
|
DSF01S30SC(TPL3)DIODE SCHOTTKY 30V 100MA SC2 |
3,600 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 9.3pF @ 0V, 1MHz | - | 50 µA @ 30 V | 30 V | 100mA | 125°C (Max) | 500 mV @ 100 mA | |
|
|
DSR01S30SC(TPL3)DIODE SCHOTTKY 30V 100MA SC2 |
2,445 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 8.2pF @ 0V, 1MHz | - | 700 µA @ 30 V | 30 V | 100mA | 125°C (Max) | 620 mV @ 100 mA | |
|
1SS193S,LF(DDIODE GEN PURP 80V 100MA SMINI |
2,412 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | 3pF @ 0V, 1MHz | 4 ns | 500 nA @ 80 V | 80 V | 100mA | 125°C (Max) | 1.2 V @ 100 mA | |
|
TRS10E65C,S1QDIODE SCHOTTKY 650V 10A TO220-2L |
2,657 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | - | 0 ns | 90 µA @ 650 V | 650 V | 10A (DC) | 175°C (Max) | 1.7 V @ 10 A | |
|
|
CLH01(TE16L,Q)DIODE GEN PURP 200V 3A L-FLAT |
3,272 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 10 µA @ 200 V | 200 V | 3A (DC) | -40°C ~ 150°C | 980 mV @ 3 A | |
|
|
CLH01(TE16R,Q)DIODE GEN PURP 200V 3A L-FLAT |
3,080 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 10 µA @ 200 V | 200 V | 3A (DC) | -40°C ~ 150°C | 980 mV @ 3 A | |
|
|
CLH02(TE16L,Q)DIODE GEN PURP 300V 3A L-FLAT |
3,939 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 10 µA @ 300 V | 300 V | 3A (DC) | -40°C ~ 150°C | 1.3 V @ 3 A | |
|
|
CLH02(TE16R,Q)DIODE GEN PURP 300V 3A L-FLAT |
3,090 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 10 µA @ 300 V | 300 V | 3A (DC) | -40°C ~ 150°C | 1.3 V @ 3 A | |
|
|
CLH03(TE16L,Q)DIODE GEN PURP 400V 3A L-FLAT |
2,585 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | - | 400 V | 3A (DC) | - | - | |
|
|
CLH03(TE16R,Q)DIODE GEN PURP 400V 3A L-FLAT |
2,420 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | - | 400 V | 3A (DC) | - | - | |
|
|
CLH05(T6L,NKOD,Q)DIODE GEN PURP 200V 5A L-FLAT |
2,036 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 10 µA @ 200 V | 200 V | 5A (DC) | -40°C ~ 150°C | 980 mV @ 5 A | |
|
|
CLH05(TE16R,Q)DIODE GEN PURP 200V 5A L-FLAT |
2,573 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 10 µA @ 200 V | 200 V | 5A (DC) | -40°C ~ 150°C | 0.98 V @ 5 A | |
|
|
CLH05,LMBJQ(ODIODE GEN PURP 200V 5A L-FLAT |
2,902 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 10 µA @ 200 V | 200 V | 5A (DC) | -40°C ~ 150°C | 980 mV @ 5 A | |
|
|
CLH06(TE16L,Q)DIODE GEN PURP 300V 5A L-FLAT |
2,495 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | - | 300 V | 5A (DC) | - | - | |
|
|
CLH06(TE16R,Q)DIODE GEN PURP 300V 5A L-FLAT |
2,194 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | - | 300 V | 5A (DC) | - | - |
