| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUS05F30,H3FDIODE SCHOTTKY 30V 500MA USC |
8,949 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 0V, 1MHz | - | 50 µA @ 30 V | 30 V | 500mA | - | 450 mV @ 500 mA | |
|
CUS15S30,H3FDIODE SCHOTTKY 30V 1.5A |
1,264 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 0V, 1MHz | - | 500 µA @ 30 V | 30 V | 1.5A | 125°C (Max) | 400 mV @ 1 A | |
|
CUHS15F40,H3FSMALL-SIGNAL SCHOTTKY BARRIER DI |
3,226 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 200 µA @ 40 V | 40 V | 1.5A | 150°C (Max) | 510 mV @ 1.5 A | |
|
CCS15S40,L3FDIODE SCHOTTKY 40V 1.5A CST2C |
12,453 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 200 µA @ 40 V | 40 V | 1.5A | 125°C (Max) | 550 mV @ 1.5 A | |
|
|
CCS15S30,L3FDIODE SCHOTTKY 20V 1.5A CST2C |
2,156 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 0V, 1MHz | - | 500 µA @ 30 V | 20 V | 1.5A | 125°C (Max) | 400 mV @ 1 A | |
|

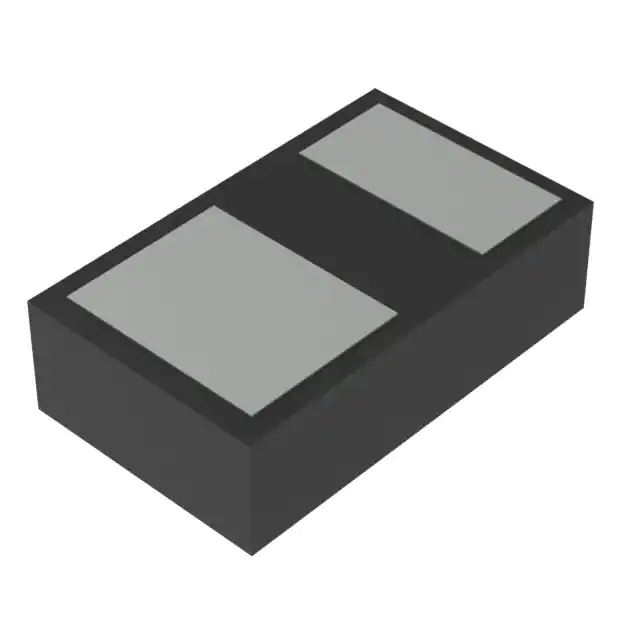

CLS10F40,L3FSS SCHOTTKY BARRIER DIODE, HIGH- |
7,210 | 0.51 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 130pF @ 0V, 1MHz | - | 25 µA @ 40 V | 40 V | 1A | 150°C | 570 mV @ 1 A | ||
|
|
CUHS15F30,H3FSBD SINGLE 30V, 1.5A, IN 2 PIN U |
2,850 | 0.51 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 50 µA @ 30 V | 30 V | 1.5A | 150°C | 520 mV @ 1.5 A | ||
|
TRS8A65F,S1QPB-F DIODE TO-220-2L V=650 IF=8A |
200 | 3.91 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 28pF @ 650V, 1MHz | 0 ns | 40 µA @ 650 V | 650 V | 8A (DC) | 175°C (Max) | 1.6 V @ 8 A | ||
|
|
TRS10A65F,S1QPB-F DIODE TO-220-2L V=650 IF=10 |
238 | 4.90 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 36pF @ 650V, 1MHz | 0 ns | 50 µA @ 650 V | 650 V | 10A (DC) | 175°C (Max) | 1.6 V @ 10 A | ||
|
|
TRS12A65F,S1QPB-F DIODE TO-220-2L V=650 IF=12 |
188 | 5.86 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 44pF @ 650V, 1MHz | 0 ns | 60 µA @ 650 V | 650 V | 12A (DC) | 175°C (Max) | 1.6 V @ 12 A | ||
|
|
TRS6A65F,S1QPB-F DIODE TO-220-2L V=650 IF=6A |
155 | 2.94 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 22pF @ 650V, 1MHz | 0 ns | 30 µA @ 650 V | 650 V | 6A (DC) | 175°C (Max) | 1.6 V @ 6 A | ||
|
|

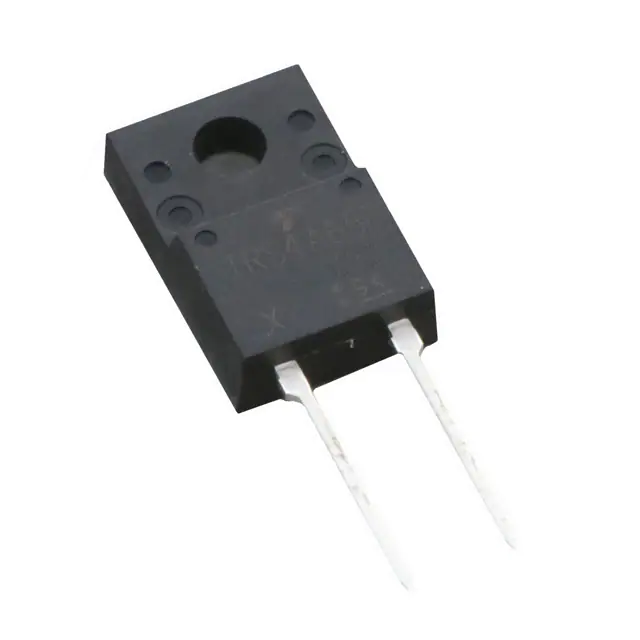

TRS4A65F,S1QPB-F DIODE TO-220-2L V=650 IF=4A |
204 | 2.53 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 16pF @ 650V, 1MHz | 0 ns | 20 µA @ 650 V | 650 V | 4A (DC) | 175°C (Max) | 1.6 V @ 4 A | ||
|
TRS4E65F,S1QPB-F DIODE TO-220-2L V=650 IF=4A |
190 | 2.53 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 16pF @ 650V, 1MHz | 0 ns | 20 µA @ 650 V | 650 V | 4A (DC) | 175°C (Max) | 1.6 V @ 4 A | ||
|
JDH2S02SL,L3FX34 HIGH FREQUENCY SCHOTTKY BARR |
4,480 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 0.25pF @ 200mV, 1MHz | - | 25 µA @ 500 mV | 10 V | 10mA (DC) | 125°C (Max) | - | |
|

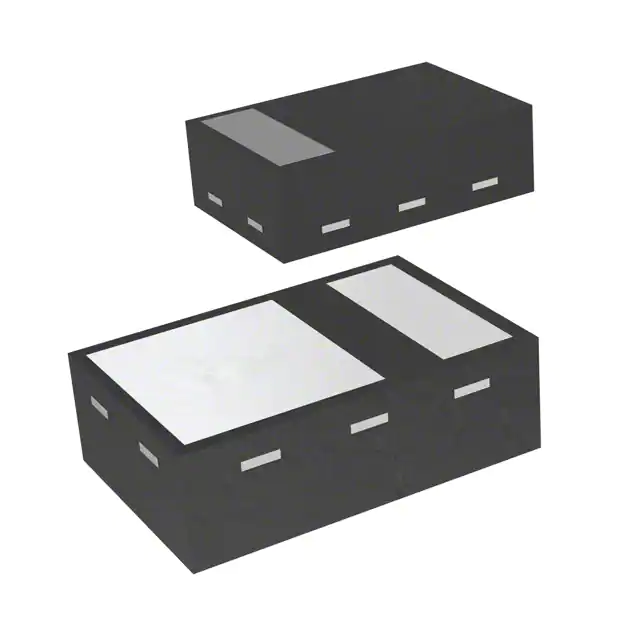

CBS05F30,L3FX34 PB-F CST2B SBD DIODE VR:30V, |
3,672 | 0.42 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 118pF @ 0V, 1MHz | - | 50 µA @ 30 V | 30 V | 500mA | 125°C (Max) | - | ||
|
|
TRS8E65F,S1QDODE SCHOTTKY 650V TO220 |
3,184 | 3.98 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 28pF @ 650V, 1MHz | 0 ns | 40 µA @ 650 V | 650 V | 8A (DC) | 175°C (Max) | 1.6 V @ 8 A | |
|
1SS394TE85LFDIODE SCHOTTKY 10V 100MA SC59 |
1,000 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 40pF @ 0V, 1MHz | - | 20 µA @ 10 V | 10 V | 100mA | 125°C (Max) | 500 mV @ 100 mA | |
|
|
CUHS10F60,H3FSMALL-SIGNAL SCHOTTKY BARRIER DI |
3,543 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 130pF @ 0V, 1MHz | - | 40 µA @ 60 V | 60 V | 1A | 150°C (Max) | - | |
|
|
TRS3E65F,S1QPB-F DIODE TO-220-2L V=650 IF=3A |
190 | 2.08 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 12pF @ 650V, 1MHz | 0 ns | 20 µA @ 650 V | 650 V | 3A (DC) | 175°C (Max) | 1.6 V @ 3 A | ||
|
|
1SS196(TE85L,F)DIODE GEN PURP 80V 100MA SC59-3 |
241 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0V, 1MHz | 4 ns | 500 nA @ 80 V | 80 V | 100mA | 125°C (Max) | 1.2 V @ 100 mA |
