| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRG04A,LQ(MMOSFET N-CH |
2,885 | 0.00 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 600 V | 600 V | 1A | 150°C | 1.1 V @ 1 A | |
|
1SS404,H3FDIODE SCHOTTKY 20V 300MA USC |
66,705 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 46pF @ 0V, 1MHz | - | 50 µA @ 20 V | 20 V | 300mA | 125°C (Max) | 450 mV @ 300 mA | |
|
1SS406,H3FSMALL SIGNAL SCHOTTKY BARRIER DI |
3,849 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 3.9pF @ 0V, 1MHz | - | 500 nA @ 20 V | 20 V | 50mA | 125°C (Max) | 550 mV @ 50 mA | |
|

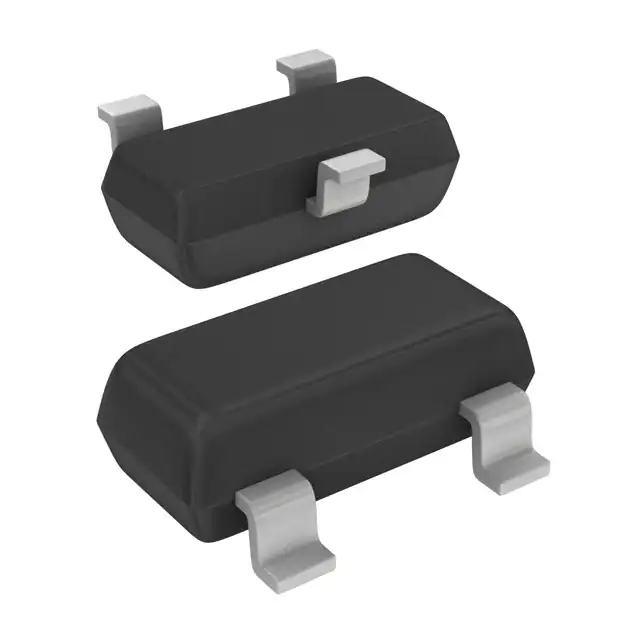

TBAS16,LMDIODE GEN PURP 80V 215MA SOT23-3 |
17,073 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | - | 80 V | 215mA | - | - | |
|
1SS193,LFDIODE GEN PURP 80V 100MA SMINI |
15,447 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0V, 1MHz | 4 ns | 500 nA @ 80 V | 80 V | 100mA | 125°C (Max) | 1.2 V @ 100 mA | |
|

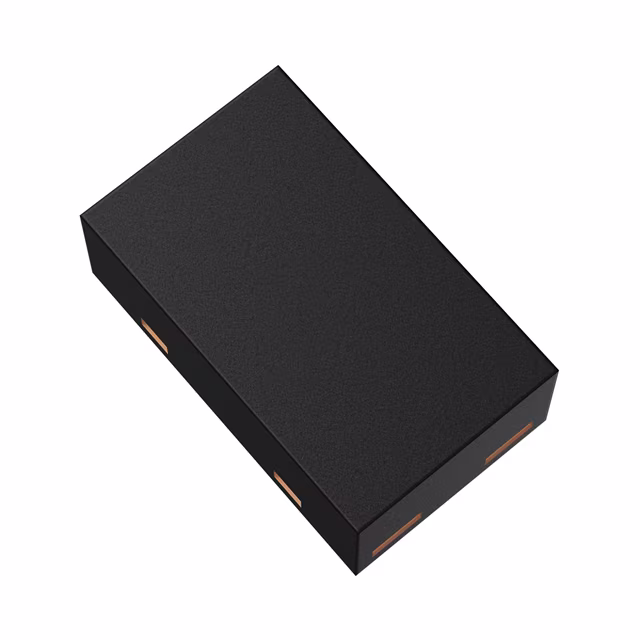

1SS416CT,L3FDIODE SCHOTTKY 30V 100MA CST2 |
45,285 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 15pF @ 0V, 1MHz | - | 50 µA @ 30 V | 30 V | 100mA | 125°C (Max) | 500 mV @ 100 mA | |
|
CTS05S30,L3FDIODE SCHOTTKY 30V 500MA CST2 |
16,586 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 55pF @ 0V, 1MHz | - | 150 µA @ 10 V | 30 V | 500mA | 125°C (Max) | 340 mV @ 100 mA | |
|
CUHS20F30,H3FSCHOTTKY BARRIER DIODE, 30V/2A, |
7,316 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 380pF @ 0V, 1MHz | - | 60 µA @ 30 V | 30 V | 2A | 150°C (Max) | 470 mV @ 2 A | |
|
CRS03(TE85L,Q,M)DIODE SCHOTTKY 30V 1A SFLAT |
2,708 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 40pF @ 10V, 1MHz | - | 100 µA @ 30 V | 30 V | 1A | -40°C ~ 150°C | 450 mV @ 1 A | |
|
CUS10S40,H3FDIODE SCHOTTKY 40V 1A USC |
2,786 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 0V, 1MHz | - | 150 µA @ 40 V | 40 V | 1A | 125°C (Max) | 400 mV @ 500 mA | |
|
|
CUHS20F40,H3FSCHOTTKY BARRIER DIODE, 40V/2A, |
2,813 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 0V, 1MHz | - | 60 µA @ 40 V | 40 V | 2A | 150°C (Max) | 540 mV @ 2 A | |
|
CMS03(TE12L,Q,M)DIODE SCHOTTKY 30V 3A MFLAT |
1,740 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 30 V | 30 V | 3A | -40°C ~ 150°C | 450 mV @ 3 A | |
|

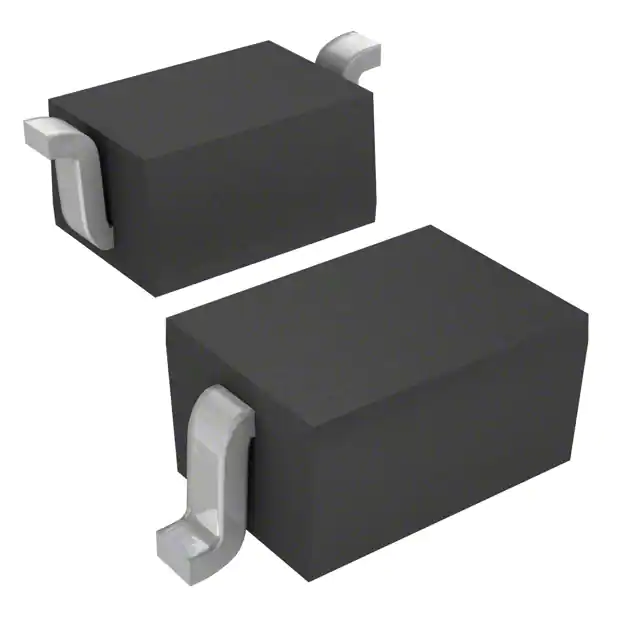

1SS352,H3FDIODE GEN PURP 80V 100MA SC76-2 |
56,413 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0V, 1MHz | 4 ns | 500 nA @ 80 V | 80 V | 100mA | 125°C (Max) | 1.2 V @ 100 mA | |
|
|
TBAT54,LMDIODE SCHOTTKY 30V 140MA SOT23 |
471 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | 1.5 ns | 2 µA @ 25 V | 30 V | 140mA | 150°C (Max) | 580 mV @ 100 mA | |
|
|
1SS367,H3FDIODE SCHOTTKY 10V 100MA SC76 |
21,446 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 40pF @ 0V, 1MHz | - | 20 µA @ 10 V | 10 V | 100mA | 125°C (Max) | 500 mV @ 100 mA | |
|
|
1SS385,LF(CTSMALL-SIGNAL SCHOTTKY BARRIER DI |
6,000 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 20pF @ 0V, 1MHz | - | 20 µA @ 10 V | 10 V | 100mA | 125°C (Max) | 500 mV @ 100 mA | |
|
|
CRS08(TE85L,Q,M)DIODE SCHOTTKY 30V 1.5A SFLAT |
171 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 90pF @ 10V, 1MHz | - | 1 mA @ 30 V | 30 V | 1.5A | -40°C ~ 125°C | 360 mV @ 1.5 A | |
.jpg)
|

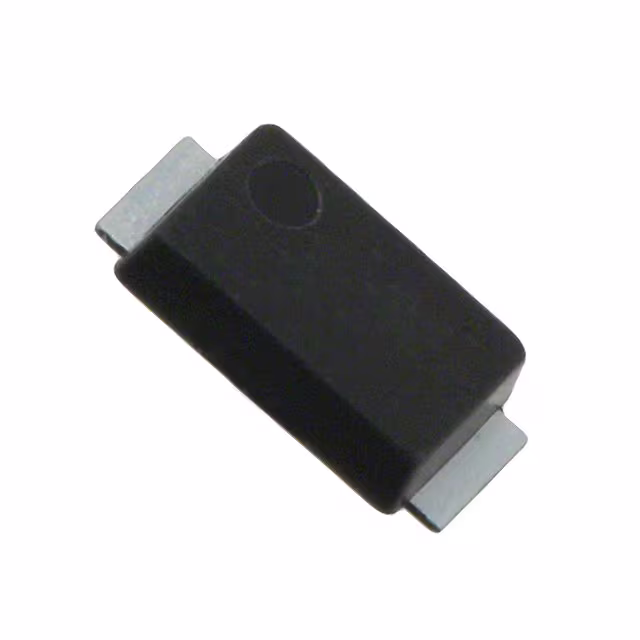

CMF04(TE12L,Q,M)DIODE GEN PURP 800V 500MA MFLAT |
302 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 100 ns | 50 µA @ 800 V | 800 V | 500mA | -40°C ~ 150°C | 2.5 V @ 500 mA | |
|
|
CUS10F30,H3FDIODE SCHOTTKY 30V 1A USC |
3,412 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 50 µA @ 30 V | 30 V | 1A | 125°C (Max) | 500 mV @ 1 A | |
|
|
1SS403,H3FDIODE GEN PURP 200V 100MA USC |
2,235 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0V, 1MHz | 60 ns | 1 µA @ 200 V | 200 V | 100mA | 125°C (Max) | 1.2 V @ 100 mA |
