| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP35R12KT4B11BPSA1LOW POWER ECONO AG-ECONO2B-711 |
2,617 | 105.70 |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 210 W | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FP50R12N2T7BPSA1LOW POWER ECONO AG-ECONO2B-711 |
2,707 | 113.26 |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 20 mW | 1.5V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FP40R12KE3BPSA1LOW POWER ECONO AG-ECONO2C-311 |
3,885 | 115.01 |
RFQ |
Datasheet |
Tray | SmartPIM1 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 210 W | 2.15V @ 15V, 40A | 1 mA | 2.5 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
FP50R12N2T7PB11BPSA1LOW POWER ECONO |
3,786 | 129.16 |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 50 A | 20 mW | 1.8V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FP50R12KT4BPSA1LOW POWER ECONO AG-ECONO2B-411 |
2,225 | 130.35 |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.25V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FP50R12KT4B11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
2,171 | 131.80 |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FS75R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2B-411 |
3,546 | 133.12 |
RFQ |
Datasheet |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 20 mW | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FP75R12N2T7PB11BPSA1LOW POWER ECONO |
3,343 | 156.48 |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 20 mW | 1.8V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
DDB6U180N16RRB11BPSA2LOW POWER ECONO AG-ECONO2B-411 |
3,503 | 129.37 |
RFQ |
Datasheet |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Single Chopper | 1200 V | 140 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FP75R12N3T7BPSA1LOW POWER ECONO |
3,258 | 179.32 |
RFQ |
Datasheet |
Tray | EconoPIM™3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 20 mW | 1.8V @ 15V, 75A | 13 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
DDB6U134N16RRB80BPSA1LOW POWER ECONO AG-ECONO2B-8231 |
3,781 | 139.11 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FS75R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
3,482 | 145.41 |
RFQ |
Datasheet |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|

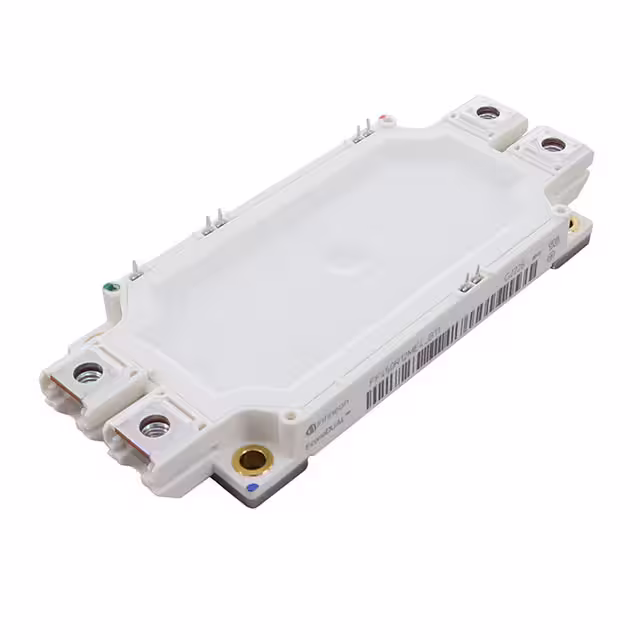

FF450R12ME4B11BPSA2MEDIUM POWER ECONO AG-ECONOD-411 |
2,310 | 234.96 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1200 V | 675 A | 2250 W | 2.1V @ 15V, 450A | 3 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
F3L600R10W4S7FC22BPSA1LOW POWER EASY AG-EASY4B-7011 |
3,104 | 266.61 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Level Inverter | 950 V | 310 A | 20 mW | 2.25V @ 15V, 400A | 1 mA | 49.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FF800R12KE7HPSA1MEDIUM POWER 62MM AG-62MMHB-711 |
2,208 | 310.92 |
RFQ |
Datasheet |
Tray | TrenchStop™ | Active | Trench Field Stop | Half Bridge | 1200 V | 800 A | - | 1.75V @ 15V, 800A | 100 µA | 122 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FF750R12ME7B11BPSA1ECONODUAL 3 WITH TRENCHSTOP IGBT |
2,590 | 340.02 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1200 V | 750 A | 20 mW | 1.75V @ 15V, 750A | 45 µA | 115 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FP75R12N3T7B81BPSA1LOW POWER ECONO AG-ECONO3B-731 |
3,176 | 197.91 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FF750R17ME7DB11BPSA1MEDIUM POWER ECONO |
2,627 | 474.56 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 750 A | 20 mW | 1.85V @ 15V, 750A | 5 mA | 78.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FF900R17ME7B11BPSA1MEDIUM POWER ECONO |
2,497 | 525.51 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1700 V | 900 A | 20 mW | 1.85V @ 15V, 900A | 5 mA | 93.8 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FP75R12N3T4B80BPSA1LOW POWER ECONO AG-ECONO3-386 |
3,607 | 229.74 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
