| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F4100R17N3E4B80BPSA1LOW POWER ECONO AG-ECONO3-586 |
2,154 | 247.84 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FP100R12N3T4B80BPSA1LOW POWER ECONO AG-ECONO3-386 |
3,949 | 269.46 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|

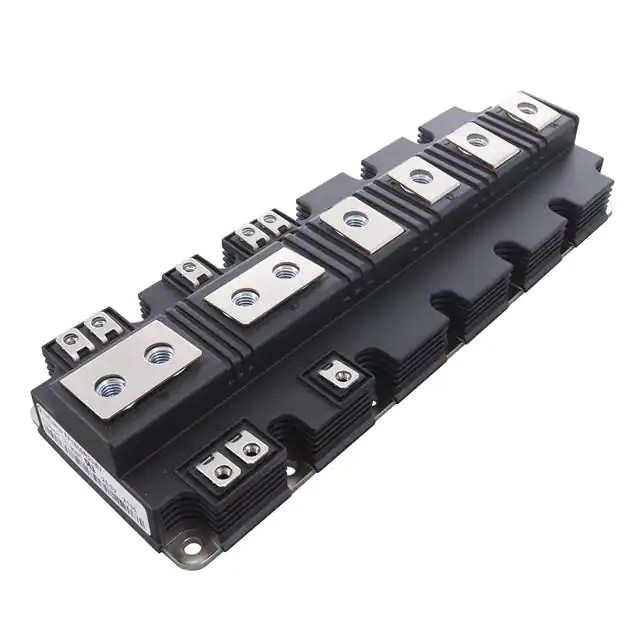

FF1800R23IE7BPSA1PP IHM I XHP 1 7KV AG-PRIME3+-7 |
3,285 | 2299.50 |
RFQ |
Tray | PrimePACK™3 | Active | - | 2 Independent | 1500 V | 1800 A | - | - | - | - | Standard | No | - | Chassis Mount | |
|

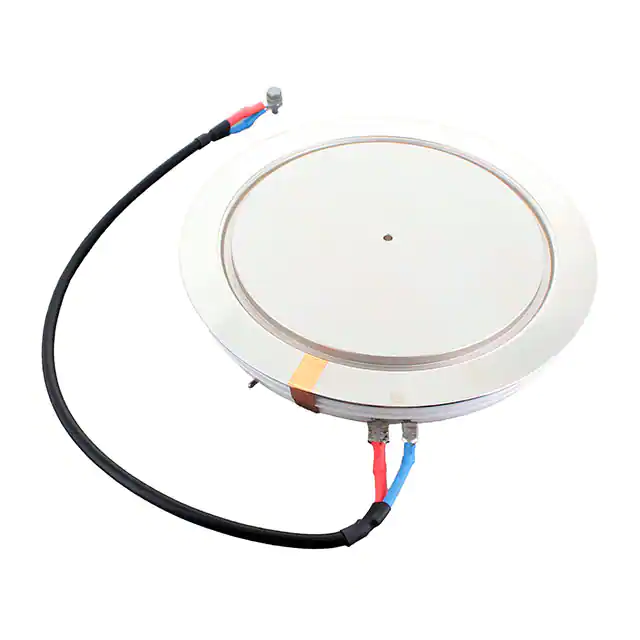

P2000DL45X168HPSA1PRESS PACK IGBT |
3,948 | 9139.90 |
RFQ |
Datasheet |
Tray | - | Active | Trench | Single | 4500 V | 2000 A | - | 2.5V @ 15V, 2000A | 200 µA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
P3000ZL45X168HPSA1PRESS PACK IGBT |
3,844 | 9139.90 |
RFQ |
Datasheet |
Tray | - | Active | Trench | Single | 4500 V | 3000 A | - | 2.5V @ 15V, 3000A | 200 µA | 620 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FF2MR12W3M1HB11BPSA1LOW POWER EASY AG-EASY3B-3111 |
2,577 | 668.83 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FZ1600R17KF6CB2S1NOSA1IGBT MODULE |
3,377 | 1278.25 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single Switch | 1700 V | 1600 A | 10500 W | 2.25V @ 15V, 1.6kA | 5 mA | 130 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FZ1600R33HE4BPSA1IHV IHM T XHP 3 3-6 5K AG-IHVB13 |
3,028 | 2308.32 |
RFQ |
Datasheet |
Tray | IHM-B | Active | Trench Field Stop | 2 Independent | 3300 V | 1.6 kA | 3600 W | 2.65V @ 15V, 1.6kA | 5 mA | 187 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FS10R06VE3BOMA1IGBT MODULE 600V 16A 50W |
2,195 | 20.51 |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | - | Three Phase Inverter | 600 V | 16 A | 50 W | 2V @ 15V, 10A | 1 mA | 550 pF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
|
FS10R06VE3B2BOMA1IGBT MODULE 600V 16A 50W |
2,111 | 1.00 |
RFQ |
Datasheet |
Bulk,Bulk | - | Not For New Designs | - | Three Phase Inverter | 600 V | 16 A | 50 W | 2V @ 15V, 10A | 1 mA | 550 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FS15R06VE3B2BOMA1IGBT MODULE 600V 22A 65W |
3,514 | 1.00 |
RFQ |
Datasheet |
Bulk,Bulk | - | Not For New Designs | - | Three Phase Inverter | 600 V | 22 A | 65 W | 2V @ 15V, 15A | 1 mA | 830 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FS10R12VT3BOMA1IGBT MODULE 1200V 16A 64W |
160 | 15.97 |
RFQ |
Datasheet |
Bulk,Bulk | - | Last Time Buy | - | Three Phase Inverter | 1200 V | 16 A | 64 W | 2.45V @ 15V, 10A | 1 mA | 700 pF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
|
FS20R06VE3BOMA1IGBT MOD 600V 25A 71.5W |
3,847 | 23.91 |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | - | Three Phase Inverter | 600 V | 25 A | 71.5 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
|
FS20R06VE3B2BOMA1IGBT MOD 600V 25A 71.5W |
2,893 | 24.95 |
RFQ |
Datasheet |
Tray | - | Not For New Designs | - | Three Phase Inverter | 600 V | 25 A | 71.5 W | 2V @ 15V, 20A | 1 mA | 1.14 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FS15R12VT3BOMA1IGBT MODULE 1200V 24A 86W |
3,329 | 1.00 |
RFQ |
Datasheet |
Bulk,Bulk | - | Last Time Buy | - | Three Phase Inverter | 1200 V | 24 A | 86 W | 2.15V @ 15V, 15A | 1 mA | 1.1 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
|
FS30R06VE3BOMA1IGBT MODULE 600V 34A 88W |
3,421 | 27.72 |
RFQ |
Datasheet |
Tray | - | Last Time Buy | - | Three Phase Inverter | 600 V | 34 A | 88 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
FS20R06W1E3BOMA1IGBT MODULE 600V 35A 135W |
3,850 | 29.11 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 600 V | 35 A | 135 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FS20R06W1E3B11BOMA1IGBT MODULE 600V 35A 135W |
3,939 | 29.91 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Full Bridge | 600 V | 35 A | 135 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FS30R06W1E3B11BOMA1IGBT MODULE 600V 45A 150W |
3,279 | 33.12 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 600 V | 45 A | 150 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FP10R06W1E3B11BOMA1IGBT MODULE 600V 16A 68W |
2,704 | 33.76 |
RFQ |
Datasheet |
Bulk | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 600 V | 16 A | 68 W | 2V @ 15V, 10A | 1 mA | 550 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
