| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DDB6U50N16W1RPBPSA1LOW POWER EASY AG-EASY1B-711 |
3,624 | 31.27 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
BSM25GB120DN2IGBT MODULE |
3,803 | 32.05 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FB20R06YE3B1BOMA1IGBT MODULE |
3,585 | 32.07 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP10R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-2 |
3,453 | 43.43 |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 10 A | 20 mW | - | 4.5 µA | 1890 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
900545HOSA1IGBT MODULE |
2,226 | 47.75 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
F3L75R12W1H3BPSA1LOW POWER EASY AG-EASY1B-311 |
3,070 | 60.89 |
RFQ |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
BSM50GP60B2BOSA1IGBT MODULE |
3,914 | 53.33 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
FS50R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
2,994 | 57.58 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 20 mW | - | 7.9 µA | 11.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FS50R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-711 |
2,369 | 57.84 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FP35R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
2,190 | 58.59 |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 20 mW | - | 5.8 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FS50R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
2,649 | 60.80 |
RFQ |
Datasheet |
Tray | EasyPACK™, TRENCHSTOP™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 20 mW | - | 7.9 µA | 11.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|

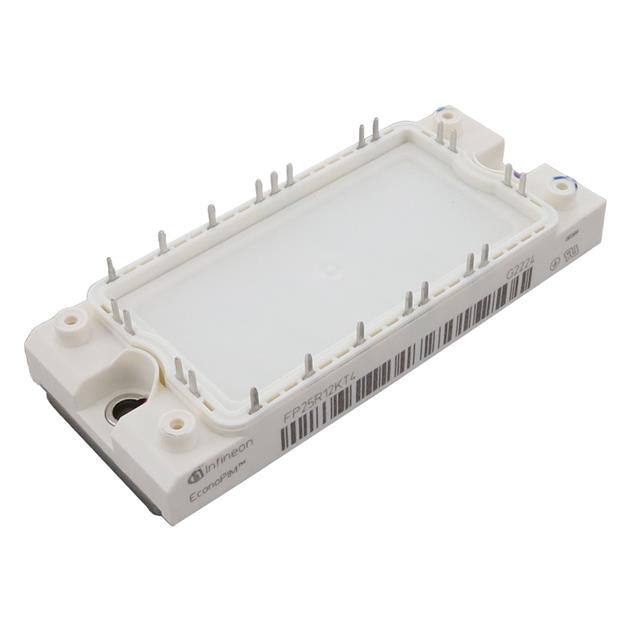

FP25R12KT4BPSA1LOW POWER ECONO AG-ECONO2B-411 |
3,749 | 84.75 |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
F3L200R07W2S5B11BOMA1LOW POWER EASY AG-EASY2B-2 |
150 | 70.25 |
RFQ |
Bulk,Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
FS75R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
2,844 | 71.61 |
RFQ |
Datasheet |
Tray | EasyPACK™, TRENCHSTOP™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 65 A | 20 mW | - | 13 µA | 15.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FP35R12N2T7BPSA1LOW POWER ECONO AG-ECONO2B-711 |
2,999 | 90.60 |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 20 mW | 1.6V @ 15V, 35A | 7 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FS35R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
3,746 | 90.90 |
RFQ |
Datasheet |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 55 A | 210 W | 2.15V @ 15V, 35A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
FP50R12W2T7PB11BPSA1LOW POWER EASY AG-EASY2B-2 |
3,435 | 76.97 |
RFQ |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 20 mW | - | 8 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
|

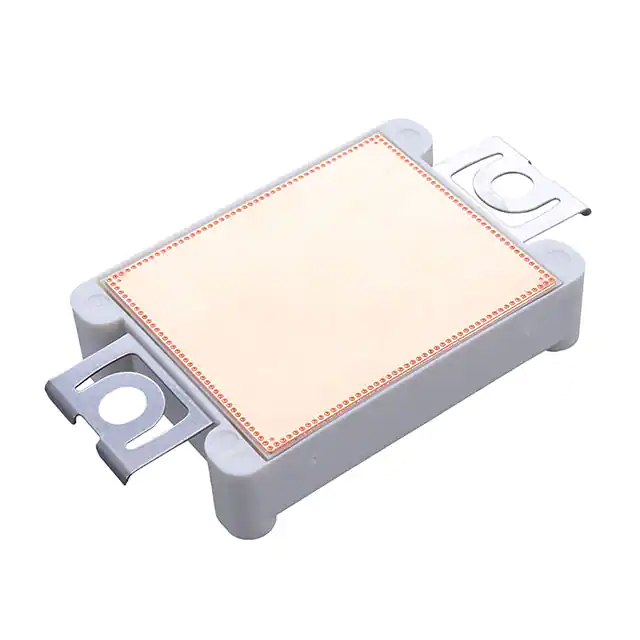

FS55MR12W1M1HB11NPSA1LOW POWER EASY AG-EASY1B-3111 |
3,971 | 77.46 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
DDB6U134N16RRBPSA1LOW POWER ECONO AG-ECONO2B-211 |
3,551 | 103.53 |
RFQ |
Datasheet |
Tray | - | Active | - | Single Chopper | 1200 V | 70 A | 500 W | 2.75V @ 15V, 70A | 500 µA | 5.1 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount |
|
|
FP35R12KT4BPSA1LOW POWER ECONO |
3,842 | 104.28 |
RFQ |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 210 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
