| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF450R17ME4BOSA1IGBT MOD 1700V 600A 2500W |
3,144 | 319.58 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1700 V | 600 A | 2500 W | 2.3V @ 15V, 450A | 3 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|

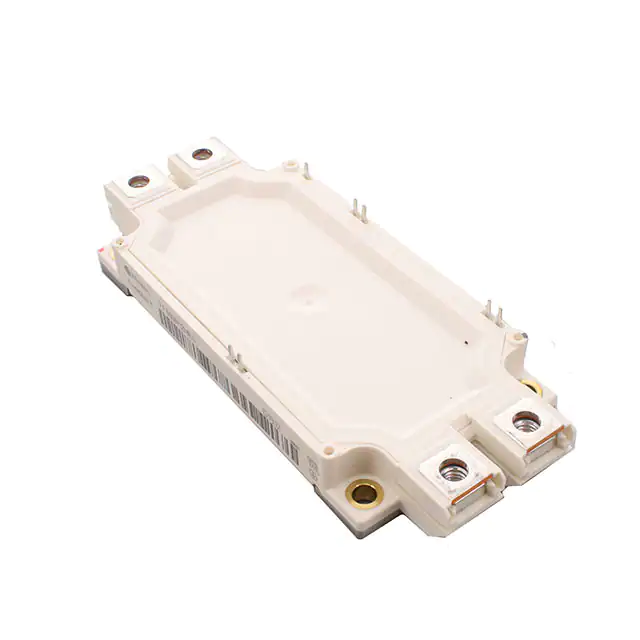

FF600R12ME4BOSA1IGBT MODULE 1200V 4050W |
3,834 | 324.64 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | - | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FF650R17IE4BOSA1IGBT MODULE 1700V 4150W |
3,119 | 612.40 |
RFQ |
Datasheet |
Tray | PrimePACK™2 | Active | - | 2 Independent | 1700 V | - | 4150 W | 2.45V @ 15V, 650A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FF1000R17IE4BOSA1IGBT MODULE 1700V 6250W |
3,739 | 867.59 |
RFQ |
Datasheet |
Tray | PrimePACK™3 | Active | - | 2 Independent | 1700 V | - | 6250 W | 2.45V @ 15V, 1000A | 5 mA | 81 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FF1400R12IP4BOSA1IGBT MODULE 1200V 1400A |
3,192 | 930.87 |
RFQ |
Datasheet |
Tray | PrimePACK™3 | Active | Trench Field Stop | 2 Independent | 1200 V | 1400 A | 765000 W | 2.05V @ 15V, 1400A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|

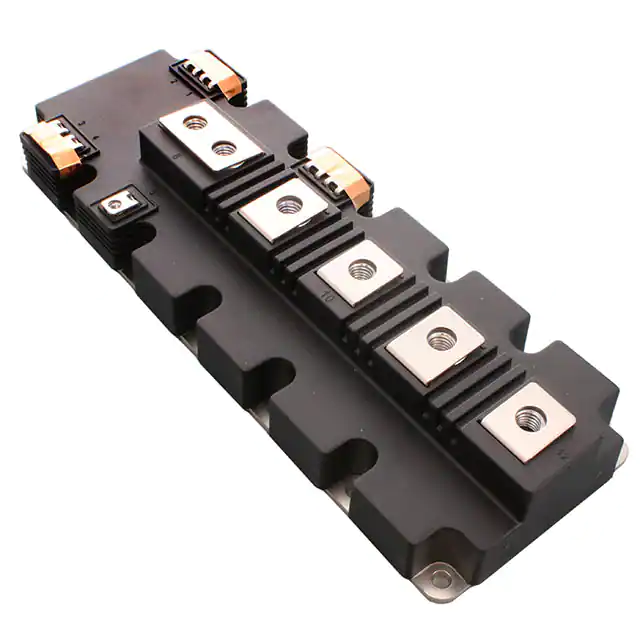

FF1400R17IP4BOSA1IGBT MODULE 1700V 1400A |
2,741 | 1111.11 |
RFQ |
Datasheet |
Tray | PrimePACK™3 | Active | Trench Field Stop | 2 Independent | 1700 V | 1400 A | 955000 W | 2.2V @ 15V, 1400A | 5 mA | 110 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FP15R12W1T7B3BOMA1IGBT MODULE LOW POWER EASY |
2,373 | 44.32 |
RFQ |
Tray | TrenchStop™ | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | - | - | - | - | - | Standard | No | 175°C (TJ) | Chassis Mount | |
|
FS50R12W2T7B11BOMA1IGBT MOD 1200V 50A |
3,127 | 60.80 |
RFQ |
Datasheet |
Bulk,Tray | EasyPACK™ | Active | Trench Field Stop | Full Bridge | 1200 V | 50 A | 20 mW | 1.5V @ 15V, 50A (Typ) | 7.9 µA | 11.1 nF @ 25 V | Standard | No | -40°C ~ 175°C | Chassis Mount |
|

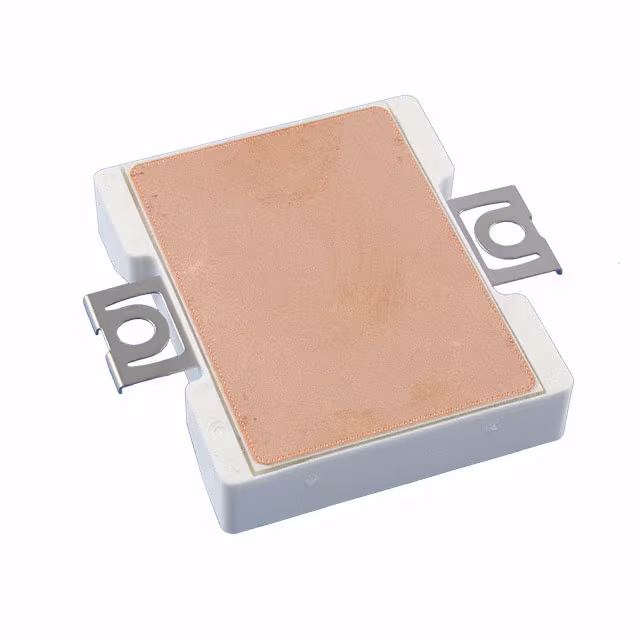

FS100R12W2T7B11BOMA1IGBT MOD 1200V 100A 20MW EASY |
3,744 | 89.02 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Single | 1200 V | 100 A | 20 mW | 1.50V @ 15V, 100A | 9 µA | - | Standard | Yes | -40°C ~ 175°C | Chassis Mount |
|
FF150R17KE4HOSA1MODULE IGBT 1700V AG-62MM-1 |
2,026 | 146.70 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | 2 Independent | 1700 V | 150 A | - | 2.3V @ 15V, 150A | 1 mA | 12 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FP10R06W1E3BOMA1IGBT MODULE 600V 16A 68W |
2,532 | 37.00 |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 600 V | 16 A | 68 W | 2V @ 15V, 10A | 1 mA | 550 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FP50R12KE3BOSA1IGBT MOD 1200V 75A 280W |
2,977 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | NPT | Single | 1200 V | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
FS75R12KE3GBOSA1IGBT MOD 1200V 100A 355W |
3,466 | 162.42 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | - | Three Phase Inverter | 1200 V | 100 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
|
FP15R12W1T4B3BOMA1IGBT MOD 1200V 28A 130W |
2,808 | 41.29 |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 28 A | 130 W | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|

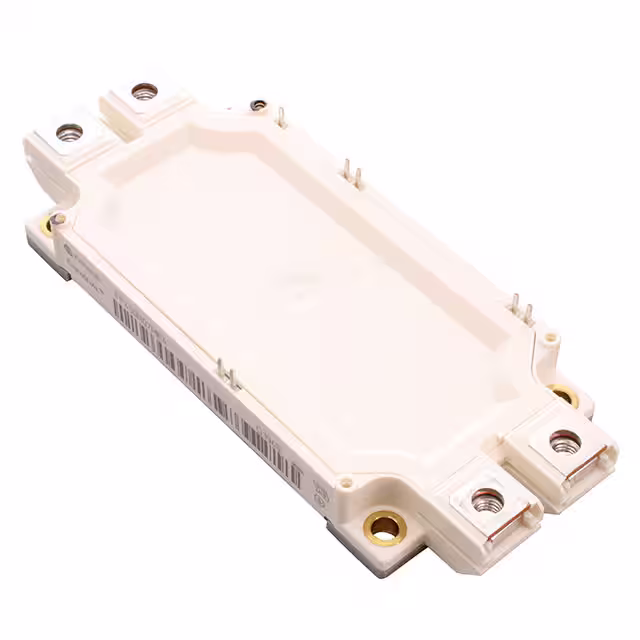

FF450R07ME4BOSA1GBT MODULE 650V 450A |
3,106 | 181.54 |
RFQ |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 650 V | 450 A | 20 mW | 1.95V @ 15V, 450A | 1 mA | 27.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
FZ400R17KE3HOSA1IGBT MOD 1700V 620A 2250W |
3,109 | 186.34 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Single | 1700 V | 620 A | 2250 W | 2.45V @ 15V, 400A | 3 mA | 36 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
|
FZ600R12KS4HOSA1IGBT MOD 1200V 700A 3900W |
2,226 | 210.94 |
RFQ |
Datasheet |
Tray | C | Active | - | Single | 1200 V | 700 A | 3900 W | 3.75V @ 15V, 600A | 5 mA | 39 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|

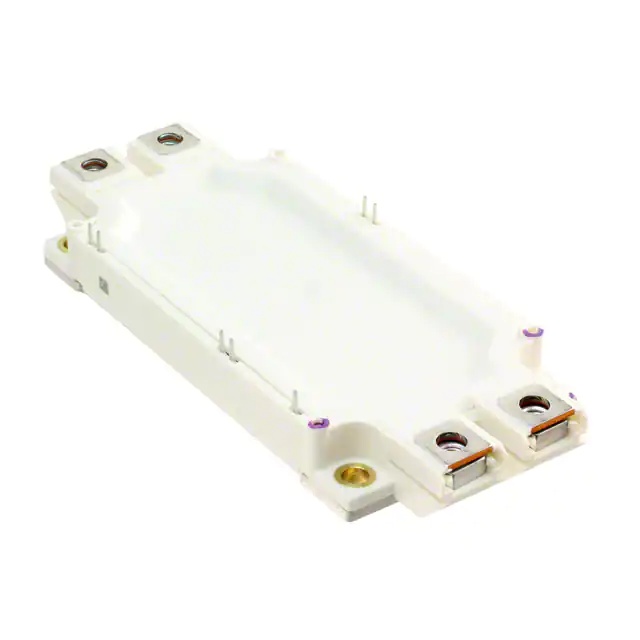

FF450R12ME4BOSA1IGBT MOD 1200V 675A 2250W |
3,804 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | Trench Field Stop | Half Bridge | 1200 V | 675 A | 2250 W | 2.1V @ 15V, 450A | 3 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FF400R17KE4EHOSA1IGBT MODULE 1700V 400A |
2,289 | 325.82 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Half Bridge | 1700 V | 400 A | - | 2.3V @ 15V, 400A | 1 mA | 36 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
FF500R17KE4BOSA1IGBT MODULE 1700V 500A |
3,255 | 338.85 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 500 A | - | 2.3V @ 15V, 500A | 1 mA | 45 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
