| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF600R07ME4BPSA1GBT MODULE 650V 600A |
2,182 | 218.33 |
RFQ |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 650 V | 600 A | 20 mW | 1.95V @ 15V, 600A | 1 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
FF450R12KE4HOSA1IGBT MOD 1200V 520A 2400W |
3,998 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 520 A | 2400 W | 2.15V @ 15V, 450A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FF300R17ME4BOSA1IGBT MOD 1700V 375A 1800W |
3,217 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | C | Active | NPT | Half Bridge | 1700 V | 375 A | 1800 W | 2.3V @ 15V, 300A | 3 mA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
BSM50GP120BOSA1IGBT MODULE 1200V 50A |
3,154 | 257.22 |
RFQ |
Datasheet |
Tray | - | Not For New Designs | - | 3 Phase Inverter | 1200 V | 80 A | - | 2.55V @ 15V, 50A | 500 µA | 3.3 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C | Chassis Mount |
|
FF600R12KE4EBOSA1IGBT MODULE 1200V 600A |
3,237 | 270.92 |
RFQ |
Datasheet |
Bulk,Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
|
FF600R12KE4PBOSA1IGBT MODULE 1200V |
2,486 | 270.92 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FF600R12ME4B72BOSA1IGBT MOD 1200V 1200A 20MW |
2,970 | 296.50 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | Half Bridge | 1200 V | 1200 A | 20 mW | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|

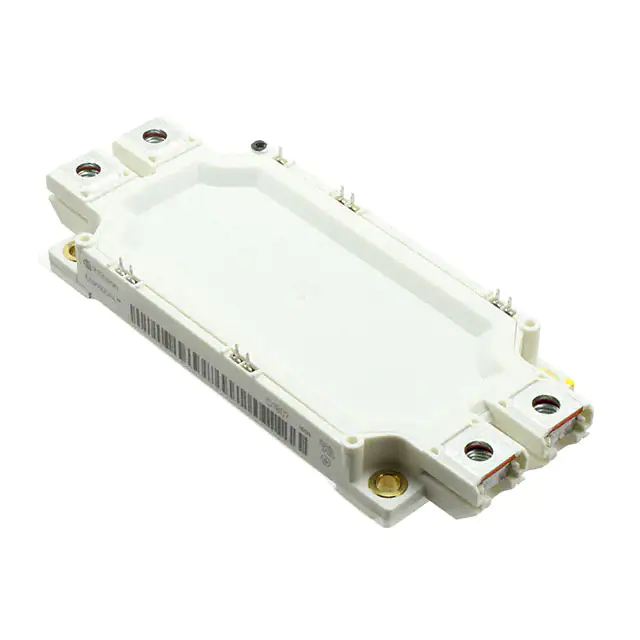

FF600R12ME4CBOSA1IGBT MOD 1200V 1060A 4050W |
2,046 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | - | Not For New Designs | Trench Field Stop | Half Bridge | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
DF1400R12IP4DBOSA1IGBT MOD 1200V 1400A 7700W |
2,754 | 633.13 |
RFQ |
Datasheet |
Bulk,Bulk | PrimePACK™3 | Not For New Designs | Trench Field Stop | Single Chopper | 1200 V | 1400 A | 7700 W | 2.1V @ 15V, 1400A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FD1400R12IP4DBOSA1IGBT MOD 1200V 1400A 7700W |
2,054 | 831.01 |
RFQ |
Datasheet |
Bulk | PrimePACK™3 | Not For New Designs | Trench Field Stop | Single | 1200 V | 1400 A | 7700 W | 2.1V @ 15V, 1400A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FZ1200R17HE4HOSA2IGBT MOD 1700V 1200A 7800W |
2,134 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | IHM-B | Active | - | Single Switch | 1700 V | 1200 A | 7800 W | 2.3V @ 15V, 1200A | 5 mA | 97 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
|
FZ1200R17HP4HOSA2IGBT MOD 1700V 1200A 7800W |
2,506 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | IHM-B | Active | Trench | Single Switch | 1700 V | 1200 A | 7800 W | 2.25V @ 15V, 1200A | 5 mA | 97 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
FS300R17KE4BOSA1IGBT MOD 1700V 375A 1800W |
3,406 | 662.27 |
RFQ |
Datasheet |
Bulk,Tray | EconoPACK™+ | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1700 V | 375 A | 1800 W | 2.3V @ 15V, 300A | 3 mA | 24.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
IFF600B12ME4PB11BPSA1IGBT MOD 1200V 600A 40W |
3,139 | 347.74 |
RFQ |
Datasheet |
Bulk,Tray | EconoDUAL™ 3 | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | 40 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
F3L200R12W2H3B11BPSA1IGBT MOD 1200V 100A 600W |
2,131 | 114.26 |
RFQ |
Datasheet |
Bulk,Tray | EasyPACK™ | Active | - | Three Phase Inverter | 1200 V | 100 A | 600 W | 1.75V @ 15V, 100A | 1 mA | 11.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FF600R12IE4BOSA1IGBT MOD 1200V 600A 3350W |
3,137 | 521.24 |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | 3350 W | 2.05V @ 15V, 600A | 5 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FF900R12IP4BOSA2IGBT MOD 1200V 900A 5100W |
3,291 | 640.90 |
RFQ |
Datasheet |
Tray | PrimePack™2 | Active | Trench Field Stop | Single | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FD200R12KE3HOSA1IGBT MODULE 1200V 1050W |
3,042 | 132.55 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Single Chopper | 1200 V | - | 1050 W | 2.15V @ 15V, 200A | 5 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
|
FF150R12KS4HOSA1IGBT MOD 1200V 225A 1250W |
3,339 | 138.51 |
RFQ |
Datasheet |
Tray | C | Active | - | 2 Independent | 1200 V | 225 A | 1250 W | 3.7V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
|
FF300R07KE4HOSA1IGBT MODULE 650V 940W |
3,570 | 142.36 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | 2 Independent | 650 V | - | 940 W | 1.95V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
