| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

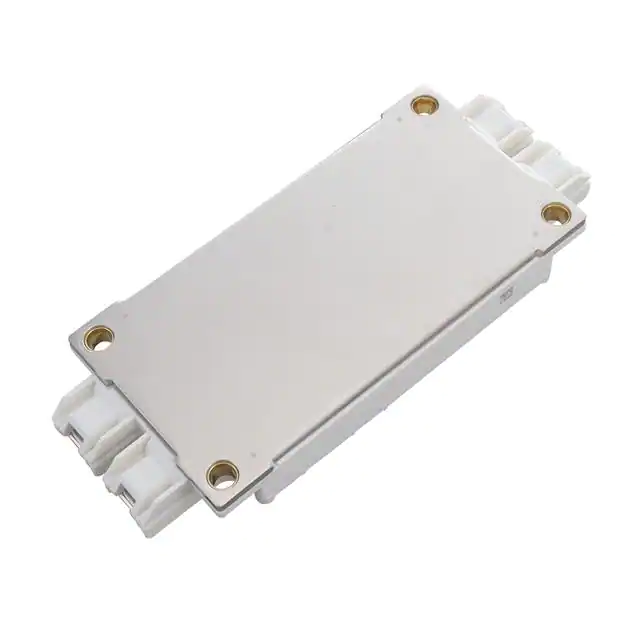

FF300R12ME7B11BPSA1MEDIUM POWER ECONO, AG-ECONOD-74 |
2,331 | 188.56 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1200 V | 300 A | 20 mW | 1.75V @ 15V, 300A | 20 µA | 46 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|

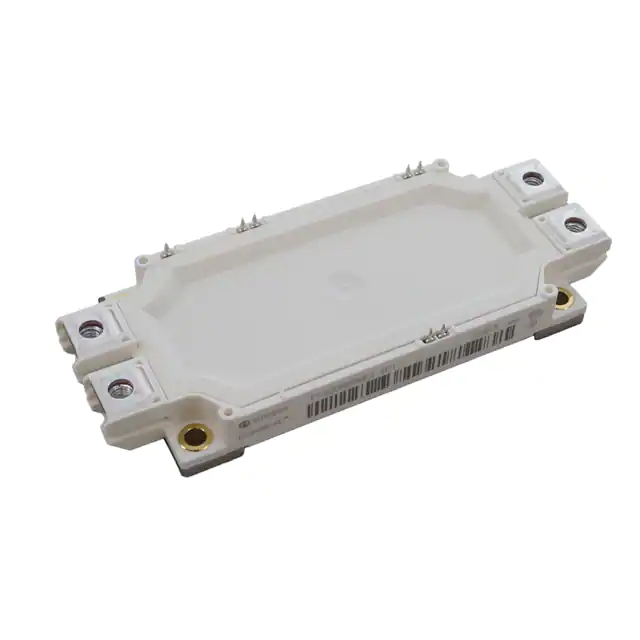

FF600R07ME4B11BPSA1MEDIUM POWER ECONO |
3,036 | 219.26 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 650 V | 700 A | 1800 W | 1.95V @ 15V, 600A | 1 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FF450R12KT4HOSA1IGBT MOD 1200V 580A 2400W |
3,458 | 221.99 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | 2400 W | 2.15V @ 15V, 450A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

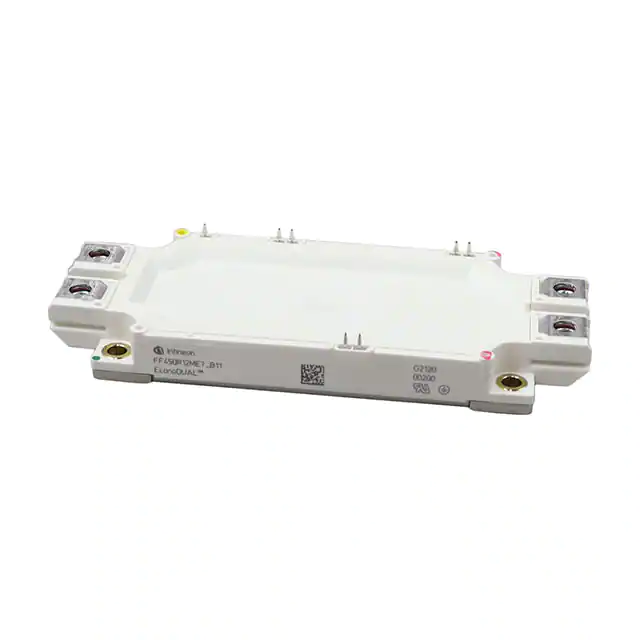

FF450R12ME7B11BPSA1ECONODUAL 3 WITH TRENCHSTOP IGBT |
3,844 | 231.84 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1200 V | 450 A | 20 mW | 1.75V @ 15V, 450A | 40 µA | 69 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
FS150R12KE3BOSA1IGBT MOD 1200V 200A 700W |
2,114 | 273.65 |
RFQ |
Datasheet |
Tray | - | Active | NPT | Three Phase Inverter | 1200 V | 200 A | 700 W | 2.15V @ 15V, 150A | 5 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
FS200R12KT4RBOSA1IGBT MOD 1200V 280A 1000W |
3,037 | 290.43 |
RFQ |
Datasheet |
Tray | - | Active | NPT | Three Phase Inverter | 1200 V | 280 A | 1000 W | 2.15V @ 15V, 200A | 1 mA | 14 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FS380R12A6T4BBPSA1IGBT MODULE 1200V 380A |
2,842 | 882.00 |
RFQ |
Datasheet |
Tray | HybridPACK™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 380 A | 870 W | 1.95V @ 15V, 250A | 1 mA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FF200R12KT4HOSA1IGBT MOD 1200V 320A 1100W |
2,178 | 132.12 |
RFQ |
Datasheet |
Bulk,Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 320 A | 1100 W | 2.15V @ 15V, 200A | 5 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FF450R12KE4EHOSA1IGBT MOD 1200V 520A 2400W |
3,100 | 221.99 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | 2 Independent | 1200 V | 520 A | 2400 W | 2.15V @ 15V, 450A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
FS30R06W1E3BOMA1IGBT MODULE 600V 60A 150W |
3,984 | 36.58 |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 600 V | 60 A | 150 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FS25R12W1T4B11BOMA1IGBT MOD 1200V 45A 205W |
2,091 | 44.26 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 45 A | 205 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FS150R17N3E4B11BOSA1IGBT MOD 1700V 150A 835W |
2,204 | 280.53 |
RFQ |
Datasheet |
Bulk | EconoPACK™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 150 A | 835 W | 2.3V @ 15V, 150A | 1 mA | 13.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
F3L300R12PT4PB26BOSA1IGBT MODULE MED POWER ECONO4-1 |
131 | 240.02 |
RFQ |
Bulk,Tray | EconoPACK™ 4 | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
DF419MR20W3M1HFB11BPSA1MEDIUM POWER |
3,186 | 381.32 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FF600R12ME4PBOSA1IGBT MODULE VCES 600V 600A |
2,512 | 340.18 |
RFQ |
Bulk | EconoDUAL™ 3 | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FF600R12ME4PB11BOSA1IGBT MODULE VCES 600V 600A |
3,001 | 340.18 |
RFQ |
Bulk | EconoDUAL™ 3 | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | |
|
FP25R12W2T4PBPSA1IGBT MOD 1200V 50A 20MW |
2,346 | 57.11 |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 20 mW | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount |
|

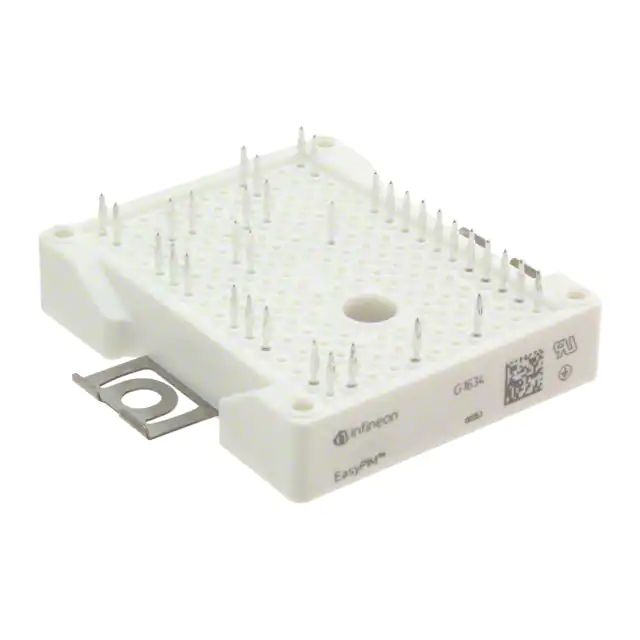

FP35R12W2T4B11BOMA1IGBT MOD 1200V 54A 215W |
2,332 | 60.49 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 54 A | 215 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FP50R06W2E3BOMA1IGBT MODULE 600V 65A 175W |
3,319 | 61.03 |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 600 V | 65 A | 175 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FP35R12W2T4PBPSA1IGBT MOD 1200V 70A 20MW |
3,305 | 62.54 |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 70 A | 20 mW | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount |
