| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

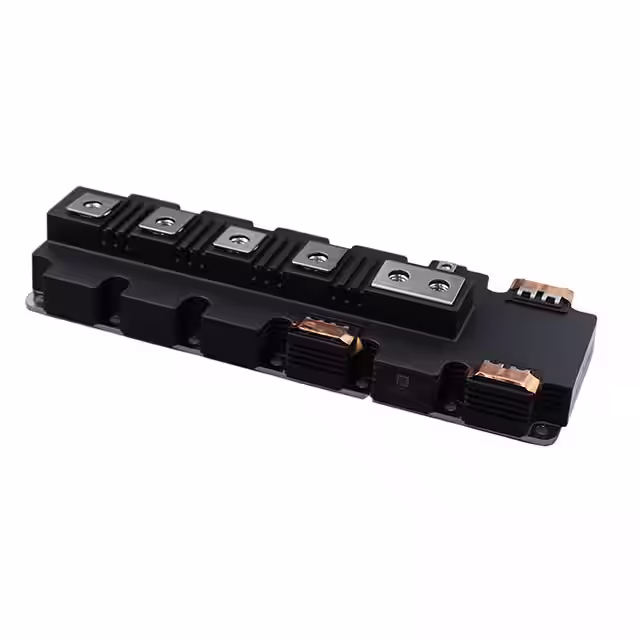

FF1500R17IP5RBPSA1PP IHM I XHP 1 7KV AG-PRIME3-5 |
2,798 | 2011.08 |
RFQ |
Datasheet |
Tray | PrimePACK™3 | Active | Trench Field Stop | 2 Independent | 1700 V | 1500 A | 20 mW | 2.2V @ 15V, 1.5kA | 10 mA | 88 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
FD200R65KF2-KIGBT MODULE |
3,344 | 2035.80 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP10R12W1T7B11BOMA1IGBT MODULE 1200V 10A 20MW EASY |
2,016 | 42.97 |
RFQ |
Datasheet |
Tray | EasyPIM™, TRENCHSTOP™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 10 A | 20 mW | 1.6V @ 15V, 10A | 4.5 µA | 1.89 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 75°C (TJ) | Chassis Mount |
|
FS50R12W1T7B11BOMA1IGBT MODULE LOW POWER EASY |
2,875 | 57.58 |
RFQ |
Datasheet |
Tray | - | Active | - | - | 1200 V | 50 A | - | - | 7.9 µA | 11.1 nF @ 25 V | - | No | -40°C ~ 175°C | Chassis Mount |
|
FP15R12KE3GBOSA1IGBT MOD 1200V 25A 105W |
3,142 | 73.66 |
RFQ |
Datasheet |
Bulk | EconoPIM™ 2 | Discontinued at Mosen | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 105 W | 2.15V @ 15V, 15A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
|
FS50R12KE3BOSA1IGBT MOD 1200V 75A 270W |
3,454 | 99.05 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | NPT | Three Phase Inverter | 1200 V | 75 A | 270 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount |
|

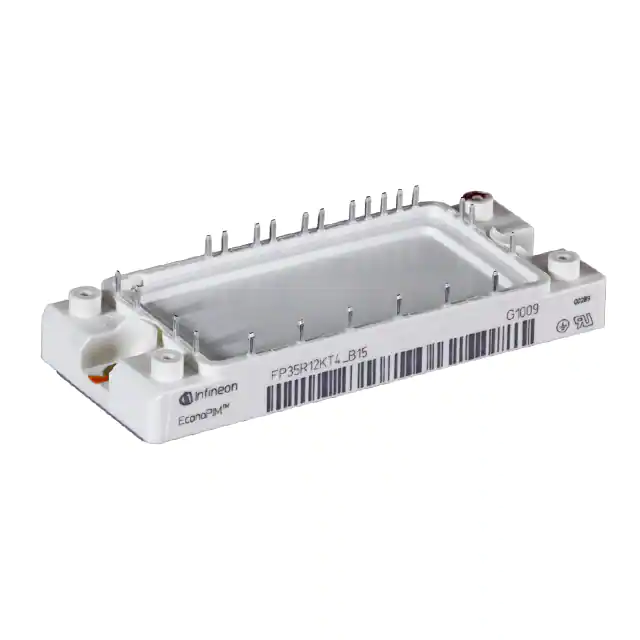

FP35R12KT4B15BOSA1IGBT MOD 1200V 35A 210W |
2,388 | 101.72 |
RFQ |
Datasheet |
Bulk | EconoPIM™ 2 | Discontinued at Mosen | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 210 W | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FP40R12KT3BOSA1IGBT MOD 1200V 55A 210W |
2,766 | 113.02 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | - | Three Phase Inverter | 1200 V | 55 A | 210 W | 2.3V @ 15V, 40A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|

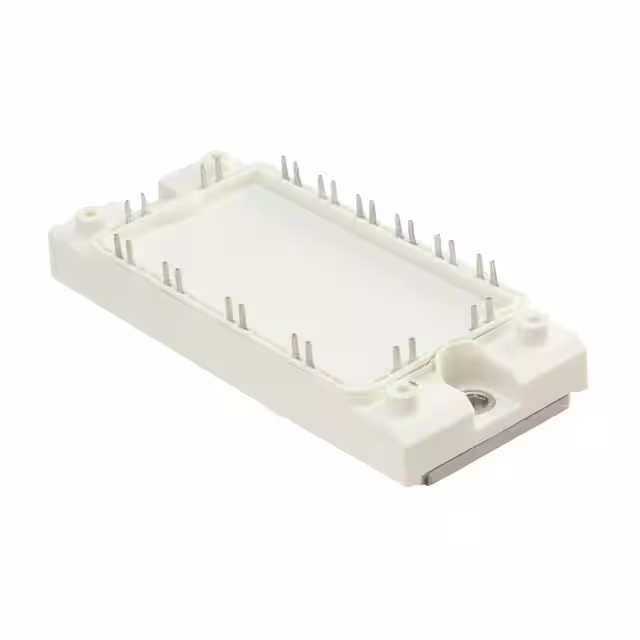

FS75R12KE3BOSA1IGBT MOD 1200V 105A 350W |
2,334 | 136.68 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | NPT | Three Phase Inverter | 1200 V | 105 A | 350 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount |
|
|
FS75R12KT3BOSA1IGBT MOD 1200V 105A 355W |
2,857 | 140.30 |
RFQ |
Datasheet |
Tray | EconoPACK™ 2 | Discontinued at Mosen | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
FF300R07ME4B11BOSA1IGBT MOD 650V 390A 1100W |
2,775 | 147.08 |
RFQ |
Datasheet |
Bulk | EconoDUAL™ 3 | Discontinued at Mosen | Trench Field Stop | 2 Independent | 650 V | 390 A | 1100 W | 1.95V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FP75R12N2T4BOSA1IGBT MODULE LOW POWER ECONO |
3,992 | 188.08 |
RFQ |
Tray | EconoPIM™ 2 | Discontinued at Mosen | - | - | - | - | - | - | - | - | - | - | - | - | |
|
F423MR12W1M1PB11BPSA1MOSFET MODULE 1200V 4PACK |
2,531 | 194.90 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Last Time Buy | Trench | Full Bridge | 1200 V | 50 A | 20 mW | - | - | 3.68 nF @ 800 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|

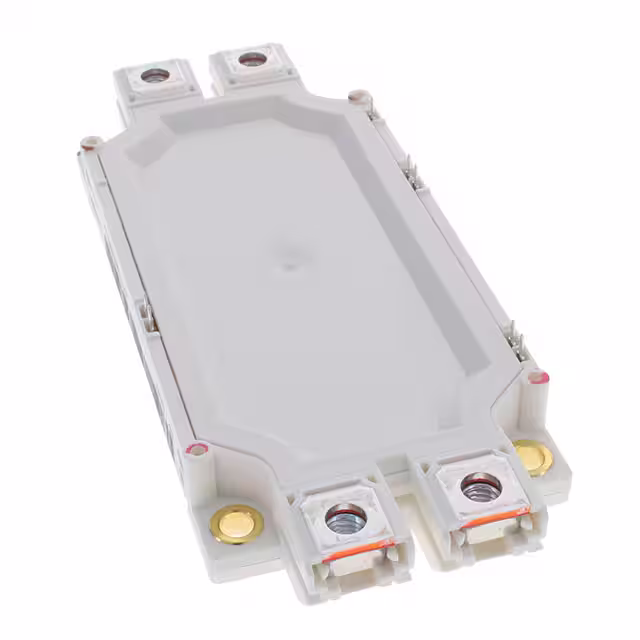

FF450R12ME4B11BPSA1IGBT MOD 1200V 675A 2250W |
2,540 | 233.50 |
RFQ |
Datasheet |
Bulk | EconoDUAL™ 3 | Discontinued at Mosen | Trench Field Stop | 2 Independent | 1200 V | 675 A | 2250 W | 2.1V @ 15V, 450A | 3 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
IFF450B12ME4PB11BPSA1IGBT MOD 1200V 450A 40W |
3,391 | 261.57 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | 40 W | 2.1V @ 15V, 450A | 3 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FF600R12ME4EB11BOSA1IGBT MOD 1200V 995A 4050W |
2,057 | 335.34 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Discontinued at Mosen | Trench Field Stop | Half Bridge | 1200 V | 995 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FF600R12ME4AB11BOSA1IGBT MODULE 1200V 3350W |
3,255 | 391.16 |
RFQ |
Datasheet |
Bulk | EconoDUAL™ 3 | Discontinued at Mosen | Trench Field Stop | 2 Independent | 1200 V | - | 3350 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FR900R12IP4DBPSA1IGBT MODULE PP IHM I XHP 1 7KV |
3,369 | 1757.70 |
RFQ |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Dual Brake Chopper | 1200 V | 900 A | 20 mW | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
F423MR12W1M1B11BOMA1LOW POWER EASY |
3,444 | 154.64 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Obsolete | Trench | Full Bridge | 1200 V | 50 A | 0.2 W | - | - | 3.68 nF @ 800 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FP50R12KS4CBOSA1IGBT MOD 1200V 70A 360W |
2,979 | 223.40 |
RFQ |
Datasheet |
