| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FZ1600R17HP4_B21FZ1600R17 - IGBT MODULE |
3,040 | 982.34 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single Switch | 1700 V | 1600 A | 10500 W | 2.25V @ 15V, 1.6kA | 5 mA | 130 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
DD800S17K6CB2NOSA1DD800S17 - IGBT MODULE |
2,917 | 1657.34 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF400R33KF2CNOSA1FF400R33 - 3300 V, 400 A DUAL IG |
2,146 | 1947.30 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DD1200S33K2CNOSA1DD1200S33 - IGBT MODULES UP TO 3 |
2,101 | 2005.80 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FZ1200R33KF2CS1NOSA1FZ1200R33KF2C - 3300 V, 1200 A S |
2,760 | 2184.93 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
FZ400R12KE4HOSA1IGBT MOD 1200V 400A 2400W |
3,374 | 132.12 |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Single | 1200 V | 400 A | 2400 W | 2.1V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FF300R12KT4HOSA1IGBT MOD 1200V 450A 1600W |
2,654 | 168.07 |
RFQ |
Datasheet |
Bulk,Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | 1600 W | 2.15V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FZ600R17KE4HOSA1IGBT MOD 1700V 1200A 3350W |
3,745 | 222.39 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Single | 1700 V | 1200 A | 3350 W | 2.3V @ 15V, 600A | 1 mA | 49 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
|
FZ600R17KE3HOSA1IGBT MOD 1700V 840A 3150W |
2,762 | 246.52 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Single | 1700 V | 840 A | 3150 W | 2.45V @ 15V, 600A | 3 mA | 54 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
FF600R12KE4BOSA1IGBT MODULE 1200V 600A |
2,574 | 262.71 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
FS300R12KE3BOSA1IGBT MOD 1200V 500A 1450W |
3,211 | 670.28 |
RFQ |
Datasheet |
Tray | - | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 500 A | 1450 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
FZ600R12KE3HOSA1IGBT MOD 1200V 900A 2800W |
2,294 | 186.34 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | Trench Field Stop | Single | 1200 V | 900 A | 2800 W | 2.15V @ 15V, 600A | 5 mA | 42 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
FS25R12W1T4BOMA1IGBT MOD 1200V 45A 205W |
3,789 | 43.04 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 45 A | 205 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FP25R12W2T4B11BOMA1IGBT MOD 1200V 39A 175W |
2,832 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 39 A | 175 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FS50R12W2T4BOMA1IGBT MOD 1200V 83A 335W |
2,486 | 61.12 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 83 A | 335 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
FS75R12W2T7B11BOMA1IGBT MOD 1200V 75A |
3,937 | 71.61 |
RFQ |
Datasheet |
Bulk,Tray | EasyPACK™ | Active | Trench Field Stop | Full Bridge | 1200 V | 65 A | 20 mW | 1.55V @ 15V, 75A (Typ) | 13 µA | 15.1 nF @ 25 V | Standard | No | -40°C ~ 175°C | Chassis Mount |
|
FF150R12RT4HOSA1IGBT MOD 1200V 150A 790W |
2,228 | 80.92 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 150 A | 790 W | 2.15V @ 15V, 150A | 1 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Surface Mount |
|
FF23MR12W1M1PB11BPSA1LOW POWER EASY |
3,327 | 115.10 |
RFQ |
Datasheet |
Tray | CoolSiC™+ | Last Time Buy | Trench | 2 Independent | 1200 V | 50 A | 0.2 W | - | - | 3.68 nF @ 800 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|

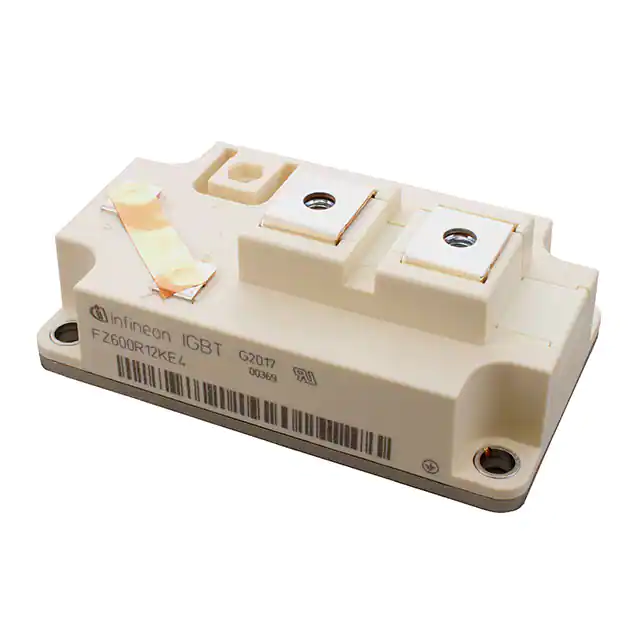

FZ600R12KE4HOSA1IGBT MOD 1200V 600A 3000W |
3,952 | 168.07 |
RFQ |
Datasheet |
Tray | C | Active | - | Single | 1200 V | 600 A | 3000 W | 2.1V @ 15V, 600A | 5 mA | 1.7 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
|
FF400R06KE3HOSA1IGBT MOD 600V 500A 1250W |
3,778 | 169.12 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Half Bridge | 600 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 5 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
