| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPN3300ANH,LQMOSFET N-CH 100V 9.4A 8TSON |
20,680 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 9.4A (Tc) | 10V | 33mOhm @ 4.7A, 10V | 4V @ 100µA | 11 nC @ 10 V | ±20V | 880 pF @ 50 V | - | 700mW (Ta), 27W (Tc) | 150°C (TJ) | Surface Mount |
|
TPH2R003PL,LQMOSFET N-CH 30V 100A 8SOP |
9,782 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 4.5V, 10V | 2mOhm @ 50A, 10V | 2.1V @ 500µA | 86 nC @ 10 V | ±20V | 6410 pF @ 15 V | - | 830mW (Ta), 116W (Tc) | 175°C | Surface Mount |
|
|
TPH5900CNH,L1QMOSFET N-CH 150V 9A 8SOP |
9,796 | 1.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 9A (Ta) | 10V | 59mOhm @ 4.5A, 10V | 4V @ 200µA | 7 nC @ 10 V | ±20V | 600 pF @ 75 V | - | 1.6W (Ta), 42W (Tc) | 150°C (TJ) | Surface Mount |
|
TK380P60Y,RQMOSFET N-CHANNEL 600V 9.7A DPAK |
7,922 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.7A (Tc) | 10V | 380mOhm @ 4.9A, 10V | 4V @ 360µA | 20 nC @ 10 V | ±30V | 590 pF @ 300 V | - | 30W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TK5P60W,RVQMOSFET N CH 600V 5.4A DPAK |
11,302 | 1.77 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.4A (Ta) | 10V | 900mOhm @ 2.7A, 10V | 3.7V @ 270µA | 10.5 nC @ 10 V | ±30V | 380 pF @ 300 V | Super Junction | 60W (Tc) | 150°C (TJ) | Surface Mount | |
|
|
TPH1R306P1,L1QMOSFET N-CH 60V 100A 8SOP |
4,411 | 2.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 4.5V, 10V | 1.28mOhm @ 50A, 10V | 2.5V @ 1mA | 91 nC @ 10 V | ±20V | 8100 pF @ 30 V | - | 960mW (Ta), 170W (Tc) | 175°C | Surface Mount |
|
|
TK10P60W,RVQMOSFET N CH 600V 9.7A DPAK |
11,087 | 2.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.7A (Ta) | 10V | 430mOhm @ 4.9A, 10V | 3.7V @ 500µA | 20 nC @ 10 V | ±30V | 700 pF @ 300 V | Super Junction | 80W (Tc) | 150°C (TJ) | Surface Mount |
|

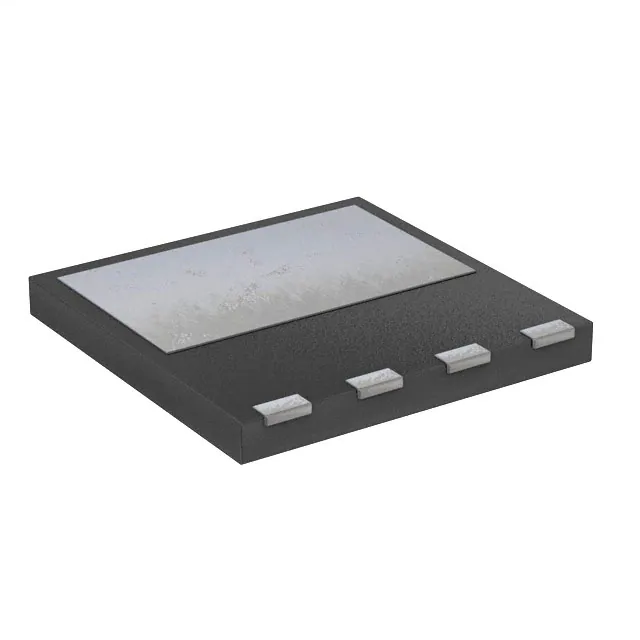

TK099V65Z,LQMOSFET N-CH 650V 30A 5DFN |
3,750 | 5.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 99mOhm @ 15A, 10V | 4V @ 1.27mA | 47 nC @ 10 V | ±30V | 2780 pF @ 300 V | - | 230W (Tc) | 150°C | Surface Mount |
|
TK065U65Z,RQDTMOS VI TOLL PD=270W F=1MHZ |
5,393 | 6.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 38A (Ta) | 10V | 65mOhm @ 19A, 10V | 4V @ 1.69mA | 62 nC @ 10 V | ±30V | 3650 pF @ 300 V | - | 270W (Tc) | 150°C | Surface Mount |
|

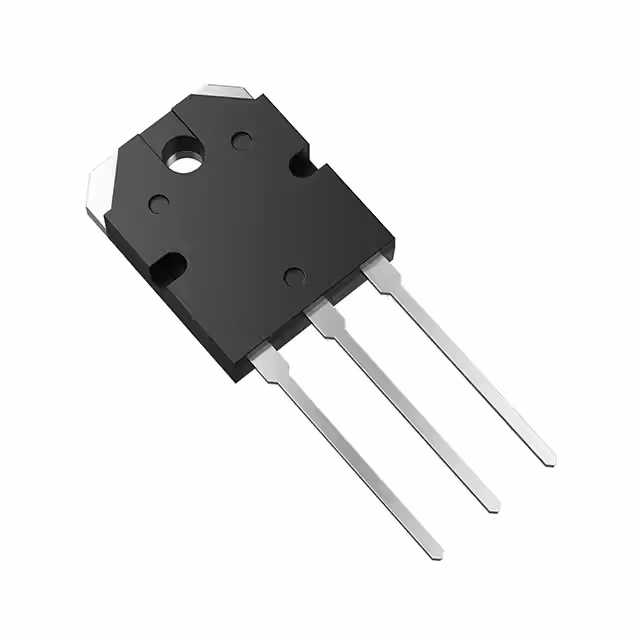

TW070J120B,S1QSICFET N-CH 1200V 36A TO3P |
125 | 33.97 |
RFQ |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 36A (Tc) | 20V | 90mOhm @ 18A, 20V | 5.8V @ 20mA | 67 nC @ 20 V | ±25V, -10V | 1680 pF @ 800 V | Standard | 272W (Tc) | -55°C ~ 175°C | Through Hole | |
|
SSM3K15ACT,L3FMOSFET N-CH 30V 100MA CST3 |
10,779 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIII | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 3.6Ohm @ 10mA, 4V | 1.5V @ 100µA | - | ±20V | 13.5 pF @ 3 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3J65CTC,L3FMOSFET P-CH 20V 700MA CST3C |
20,000 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVII | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 700mA (Ta) | 1.2V, 4.5V | 500mOhm @ 500mA, 4.5V | 1V @ 1mA | - | ±10V | 48 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
SSM6J424TU,LFMOSFET P-CH 20V 6A UF6 |
5,519 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Ta) | 1.5V, 4.5V | 22.5mOhm @ 6A, 4.5V | 1V @ 1mA | 23.1 nC @ 4.5 V | +6V, -8V | 1650 pF @ 10 V | - | 1W (Ta) | 150°C | Surface Mount |
|

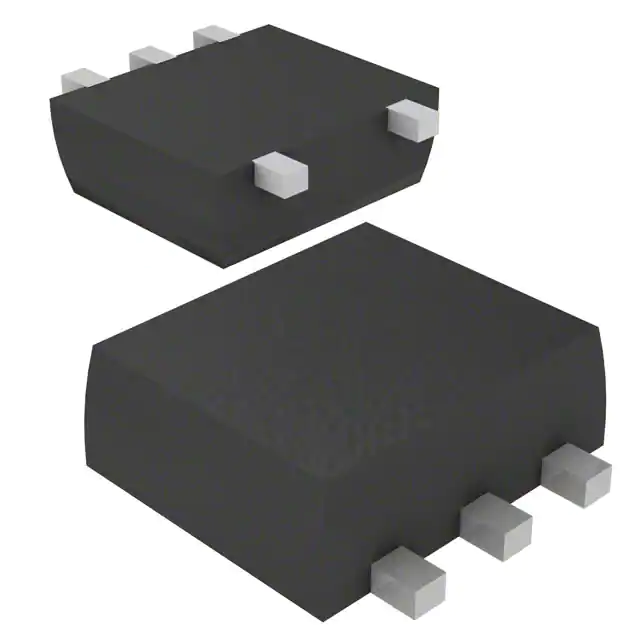

SSM5H16TU,LFMOSFET N-CH 30V 1.9A UFV |
5,400 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIII | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.9A (Ta) | 1.8V, 4V | 133mOhm @ 1A, 4V | 1V @ 1mA | 1.9 nC @ 4 V | ±12V | 123 pF @ 15 V | Schottky Diode (Isolated) | 500mW (Ta) | 150°C | Surface Mount |
|
|
SSM6K404TU,LFMOSFET N-CH 20V 3A UF6 |
5,837 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.5V, 4V | 55mOhm @ 2A, 4V | 1V @ 1mA | 5.9 nC @ 4 V | ±10V | 400 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
SSM3K131TU,LFMOSFET N-CH 30V 6A UFM |
10,495 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 27.6mOhm @ 4A, 10V | 2.5V @ 1mA | 10.1 nC @ 10 V | ±20V | 450 pF @ 15 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
|
SSM6K406TU,LFMOSFET N-CH 30V 4.4A UF6 |
3,000 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.4A (Ta) | 4.5V, 10V | 25mOhm @ 2A, 10V | 2.5V @ 1mA | 12.4 nC @ 10 V | ±20V | 490 pF @ 15 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
2SK2009TE85LFMOSFET N-CH 30V 200MA SC59-3 |
5,896 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 200mA (Ta) | 2.5V | 2Ohm @ 50MA, 2.5V | 1.5V @ 100µA | - | ±20V | 70 pF @ 3 V | - | 200mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
TPH4R803PL,LQMOSFET N-CH 30V 48A 8SOP |
3,000 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Tc) | 4.5V, 10V | 4.8mOhm @ 24A, 10V | 2.1V @ 200µA | 22 nC @ 10 V | ±20V | 1975 pF @ 15 V | - | 830mW (Ta), 69W (Tc) | 175°C | Surface Mount |
|
|
TK8P60W5,RVQMOSFET N-CH 600V 8A DPAK |
15,998 | 1.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 8A (Ta) | 10V | 560mOhm @ 4A, 10V | 4.5V @ 400µA | 22 nC @ 10 V | ±30V | 590 pF @ 300 V | - | 80W (Tc) | 150°C (TJ) | Surface Mount |
