| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

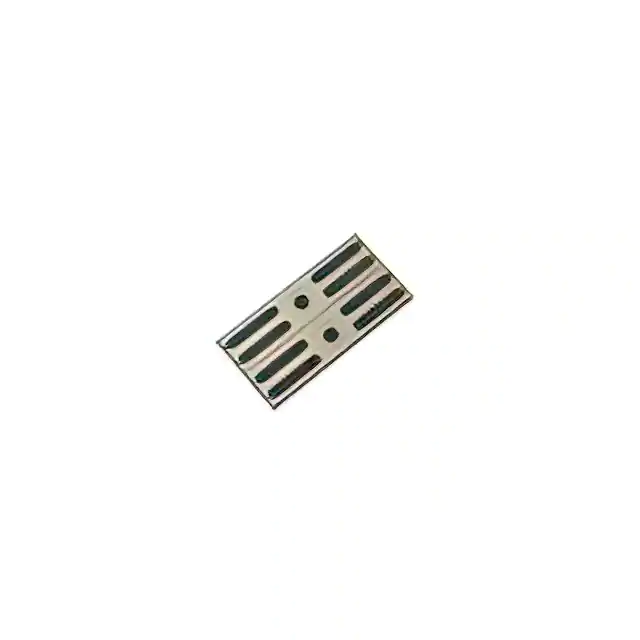

SSM10N954L,EFFCOMMON-DRAIN NCH MOSFET, 12V, 13 |
10,000 | 1.41 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 13.5A (Ta) | 2.5V, 4.5V | 2.75mOhm @ 6A, 4.5V | 1.4V @ 1.11mA | 25 nC @ 4 V | ±8V | - | - | 800mW (Ta) | 150°C | Surface Mount | |
|

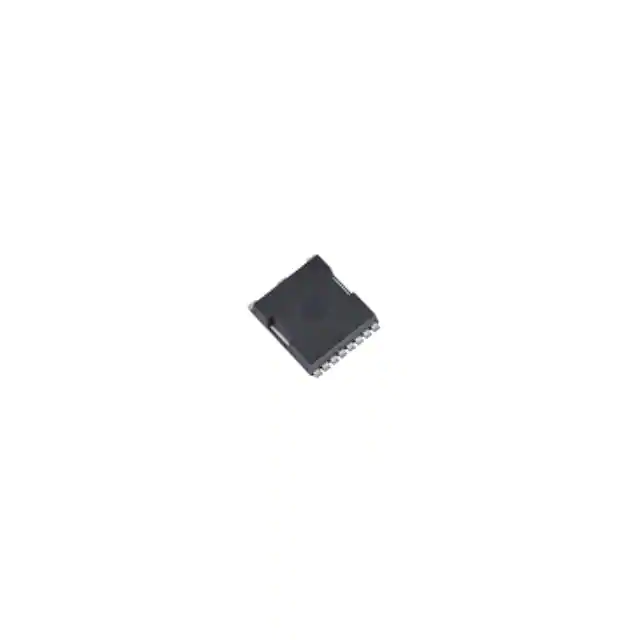

TK190U65Z,RQDTMOS VI TOLL PD=130W F=1MHZ |
3,313 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Ta) | 10V | 190mOhm @ 7.5A, 10V | 4V @ 610µA | 25 nC @ 10 V | ±30V | 1370 pF @ 300 V | - | 130W (Tc) | 150°C | Surface Mount |
|
|
TK155U65Z,RQDTMOS VI TOLL PD=150W F=1MHZ |
3,970 | 3.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Ta) | 10V | 155mOhm @ 9A, 10V | 4V @ 730µA | 29 nC @ 10 V | ±30V | 1635 pF @ 300 V | - | 150W (Tc) | 150°C | Surface Mount |
|
TK2R4A08QM,S4XUMOS10 TO-220SIS 80V 2.4MOHM |
137 | 3.00 |
RFQ |
Datasheet |
Tube | U-MOSX-H | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 6V, 10V | 2.44mOhm @ 50A, 10V | 3.5V @ 2.2mA | 179 nC @ 10 V | ±20V | 13000 pF @ 40 V | - | 47W (Tc) | 175°C | Through Hole |
|
|
TK110U65Z,RQDTMOS VI TOLL PD=190W F=1MHZ |
3,820 | 4.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Ta) | 10V | 110mOhm @ 12A, 10V | 4V @ 1.02mA | 40 nC @ 10 V | ±30V | 2250 pF @ 300 V | - | 190W (Tc) | 150°C | Surface Mount |
|
|
TK090U65Z,RQDTMOS VI TOLL PD=230W F=1MHZ |
3,983 | 5.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 90mOhm @ 15A, 10V | 4V @ 1.27mA | 47 nC @ 10 V | ±30V | 2780 pF @ 300 V | - | 230W (Tc) | 150°C | Surface Mount |
|

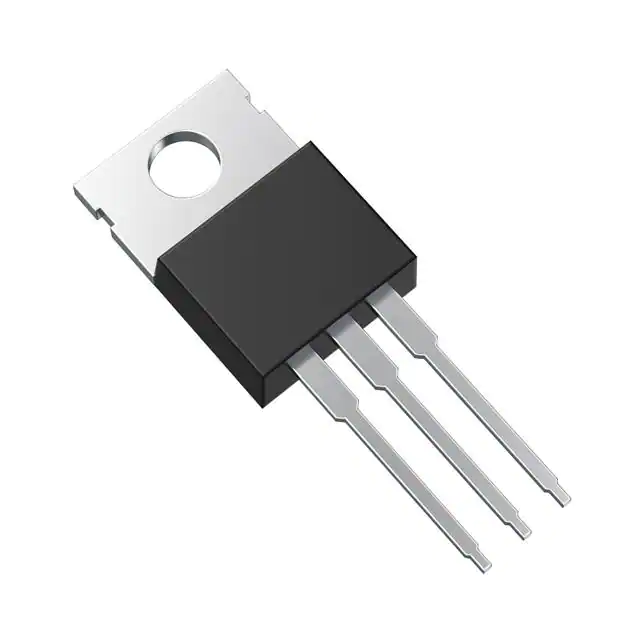

TK155E65Z,S1X650V DTMOS VI TO-220 155MOHM |
196 | 3.41 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Ta) | 10V | 155mOhm @ 9A, 10V | 4V @ 730µA | 29 nC @ 10 V | ±30V | 1635 pF @ 300 V | - | 150W (Tc) | 150°C | Through Hole |
|
|
TK090E65Z,S1X650V DTMOS VI TO-220 90MOHM |
200 | 5.36 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 90mOhm @ 15A, 10V | 4V @ 1.27mA | 47 nC @ 10 V | ±30V | 2780 pF @ 300 V | - | 230W (Tc) | 150°C | Through Hole |
|

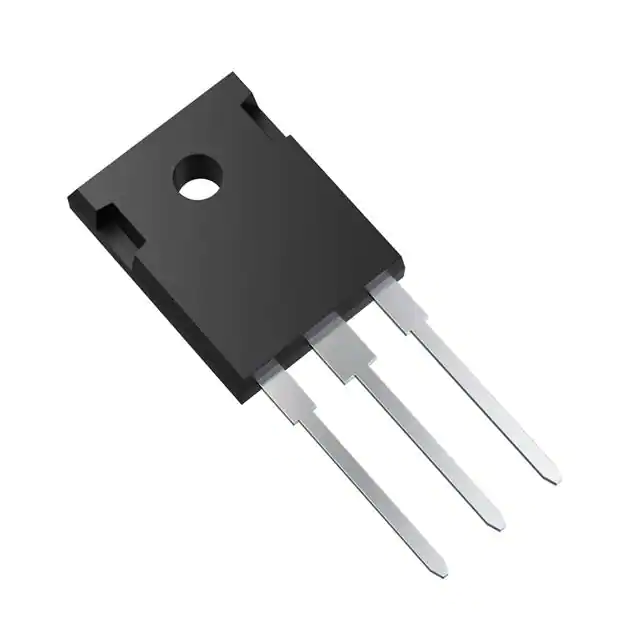

TW107N65C,S1FG3 650V SIC-MOSFET TO-247 107MO |
125 | 10.08 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 650 V | 20A (Tc) | 18V | 145mOhm @ 10A, 18V | 5V @ 1.2mA | 21 nC @ 18 V | +25V, -10V | 600 pF @ 400 V | - | 76W (Tc) | 175°C | Through Hole |
|
|
TW140N120C,S1FG3 1200V SIC-MOSFET TO-247 140M |
105 | 11.91 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 1200 V | 20A (Tc) | 18V | 182mOhm @ 10A, 18V | 5V @ 1mA | 24 nC @ 18 V | +25V, -10V | 691 pF @ 800 V | - | 107W (Tc) | 175°C | Through Hole |
|
|
TW083N65C,S1FG3 650V SIC-MOSFET TO-247 83MOH |
175 | 13.40 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 650 V | 30A (Tc) | 18V | 113mOhm @ 15A, 18V | 5V @ 600µA | 28 nC @ 18 V | +25V, -10V | 873 pF @ 400 V | - | 111W (Tc) | 175°C | Through Hole |
|
|
TW060N120C,S1FG3 1200V SIC-MOSFET TO-247 60MO |
165 | 20.79 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 1200 V | 36A (Tc) | 18V | 78mOhm @ 18A, 18V | 5V @ 4.2mA | 46 nC @ 18 V | +25V, -10V | 1530 pF @ 800 V | - | 170W (Tc) | 175°C | Through Hole |
|
|
TW027N65C,S1FG3 650V SIC-MOSFET TO-247 27MOH |
180 | 23.78 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 650 V | 58A (Tc) | 18V | 37mOhm @ 29A, 18V | 5V @ 3mA | 65 nC @ 18 V | +25V, -10V | 2288 pF @ 400 V | - | 156W (Tc) | 175°C | Through Hole |
|
|
TW045N120C,S1FG3 1200V SIC-MOSFET TO-247 45MO |
150 | 24.84 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 1200 V | 40A (Tc) | 18V | 59mOhm @ 20A, 18V | 5V @ 6.7mA | 57 nC @ 18 V | +25V, -10V | 1969 pF @ 800 V | - | 182W (Tc) | 175°C | Through Hole |
|
|
TW030N120C,S1FG3 1200V SIC-MOSFET TO-247 30MO |
175 | 36.09 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 1200 V | 60A (Tc) | 18V | 40mOhm @ 30A, 18V | 5V @ 13mA | 82 nC @ 18 V | +25V, -10V | 2925 pF @ 800 V | - | 249W (Tc) | 175°C | Through Hole |
|
|
TW015N65C,S1FG3 650V SIC-MOSFET TO-247 15MOH |
165 | 58.09 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 650 V | 100A (Tc) | 18V | 21mOhm @ 50A, 18V | 5V @ 11.7mA | 128 nC @ 18 V | +25V, -10V | 4850 pF @ 400 V | - | 342W (Tc) | 175°C | Through Hole |
|
|
TW015N120C,S1FG3 1200V SIC-MOSFET TO-247 15MO |
160 | 71.28 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 1200 V | 100A (Tc) | 18V | 20mOhm @ 50A, 18V | 5V @ 11.7mA | 158 nC @ 18 V | +25V, -10V | 6000 pF @ 800 V | - | 431W (Tc) | 175°C | Through Hole |
|
2SK1828TE85LFMOSFET N-CH 20V 50MA SC59 |
12,026 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 50mA (Ta) | 2.5V | 40Ohm @ 10mA, 2.5V | 1.5V @ 100µA | - | 10V | 5.5 pF @ 3 V | - | 200mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM6K208FE,LFMOSFET N-CH 30V 1.9A ES6 |
7,940 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.9A (Ta) | 1.8V, 4V | 133mOhm @ 1A, 4V | 1V @ 1mA | 1.9 nC @ 4 V | ±12V | 123 pF @ 15 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
SSM3K7002CFU,LFMOSFET N-CH 60V 170MA USM |
2,462 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVII-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 170mA (Ta) | 4.5V, 10V | 3.9Ohm @ 100mA, 10V | 2.1V @ 250µA | 0.35 nC @ 4.5 V | ±20V | 17 pF @ 10 V | - | 150mW (Ta) | 150°C (TJ) | Surface Mount |
