| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

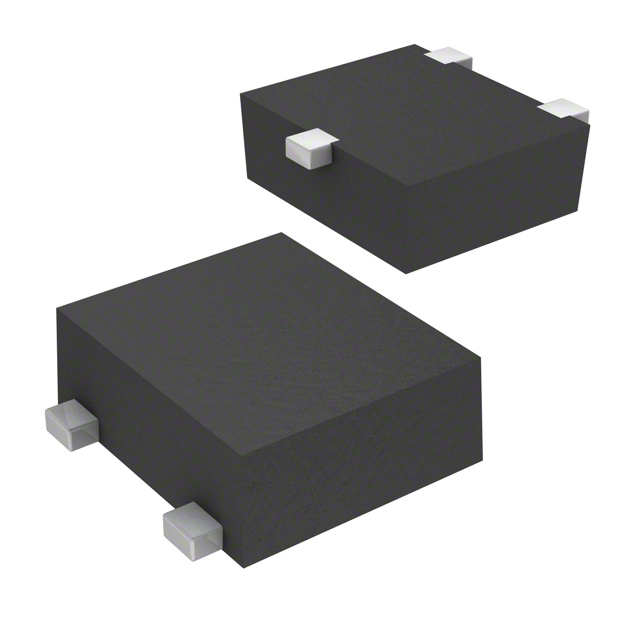

SSM3J145TU,LFMOSFET P-CH 20V 3A UFM |
14,281 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.5V, 4.5V | 103mOhm @ 1A, 4.5V | 1V @ 1mA | 4.6 nC @ 4.5 V | +6V, -8V | 270 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
SSM3J375F,LXHFAECQ MOSFET PCH -20V -2A SOT346 |
21,258 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 1.5V, 4.5V | 150mOhm @ 1A, 4.5V | 1V @ 1mA | 4.6 nC @ 4.5 V | +6V, -8V | 270 pF @ 10 V | - | 600mW (Ta) | 150°C | Surface Mount |
|
SSM6J214FE(TE85L,FMOSFET P-CH 30V 3.6A ES6 |
25,896 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 1.8V, 10V | 50mOhm @ 3A, 10V | 1.2V @ 1mA | 7.9 nC @ 4.5 V | ±12V | 560 pF @ 15 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
SSM3K318R,LFMOSFET N-CH 60V 2.5A SOT23F |
3,085 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.5A (Ta) | 4.5V, 10V | 107mOhm @ 2A, 10V | 2.8V @ 1mA | 7 nC @ 10 V | ±20V | 235 pF @ 30 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|

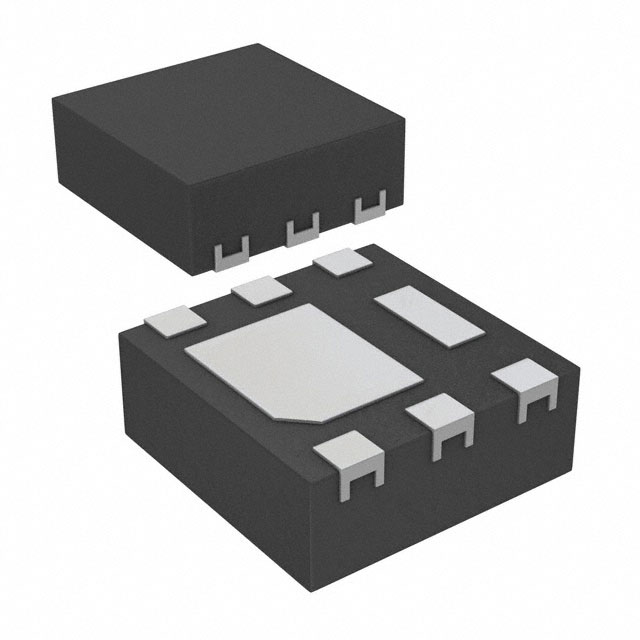

SSM6J512NU,LFMOSFET P-CH 12V 10A 6UDFNB |
49,043 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVII | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 10A (Ta) | 1.8V, 8V | 16.2mOhm @ 4A, 8V | 1V @ 1mA | 19.5 nC @ 4.5 V | ±10V | 1400 pF @ 6 V | - | 1.25W (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3K123TU,LFMOSFET N-CH 20V 4.2A UFM |
21,568 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIII | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Ta) | 1.5V, 4V | 28mOhm @ 3A, 4V | 1V @ 1mA | 13.6 nC @ 4 V | ±10V | 1010 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3J378R,LXHFAECQ MOSFET PCH -20V -6A SOT23F |
13,541 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Ta) | 1.5V, 4.5V | 29.8mOhm @ 3A, 4.5V | 1V @ 1mA | 12.8 nC @ 4.5 V | +6V, -8V | 840 pF @ 10 V | - | 1W (Ta) | 150°C | Surface Mount |
|
|
SSM3K2615TU,LFMOSFET N-CH 60V 2A UFM |
11,193 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSV | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Ta) | 3.3V, 10V | 300mOhm @ 1A, 10V | 2V @ 1mA | 6 nC @ 10 V | ±20V | 150 pF @ 10 V | - | 800mW (Ta) | 150°C | Surface Mount |
|
2SK209-BL(TE85L,F)TRANS SJT N-CH 10MA SC59 |
2,710 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 10mA (Ta) | - | - | - | - | - | 13 pF @ 10 V | - | 150mW (Ta) | -55°C ~ 125°C (TA) | Surface Mount |
|
|
SSM3K361TU,LFMOSFET N-CH 100V 3.5A UFM |
5,613 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.5A (Ta) | 4.5V, 10V | 69mOhm @ 2A, 10V | 2.5V @ 100µA | 3.2 nC @ 4.5 V | ±20V | 430 pF @ 15 V | - | 1W (Ta) | 175°C | Surface Mount |
|
|
2SK209-GR(TE85L,F)TRANS SJT N-CH 10MA SC59 |
14,677 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | - | 10mA (Ta) | - | - | - | - | - | 13 pF @ 10 V | - | 150mW (Ta) | -55°C ~ 125°C (TA) | Surface Mount |
|
|
SSM6K514NU,LFMOSFET N-CH 40V 12A 6UDFNB |
5,240 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Ta) | 4.5V, 10V | 11.6mOhm @ 4A, 10V | 2.4V @ 100µA | 7.5 nC @ 4.5 V | ±20V | 1110 pF @ 20 V | - | 2.5W (Ta) | 150°C | Surface Mount |
|
SSM6K202FE,LFMOSFET N-CH 30V 2.3A ES6 |
15,994 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 2.3A (Ta) | 1.8V, 4V | 85mOhm @ 1.5A, 4V | 1V @ 1mA | - | ±12V | 270 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SSM3J132TU,LFMOSFET P-CH 12V 5.4A UFM |
15,645 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 5.4A (Ta) | 1.2V, 4.5V | 17mOhm @ 5A, 4.5V | 1V @ 1mA | 33 nC @ 4.5 V | ±6V | 2700 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount |
|

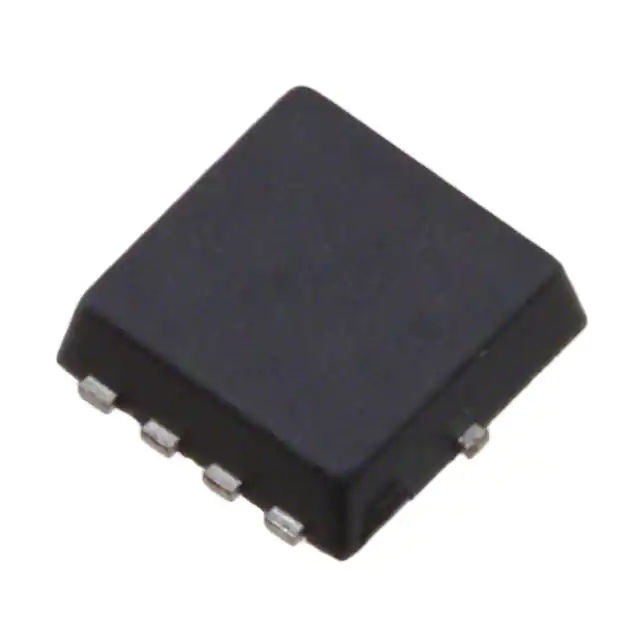

TPN19008QM,LQMOSFET N-CH 80V 34A 8TSON |
8,292 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSX-H | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 34A (Tc) | 6V, 10V | 19mOhm @ 17A, 10V | 3.5V @ 200µA | 16 nC @ 10 V | ±20V | 1400 pF @ 40 V | - | 630mW (Ta), 57W (Tc) | 175°C | Surface Mount |
|
|
TPN5R203PL,LQMOSFET N-CH 30V 38A 8TSON |
4,070 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 38A (Tc) | 4.5V, 10V | 5.2mOhm @ 19A, 10V | 2.1V @ 200µA | 22 nC @ 10 V | ±20V | 1975 pF @ 15 V | - | 610mW (Ta), 61W (Tc) | 175°C | Surface Mount |
|
TPH7R204PL,LQMOSFET N-CH 40V 48A 8SOP |
17,290 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 48A (Tc) | 4.5V, 10V | 9.7mOhm @ 15A, 4.5V | 2.4V @ 200µA | 24 nC @ 10 V | ±20V | 2040 pF @ 20 V | - | 69W (Tc) | 175°C (TJ) | Surface Mount |
|
|
TPH9R506PL,LQMOSFET N-CH 60V 34A 8SOP |
9,279 | 0.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 34A (Tc) | 4.5V, 10V | 9.5mOhm @ 17A, 10V | 2.5V @ 200µA | 21 nC @ 10 V | ±20V | 1910 pF @ 30 V | - | 830mW (Ta), 81W (Tc) | 175°C | Surface Mount |
|
|

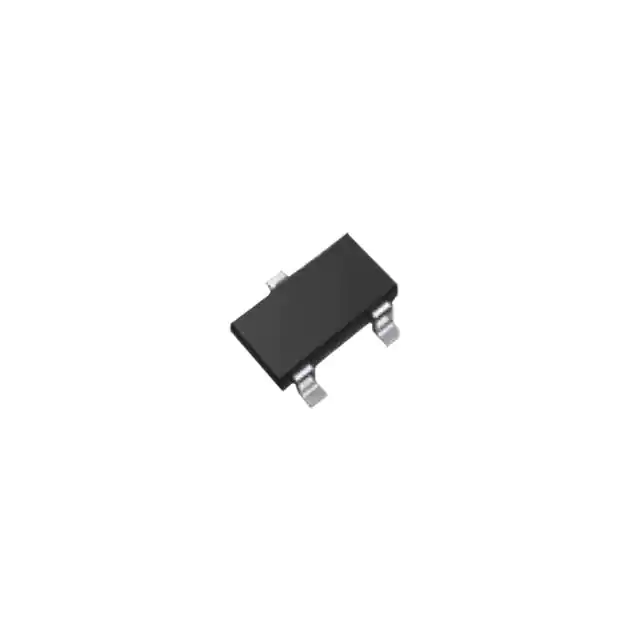

2SJ168TE85LFMOSFET P-CH 60V 200MA SC59 |
17,707 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 10V | 2Ohm @ 50mA, 10V | - | - | ±20V | 85 pF @ 10 V | - | 200mW (Ta) | 150°C (TJ) | Surface Mount |
|
TPN11006NL,LQMOSFET N-CH 60V 17A 8TSON |
3,309 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 17A (Tc) | 4.5V, 10V | 11.4mOhm @ 8.5A, 10V | 2.5V @ 200µA | 23 nC @ 10 V | ±20V | 2000 pF @ 30 V | - | 700mW (Ta), 30W (Tc) | 150°C (TJ) | Surface Mount |
