| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPH2R306NH1,LQUMOS9 SOP-ADV(N) PD=170W F=1MHZ |
4,850 | 1.67 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 136A (Tc) | 6.5V, 10V | 2.3mOhm @ 50A, 10V | 4V @ 1mA | 72 nC @ 10 V | ±20V | 6100 pF @ 30 V | - | 800mW (Ta), 170W (Tc) | 150°C | Surface Mount | |
|
TPH2R306NH,L1QMOSFET N-CH 60V 60A 8SOP |
1,464 | 1.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 6.5V, 10V | 2.3mOhm @ 30A, 10V | 4V @ 1mA | 72 nC @ 10 V | ±20V | 6100 pF @ 30 V | - | 1.6W (Ta), 78W (Tc) | 150°C (TJ) | Surface Mount |
|
TK125V65Z,LQMOSFET N-CH 650V 24A 5DFN |
7,486 | 4.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Ta) | 10V | 125mOhm @ 12A, 10V | 4V @ 1.02mA | 40 nC @ 10 V | ±30V | 2250 pF @ 300 V | - | 190W (Tc) | 150°C | Surface Mount |
|
|
TPH2R408QM,L1QMOSFET N-CH 80V 120A 8SOP |
7,840 | 1.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSX-H | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 6V, 10V | 2.43mOhm @ 50A, 10V | 3.5V @ 1mA | 87 nC @ 10 V | ±20V | 8300 pF @ 40 V | - | 3W (Ta), 210W (Tc) | 175°C | Surface Mount |
|
XPW6R30ANB,L1XHQMOSFET N-CH 100V 45A 8DSOP |
3,022 | 2.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 45A (Ta) | 6V, 10V | 6.3mOhm @ 22.5A, 10V | 3.5V @ 500µA | 52 nC @ 10 V | ±20V | 3240 pF @ 10 V | - | 960mW (Ta), 132W (Tc) | 175°C | Surface Mount |
|

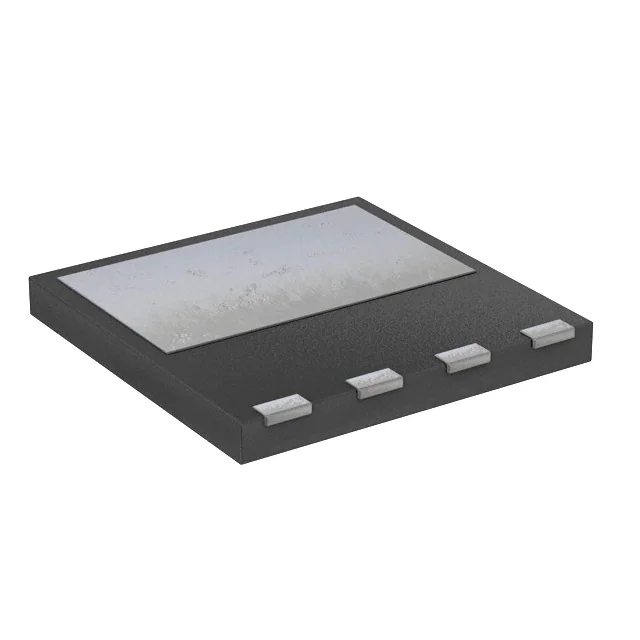

TK20V60W5,LVQMOSFET N-CH 600V 20A 4DFN |
424 | 2.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Ta) | 10V | 190mOhm @ 10A, 10V | 4.5V @ 1mA | 55 nC @ 10 V | ±30V | 1800 pF @ 300 V | - | 156W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TK170V65Z,LQMOSFET N-CH 650V 18A 5DFN |
2,470 | 3.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Ta) | 10V | 170mOhm @ 9A, 10V | 4V @ 730µA | 29 nC @ 10 V | ±30V | 1635 pF @ 300 V | - | 150W (Tc) | 150°C | Surface Mount |
|
|
TK31V60W5,LVQMOSFET N-CH 600V 30.8A 4DFN |
1,660 | 4.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30.8A (Ta) | 10V | 109mOhm @ 15.4A, 10V | 4.5V @ 1.5mA | 105 nC @ 10 V | ±30V | 3000 pF @ 300 V | - | 240W (Tc) | 150°C (TA) | Surface Mount |
|

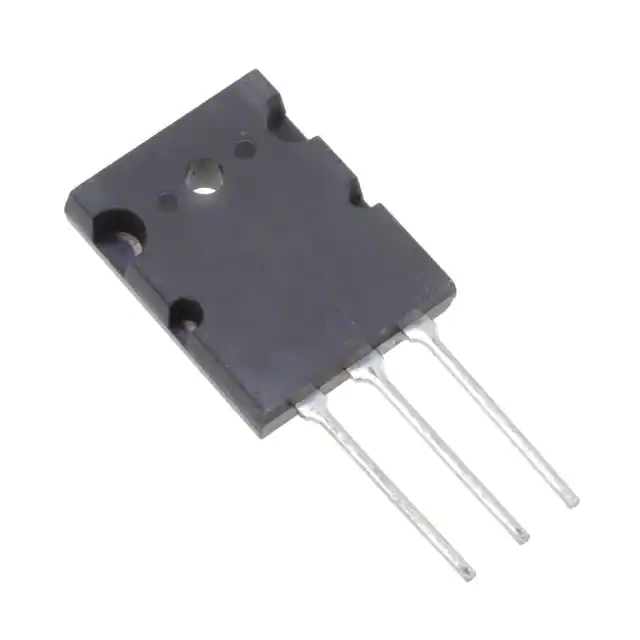

TK100L60W,VQMOSFET N-CH 600V 100A TO3P |
3,315 | 33.12 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 100A (Ta) | 10V | 18mOhm @ 50A, 10V | 3.7V @ 5mA | 360 nC @ 10 V | ±30V | 15000 pF @ 30 V | Super Junction | 797W (Tc) | 150°C (TJ) | Through Hole |
|
TK10A60W5,S5VXMOSFET N-CH 600V 9.7A TO220SIS |
2,656 | 2.14 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.7A (Ta) | 10V | 450mOhm @ 4.9A, 10V | 4.5V @ 500µA | 25 nC @ 10 V | ±30V | 720 pF @ 300 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
TK8A65D(STA4,Q,M)MOSFET N-CH 650V 8A TO220SIS |
2,444 | 2.51 |
RFQ |
Datasheet |
Bulk | π-MOSVII | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8A (Ta) | 10V | 840mOhm @ 4A, 10V | 4V @ 1mA | 25 nC @ 10 V | ±30V | 1350 pF @ 25 V | - | 45W (Tc) | 150°C (TJ) | Through Hole |
|
TK65E10N1,S1XMOSFET N CH 100V 148A TO220 |
134 | 2.78 |
RFQ |
Datasheet |
Tube | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 148A (Ta) | 10V | 4.8mOhm @ 32.5A, 10V | 4V @ 1mA | 81 nC @ 10 V | ±20V | 5400 pF @ 50 V | - | 192W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK30A06N1,S4XMOSFET N-CH 60V 30A TO220SIS |
277 | 0.97 |
RFQ |
Datasheet |
Tube | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Tc) | 10V | 15mOhm @ 15A, 10V | 4V @ 200µA | 16 nC @ 10 V | ±20V | 1050 pF @ 30 V | - | 25W (Tc) | 150°C (TJ) | Through Hole |
|

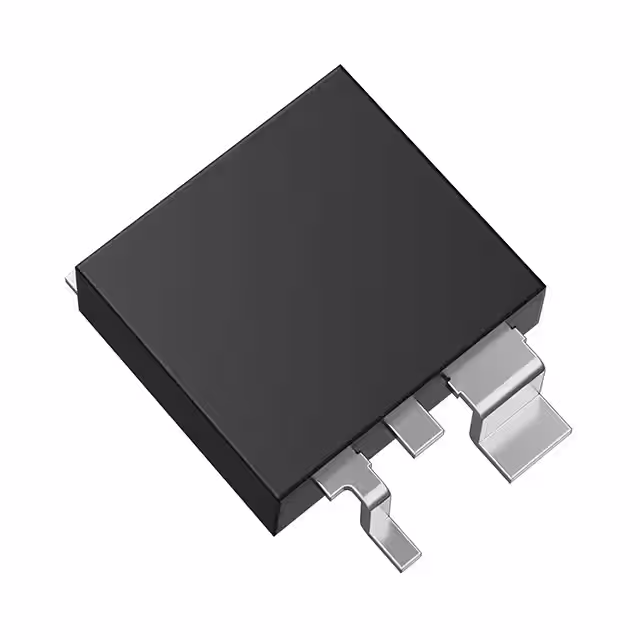

TK1R4F04PB,LXGQMOSFET N-CH 40V 160A TO220SM |
1,000 | 2.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Ta) | 6V, 10V | 1.9mOhm @ 80A, 6V | 3V @ 500µA | 103 nC @ 10 V | ±20V | 5500 pF @ 10 V | - | 205W (Tc) | 175°C | Surface Mount |
|
|
TK750A60F,S4XMOSFET N-CH 600V 10A TO220SIS |
150 | 1.84 |
RFQ |
Datasheet |
Tube | U-MOSIX | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Ta) | 10V | 750mOhm @ 5A, 10V | 4V @ 1mA | 30 nC @ 10 V | ±30V | 1130 pF @ 300 V | - | 40W (Tc) | 150°C | Through Hole |
|
|
TK380A65Y,S4XX35 PB-F POWER MOSFET TRANSISTOR |
200 | 1.91 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 9.7A (Tc) | 10V | 380mOhm @ 4.9A, 10V | 4V @ 360µA | 20 nC @ 10 V | ±30V | 590 pF @ 300 V | - | 30W (Tc) | 150°C | Through Hole |
|
|
TK10A50W,S5XX35 PB-F POWER MOSFET TRANSISTOR |
152 | 2.01 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 9.7A (Ta) | 10V | 380mOhm @ 4.9A, 10V | 3.7V @ 500µA | 20 nC @ 10 V | ±30V | 700 pF @ 300 V | - | 30W (Tc) | 150°C | Through Hole |
|
|
TK4R1A10PL,S4XX35 PB-F POWER MOSFET TRANSISTOR |
3,532 | 2.14 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 4.5V, 10V | 4.1mOhm @ 40A, 10V | 2.5V @ 1mA | 104 nC @ 10 V | ±20V | 6320 pF @ 50 V | - | 54W (Tc) | 175°C | Through Hole |
|
|
TK72E08N1,S1XMOSFET N-CH 80V 72A TO220 |
2,741 | 2.32 |
RFQ |
Datasheet |
Tube | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 72A (Ta) | 10V | 4.3mOhm @ 36A, 10V | 4V @ 1mA | 81 nC @ 10 V | ±20V | 5500 pF @ 40 V | - | 192W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK10A80E,S4XMOSFET N-CH 800V 10A TO220SIS |
3,656 | 2.53 |
RFQ |
Datasheet |
Tube | π-MOSVIII | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 10A (Ta) | 10V | 1Ohm @ 5A, 10V | 4V @ 1mA | 46 nC @ 10 V | ±30V | 2000 pF @ 25 V | - | 50W (Tc) | 150°C (TJ) | Through Hole |
