| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

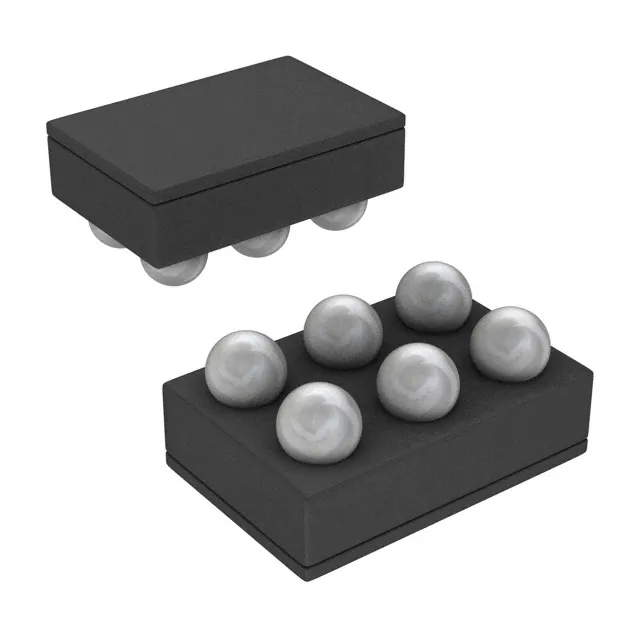

SSM6K781G,LFMOSFET N-CH 12V 7A 6WCSP6C |
500 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVII-H | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 7A (Ta) | 1.5V, 4.5V | 18mOhm @ 1.5A, 4.5V | 1V @ 250µA | 5.4 nC @ 4.5 V | ±8V | 600 pF @ 6 V | - | 1.6W (Ta) | 150°C (TJ) | Surface Mount |
|
TW048N65C,S1FG3 650V SIC-MOSFET TO-247 48MOH |
2,174 | 17.09 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 650 V | 40A (Tc) | 18V | 65mOhm @ 20A, 18V | 5V @ 1.6mA | 41 nC @ 18 V | +25V, -10V | 1362 pF @ 400 V | - | 132W (Tc) | 175°C | Through Hole |
|
SSM3J15FS,LFMOSFET P-CH 30V 100MA SSM |
413 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 12Ohm @ 10mA, 4V | 1.7V @ 100µA | - | ±20V | 9.1 pF @ 3 V | - | 100mW (Ta) | 150°C | Surface Mount |
|
|
SSM3K56FS,LFMOSFET N-CH 20V 800MA SSM |
749,990 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVII-H | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 800mA (Ta) | 1.5V, 4.5V | 235mOhm @ 800mA, 4.5V | 1V @ 1mA | 1 nC @ 4.5 V | ±8V | 55 pF @ 10 V | - | 150mW (Ta) | 150°C (TJ) | Surface Mount |
.jpg)
|
SSM6K504NU,LFMOSFET N-CH 30V 9A 6UDFNB |
2,075 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVII | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 19.5mOhm @ 4A, 10V | 2.5V @ 100µA | 4.8 nC @ 4.5 V | ±20V | 620 pF @ 15 V | - | 1.25W (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3K59CTB,L3FMOSFET N-CH 40V 2A CST3B |
591 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVII-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 2A (Ta) | 1.8V, 8V | 215mOhm @ 1A, 8V | 1.2V @ 1mA | 1.1 nC @ 4.2 V | ±12V | 130 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
|
SSM3J36FS,LFMOSFET P-CH 20V 330MA SSM |
63,173 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIII | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 330mA (Ta) | 1.5V, 4.5V | 1.31Ohm @ 100mA, 4.5V | 1V @ 1mA | 1.2 nC @ 4 V | ±8V | 43 pF @ 10 V | - | 150mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3J118TU(TE85L)MOSFET P-CH 30V 1.4A UFM |
455 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSII | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.4A (Ta) | 4V, 10V | 240mOhm @ 650mA, 10V | - | - | ±20V | 137 pF @ 15 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM6K518NU,LFMOSFET N-CH 20V 6A 6UDFNB |
324 | 0.43 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Ta) | 1.5V, 4.5V | 33mOhm @ 4A, 4.5V | 1V @ 1mA | 3.6 nC @ 4.5 V | ±8V | 410 pF @ 10 V | - | 1.25W (Ta) | 150°C | Surface Mount | |
|
|
SSM6K517NU,LFMOSFET N-CH 30V 6A 6UDFNB |
219 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 1.8V, 4.5V | 39.1mOhm @ 2A, 4.5V | 1V @ 1mA | 3.2 nC @ 4.5 V | +12V, -8V | 310 pF @ 15 V | - | 1.25W (Ta) | 150°C | Surface Mount |
|
|
SSM3J114TU(TE85L)MOSFET P-CH 20V 1.8A UFM |
293 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.8A (Ta) | 1.5V, 4V | 149mOhm @ 600mA, 4V | 1V @ 1mA | 7.7 nC @ 4 V | ±8V | 331 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3K341TU,LFMOSFET N-CH 60V 6A UFM |
3,388 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Ta) | 4V, 10V | 36mOhm @ 4A, 10V | 2.5V @ 100µA | 9.3 nC @ 10 V | ±20V | 550 pF @ 10 V | - | 1.8W (Ta) | 175°C | Surface Mount |
|
SSM6J402TU,LFMOSFET P-CH 30V 2A UF6 |
230 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 4V, 10V | 117mOhm @ 1A, 10V | 2.6V @ 1mA | 5.3 nC @ 10 V | ±20V | 280 pF @ 15 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
SSM3J140TU,LXHFSMOS P-CH VDSS:-20V VGSS:-8/+6V |
408 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.4A (Ta) | 1.5V, 4.5V | 25.8mOhm @ 4A, 4.5V | 1V @ 1mA | 24.8 nC @ 4.5 V | +6V, -8V | 1800 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
TPH8R903NL,LQMOSFET N CH 30V 20A 8SOP |
556 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Tc) | 10V | 8.9mOhm @ 10A, 10V | 2.3V @ 1mA | 9.8 nC @ 10 V | ±20V | 820 pF @ 15 V | - | 1.6W (Ta), 24W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPN4R712MD,L1QMOSFET P-CH 20V 36A 8TSON |
202 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 36A (Tc) | 2.5V, 4.5V | 4.7mOhm @ 18A, 4.5V | 1.2V @ 1mA | 65 nC @ 5 V | ±12V | 4300 pF @ 10 V | - | 42W (Tc) | 150°C (TJ) | Surface Mount |
|
TK7S10N1Z,LQMOSFET N-CH 100V 7A DPAK |
634 | 1.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7A (Ta) | 10V | 48mOhm @ 3.5A, 10V | 4V @ 100µA | 7.1 nC @ 10 V | ±20V | 470 pF @ 10 V | - | 50W (Tc) | 175°C (TJ) | Surface Mount |
|
TK560P65Y,RQMOSFET N-CHANNEL 650V 7A DPAK |
510 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 560mOhm @ 3.5A, 10V | 4V @ 240µA | 14.5 nC @ 10 V | ±30V | 380 pF @ 300 V | - | 60W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TK7P65W,RQMOSFET N-CH 650V 6.8A DPAK |
467 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 6.8A (Ta) | 10V | 800mOhm @ 3.4A, 10V | 3.5V @ 250µA | 15 nC @ 10 V | ±30V | 490 pF @ 300 V | - | 60W (Tc) | 150°C (TJ) | Surface Mount |
|
TK14G65W,RQMOSFET N-CH 650V 13.7A D2PAK |
827 | 2.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 13.7A (Ta) | 10V | 250mOhm @ 6.9A, 10V | 3.5V @ 690µA | 35 nC @ 10 V | ±30V | 1300 pF @ 300 V | - | 130W (Tc) | 150°C (TJ) | Surface Mount |
