| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TK17E80W,S1XMOSFET N-CHANNEL 800V 17A TO220 |
2,454 | 4.37 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 17A (Ta) | 10V | 290mOhm @ 8.5A, 10V | 4V @ 850µA | 32 nC @ 10 V | ±20V | 2050 pF @ 300 V | - | 180W (Tc) | 150°C | Through Hole |
|
TK25N60X,S1FMOSFET N-CH 600V 25A TO247 |
3,295 | 4.44 |
RFQ |
Datasheet |
Tube | DTMOSIV-H | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Ta) | 10V | 125mOhm @ 7.5A, 10V | 3.5V @ 1.2mA | 40 nC @ 10 V | ±30V | 2400 pF @ 300 V | - | 180W (Tc) | 150°C (TJ) | Through Hole |
|
TK16J60W,S1VEX35 PB-F POWER MOSFET TRANSISTOR |
3,668 | 4.81 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15.8A (Ta) | 10V | 190mOhm @ 7.9A, 10V | 3.7V @ 790µA | 38 nC @ 10 V | ±30V | 1350 pF @ 300 V | - | 130W (Tc) | 150°C | Through Hole |
|
|
TK31E60X,S1XMOSFET N-CH 600V 30.8A TO220 |
2,440 | 5.40 |
RFQ |
Datasheet |
Tube | DTMOSIV-H | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30.8A (Ta) | 10V | 88mOhm @ 9.4A, 10V | 3.5V @ 1.5mA | 65 nC @ 10 V | ±30V | 3000 pF @ 300 V | Super Junction | 230W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK31N60X,S1FMOSFET N-CH 600V 30.8A TO247 |
3,342 | 5.68 |
RFQ |
Datasheet |
Tube | DTMOSIV-H | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30.8A (Ta) | 10V | 88mOhm @ 9.4A, 10V | 3.5V @ 1.5mA | 65 nC @ 10 V | ±30V | 3000 pF @ 300 V | Super Junction | 230W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK090N65Z,S1FMOSFET N-CH 650V 30A TO247 |
2,679 | 6.03 |
RFQ |
Datasheet |
Tube | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 90mOhm @ 15A, 10V | 4V @ 1.27mA | 47 nC @ 10 V | ±30V | 2780 pF @ 300 V | - | 230W (Tc) | 150°C | Through Hole |
|
|
TK31N60W5,S1VFMOSFET N-CH 600V 30.8A TO247 |
3,969 | 6.74 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30.8A (Ta) | 10V | 99mOhm @ 15.4A, 10V | 4.5V @ 1.5mA | 105 nC @ 10 V | ±30V | 3000 pF @ 300 V | - | 230W (Tc) | 150°C (TJ) | Through Hole |
|
TK35A65W,S5XMOSFET N-CH 650V 35A TO220SIS |
2,395 | 6.81 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Ta) | 10V | 80mOhm @ 17.5A, 10V | 3.5V @ 2.1mA | 100 nC @ 10 V | ±30V | 4100 pF @ 300 V | - | 50W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK39N60X,S1FMOSFET N-CH 600V 38.8A TO247 |
3,291 | 6.87 |
RFQ |
Datasheet |
Tube | DTMOSIV-H | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38.8A (Ta) | 10V | 65mOhm @ 12.5A, 10V | 3.5V @ 1.9mA | 85 nC @ 10 V | ±30V | 4100 pF @ 300 V | Super Junction | 270W (Tc) | 150°C (TJ) | Through Hole |
|
TK39J60W,S1VQMOSFET N-CH 600V 38.8A TO3P |
3,877 | 10.21 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38.8A (Ta) | 10V | 65mOhm @ 19.4A, 10V | 3.7V @ 1.9mA | 110 nC @ 10 V | ±30V | 4100 pF @ 300 V | Super Junction | 270W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK62N60X,S1FMOSFET N-CH 600V 61.8A TO247 |
2,239 | 10.72 |
RFQ |
Datasheet |
Tube | DTMOSIV-H | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 61.8A (Ta) | 10V | 40mOhm @ 21A, 10V | 3.5V @ 3.1mA | 135 nC @ 10 V | ±30V | 6500 pF @ 300 V | Super Junction | 400W (Tc) | 150°C (TJ) | Through Hole |
|

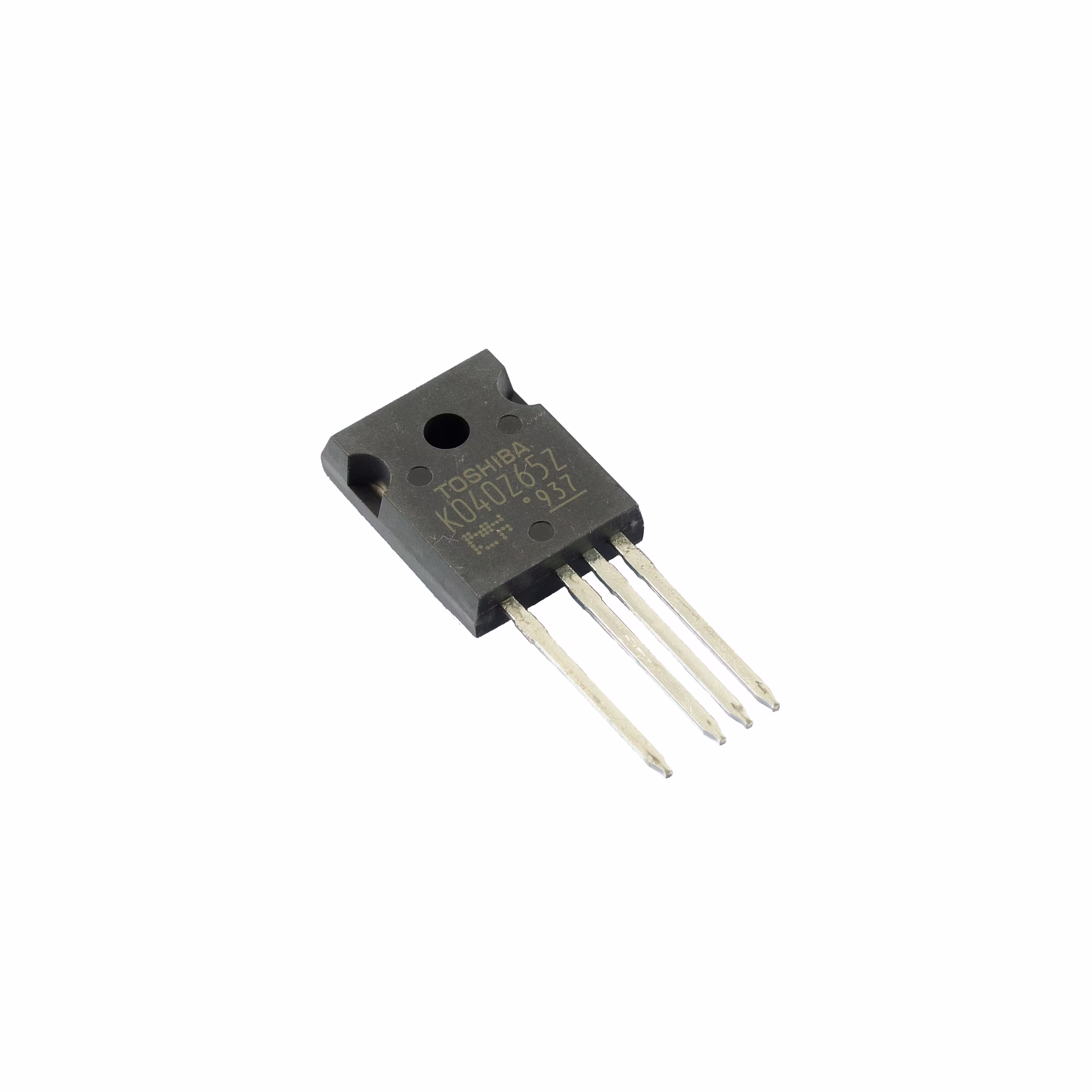

TK040Z65Z,S1FMOSFET N-CH 650V 57A TO247-4L |
3,741 | 11.83 |
RFQ |
Datasheet |
Tube | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 57A (Ta) | 10V | 40mOhm @ 28.5A, 10V | 4V @ 2.85mA | 105 nC @ 10 V | ±30V | 6250 pF @ 300 V | - | 360W (Tc) | 150°C | Through Hole |
|
|
TK39A60W,S4VXMOSFET N-CH 600V 38.8A TO220SIS |
3,558 | 10.21 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38.8A (Ta) | 10V | 65mOhm @ 19.4A, 10V | 3.7V @ 1.9mA | 110 nC @ 10 V | ±30V | 4100 pF @ 300 V | - | 50W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK62J60W,S1VQMOSFET N-CH 600V 61.8A TO3P |
3,388 | 15.59 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 61.8A (Ta) | 10V | 38mOhm @ 30.9A, 10V | 3.7V @ 3.1mA | 180 nC @ 10 V | ±30V | 6500 pF @ 300 V | Super Junction | 400W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK39N60W,S1VFMOSFET N CH 600V 38.8A TO247 |
3,196 | 10.89 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38.8A (Ta) | 10V | 65mOhm @ 19.4A, 10V | 3.7V @ 1.9mA | 110 nC @ 10 V | ±30V | 4100 pF @ 300 V | Super Junction | 270W (Tc) | 150°C (TJ) | Through Hole |
|
SSM6J213FE(TE85L,FMOSFET P CH 20V 2.6A ES6 |
3,192 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.6A (Ta) | 1.5V, 4.5V | 103mOhm @ 1.5A, 4.5V | 1V @ 1mA | 4.7 nC @ 4.5 V | ±8V | 290 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM6K403TU,LFMOSFET N-CH 20V 4.2A UF6 |
2,938 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIII | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Ta) | 1.5V, 4V | 28mOhm @ 3A, 4V | 1V @ 1mA | 16.8 nC @ 4 V | ±10V | 1050 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM6J212FE,LFMOSFET P-CH 20V 4A ES6 |
2,020 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 4.5V | 40.7mOhm @ 3A, 4.5V | 1V @ 1mA | 14.1 nC @ 4.5 V | ±8V | 970 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM6J771G,LFMOSFET P-CH 20V 5A 6WCSP |
2,266 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 5A (Ta) | 2.5V, 8.5V | 31mOhm @ 3A, 8.5V | 1.2V @ 1mA | 9.8 nC @ 4.5 V | ±12V | 870 pF @ 10 V | - | 1.2W (Ta) | 150°C (TJ) | Surface Mount |
|
TPN22006NH,LQMOSFET N-CH 60V 9A 8TSON |
2,333 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 9A (Ta) | 6.5V, 10V | 22mOhm @ 4.5A, 10V | 4V @ 100µA | 12 nC @ 10 V | ±20V | 710 pF @ 30 V | - | 700mW (Ta), 18W (Tc) | 150°C (TJ) | Surface Mount |
