| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPW4R50ANH,L1QMOSFET N-CH 100V 92A 8DSOP |
2,840 | 2.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 92A (Tc) | 10V | 4.5mOhm @ 46A, 10V | 4V @ 1mA | 58 nC @ 10 V | ±20V | 5200 pF @ 50 V | - | 800mW (Ta), 142W (Tc) | 150°C (TJ) | Surface Mount |
|
2SK3564(STA4,Q,M)MOSFET N-CH 900V 3A TO220SIS |
3,403 | 1.70 |
RFQ |
Datasheet |
Tube | π-MOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 3A (Ta) | 10V | 4.3Ohm @ 1.5A, 10V | 4V @ 1mA | 17 nC @ 10 V | ±30V | 700 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
|
2SK3566(STA4,Q,M)MOSFET N-CH 900V 2.5A TO220SIS |
3,844 | 1.75 |
RFQ |
Datasheet |
Tube | π-MOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 2.5A (Ta) | 10V | 6.4Ohm @ 1.5A, 10V | 4V @ 1mA | 12 nC @ 10 V | ±30V | 470 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
TK3R1A04PL,S4XMOSFET N-CH 40V 82A TO220SIS |
2,788 | 1.33 |
RFQ |
Datasheet |
Tube | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 82A (Tc) | 4.5V, 10V | 3.8mOhm @ 30A, 4.5V | 2.4V @ 500µA | 63.4 nC @ 10 V | ±20V | 4670 pF @ 20 V | - | 36W (Tc) | 175°C (TJ) | Through Hole |
|
TPH4R50ANH,L1QMOSFET N CH 100V 60A SOP ADV |
3,109 | 2.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 60A (Tc) | 10V | 4.5mOhm @ 30A, 10V | 4V @ 1mA | 58 nC @ 10 V | ±20V | 5200 pF @ 50 V | - | 1.6W (Ta), 78W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TK5R3A06PL,S4XX35 PB-F POWER MOSFET TRANSISTOR |
2,804 | 1.40 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 56A (Tc) | 4.5V, 10V | 5.3mOhm @ 28A, 10V | 2.5V @ 300µA | 36 nC @ 10 V | ±20V | 2380 pF @ 30 V | - | 36W (Tc) | 175°C | Through Hole |
|
TK22E10N1,S1XMOSFET N CH 100V 52A TO220 |
3,589 | 1.42 |
RFQ |
Datasheet |
Tube | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 52A (Tc) | 10V | 13.8mOhm @ 11A, 10V | 4V @ 300µA | 28 nC @ 10 V | ±20V | 1800 pF @ 50 V | - | 72W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK22A10N1,S4XMOSFET N-CH 100V 22A TO220SIS |
2,965 | 1.48 |
RFQ |
Datasheet |
Tube | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 22A (Tc) | 10V | 13.8mOhm @ 11A, 10V | 4V @ 300µA | 28 nC @ 10 V | ±20V | 1800 pF @ 50 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK290A65Y,S4XMOSFET N-CH 650V 11.5A TO220SIS |
2,101 | 2.05 |
RFQ |
Datasheet |
Tube | DTMOSV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11.5A (Tc) | 10V | 290mOhm @ 5.8A, 10V | 4V @ 450µA | 25 nC @ 10 V | ±30V | 730 pF @ 300 V | - | 35W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK34E10N1,S1XMOSFET N-CH 100V 75A TO220 |
3,383 | 1.51 |
RFQ |
Datasheet |
Tube | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 75A (Tc) | 10V | 9.5mOhm @ 17A, 10V | 4V @ 500µA | 38 nC @ 10 V | ±20V | 2600 pF @ 50 V | - | 103W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK7A90E,S4XMOSFET N-CH 900V 7A TO220SIS |
2,241 | 1.77 |
RFQ |
Datasheet |
Tube | π-MOSVIII | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 7A (Ta) | 10V | 2Ohm @ 3.5A, 10V | 4V @ 700µA | 32 nC @ 10 V | ±30V | 1350 pF @ 25 V | - | 45W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK3R3A06PL,S4XX35 PB-F POWER MOSFET TRANSISTOR |
3,515 | 1.88 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 4.5V, 10V | 3.3mOhm @ 40A, 10V | 2.5V @ 700µA | 71 nC @ 10 V | ±20V | 5000 pF @ 30 V | - | 42W (Tc) | 175°C | Through Hole |
|
|
TK100E06N1,S1XMOSFET N CH 60V 100A TO-220 |
2,702 | 2.62 |
RFQ |
Datasheet |
Tube | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 10V | 2.3mOhm @ 50A, 10V | 4V @ 1mA | 140 nC @ 10 V | ±20V | 10500 pF @ 30 V | - | 255W (Tc) | 150°C (TJ) | Through Hole |
|

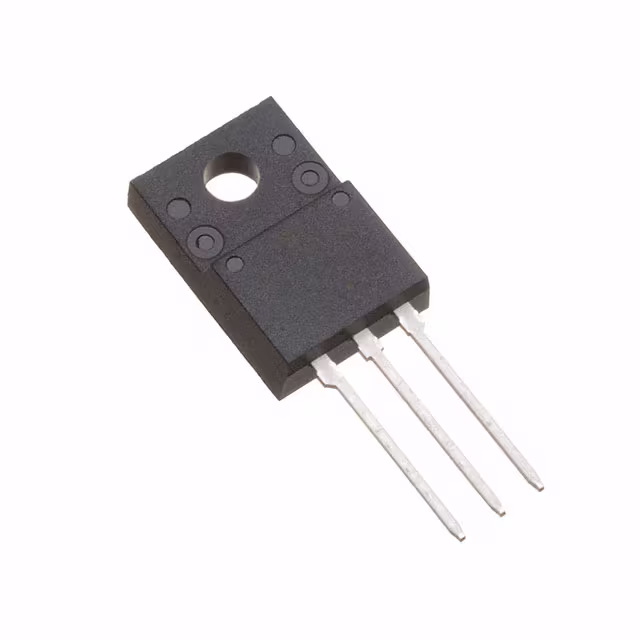

TK6R7A10PL,S4XX35 PB-F POWER MOSFET TRANSISTOR |
2,149 | 1.60 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 56A (Tc) | 4.5V, 10V | 6.7mOhm @ 28A, 10V | 2.5V @ 500µA | 58 nC @ 10 V | ±20V | 3455 pF @ 50 V | - | 42W (Tc) | 175°C | Through Hole |
|
|
TK3R2E06PL,S1XX35 PB-F POWER MOSFET TRANSISTOR |
2,059 | 1.67 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 4.5V, 10V | 3.2mOhm @ 50A, 10V | 2.5V @ 700µA | 71 nC @ 10 V | ±20V | 5000 pF @ 30 V | - | 168W (Tc) | 175°C | Through Hole |
|
|
TK9A90E,S4XMOSFET N-CH 900V 9A TO220SIS |
2,594 | 2.32 |
RFQ |
Datasheet |
Tube | π-MOSVIII | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 9A (Ta) | 10V | 1.3Ohm @ 4.5A, 10V | 4V @ 900µA | 46 nC @ 10 V | ±30V | 2000 pF @ 25 V | - | 50W (Tc) | 150°C (TJ) | Through Hole |
|
TKR74F04PB,LXGQMOSFET N-CH 40V 250A TO220SM |
3,094 | 4.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 250A (Ta) | 6V, 10V | 0.74mOhm @ 125A, 10V | 3V @ 1mA | 227 nC @ 10 V | ±20V | 14200 pF @ 10 V | - | 375W (Tc) | 175°C | Surface Mount |
|
|
TK40E10N1,S1XMOSFET N CH 100V 90A TO220 |
2,980 | 1.90 |
RFQ |
Datasheet |
Tube | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 90A (Tc) | 10V | 8.2mOhm @ 20A, 10V | 4V @ 500µA | 49 nC @ 10 V | ±20V | 3000 pF @ 50 V | - | 126W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK40A10N1,S4XMOSFET N-CH 100V 40A TO220SIS |
3,420 | 1.94 |
RFQ |
Datasheet |
Tube | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 10V | 8.2mOhm @ 20A, 10V | 4V @ 500µA | 49 nC @ 10 V | ±20V | 3000 pF @ 50 V | - | 35W (Tc) | 150°C (TJ) | Through Hole |
|
TK7J90E,S1EMOSFET N-CH 900V 7A TO3P |
2,598 | 2.83 |
RFQ |
Datasheet |
Tube | π-MOSVIII | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 7A (Ta) | 10V | 2Ohm @ 3.5A, 10V | 4V @ 700µA | 32 nC @ 10 V | ±30V | 1350 pF @ 25 V | - | 200W (Tc) | 150°C (TJ) | Through Hole |
