| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPH1R204PL,L1QMOSFET N-CH 40V 150A 8SOP |
2,275 | 1.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 150A (Tc) | 4.5V, 10V | 1.24mOhm @ 50A, 10V | 2.4V @ 500µA | 74 nC @ 10 V | ±20V | 7200 pF @ 20 V | - | 960mW (Ta), 132W (Tc) | 175°C (TJ) | Surface Mount |
|
|
TPH1R204PB,L1QMOSFET N-CH 40V 150A 8SOP |
2,262 | 1.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 150A (Tc) | 6V, 10V | 1.2mOhm @ 50A, 10V | 3V @ 500µA | 62 nC @ 10 V | ±20V | 5855 pF @ 20 V | - | 960mW (Ta), 132W (Tc) | 175°C | Surface Mount |
|
|
XPH4R714MC,L1XHQMOSFET P-CH 40V 60A 8SOP |
3,933 | 1.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 60A (Ta) | 4.5V, 10V | 4.7mOhm @ 30A, 10V | 2.1V @ 1mA | 160 nC @ 10 V | +10V, -20V | 5640 pF @ 10 V | - | 960mW (Ta), 132W (Tc) | 175°C | Surface Mount |
|
|
TPH2010FNH,L1QMOSFET N-CH 250V 5.6A 8SOP |
2,025 | 1.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 5.6A (Ta) | 10V | 198mOhm @ 2.8A, 10V | 4V @ 200µA | 7 nC @ 10 V | ±20V | 600 pF @ 100 V | - | 1.6W (Ta), 42W (Tc) | 150°C (TJ) | Surface Mount |
|
TK65S04N1L,LQMOSFET N-CH 40V 65A DPAK |
2,872 | 1.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 65A (Ta) | 10V | 4.3mOhm @ 32.5A, 10V | 2.5V @ 300µA | 39 nC @ 10 V | ±20V | 2550 pF @ 10 V | - | 107W (Tc) | 175°C (TJ) | Surface Mount |
|
TK1K7A60F,S4XX35 PB-F POWER MOSFET TRANSISTOR |
3,803 | 0.94 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Ta) | 10V | 1.7Ohm @ 2A, 10V | 4V @ 460µA | 16 nC @ 10 V | ±30V | 560 pF @ 300 V | - | 35W (Tc) | 150°C | Through Hole |
|
|
TK1R4S04PB,LXHQMOSFET N-CH 40V 120A DPAK |
2,853 | 2.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Ta) | 6V, 10V | 1.9mOhm @ 60A, 6V | 3V @ 500µA | 103 nC @ 10 V | ±20V | 5500 pF @ 10 V | - | 180W (Tc) | 175°C | Surface Mount |
|
|
TPH8R008NH,L1QMOSFET N-CH 80V 34A 8SOP |
2,868 | 1.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 34A (Tc) | 10V | 8mOhm @ 17A, 10V | 4V @ 500µA | 35 nC @ 10 V | ±20V | 3000 pF @ 40 V | - | 1.6W (Ta), 61W (Tc) | 150°C (TJ) | Surface Mount |
|
TK7P60W5,RVQMOSFET N-CH 600V 7A DPAK |
3,825 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Ta) | 10V | 670mOhm @ 3.5A, 10V | 4.5V @ 350µA | 16 nC @ 10 V | ±30V | 490 pF @ 300 V | Super Junction | 60W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TK2K2A60F,S4XX35 PB-F POWER MOSFET TRANSISTOR |
3,475 | 0.99 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.5A (Ta) | 10V | 2.2Ohm @ 1.8A, 10V | 4V @ 350µA | 13 nC @ 10 V | ±30V | 450 pF @ 300 V | - | 30W (Tc) | 150°C | Through Hole |
|
|
TPH1R104PB,L1XHQMOSFET N-CH 40V 120A 8SOP |
2,637 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Ta) | 6V, 10V | 1.14mOhm @ 60A, 10V | 3V @ 500µA | 55 nC @ 10 V | ±20V | 4560 pF @ 10 V | - | 960mW (Ta), 132W (Tc) | 175°C | Surface Mount |
|
|
TPH6400ENH,L1QMOSFET N-CH 200V 13A 8SOP |
3,636 | 1.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 13A (Ta) | 10V | 64mOhm @ 6.5A, 10V | 4V @ 300µA | 11.2 nC @ 10 V | ±20V | 1100 pF @ 100 V | - | 1.6W (Ta), 57W (Tc) | 150°C (TJ) | Surface Mount |
|
TPH8R80ANH,L1QMOSFET N CH 100V 32A 8-SOP |
3,864 | 1.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 32A (Tc) | 10V | 8.8mOhm @ 16A, 10V | 4V @ 500µA | 33 nC @ 10 V | ±20V | 2800 pF @ 50 V | - | 1.6W (Ta), 61W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TK8R2A06PL,S4XMOSFET N-CH 60V 50A TO220SIS |
3,154 | 1.07 |
RFQ |
Datasheet |
Tube | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 4.5V, 10V | 11.4mOhm @ 8A, 4.5V | 2.5V @ 300µA | 28.4 nC @ 10 V | ±20V | 1990 pF @ 25 V | - | 36W (Tc) | 175°C (TJ) | Through Hole |
|
|
XPH3R114MC,L1XHQMOSFET P-CH 40V 100A 8SOP |
2,669 | 2.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Ta) | 4.5V, 10V | 3.1mOhm @ 50A, 10V | 2.1V @ 1mA | 230 nC @ 10 V | +20V, -10V | 9500 pF @ 10 V | - | 960mW (Ta), 170W (Tc) | 175°C | Surface Mount |
|
|
TPH1110FNH,L1QMOSFET N-CH 250V 10A 8SOP |
2,040 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 10A (Ta) | 10V | 112mOhm @ 5A, 10V | 4V @ 300µA | 11 nC @ 10 V | ±20V | 1100 pF @ 100 V | - | 1.6W (Ta), 57W (Tc) | 150°C (TJ) | Surface Mount |
|
|
XPH4R10ANB,L1XHQMOSFET N-CH 100V 70A 8SOP |
3,609 | 2.37 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 70A (Ta) | 6V, 10V | 4.1mOhm @ 35A, 10V | 3.5V @ 1mA | 75 nC @ 10 V | ±20V | 4970 pF @ 10 V | - | 960mW (Ta), 170W (Tc) | 175°C | Surface Mount | |
|

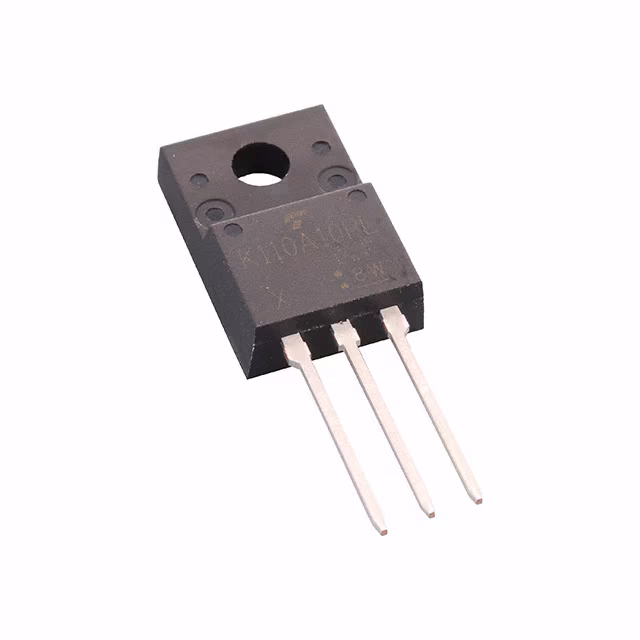

TK110A10PL,S4XX35 PB-F POWER MOSFET TRANSISTOR |
3,252 | 1.14 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 36A (Tc) | 4.5V, 10V | 10.8mOhm @ 18A, 10V | 2.5V @ 300µA | 33 nC @ 10 V | ±20V | 2040 pF @ 50 V | - | 36W (Tc) | 175°C | Through Hole |
|
TK1K0A60F,S4XX35 PB-F POWER MOSFET TRANSISTOR |
2,429 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.5A (Ta) | 10V | 1Ohm @ 3.8A, 10V | 4V @ 770µA | 24 nC @ 10 V | ±30V | 890 pF @ 300 V | - | 40W (Tc) | 150°C | Through Hole |
|
|
TPHR8504PL,L1QMOSFET N-CH 40V 150A 8SOP |
3,995 | 1.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 150A (Tc) | 4.5V, 10V | 0.85mOhm @ 50A, 10V | 2.4V @ 1mA | 103 nC @ 10 V | ±20V | 9600 pF @ 20 V | - | 1W (Ta), 170W (Tc) | 175°C (TJ) | Surface Mount |
