| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TK2R4E08QM,S1XUMOS10 TO-220AB 80V 2.4MOHM |
2,208 | 3.03 |
RFQ |
Datasheet |
Tube | U-MOSX-H | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 6V, 10V | 2.44mOhm @ 50A, 10V | 3.5V @ 2.2mA | 178 nC @ 10 V | ±20V | 13000 pF @ 40 V | - | 300W (Tc) | 175°C | Through Hole |
|
TK110A65Z,S4XMOSFET N-CH 650V 24A TO220SIS |
2,899 | 4.43 |
RFQ |
Datasheet |
Tube | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Ta) | 10V | 110mOhm @ 12A, 10V | 4V @ 1.02mA | 40 nC @ 10 V | ±30V | 2250 pF @ 300 V | - | 45W (Tc) | 150°C | Through Hole |
|
TK110E65Z,S1X650V DTMOS VI TO-220 110MOHM |
3,282 | 4.52 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Ta) | 10V | 110mOhm @ 12A, 10V | 4V @ 1.02mA | 40 nC @ 10 V | ±30V | 2250 pF @ 300 V | - | 190W (Tc) | 150°C | Through Hole |
|
|
TK090A65Z,S4XMOSFET N-CH 650V 30A TO220SIS |
2,537 | 5.01 |
RFQ |
Datasheet |
Tube | DTMOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 90mOhm @ 15A, 10V | 4V @ 1.27mA | 47 nC @ 10 V | ±30V | 2780 pF @ 300 V | - | 45W (Tc) | 150°C | Through Hole |
|
SSM3K37CT,L3FMOSFET N-CH 20V 200MA CST3 |
2,954 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIII | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 200mA (Ta) | 1.5V, 4.5V | 2.2Ohm @ 100mA, 4.5V | 1V @ 1mA | - | ±10V | 12 pF @ 10 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3J15CT,L3FSMALL LOW RON PCH MOSFETS VDSS:- |
2,727 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 12Ohm @ 10mA, 4V | 1.7V @ 100µA | - | ±20V | 9.1 pF @ 3 V | - | 100mW (Ta) | 150°C | Surface Mount |
|
SSM3K16CTC,L3FMOSFET N-CH 20V 200MA CST3C |
3,853 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 200mA (Ta) | 1.5V, 4.5V | 2.2Ohm @ 100mA, 4.5V | 1V @ 1mA | - | ±10V | 12 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
|
SSM3K16FS,LFSMALL LOW ON RESISTANCE NCH MOSF |
3,138 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 3Ohm @ 10mA, 4V | 1.1V @ 100µA | - | ±10V | 9.3 pF @ 3 V | - | 100mW (Ta) | 150°C | Surface Mount |
|
|
SSM3K16CT(TPL3)MOSFET N-CH 20V 100MA CST3 |
3,910 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVI | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 3Ohm @ 10mA, 4V | 1.1V @ 100µA | - | ±10V | 9.3 pF @ 3 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3J66MFV,L3FMOSFET P-CH 20V 800MA VESM |
3,650 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 800mA (Ta) | 1.2V, 4.5V | 390mOhm @ 800mA, 4.5V | 1V @ 1mA | 1.6 nC @ 4.5 V | +6V, -8V | 100 pF @ 10 V | - | 150mW (Ta) | 150°C | Surface Mount |
|
|
SSM3K15ACT(TPL3)MOSFET N-CH 30V 100MA CST3 |
2,568 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIII | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 3.6Ohm @ 10mA, 4V | 1.5V @ 100µA | - | ±20V | 13.5 pF @ 3 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SSM3J16FU(TE85L,F)SMALL LOW RON PCH MOSFETS VDSS:- |
2,878 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 8Ohm @ 10mA, 4V | 1.1V @ 100µA | - | ±10V | 11 pF @ 3 V | - | 150mW (Ta) | 150°C | Surface Mount |
|
SSM5N15FE(TE85L,F)MOSFET N-CH 30V 100MA ESV |
2,068 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 4Ohm @ 10mA, 4V | 1.5V @ 100µA | - | ±20V | 7.8 pF @ 3 V | - | 150mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM5N15FU,LFMOSFET N-CH 30V 100MA USV |
3,284 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 4Ohm @ 10mA, 4V | - | - | ±20V | 7.8 pF @ 3 V | - | 200mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3J112TU,LFMOSFET P-CH 30V 1.1A UFM |
2,335 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.1A (Ta) | 4V, 10V | 390mOhm @ 500mA, 10V | 1.8V @ 100µA | - | ±20V | 86 pF @ 15 V | - | 800mW (Ta) | 150°C | Surface Mount |
|
SSM6J422TU,LFMOSFET P-CH 20V 4A UF6 |
3,917 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 4.5V | 42.7mOhm @ 3A, 4.5V | 1V @ 1mA | 12.8 nC @ 4.5 V | +6V, -8V | 840 pF @ 10 V | - | 1W (Ta) | 150°C | Surface Mount |
|

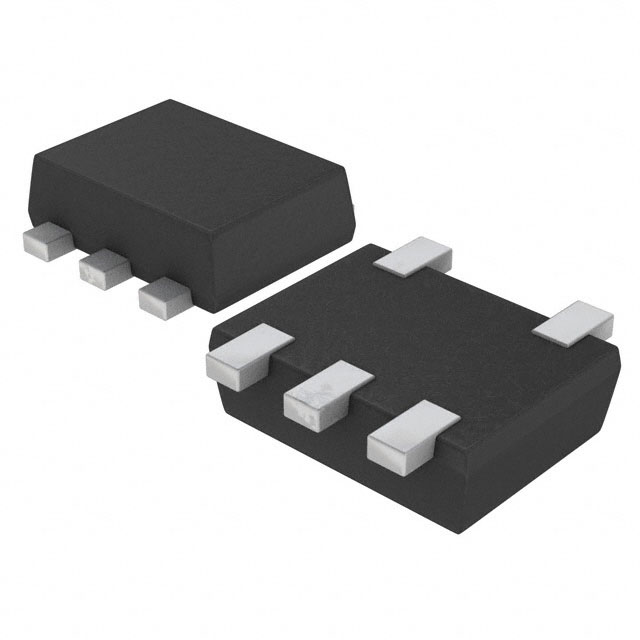

SSM5H90ATU,LFMOSFET N-CH 20V 2.4A UFV |
2,004 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.4A (Ta) | 2.5V, 4V | 65mOhm @ 1.5A, 4V | 1.2V @ 1mA | 2.2 nC @ 4 V | ±10V | 200 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
|
SSM3J118TU,LFPB-F SMALL LOW ON RESISTANCE PCH |
3,525 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.4A (Ta) | 4V, 10V | 240mOhm @ 650mA, 10V | 2.6V @ 1mA | - | ±20V | 137 pF @ 15 V | - | 500mW (Ta) | 150°C | Surface Mount |
|
SSM6G18NU,LFMOSFET P-CH 20V 2A 6UDFN |
2,418 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 1.5V, 4.5V | 112mOhm @ 1A, 4.5V | 1V @ 1mA | 4.6 nC @ 4.5 V | ±8V | 270 pF @ 10 V | Schottky Diode (Isolated) | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3J144TU,LFMOSFET P-CH 20V 3.2A UFM |
2,007 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.2A (Ta) | 1.5V, 4.5V | 93mOhm @ 1.5A, 4.5V | 1V @ 1mA | 4.7 nC @ 4.5 V | +6V, -8V | 290 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount |
