| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTQ44P15TMOSFET P-CH 150V 44A TO3P |
112 | 7.03 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 44A (Tc) | 10V | 65mOhm @ 500mA, 10V | 4V @ 250µA | 175 nC @ 10 V | ±15V | 13400 pF @ 25 V | - | 298W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTQ26N50PMOSFET N-CH 500V 26A TO3P |
237 | 7.14 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 250µA | 65 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTA24P085TMOSFET P-CH 85V 24A TO263 |
5,814 | 3.07 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 85 V | 24A (Tc) | 10V | 65mOhm @ 12A, 10V | 4.5V @ 250µA | 41 nC @ 10 V | ±15V | 2090 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTP200N055T2MOSFET N-CH 55V 200A TO220AB |
128 | 3.98 |
RFQ |
Datasheet |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 200A (Tc) | 10V | 4.2mOhm @ 50A, 10V | 4V @ 250µA | 109 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXFA10N60PMOSFET N-CH 600V 10A TO263 |
108 | 4.22 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 740mOhm @ 5A, 10V | 5.5V @ 1mA | 32 nC @ 10 V | ±30V | 1610 pF @ 25 V | - | 200W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFA12N65X2MOSFET N-CH 650V 12A TO263AA |
204 | 4.30 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 310mOhm @ 6A, 10V | 5V @ 250µA | 18.5 nC @ 10 V | ±30V | 1134 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFP36N20X3MOSFET N-CH 200V 36A TO220 |
101 | 4.58 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 36A (Tc) | 10V | 45mOhm @ 18A, 10V | 4.5V @ 500µA | 21 nC @ 10 V | ±20V | 1425 pF @ 25 V | - | 176W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP16N50PMOSFET N-CH 500V 16A TO220AB |
105 | 4.71 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 400mOhm @ 8A, 10V | 5.5V @ 250µA | 43 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

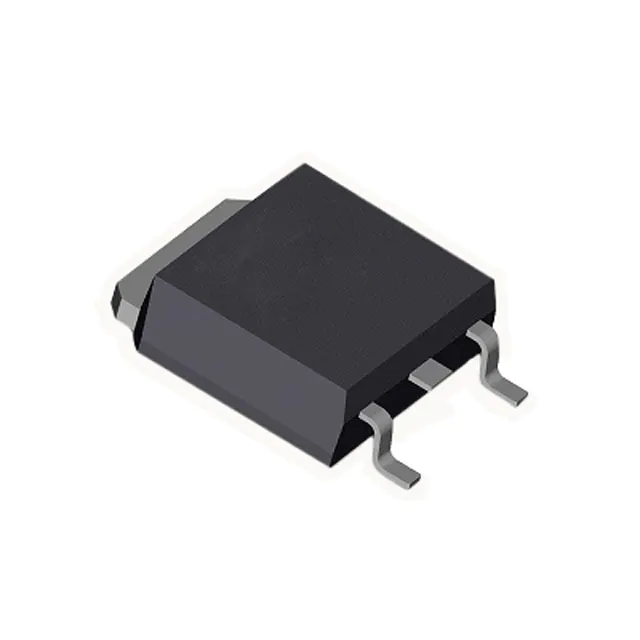

IXTY14N60X2MOSFET N-CH 600V 14A TO252 |
130 | 5.07 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 250mOhm @ 7A, 10V | 4.5V @ 250µA | 16.7 nC @ 10 V | ±30V | 740 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTQ50N20PMOSFET N-CH 200V 50A TO3P |
169 | 5.44 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 50A (Tc) | 10V | 60mOhm @ 50A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±20V | 2720 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXTQ36N30PMOSFET N-CH 300V 36A TO3P |
128 | 5.44 |
RFQ |
Datasheet |
Tube | PolarHT™ | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 36A (Tc) | 10V | 110mOhm @ 18A, 10V | 5.5V @ 250µA | 70 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTP14N60X2MOSFET N-CH 600V 14A TO220 |
249 | 5.48 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 250mOhm @ 7A, 10V | 4.5V @ 250µA | 16.7 nC @ 10 V | ±30V | 740 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFP38N30X3MOSFET N-CH 300V 38A TO220 |
258 | 6.00 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 38A (Tc) | 10V | 50mOhm @ 19A, 10V | 4.5V @ 1mA | 35 nC @ 10 V | ±20V | 2240 pF @ 25 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTQ22N50PMOSFET N-CH 500V 22A TO3P |
2,329 | 6.17 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 250µA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFH22N60P3MOSFET N-CH 600V 22A TO247AD |
174 | 6.98 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 360mOhm @ 11A, 10V | 5V @ 1.5mA | 38 nC @ 10 V | ±30V | 2600 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH28N60P3MOSFET N-CH 600V 28A TO247AD |
300 | 7.36 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 28A (Tc) | 10V | 260mOhm @ 14A, 10V | 5V @ 2.5mA | 50 nC @ 10 V | ±30V | 3560 pF @ 25 V | - | 695W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH30N60XMOSFET N-CH 600V 30A TO247 |
151 | 8.31 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 155mOhm @ 15A, 10V | 4.5V @ 4mA | 56 nC @ 10 V | ±30V | 2270 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH14N85XMOSFET N-CH 850V 14A TO247-3 |
245 | 8.56 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 14A (Tc) | 10V | 550mOhm @ 500mA, 10V | 5.5V @ 1mA | 30 nC @ 10 V | ±30V | 1043 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP32P20TMOSFET P-CH 200V 32A TO220AB |
300 | 8.74 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 32A (Tc) | 10V | 130mOhm @ 16A, 10V | 4V @ 250µA | 185 nC @ 10 V | ±15V | 14500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH12N100PMOSFET N-CH 1000V 12A TO247AD |
196 | 9.36 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 12A (Tc) | 10V | 1.05Ohm @ 6A, 10V | 5V @ 1mA | 80 nC @ 10 V | ±30V | 4080 pF @ 25 V | - | 463W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
