| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA130N15X4MOSFET N-CH 150V 130A TO263AA |
1,562 | 11.66 |
RFQ |
Datasheet |
Tube | Ultra X4 | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 130A (Tc) | 10V | 8mOhm @ 65A, 10V | 4.5V @ 250µA | 87 nC @ 10 V | ±20V | 4770 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXFH18N90PMOSFET N-CH 900V 18A TO247AD |
300 | 12.05 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 18A (Tc) | 10V | 600mOhm @ 500mA, 10V | 6.5V @ 1mA | 97 nC @ 10 V | ±30V | 5230 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTT20P50PMOSFET P-CH 500V 20A TO268 |
1,065 | 12.86 |
RFQ |
Datasheet |
Tube | PolarP™ | Active | P-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 450mOhm @ 10A, 10V | 4V @ 250µA | 103 nC @ 10 V | ±20V | 5120 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTT16P60PMOSFET P-CH 600V 16A TO268 |
802 | 12.86 |
RFQ |
Datasheet |
Tube | PolarP™ | Active | P-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 720mOhm @ 500mA, 10V | 4.5V @ 250µA | 92 nC @ 10 V | ±20V | 5120 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTT48P20PMOSFET P-CH 200V 48A TO268 |
3,796 | 12.86 |
RFQ |
Datasheet |
Tube | PolarP™ | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 48A (Tc) | 10V | 85mOhm @ 24A, 10V | 4.5V @ 250µA | 103 nC @ 10 V | ±20V | 5400 pF @ 25 V | - | 462W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTA60N20X4MOSFET ULTRA X4 200V 60A TO-263 |
343 | 11.29 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 60A (Tc) | 10V | 21mOhm @ 30A, 10V | 4.5V @ 250µA | 33 nC @ 10 V | ±20V | 2450 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IXTT11P50MOSFET P-CH 500V 11A TO268 |
2,716 | 12.12 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 500 V | 11A (Tc) | 10V | 750mOhm @ 5.5A, 10V | 5V @ 250µA | 130 nC @ 10 V | ±20V | 4700 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTT16N50D2MOSFET N-CH 500V 16A TO268 |
101 | 18.37 |
RFQ |
Datasheet |
Tube | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 0V | 240mOhm @ 8A, 0V | - | 199 nC @ 5 V | ±20V | 5250 pF @ 25 V | Depletion Mode | 695W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFT50N85XHVMOSFET N-CH 850V 50A TO268 |
979 | 19.06 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 50A (Tc) | 10V | 105mOhm @ 500mA, 10V | 5.5V @ 4mA | 152 nC @ 10 V | ±30V | 4480 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
IXFX160N30TMOSFET N-CH 300V 160A PLUS247-3 |
930 | 19.54 |
RFQ |
Datasheet |
Tube | HiPerFET™, Trench | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 160A (Tc) | 10V | 19mOhm @ 60A, 10V | 5V @ 8mA | 335 nC @ 10 V | ±20V | 28000 pF @ 25 V | - | 1390W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH44N50Q3MOSFET N-CH 500V 44A TO247AD |
3,839 | 20.83 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | 10V | 140mOhm @ 22A, 10V | 6.5V @ 4mA | 93 nC @ 10 V | ±30V | 4800 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFT16N120PMOSFET N-CH 1200V 16A TO268 |
114 | 21.27 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 16A (Tc) | 10V | 950mOhm @ 500mA, 10V | 6.5V @ 1mA | 120 nC @ 10 V | ±30V | 6900 pF @ 25 V | - | 660W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTX90P20PMOSFET P-CH 200V 90A PLUS247-3 |
361 | 22.60 |
RFQ |
Datasheet |
Tube | PolarP™ | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 90A (Tc) | 10V | 44mOhm @ 22A, 10V | 4V @ 1mA | 205 nC @ 10 V | ±20V | 12000 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFX32N100PMOSFET N-CH 1000V 32A PLUS247-3 |
1,240 | 22.98 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 32A (Tc) | 10V | 320mOhm @ 16A, 10V | 6.5V @ 1mA | 225 nC @ 10 V | ±30V | 14200 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTT2N170D2MOSFET N-CH 1700V 2A TO268 |
520 | 25.61 |
RFQ |
Datasheet |
Tube | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 1700 V | 2A (Tj) | - | 6.5Ohm @ 1A, 0V | - | 110 nC @ 5 V | ±20V | 3650 pF @ 25 V | Depletion Mode | 568W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

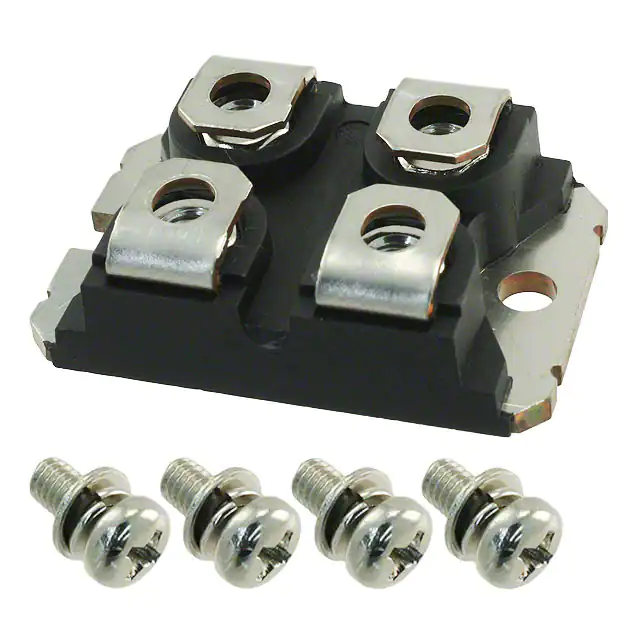

IXTN102N65X2MOSFET N-CH 650V 76A SOT227 |
220 | 35.21 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 76A (Tc) | 10V | 30mOhm @ 51A, 10V | 5V @ 250µA | 152 nC @ 10 V | ±30V | 10900 pF @ 25 V | - | 595AW (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXTX46N50LMOSFET N-CH 500V 46A PLUS247-3 |
1,140 | 45.73 |
RFQ |
Datasheet |
Tube | Linear | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 46A (Tc) | 20V | 160mOhm @ 500mA, 20V | 6V @ 250µA | 260 nC @ 15 V | ±30V | 7000 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFK210N30X3MOSFET N-CH 300V 210A TO264 |
107 | 33.68 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 210A (Tc) | 10V | 5.5mOhm @ 105A, 10V | 4.5V @ 8mA | 375 nC @ 10 V | ±20V | 24200 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFN132N50P3MOSFET N-CH 500V 112A SOT227B |
262 | 38.29 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 112A (Tc) | 10V | 39mOhm @ 66A, 10V | 5V @ 8mA | 250 nC @ 10 V | ±30V | 18600 pF @ 25 V | - | 1500W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
IXFP16N50PMOSFET N-CH 500V 16A TO220AB |
300 | 4.95 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 400mOhm @ 8A, 10V | 5.5V @ 2.5mA | 43 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
