| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

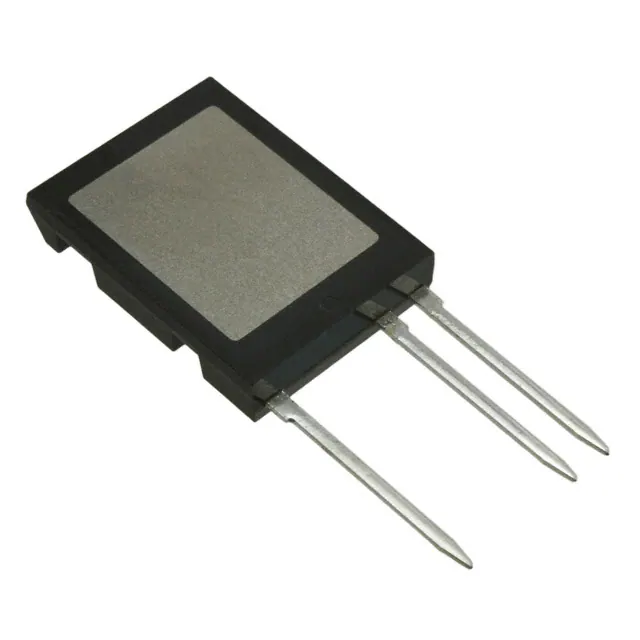

IXTF02N450MOSFET N-CH 4500V 200MA I4PAC |
553 | 44.39 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 4500 V | 200mA (Tc) | 10V | 750Ohm @ 10mA, 10V | 6.5V @ 250µA | 10.4 nC @ 10 V | ±20V | 256 pF @ 25 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTL2N450MOSFET N-CH 4500V 2A I5PAK |
156 | 125.73 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 4500 V | 2A (Tc) | 10V | 23Ohm @ 1A, 10V | 6V @ 250µA | 156 nC @ 10 V | ±20V | 6900 pF @ 25 V | - | 220W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

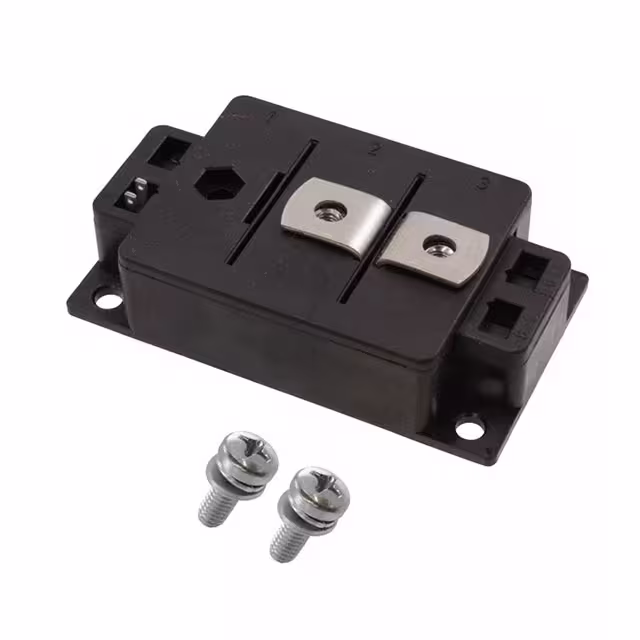

VMO1200-01FMOSFET N-CH 100V 1220A Y3-LI |
3,659 | 158.94 |
RFQ |
Datasheet |
Tray | HiPerFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1220A (Tc) | 10V | 1.35mOhm @ 932A, 10V | 4V @ 64mA | 2520 nC @ 10 V | ±20V | - | - | - | -40°C ~ 150°C (TJ) | Chassis Mount |
|
IXTP32P05TMOSFET P-CH 50V 32A TO220AB |
3,614 | 2.71 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 32A (Tc) | 10V | 39mOhm @ 500mA, 10V | 4.5V @ 250µA | 46 nC @ 10 V | ±15V | 1975 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP18P10TMOSFET P-CH 100V 18A TO220AB |
1,952 | 2.71 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 18A (Tc) | 10V | 120mOhm @ 9A, 10V | 4.5V @ 250µA | 39 nC @ 10 V | ±15V | 2100 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTA32P05TMOSFET P-CH 50V 32A TO263 |
1,745 | 3.07 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 32A (Tc) | 10V | 39mOhm @ 500mA, 10V | 4.5V @ 250µA | 46 nC @ 10 V | ±15V | 1975 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTP28P065TMOSFET P-CH 65V 28A TO220AB |
2,055 | 3.65 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 65 V | 28A (Tc) | 10V | 45mOhm @ 14A, 10V | 4.5V @ 250µA | 46 nC @ 10 V | ±15V | 2030 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP3N50D2MOSFET N-CH 500V 3A TO220AB |
398 | 3.81 |
RFQ |
Datasheet |
Tube | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 3A (Tc) | - | 1.5Ohm @ 1.5A, 0V | - | 40 nC @ 5 V | ±20V | 1070 pF @ 25 V | Depletion Mode | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTA3N50D2MOSFET N-CH 500V 3A TO263 |
802 | 4.22 |
RFQ |
Datasheet |
Tube | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 3A (Tc) | - | 1.5Ohm @ 1.5A, 0V | - | 40 nC @ 5 V | ±20V | 1070 pF @ 25 V | Depletion Mode | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTY15P15TMOSFET P-CH 150V 15A TO252 |
662 | 4.06 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 15A (Tc) | 10V | 240mOhm @ 7A, 10V | 4.5V @ 250µA | 48 nC @ 10 V | ±15V | 3650 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXFP38N30X3MMOSFET N-CH 300V 38A TO220 |
923 | 6.08 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 38A (Tc) | - | - | - | - | - | - | - | 34W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFH20N50P3MOSFET N-CH 500V 20A TO247AD |
179 | 6.17 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 300mOhm @ 10A, 10V | 5V @ 1.5mA | 36 nC @ 10 V | ±30V | 1800 pF @ 25 V | - | 380W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH270N06T3MOSFET N-CH 60V 270A TO247 |
156 | 7.29 |
RFQ |
Datasheet |
Tube | HiperFET™, TrenchT3™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 270A (Tc) | 10V | 3.1mOhm @ 100A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 12600 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXFH26N50PMOSFET N-CH 500V 26A TO247AD |
2,068 | 7.98 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 4mA | 60 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFP72N20X3MOSFET N-CH 200V 72A TO220 |
106 | 8.49 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 72A (Tc) | 10V | 20mOhm @ 36A, 10V | 4.5V @ 1.5mA | 55 nC @ 10 V | ±20V | 3780 pF @ 25 V | - | 320W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTA32P20TMOSFET P-CH 200V 32A TO263 |
280 | 9.00 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 32A (Tc) | 10V | 130mOhm @ 16A, 10V | 4V @ 250µA | 185 nC @ 10 V | ±15V | 14500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFH42N50P2MOSFET N-CH 500V 42A TO247AD |
416 | 9.76 |
RFQ |
Datasheet |
Tube | HiPerFET™, PolarP2™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 42A (Tc) | 10V | 145mOhm @ 500mA, 10V | 4.5V @ 4mA | 92 nC @ 10 V | ±30V | 5300 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH12N90PMOSFET N-CH 900V 12A TO247AD |
1,069 | 9.95 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 12A (Tc) | 10V | 900mOhm @ 6A, 10V | 6.5V @ 1mA | 56 nC @ 10 V | ±30V | 3080 pF @ 25 V | - | 380W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP15N50L2MOSFET N-CH 500V 15A TO220AB |
316 | 9.95 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 15A (Tc) | 10V | 480mOhm @ 7.5A, 10V | 4.5V @ 250µA | 123 nC @ 10 V | ±20V | 4080 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
IXTH30N60PMOSFET N-CH 600V 30A TO247 |
482 | 10.60 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±30V | 5050 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
