| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFH16N120PMOSFET N-CH 1200V 16A TO247AD |
680 | 20.83 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 16A (Tc) | 10V | 950mOhm @ 8A, 10V | 6.5V @ 1mA | 120 nC @ 10 V | ±30V | 6900 pF @ 25 V | - | 660W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTT80N20LMOSFET N-CH 200V 80A TO268 |
580 | 21.76 |
RFQ |
Datasheet |
Tube | Linear | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 80A (Tc) | 10V | 32mOhm @ 40A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 6160 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXFK44N80PMOSFET N-CH 800V 44A TO264AA |
600 | 22.47 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 44A (Tc) | 10V | 190mOhm @ 22A, 10V | 5V @ 8mA | 198 nC @ 10 V | ±30V | 12000 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
IXTX32P60PMOSFET P-CH 600V 32A PLUS247-3 |
298 | 22.60 |
RFQ |
Datasheet |
Tube | PolarP™ | Active | P-Channel | MOSFET (Metal Oxide) | 600 V | 32A (Tc) | 10V | 350mOhm @ 16A, 10V | 4V @ 1mA | 196 nC @ 10 V | ±20V | 11100 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFT220N20X3HVMOSFET N-CH 200V 220A TO268HV |
1,696 | 22.82 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 220A (Tc) | 10V | 6.2mOhm @ 110A, 10V | 4.5V @ 4mA | 204 nC @ 10 V | ±20V | 13600 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTK90P20PMOSFET P-CH 200V 90A TO264 |
3,555 | 22.82 |
RFQ |
Datasheet |
Tube | PolarP™ | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 90A (Tc) | 10V | 44mOhm @ 500mA, 10V | 4V @ 1mA | 205 nC @ 10 V | ±20V | 12000 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTR170P10PMOSFET P-CH 100V 108A ISOPLUS247 |
1,119 | 22.84 |
RFQ |
Datasheet |
Tube | PolarP™ | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 108A (Tc) | 10V | 13mOhm @ 85A, 10V | 4V @ 1mA | 240 nC @ 10 V | ±20V | 12600 pF @ 25 V | - | 312W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFK240N15T2MOSFET N-CH 150V 240A TO264AA |
126 | 22.92 |
RFQ |
Datasheet |
Tube | HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 240A (Tc) | 10V | 5.2mOhm @ 60A, 10V | 5V @ 8mA | 460 nC @ 10 V | ±20V | 32000 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

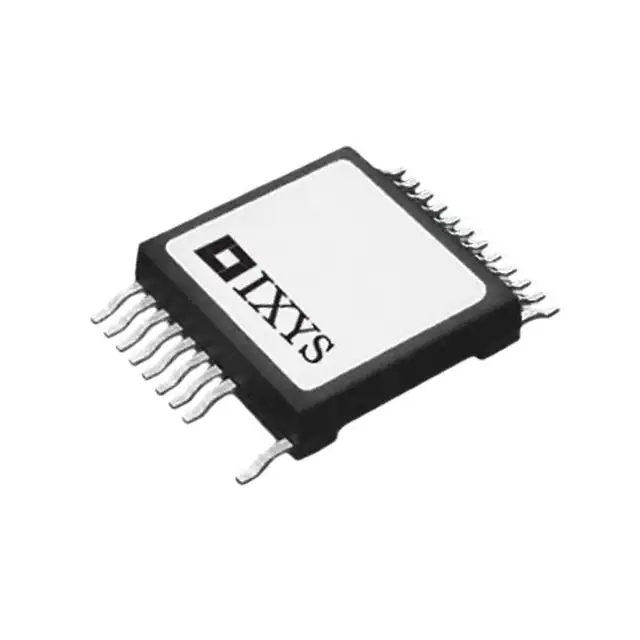

MMIX1F520N075T2MOSFET N-CH 75V 500A 24SMPD |
3,504 | 23.81 |
RFQ |
Datasheet |
Tube | GigaMOS™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 500A (Tc) | 10V | 1.6mOhm @ 100A, 10V | 5V @ 8mA | 545 nC @ 10 V | ±20V | 41000 pF @ 25 V | - | 830W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IXTT02N450HVMOSFET N-CH 4500V 200MA TO268 |
956 | 32.50 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 4500 V | 200mA (Tc) | 10V | 750Ohm @ 10mA, 10V | 6.5V @ 250µA | 10.4 nC @ 10 V | ±20V | 256 pF @ 25 V | - | 113W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTK90N25L2MOSFET N-CH 250V 90A TO264 |
2,784 | 35.52 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 90A (Tc) | 10V | 33mOhm @ 45A, 10V | 4.5V @ 3mA | 640 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTN170P10PMOSFET P-CH 100V 170A SOT227B |
223 | 37.01 |
RFQ |
Datasheet |
Tube | Polar | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 170A (Tc) | 10V | 12mOhm @ 500mA, 10V | 4V @ 1mA | 240 nC @ 10 V | ±20V | 12600 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXTN600N04T2MOSFET N-CH 40V 600A SOT227B |
209 | 37.02 |
RFQ |
Datasheet |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 600A (Tc) | 10V | 1.05mOhm @ 100A, 10V | 3.5V @ 250µA | 590 nC @ 10 V | ±20V | 40000 pF @ 25 V | - | 940W (Tc) | -55°C ~ 175°C (TJ) | Chassis Mount |
|
|
IXTK60N50L2MOSFET N-CH 500V 60A TO264 |
961 | 37.96 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 60A (Tc) | 10V | 100mOhm @ 30A, 10V | 4.5V @ 250µA | 610 nC @ 10 V | ±30V | 24000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFN32N100PMOSFET N-CH 1000V 27A SOT-227B |
848 | 38.52 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 27A (Tc) | 10V | 320mOhm @ 16A, 10V | 6.5V @ 1mA | 225 nC @ 10 V | ±30V | 14200 pF @ 25 V | - | 690W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXTT1N450HVMOSFET N-CH 4500V 1A TO268 |
1,530 | 50.69 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 4500 V | 1A (Tc) | 10V | 85Ohm @ 50mA, 10V | 6.5V @ 250µA | 40 nC @ 10 V | ±20V | 1730 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFN80N50MOSFET N-CH 500V 80A SOT-227B |
120 | 58.65 |
RFQ |
Datasheet |
Tube | HiPerFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 66A (Tc) | 10V | 55mOhm @ 500mA, 10V | 4.5V @ 8mA | 380 nC @ 10 V | ±20V | 9890 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXTX90N25L2MOSFET N-CH 250V 90A PLUS247-3 |
848 | 37.67 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 90A (Tc) | 10V | 33mOhm @ 45A, 10V | 4.5V @ 3mA | 640 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTK5N250MOSFET N-CH 2500V 5A TO264 |
228 | 67.69 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 2500 V | 5A (Tc) | 10V | 8.8Ohm @ 2.5A, 10V | 5V @ 1mA | 200 nC @ 10 V | ±30V | 8560 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXKN75N60CMOSFET N-CH 600V 75A SOT-227B |
365 | 68.13 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 75A (Tc) | 10V | 36mOhm @ 50A, 10V | 3.9V @ 5mA | 500 nC @ 10 V | ±20V | - | Super Junction | 560W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
