| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

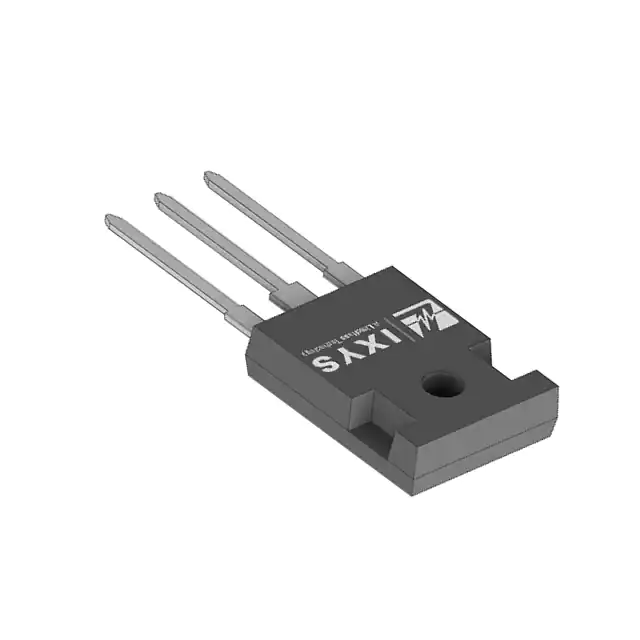

IXFH34N65X3MOSFET 34A 650V X3 TO247 |
545 | 7.43 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34A (Tc) | 10V | 100mOhm @ 17A, 10V | 5.2V @ 2.5mA | 29 nC @ 10 V | ±20V | 2025 pF @ 25 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFP34N65X3MOSFET 34A 650V X3 TO220 |
800 | 8.35 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34A (Tc) | - | 100mOhm @ 17A, 10V | 5.2V @ 2.5mA | 29 nC @ 10 V | ±20V | 2025 pF @ 25 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFA34N65X3MOSFET 34A 650V X3 TO263 |
774 | 8.35 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34A (Tc) | 10V | 100mOhm @ 17A, 10V | 5.2V @ 2.5mA | 29 nC @ 10 V | ±20V | 2025 pF @ 25 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXFH36N60X3MOSFET ULTRA JCT 600V 36A TO247 |
390 | 8.35 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 36A (Tc) | 10V | 90mOhm @ 18A, 10V | 5V @ 2.5mA | 29 nC @ 10 V | ±20V | 2030 pF @ 25 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFP26N50P3MOSFET N-CH 500V 26A TO220AB |
139 | 9.00 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5V @ 4mA | 42 nC @ 10 V | ±30V | 2220 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFH30N50PMOSFET N-CH 500V 30A TO247AD |
187 | 9.18 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | 5V @ 4mA | 70 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH46N65X3MOSFET 46A 650V X3 TO247 |
550 | 9.45 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 73mOhm @ 23A, 10V | 5.2V @ 2.5mA | 40 nC @ 10 V | ±20V | 2730 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH48N60X3MOSFET ULTRA JCT 600V 48A TO247 |
253 | 10.37 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 48A (Tc) | 10V | 65mOhm @ 24A, 10V | 5V @ 2.5mA | 38 nC @ 10 V | ±20V | 2730 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTP60N20X4MOSFET ULTRA X4 200V 60A TO-220 |
380 | 10.51 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 60A (Tc) | 10V | 21mOhm @ 30A, 10V | 4.5V @ 250µA | 33 nC @ 10 V | ±20V | 2450 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXTT24P20MOSFET P-CH 200V 24A TO268 |
267 | 11.60 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 24A (Tc) | 10V | 110mOhm @ 500mA, 10V | 5V @ 250µA | 150 nC @ 10 V | ±20V | 4200 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
IXKH35N60C5MOSFET N-CH 600V 35A TO247AD |
3,325 | 11.62 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 35A (Tc) | 10V | 100mOhm @ 18A, 10V | 3.9V @ 1.2mA | 70 nC @ 10 V | ±20V | 2800 pF @ 100 V | Super Junction | - | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFT60N60X3HVMOSFET ULTRA 600V 60A TO268HV |
318 | 12.23 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 60A (Tc) | 10V | 51mOhm @ 30A, 10V | 5V @ 4mA | 51 nC @ 10 V | ±20V | 3450 pF @ 25 V | - | 625W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFH54N65X3MOSFET 54A 650V X3 TO247 |
480 | 12.36 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 54A (Tc) | 10V | 59mOhm @ 27A, 10V | 5.2V @ 4mA | 49 nC @ 10 V | ±20V | 3360 pF @ 25 V | - | 625W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFA72N20X3MOSFET N-CH 200V 72A TO263AA |
148 | 8.67 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 72A (Tc) | 10V | 20mOhm @ 36A, 10V | 4.5V @ 1.5mA | 55 nC @ 10 V | ±20V | 3780 pF @ 25 V | - | 320W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTT10P60MOSFET P-CH 600V 10A TO268 |
240 | 12.70 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 1Ohm @ 5A, 10V | 5V @ 250µA | 160 nC @ 10 V | ±20V | 4700 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTH60N20X4MOSFET ULTRA X4 200V 60A TO-247 |
497 | 12.76 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 60A (Tc) | 10V | 21mOhm @ 30A, 10V | 4.5V @ 250µA | 33 nC @ 10 V | ±20V | 2450 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

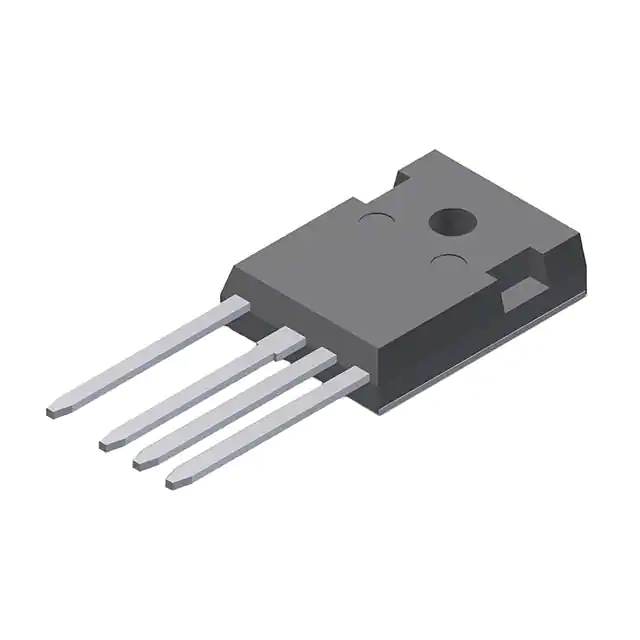

IXFH60N65X2-4MOSFET N-CH 650V 60A TO247-4L |
277 | 12.86 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 60A (Tc) | 10V | 52mOhm @ 30A, 10V | 5V @ 4mA | 108 nC @ 10 V | ±30V | 6300 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH70N65X3MOSFET 70A 650V X3 TO247 |
351 | 14.13 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 70A (Tc) | 10V | 44mOhm @ 35A, 10V | 5.2V @ 4mA | 66 nC @ 10 V | ±20V | 4600 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFK32N80PMOSFET N-CH 800V 32A TO264AA |
150 | 16.59 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 32A (Tc) | 10V | 270mOhm @ 16A, 10V | 5V @ 8mA | 150 nC @ 10 V | ±30V | 8800 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFK98N60X3DISCRETE MOSFET 98A 600V X3 TO26 |
300 | 17.19 |
RFQ |
Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
