| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

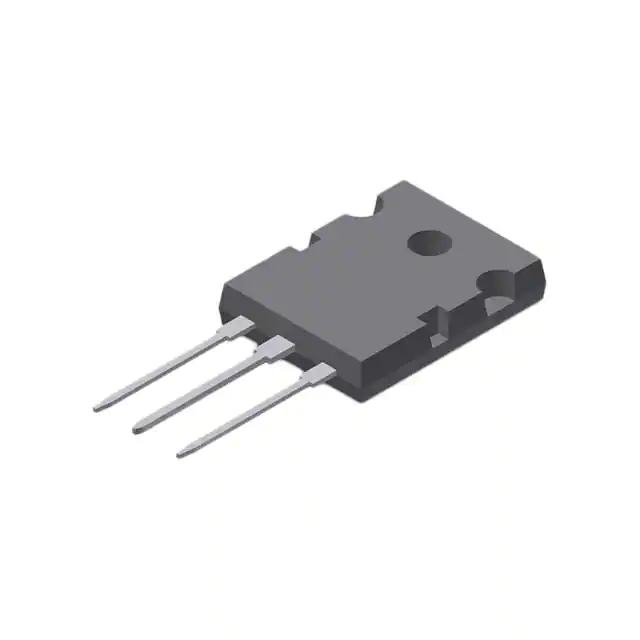

IXFH90N65X3MOSFET 90A 650V X3 TO247 |
530 | 17.56 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 90A (Tc) | 10V | 33mOhm @ 45A, 10V | 5.2V @ 4mA | 95 nC @ 10 V | ±20V | 6080 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFK32N100PMOSFET N-CH 1000V 32A TO264AA |
289 | 24.37 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 32A (Tc) | 10V | 320mOhm @ 16A, 10V | 6.5V @ 1mA | 225 nC @ 10 V | ±30V | 14200 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXKR47N60C5MOSFET N-CH 600V 47A ISOPLUS247 |
107 | 25.05 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 45mOhm @ 44A, 10V | 3.5V @ 3mA | 190 nC @ 10 V | ±20V | 6800 pF @ 100 V | Super Junction | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFK40N90PMOSFET N-CH 900V 40A TO264AA |
270 | 29.25 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 40A (Tc) | 10V | 230mOhm @ 20A, 10V | 6.5V @ 1mA | 230 nC @ 10 V | ±30V | 14000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
IXTX240N075L2MOSFET N-CH 75V 240A PLUS247-3 |
280 | 36.42 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 240A (Tc) | 10V | 7mOhm @ 120A, 10V | 4.5V @ 3mA | 546 nC @ 10 V | ±20V | 19000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
IXTH1N450HVMOSFET N-CH 4500V 1A TO247HV |
465 | 44.66 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 4500 V | 1A (Tc) | 10V | 80Ohm @ 50mA, 10V | 6V @ 250µA | 46 nC @ 10 V | ±20V | 1700 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTY01N100D-TRLMOSFET N-CH 1000V 400MA TO252AA |
4,080 | 3.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 400mA (Tc) | 0V | 80Ohm @ 50mA, 0V | 4.5V @ 25µA | 5.8 nC @ 5 V | ±20V | 100 pF @ 25 V | Depletion Mode | 1.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXFP36N20X3MMOSFET N-CH 200V 36A TO220 |
218 | 4.66 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 36A (Tc) | 10V | 45mOhm @ 18A, 10V | 4.5V @ 500µA | 21 nC @ 10 V | ±20V | 1425 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP450P2MOSFET N-CH 500V 16A TO220AB |
250 | 4.71 |
RFQ |
Datasheet |
Tube | PolarP2™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 330mOhm @ 8A, 10V | 4.5V @ 250µA | 43 nC @ 10 V | ±30V | 2530 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFA36N20X3MOSFET N-CH 200V 36A TO263AA |
226 | 4.87 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 36A (Tc) | 10V | 45mOhm @ 18A, 10V | 4.5V @ 500µA | 21 nC @ 10 V | ±20V | 1425 pF @ 25 V | - | 176W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTQ14N60PMOSFET N-CH 600V 14A TO3P |
279 | 5.23 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 550mOhm @ 7A, 10V | 5.5V @ 250µA | 36 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFQ20N50P3MOSFET N-CH 500V 20A TO3P |
298 | 5.52 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 300mOhm @ 10A, 10V | 5V @ 1.5mA | 36 nC @ 10 V | ±30V | 1800 pF @ 25 V | - | 380W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP2N100MOSFET N-CH 1000V 2A TO220AB |
250 | 5.58 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 2A (Tc) | 10V | 7Ohm @ 1A, 10V | 4.5V @ 250µA | 40 nC @ 10 V | ±20V | 825 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTH450P2MOSFET N-CH 500V 16A TO247 |
122 | 6.25 |
RFQ |
Datasheet |
Tube | PolarP2™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 330mOhm @ 8A, 10V | 4.5V @ 250µA | 43 nC @ 10 V | ±30V | 2530 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFP7N100PMOSFET N-CH 1000V 7A TO220AB |
3,547 | 6.81 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 7A (Tc) | 10V | 1.9Ohm @ 3.5A, 10V | 6V @ 1mA | 47 nC @ 10 V | ±30V | 2590 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP300N04T2MOSFET N-CH 40V 300A TO220AB |
200 | 6.90 |
RFQ |
Datasheet |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 10V | 2.5mOhm @ 500mA, 10V | 4V @ 250µA | 145 nC @ 10 V | ±20V | 10700 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXFP34N65X2MMOSFET N-CH 650V 34A TO220 |
2,166 | 7.43 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34A (Tc) | 10V | 100mOhm @ 17A, 10V | 5V @ 1.5mA | 56 nC @ 10 V | ±30V | 3230 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFH34N50P3MOSFET N-CH 500V 34A TO247AD |
297 | 9.22 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 34A (Tc) | 10V | 170mOhm @ 17A, 10V | 5V @ 4mA | 60 nC @ 10 V | ±30V | 3260 pF @ 25 V | - | 695W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFQ22N60P3MOSFET N-CH 600V 22A TO3P |
285 | 9.65 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 360mOhm @ 11A, 10V | 5V @ 1.5mA | 38 nC @ 10 V | ±30V | 2600 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFQ50N50P3MOSFET N-CH 500V 50A TO3P |
192 | 10.67 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 50A (Tc) | 10V | 120mOhm @ 25A, 10V | 5V @ 4mA | 85 nC @ 10 V | ±30V | 4335 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
