| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

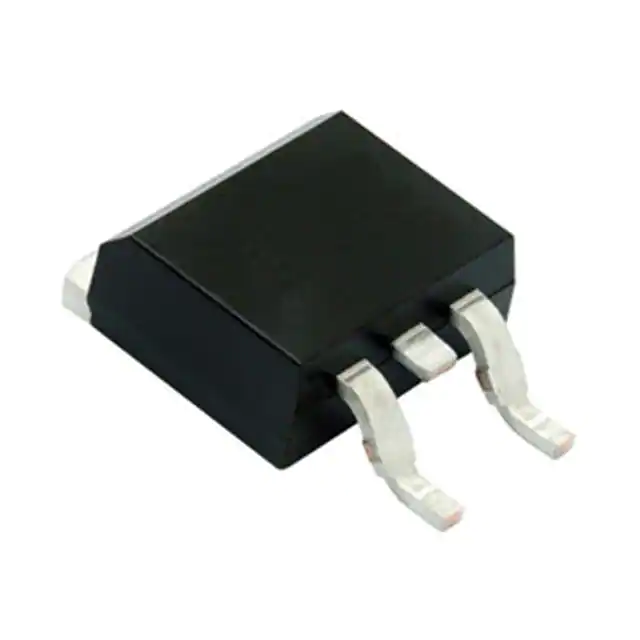

SIHB105N60EF-GE3MOSFET N-CH 600V 29A D2PAK |
2,001 | 4.01 |
RFQ |
Datasheet |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 102mOhm @ 13A, 10V | 5V @ 250µA | 53 nC @ 10 V | ±30V | 1804 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIHH105N60EF-T1GE3EF SERIES POWER MOSFET WITH FAST |
2,850 | 7.19 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 105mOhm @ 13A, 10V | 5V @ 250µA | 50 nC @ 10 V | ±30V | 2099 pF @ 100 V | - | 174W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
.jpg)
|
SIHB28N60EF-T1-GE3N-CHANNEL 600V |
3,165 | 6.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 28A (Tc) | 10V | 123mOhm @ 14A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±30V | 2714 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIHB28N60EF-T5-GE3N-CHANNEL 600V |
3,274 | 6.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 28A (Tc) | 10V | 123mOhm @ 14A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±30V | 2714 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SUM90100E-GE3N-CHANNEL 200-V (D-S) MOSFET D2P |
3,564 | 4.21 |
RFQ |
Datasheet |
Bulk | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 150A (Tc) | 7.5V, 10V | 11.4mOhm @ 16A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3930 pF @ 100 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SIJH600E-T1-GE3N-CHANNEL 60-V (D-S) 175C MOSFET |
3,478 | 6.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen IV | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 37A (Ta), 373A (Tc) | 7.5V, 10V | 0.92Ohm @ 20A, 10V | 4V @ 250µA | 212 nC @ 10 V | ±20V | 9950 pF @ 30 V | - | 3.3W (Ta), 333W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

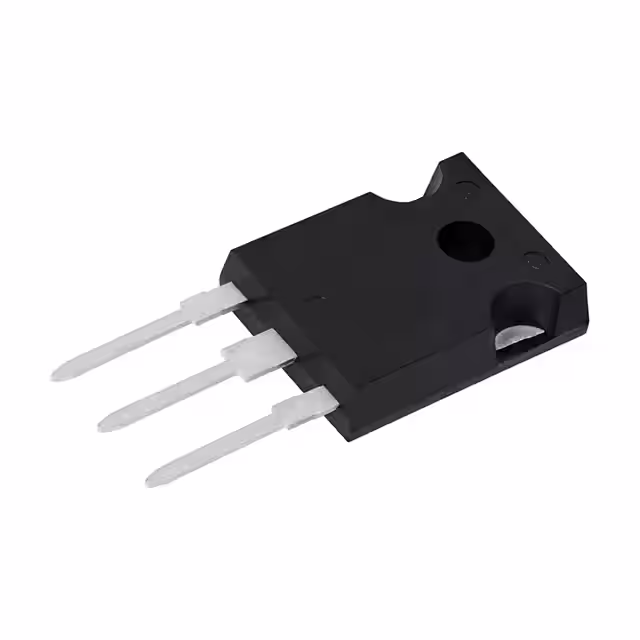

SIHG24N80AE-GE3MOSFET N-CH 800V 21A TO247AC |
3,327 | 4.28 |
RFQ |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 21A (Tc) | - | 184mOhm @ 10A, 10V | 4V @ 250µA | 89 nC @ 10 V | ±30V | 1836 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
SIHP24N80AEF-GE3EF SERIES POWER MOSFET WITH FAST |
3,372 | 4.28 |
RFQ |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 20A (Tc) | 10V | 195mOhm @ 10A, 10V | 4V @ 250µA | 90 nC @ 10 V | ±30V | 1889 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
SIHK125N60EF-T1GE3E SERIES POWER MOSFET WITH FAST |
3,574 | 5.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 125mOhm @ 12A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±30V | 1863 pF @ 100 V | - | 132W (Tc) | -55°C ~ 150°C | Surface Mount |
|
|
SIHK075N60E-T1-GE3E SERIES POWER MOSFET POWERPAK 1 |
3,458 | 6.98 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 80mOhm @ 13A, 10V | 5V @ 250µA | 62 nC @ 10 V | ±30V | 2582 pF @ 100 V | - | 167W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
SIHF080N60E-GE3E SERIES POWER MOSFET TO-220 FUL |
2,840 | 4.56 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 80mOhm @ 17A, 10V | 5V @ 250µA | 63 nC @ 10 V | ±30V | 2557 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHK065N60E-T1-GE3E SERIES POWER MOSFET POWERPAK 1 |
2,629 | 7.96 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 68mOhm @ 15A, 10V | 5V @ 250µA | 72 nC @ 10 V | ±30V | 2946 pF @ 100 V | - | 192W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
SIHK075N60EF-T1GE3E SERIES POWER MOSFET WITH FAST |
3,062 | 8.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 33A (Tc) | 10V | 71mOhm @ 15A, 10V | 5V @ 250µA | 72 nC @ 10 V | ±30V | 2954 pF @ 100 V | - | 192W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIHG24N80AEF-GE3EF SERIES POWER MOSFET WITH FAST |
3,110 | 5.10 |
RFQ |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 20A (Tc) | 10V | 195mOhm @ 10A, 10V | 4V @ 250µA | 90 nC @ 10 V | ±30V | 1889 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
SIHG080N60E-GE3E SERIES POWER MOSFET TO-247AC |
3,933 | 0.00 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 35A (Tc) | 10V | 80mOhm @ 17A, 10V | 5V @ 250µA | 63 nC @ 10 V | ±30V | 2557 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | |
|
|
SIHK055N60E-T1-GE3E SERIES POWER MOSFET POWERPAK 1 |
2,190 | 8.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 42A (Tc) | 10V | 56mOhm @ 16A, 10V | 5V @ 250µA | 81 nC @ 10 V | ±30V | 3504 pF @ 100 V | - | 236W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIHK055N60EF-T1GE3E SERIES POWER MOSFET WITH FAST |
3,039 | 9.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 40A (Tc) | 10V | 58mOhm @ 16A, 10V | 5V @ 250µA | 90 nC @ 10 V | ±30V | 3667 pF @ 100 V | - | 236W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SUM60061EL-GE3P-CHANNEL 80 V (D-S) MOSFET D2PA |
2,653 | 6.21 |
RFQ |
Datasheet |
Bulk | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 80 V | 150A (Tc) | 4.5V, 10V | 6.1mOhm @ 20A, 10V | 2.5V @ 250µA | 218 nC @ 10 V | ±20V | 9600 pF @ 40 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SQW33N65EF-GE3E SERIES POWER MOSFET WITH FAST |
2,619 | 6.49 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101, E | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34A (Tc) | 10V | 109mOhm @ 16.5A, 10V | 4V @ 250µA | 173 nC @ 10 V | ±30V | 3972 pF @ 100 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
SIHB053N60E-GE3E SERIES POWER MOSFET D2PAK (TO- |
2,563 | 6.62 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 54mOhm @ 26.5A, 10V | 5V @ 250µA | 92 nC @ 10 V | ±30V | 3722 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
