| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

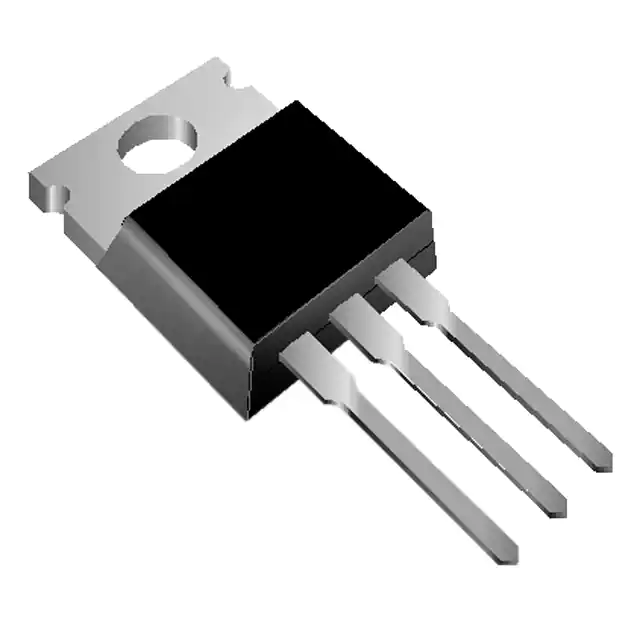

IRL540PBF-BE3MOSFET N-CH 100V 28A TO220AB |
2,649 | 2.63 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 28A (Tc) | - | 77mOhm @ 17A, 5V | 2V @ 250µA | 64 nC @ 5 V | ±10V | 2200 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
SIHA17N80AEF-GE3EF SERIES POWER MOSFET WITH FAST |
2,469 | 3.12 |
RFQ |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6.5A (Tc) | 10V | 305mOhm @ 8.5A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±30V | 1300 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|

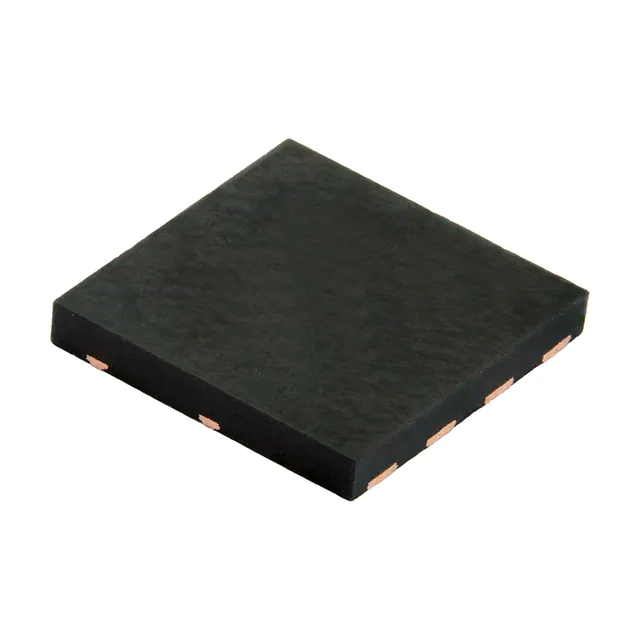

SIJH112E-T1-GE3MOSFET N-CH 100V 23A/225A PPAK |
3,960 | 4.82 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 23A (Ta), 225A (Tc) | - | 2.8mOhm @ 20A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 8050 pF @ 50 V | - | 3.3W (Ta), 333W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
SIHA21N65EF-GE3N-CHANNEL 600V |
2,765 | 4.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 106 nC @ 10 V | ±30V | 2322 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIJH800E-T1-GE3N-CHANNEL 80-V (D-S) 175C MOSFET |
3,670 | 5.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen IV | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 29A (Ta), 299A (Tc) | 7.5V, 10V | 1.55mOhm @ 20A, 10V | 4V @ 250µA | 210 nC @ 10 V | ±20V | 10230 pF @ 40 V | - | 3.3W (Ta), 333W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SIHA15N80AEF-GE3EF SERIES POWER MOSFET WITH FAST |
2,088 | 2.92 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 350mOhm @ 6.5A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±30V | 1128 pF @ 100 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFBF30PBF-BE3MOSFET N-CH 900V 3.6A TO220AB |
2,688 | 3.01 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 3.6A (Tc) | - | 3.7Ohm @ 2.2A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

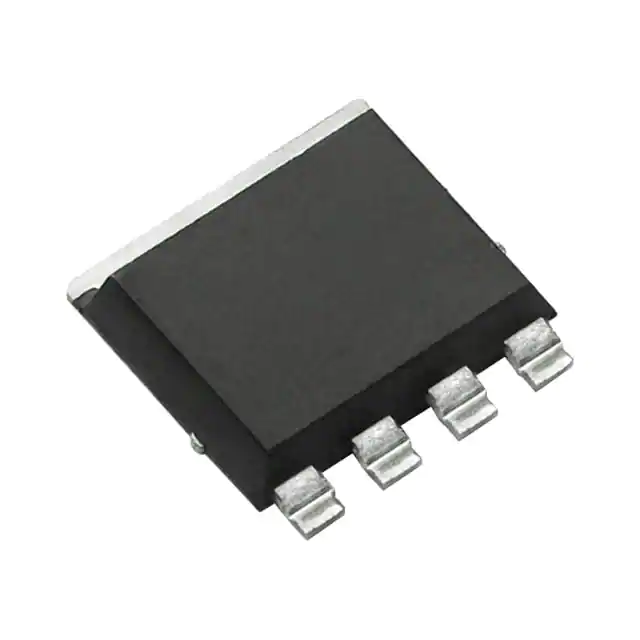

SIHH080N60E-T1-GE3E SERIES POWER MOSFET POWERPAK 8 |
2,476 | 5.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 32A (Tc) | 10V | 80mOhm @ 17A, 10V | 5V @ 250µA | 63 nC @ 10 V | ±30V | 2557 pF @ 100 V | - | 184W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIHP17N80AEF-GE3E SERIES POWER MOSFET WITH FAST |
3,483 | 3.05 |
RFQ |
Datasheet |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 15A (Tc) | 10V | 305mOhm @ 8.5A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±30V | 1300 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHK125N60E-T1-GE3E SERIES POWER MOSFET POWERPAK 1 |
2,983 | 5.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 125mOhm @ 12A, 10V | 5V @ 250µA | 44 nC @ 10 V | ±30V | 1811 pF @ 100 V | - | 132W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SUM70042E-GE3N-CHANNEL 100-V (D-S) MOSFET D2P |
2,995 | 3.13 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 150A (Tc) | 7.5V, 10V | 4mOhm @ 20A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 6490 pF @ 50 V | - | 278W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SIHG15N80AEF-GE3EF SERIES POWER MOSFET WITH FAST |
3,152 | 3.18 |
RFQ |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 13A (Tc) | 10V | 350mOhm @ 6.5A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±30V | 1128 pF @ 100 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
IRFZ48RPBFMOSFET N-CH 60V 50A TO220AB |
2,042 | 3.24 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 18mOhm @ 43A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
SIHG17N80AEF-GE3E SERIES POWER MOSFET WITH FAST |
2,986 | 3.36 |
RFQ |
Datasheet |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 15A (Tc) | 10V | 305mOhm @ 8.5A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±30V | 1300 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHK105N60EF-T1GE3E SERIES POWER MOSFET POWERPAK 1 |
3,705 | 6.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 105mOhm @ 10A, 10V | 5V @ 250µA | 51 nC @ 10 V | ±30V | 2301 pF @ 100 V | - | 142W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIHG21N80AEF-GE3E SERIES POWER MOSFET WITH FAST |
3,413 | 3.53 |
RFQ |
Datasheet |
Bulk | EF | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 16.3A (Tc) | 10V | 250mOhm @ 8.5A, 10V | 4V @ 250µA | 71 nC @ 10 V | ±30V | 1511 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHP35N60E-BE3N-CHANNEL 600V |
3,831 | 6.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 32A (Tc) | 10V | 94mOhm @ 17A, 10V | 4V @ 250µA | 132 nC @ 10 V | ±30V | 2760 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIJH5700E-T1-GE3N-CHANNEL 150 V (D-S) 175C MOSFE |
2,402 | 6.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 17A (Ta), 174A (Tc) | 7.5V, 10V | 4.1mOhm @ 20A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±20V | 7500 pF @ 75 V | - | 3.3W (Ta), 333W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SIHP080N60E-GE3E SERIES POWER MOSFET TO-220AB |
3,236 | 0.00 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 35A (Tc) | 10V | 80mOhm @ 17A, 10V | 5V @ 250µA | 63 nC @ 10 V | ±30V | 2557 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | |
.jpg)
|
SIHB30N60ET5-GE3N-CHANNEL 600V |
3,927 | 6.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 125mOhm @ 15A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±30V | 2600 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
