| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H7019FNLTTRANSFORMER MODULE 10GBASE-T SMD |
234 | 10.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.539 L x 0.591 W (13.70mm x 15.00mm) | 0.230 (5.85mm) |
|
H7018FNLTMODULE 10GBASE-T 1.5KVRMS SMD |
400 | 11.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.539 L x 0.591 W (13.70mm x 15.00mm) | 0.230 (5.85mm) |
|

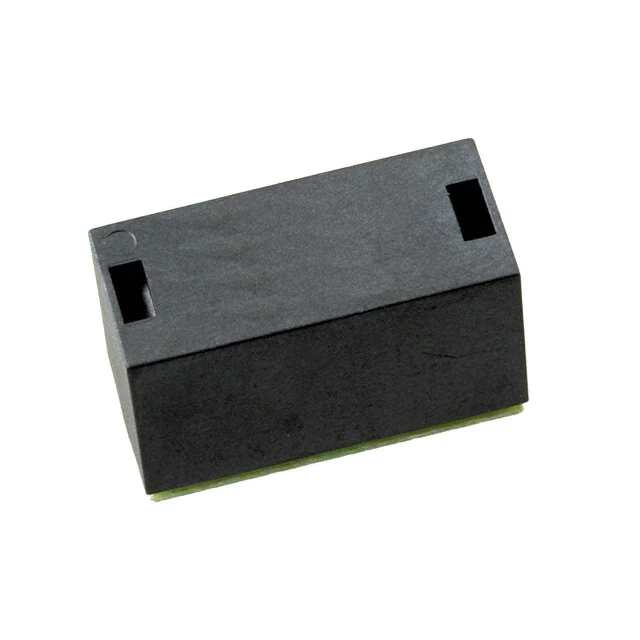

H5610NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
266 | 11.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.680 L x 0.310 W (17.27mm x 7.87mm) | 0.440 (11.18mm) |
|

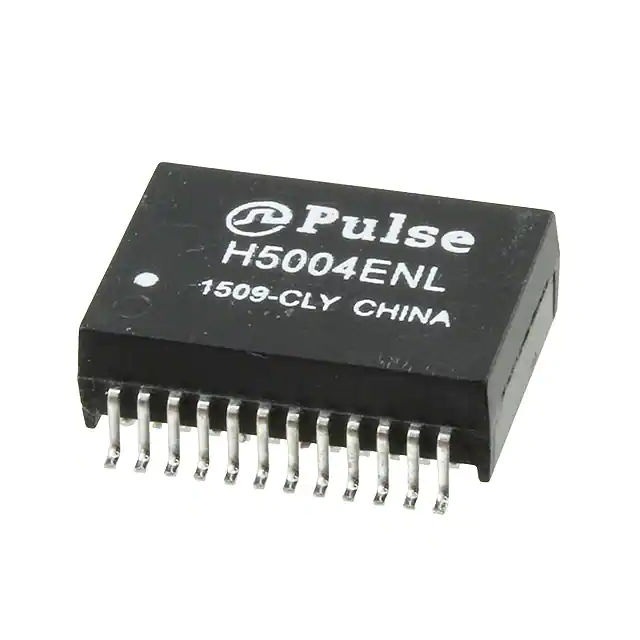

H5004ENLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
196 | 11.61 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689 L x 0.480 W (17.50mm x 12.20mm) | 0.225 (5.72mm) |
|

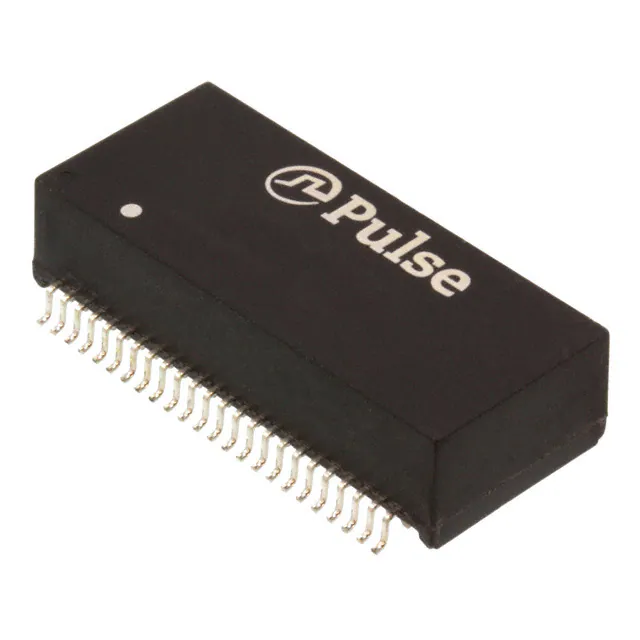

H5014NLTTRANSFORMER MODULE GIGABIT 2PORT |
125 | 11.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.095 L x 0.480 W (27.81mm x 12.19mm) | 0.295 (7.49mm) |
|
H1174FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
117 | 11.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515 L x 0.574 W (13.08mm x 14.57mm) | 0.145 (3.69mm) |
|
H1259NLTXFRMR MODULE 4PORT 1:1 10/100 |
2,881 | 11.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.125 L x 0.480 W (28.58mm x 12.19mm) | 0.235 (5.97mm) |
|

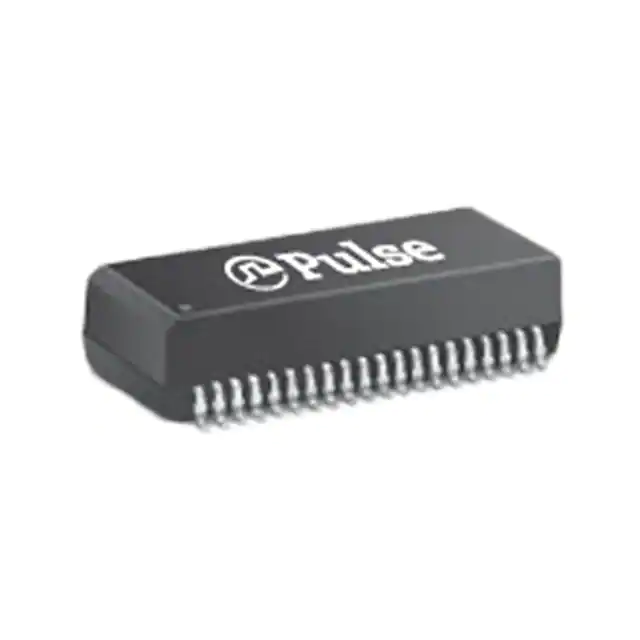

HX1259NLXFRMR MODULE 4PORT 1:1 10/100 |
156 | 12.10 |
RFQ |
Datasheet |
Tube | Star Magnetics™ | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.110 L x 0.480 W (28.19mm x 12.19mm) | 0.235 (5.97mm) |
|

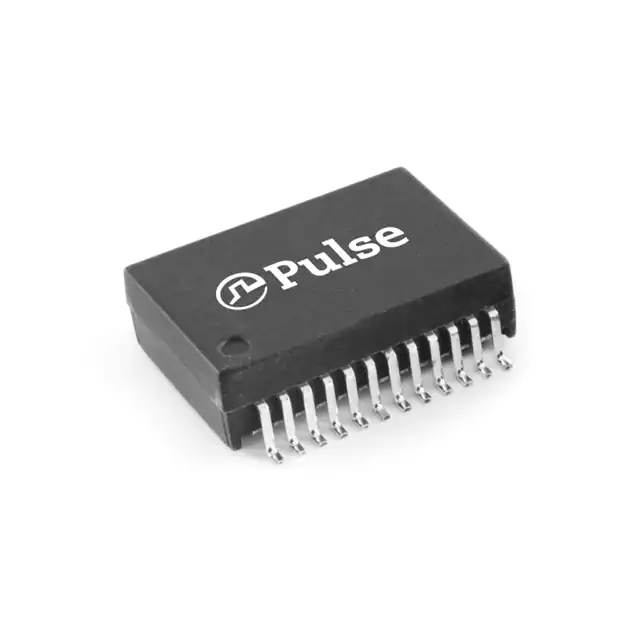

HM5004ENLTMDL SIN 1GD 1:1 SMT TR |
2,106 | 12.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HX5004NL | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.695 L x 0.480 W (17.65mm x 12.20mm) | 0.225 (5.72mm) |
|

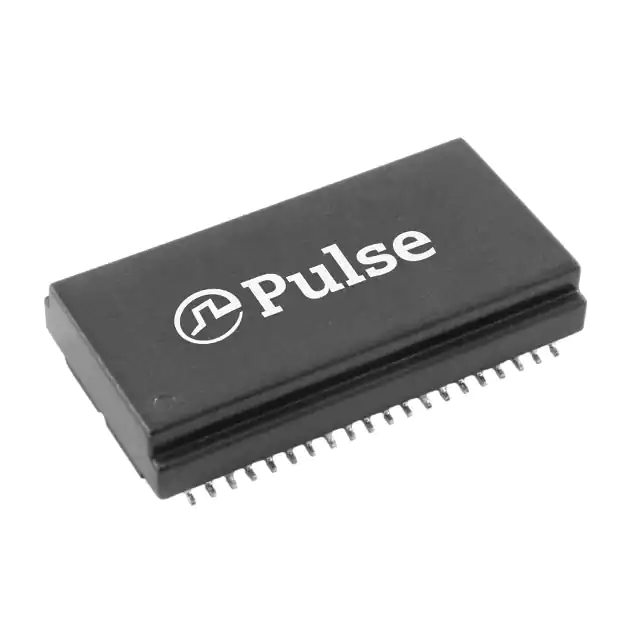

HM1234FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
110 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q200 | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110 L x 0.608 W (28.19mm x 15.44mm) | 0.225 (5.72mm) |
|
HX1234NLTXFRMR MODUL AUTO MDI/MDIX 10/100 |
6,539 | 14.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.125 L x 0.480 W (28.58mm x 12.19mm) | 0.290 (7.36mm) |
|
|
H1062NLMODULE XFRMR QUAD ETHR LAN40SOIC |
159 | 14.35 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125 L x 0.480 W (28.58mm x 12.19mm) | 0.230 (5.84mm) |
|
|
HX1234TPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
215 | 14.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.125 L x 0.480 W (28.58mm x 12.19mm) | 0.230 (5.84mm) |
|

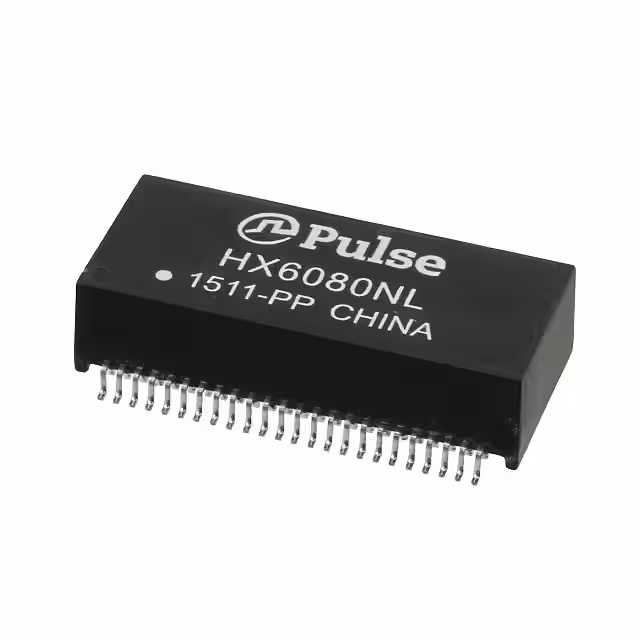

HX6080NLPULSE XFMR 1 CT:1CT TX/RX 350UH |
517 | 16.09 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095 L x 0.480 W (27.81mm x 12.19mm) | 0.285 (7.24mm) |
|
H5014FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
199 | 16.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095 L x 0.590 W (27.81mm x 14.99mm) | 0.285 (7.24mm) |
|

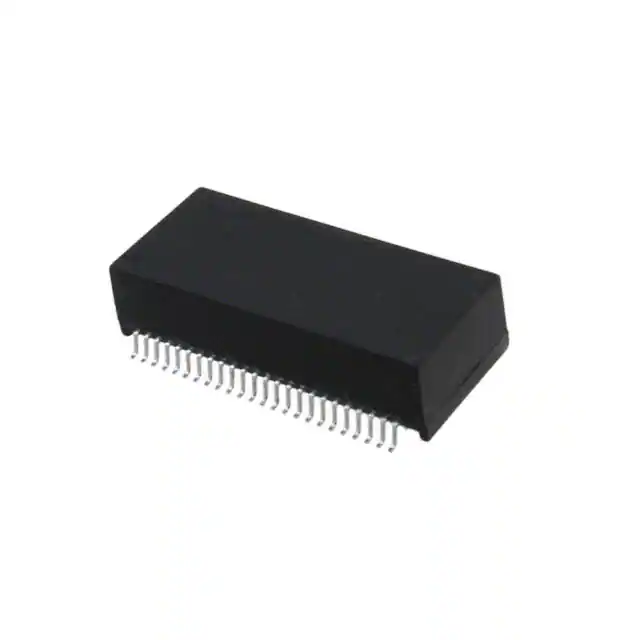

H6080NLTXFRMR MODUL GIGABT 2PORT POE 1:1 |
214 | 16.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Star Magnetics™ | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.095 L x 0.480 W (27.81mm x 12.19mm) | 0.295 (7.49mm) |
|
HX5014NLTTRANSFORMER MODULE GIGABIT 2PORT |
2,389 | 18.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.095 L x 0.480 W (27.81mm x 12.19mm) | 0.295 (7.49mm) |
|

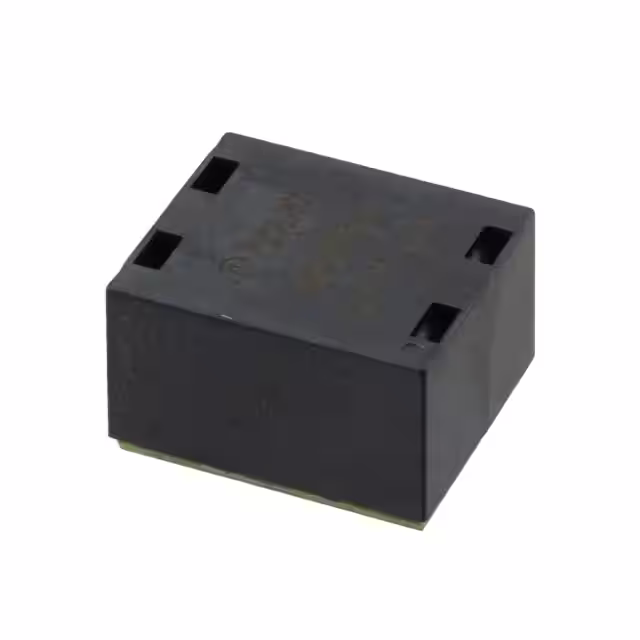

H6200NLPULSE XFMR 1CT:1CT TX/RX |
168 | 20.09 |
RFQ |
Datasheet |
Tray | - | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580 L x 0.680 W (14.73mm x 17.27mm) | 0.440 (11.18mm) |
|
|
HM1238NLHM1238NL |
779 | 2.57 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | |
|
|
HU4009NLHU4009NL |
390 | 4.67 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - |
