| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

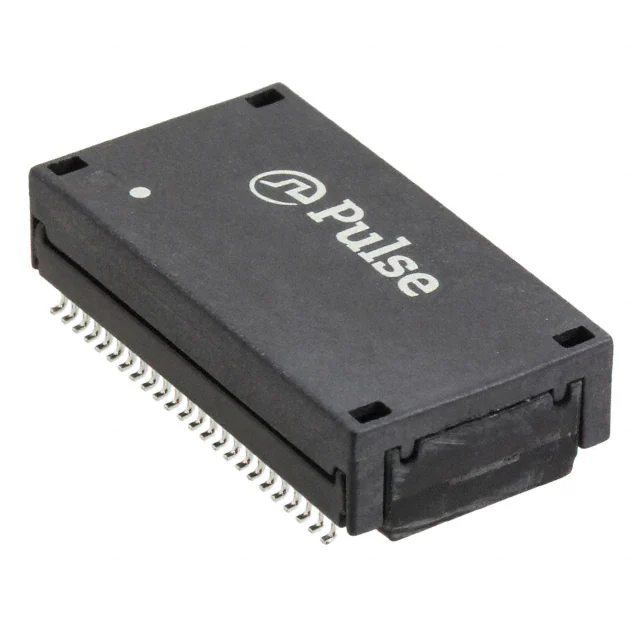

H5014FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
165 | 16.75 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095 L x 0.590 W (27.81mm x 14.99mm) | 0.285 (7.24mm) |
|
HM2106NLTMDL, SIN, XFMR, 1:1, 4.3KV, SMT |
1,096 | 1096.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 135µH | - | 1:1 | Surface Mount | 0.335 L x 0.524 W (8.50mm x 13.31mm) | |
|

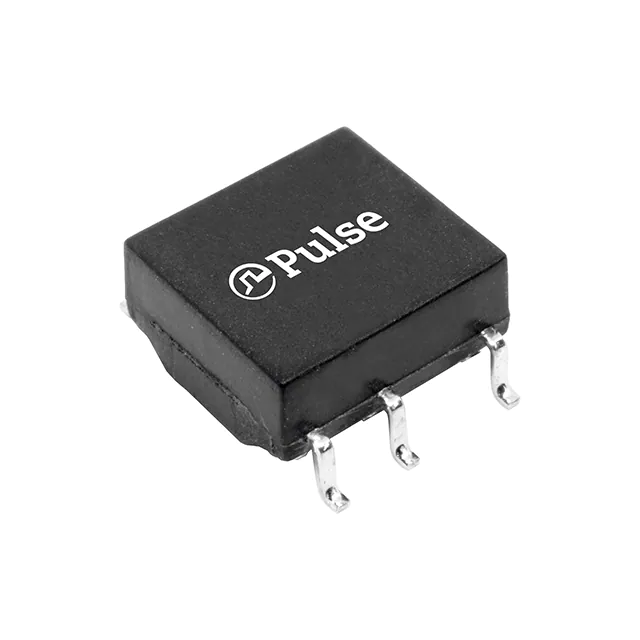

HM1238NLTMDL, SIN, XFMR-CMC, 1:1, 4.3KV |
1,600 | 1600.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 300µH | - | 1:1 | Surface Mount | 0.330 L x 0.303 W (8.38mm x 7.69mm) | |
|

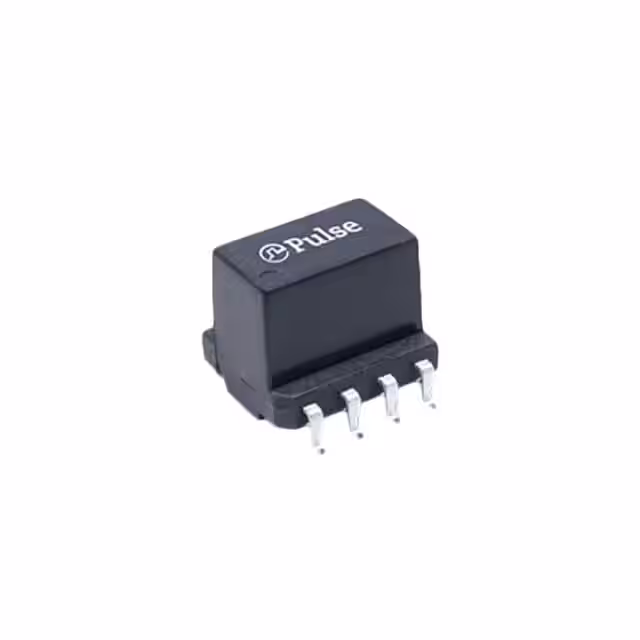

BM6155NLTTRANSFORMER 28UH 1:1:1 3KV SMT |
445 | 6.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | BM615xNL | Active | - | 28µH | - | 1:1:1 | Surface Mount | 0.417 L x 0.357 W (10.60mm x 9.08mm) | 0.394 (10.00mm) |
|
|
BM6154NLTTRANSFORMER 8UH 1:1:1 3KV SMT |
189 | 6.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | BM615xNL | Active | - | 8µH | - | 1:1:1 | Surface Mount | 0.417 L x 0.357 W (10.60mm x 9.08mm) | 0.394 (10.00mm) |
|

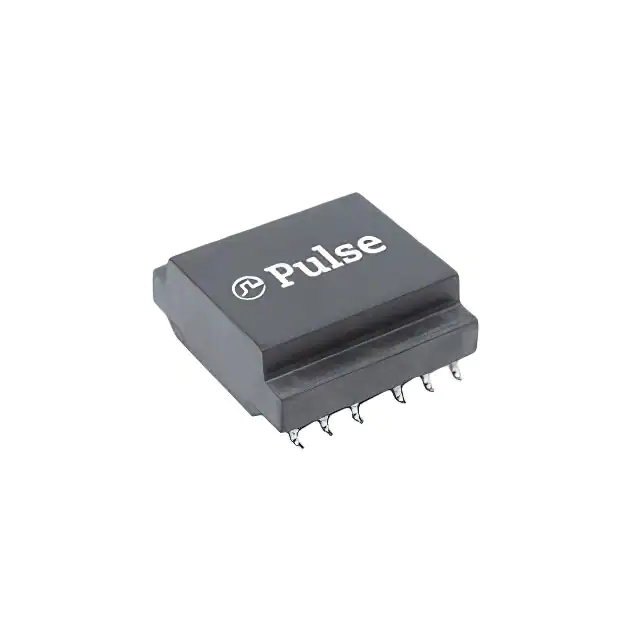

BX6158NLTRANSFORMER 20UH 1:1:1 3KV SMT |
292 | 5.14 |
RFQ |
Datasheet |
Tube | - | Active | - | 20µH | - | 1:1:1 | Surface Mount | 0.445 L x 0.411 W (11.31mm x 10.43mm) | 0.287 (7.30mm) |
|
PE-65351NLXFRMR T1/CEPT/ISDN-PRI 1:2CT T/H |
122 | 5.20 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Single) | 1.2mH | - | 1:2CT | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
BX6152NLTRANSFORMER 7UH 1:1:2 3KV SMT |
346 | 5.27 |
RFQ |
Datasheet |
Tube | - | Active | - | 7µH | - | 1:1:2 | Surface Mount | 0.445 L x 0.406 W (11.30mm x 10.30mm) | 0.300 (7.62mm) |
|
|

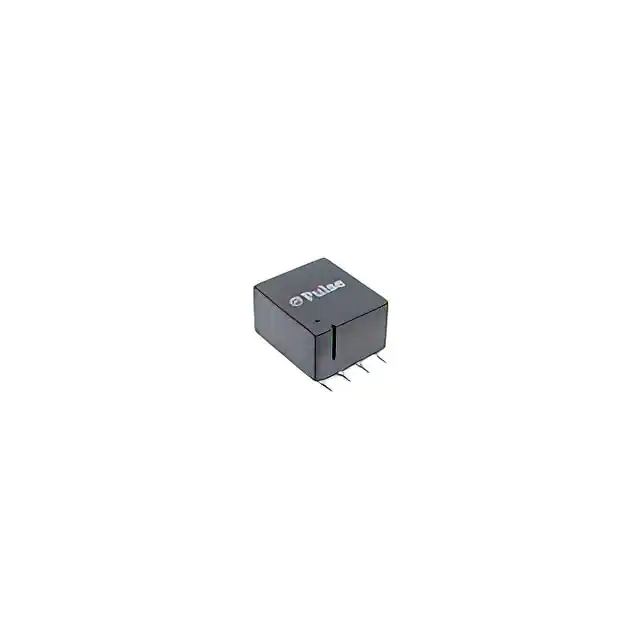

BX6153NLTRANSFORMER 7UH 1:1 4KV SMT |
340 | 5.27 |
RFQ |
Datasheet |
Tube | - | Active | - | 7µH | - | 1:1 | Surface Mount | 0.445 L x 0.406 W (11.30mm x 10.30mm) | 0.300 (7.62mm) |
|
PE-64931NLXFRMR T1/CEPT/ISDN-PRI 1:1:1 |
507 | 5.28 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Single) | 1.2mH | - | 1:1:1, 1:2CS | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
H5007EFNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
450 | 8.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689 L x 0.600 W (17.50mm x 15.24mm) | 0.225 (5.72mm) |
|
HX6096NLTPULSE XFMR 1CT:1CT TX/RX |
15,966 | 8.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715 L x 0.480 W (18.16mm x 12.20mm) | 0.260 (6.60mm) |
|

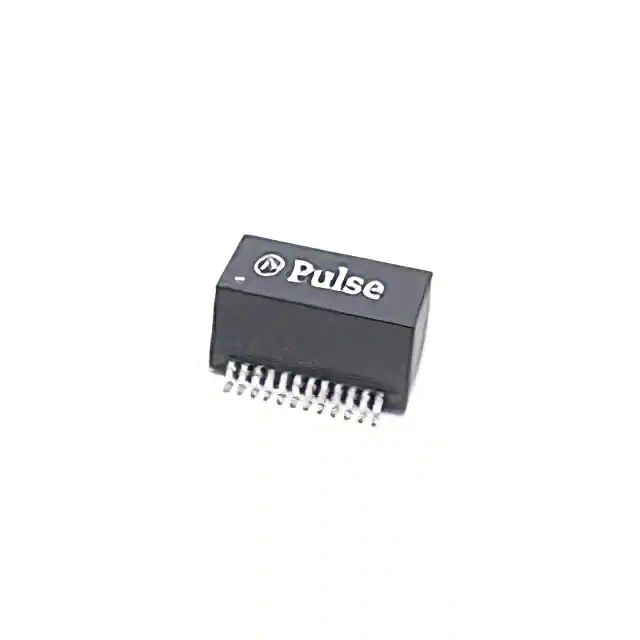

HX6164NLTRANS MOD 1G 70W POE SMD |
350 | 5.72 |
RFQ |
Datasheet |
Tube | HX6164NL | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 120µH | - | 1:1 | Surface Mount | - | 0.340 (8.64mm) |
|

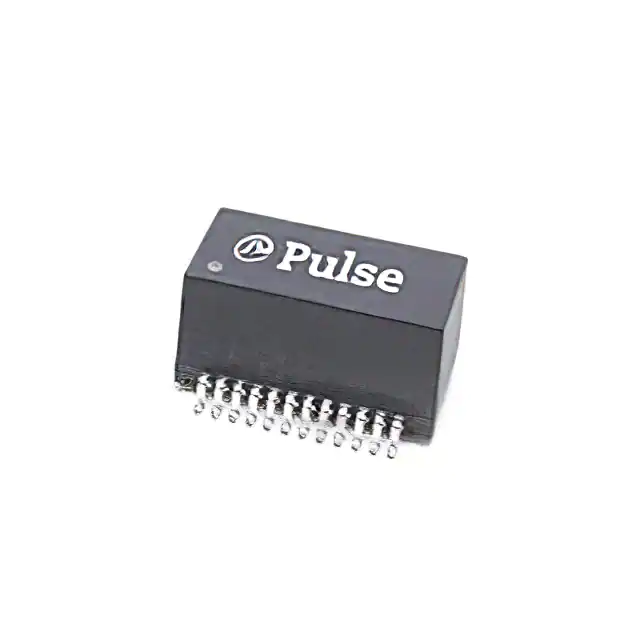

HX5164NLTRANS MOD 1G 70W POE SMD |
263 | 5.72 |
RFQ |
Datasheet |
Tube | HX5164NL | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | - | 0.340 (8.64mm) |
|
H1100NLXFRMR MAGNETIC 1PORT 2:1 10/100 |
600 | 5.82 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 2:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.245 (6.22mm) |
|
H5077NLTMODULE MINI-MAG 1PORT 1000BASE-T |
4,176 | 10.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.550 L x 0.495 W (13.97mm x 12.57mm) | 0.190 (4.82mm) |
|
HX6106NLTPULSE XFMR 350UH |
400 | 8.07 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN, Power over Ethernet (PoE) | 350µH | - | - | Surface Mount | 0.715 L x 0.511 W (18.16mm x 12.98mm) | 0.410 (10.41mm) | |
|

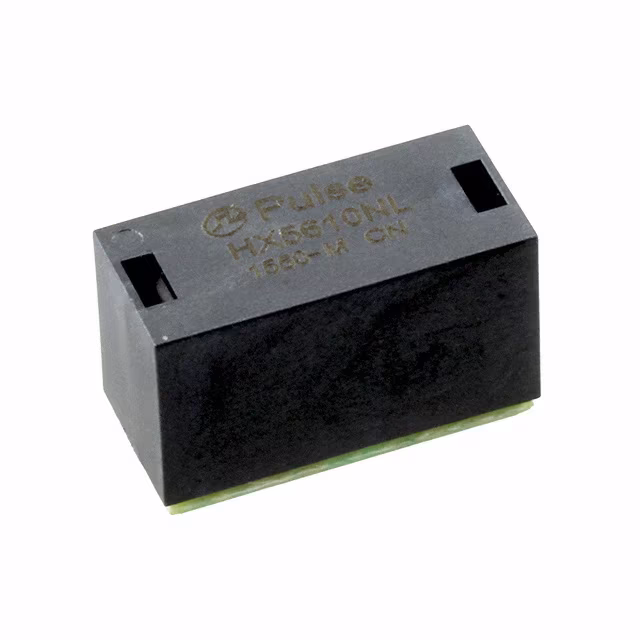

HX5610NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,980 | 10.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.680 L x 0.310 W (17.27mm x 7.87mm) | 0.440 (11.18mm) |
|
|
HM2112ZNLXFMR-CMC DUAL 4.3KV 1CT:1C |
509 | 7.19 |
RFQ |
Datasheet |
Tube | - | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.579 L x 0.478 W (14.70mm x 12.15mm) | 0.136 (3.45mm) |
|

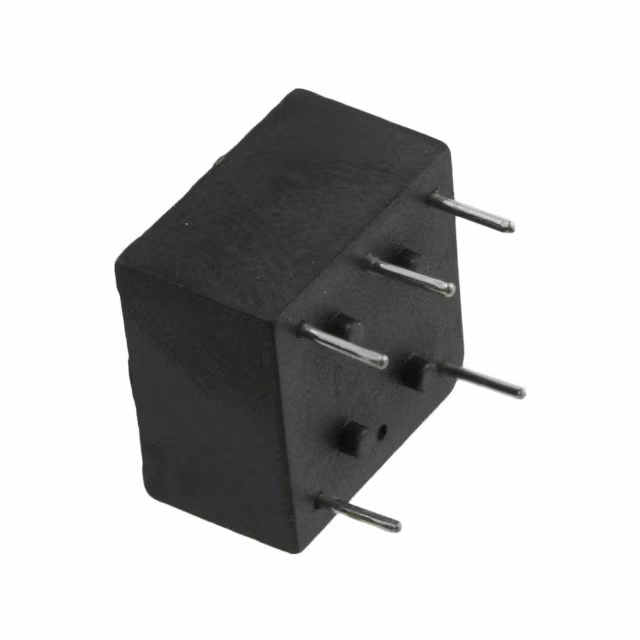

PE-65535NLXFRMR 64KBPS 1:2CT 20MH T/H |
320 | 7.95 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT | Through Hole | 0.559 L x 0.559 W (14.20mm x 14.20mm) | 0.402 (10.20mm) |
