| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H2019NLTXFRMR MAGNT MOD 1PORT POE 10/100 |
976 | 7.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.240 (6.10mm) |
|
HX5020FNLPULSE XFMR 1 CT:1CT TX/RX 350UH |
854 | 18.05 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100 L x 0.395 W (27.94mm x 10.03mm) | 0.340 (8.64mm) |
|
H5020NLTRANSFORMER MODULE GIGABIT 2PORT |
360 | 18.38 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.100 L x 0.297 W (27.94mm x 7.54mm) | 0.341 (8.66mm) |
|
PE-65728NLTTRANSFORMER 2000VRMS 100UH SMD |
430 | 5.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | 100µH | 1.8VµS | 1:1 | Surface Mount | 0.500 L x 0.285 W (12.70mm x 7.24mm) | 0.210 (5.33mm) |
|
HX2260FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,383 | 5.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.358 W (12.70mm x 9.09mm) | 0.236 (5.99mm) |
|
H1197FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,789 | 5.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100 Base-T | 1.2mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.358 W (12.70mm x 9.09mm) | 0.236 (5.99mm) |
|
T1090NLTXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
600 | 5.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|
|
T1137NLTXFRMR 1CT:2.42CT/1CT:2.42CT SMD |
1,200 | 5.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|

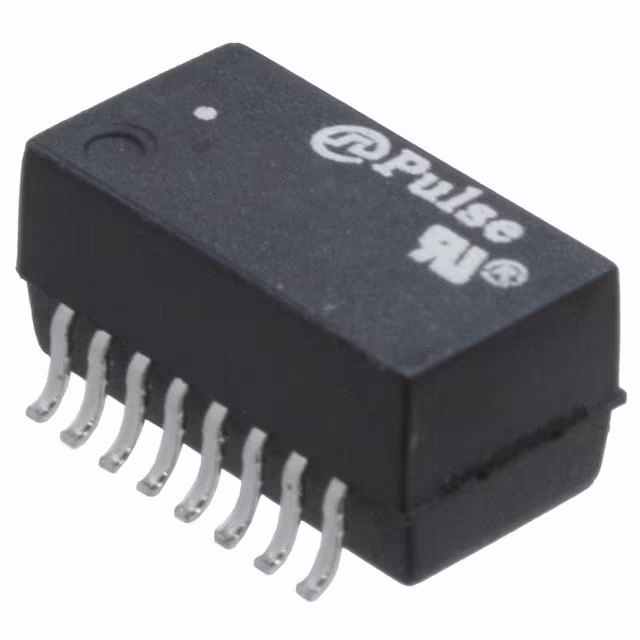

TX1099NLTXFRMR 1CT:1:0.8/1CT:1:0.8 SMD |
778 | 5.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1:0.8, 1CT:1:0.8 | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|
PE-65967NLTXFRMR T3/DS3/E3/STS-1 1:1 SMD |
2,500 | 6.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.300 L x 0.275 W (7.62mm x 7.00mm) | 0.245 (6.23mm) |
|

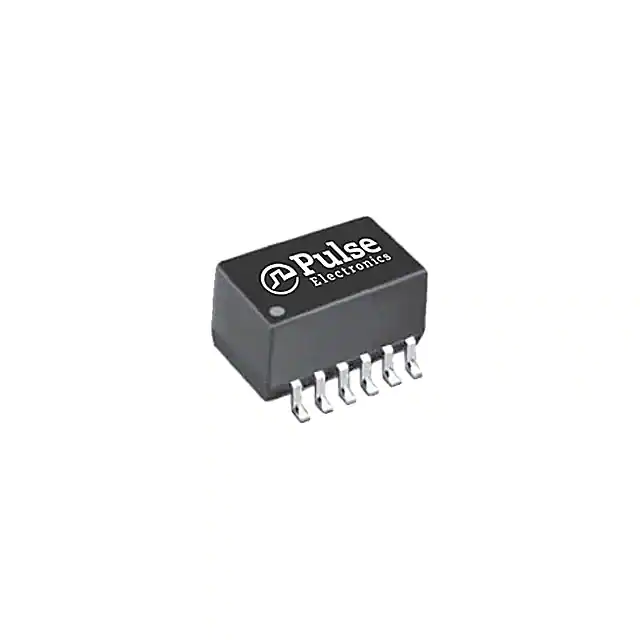

T1146NLTXFRMR 1:2/2.4 / 1:0.79/1 1/1MH |
2,138 | 6.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1:2/2.4, 1:0.79/1 | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|

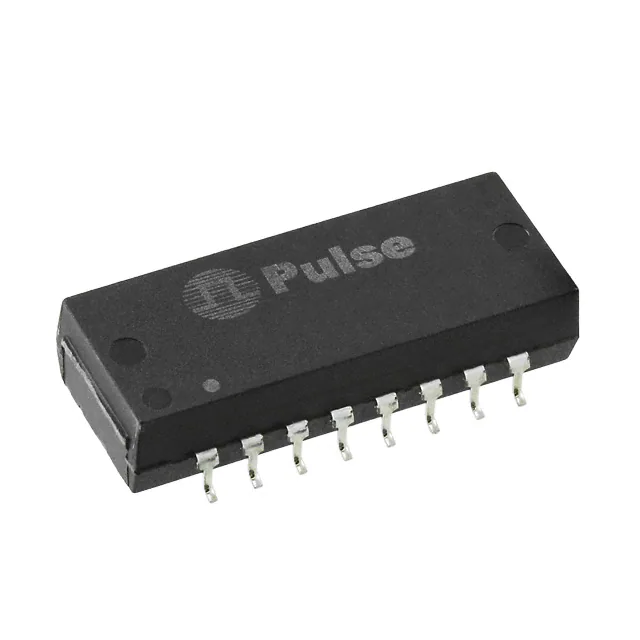

H1086NLTXFRMR MODULE 1PORT 1:1 10/100 |
824 | 6.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000 L x 0.390 W (25.40mm x 9.91mm) | 0.245 (6.22mm) |
|

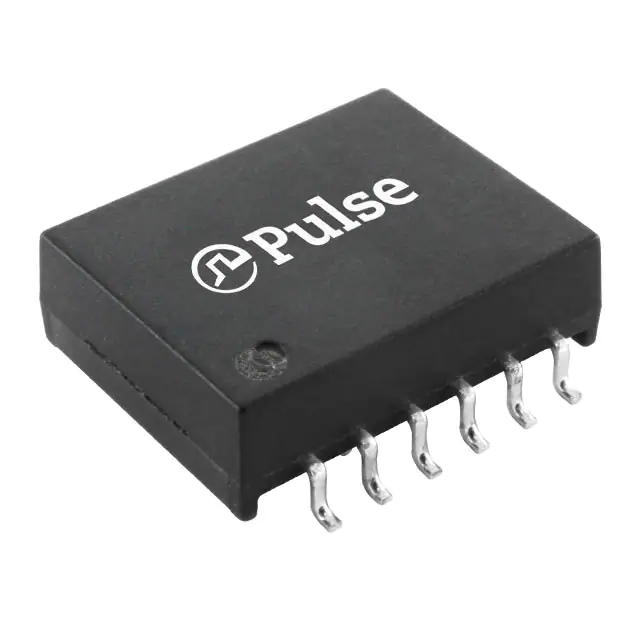

HMU2102NLTMDL, DUAL, XFMR-CMC, 1:1, 4.3KV |
4,544 | 4544.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 150µH | - | 1:1 | Surface Mount | 0.583 L x 0.461 W (14.81mm x 11.70mm) | |
|
H6062FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,432 | 7.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689 L x 0.600 W (17.50mm x 15.24mm) | 0.225 (5.72mm) |
|
PE-65848FNLTPULSE XFMR 1CS:1CS TX/RX |
3,000 | 7.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS Transmitter, 1CS:1CS Receiver | Surface Mount | 0.475 L x 0.566 W (12.07mm x 14.37mm) | 0.340 (8.64mm) |
|
ST7010QNLPULSE XFMR 1CT:1.414CT 1CT:1CT |
1,030 | 5.07 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10G Base-T | 18µH, 60µH, 80µH, 175µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455 L x 0.275 W (11.56mm x 6.99mm) | 0.225 (5.72mm) |
|
|
PE-65723NLTRANSFORMER 2000VRMS 75UH SMD |
1,205 | 4.97 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | 75µH | 1.8VµS | 1:1 | Surface Mount | 0.500 L x 0.285 W (12.70mm x 7.24mm) | 0.210 (5.33mm) |
|
H2260NLXFRMR MODUL 1PORT POE 1:1 10/100 |
510 | 5.18 |
RFQ |
Datasheet |
Tube | Star Magnetics™ | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.240 (6.10mm) |
|

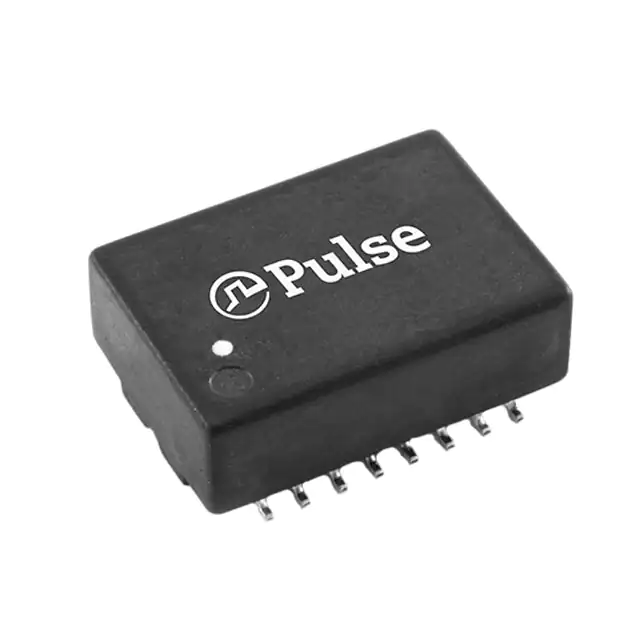

EX2024FNLPULSE XFMR 1CT:2.5CT 1CT:1CT |
4,643 | 5.53 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10 Base-T | 35µH, 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498 L x 0.350 W (12.65mm x 8.89mm) | 0.200 (5.08mm) |
|

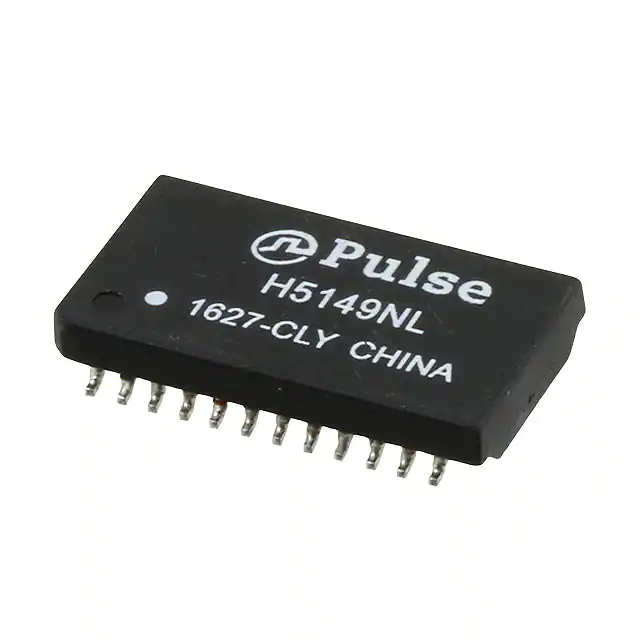

H5149NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,533 | 8.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.701 L x 0.390 W (17.80mm x 9.91mm) | 0.126 (3.20mm) |
