| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H5084FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,708 | 5.65 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600 L x 0.385 W (15.24mm x 9.78mm) | 0.163 (4.14mm) |
|
HX1198NLMODULE XFRMR SGL ETHR LAN 16SOIC |
832 | 5.74 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.245 (6.22mm) |
|
HX6098FNLTPULSE XFMR 1 CT:1CT TX/RX 120UH |
2,253 | 9.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715 L x 0.595 W (18.16mm x 15.11mm) | 0.260 (6.60mm) |
|
|
HX6098NLTPULSE XFMR 1 CT:1CT TX/RX 120UH |
122 | 9.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715 L x 0.480 W (18.16mm x 12.20mm) | 0.260 (6.60mm) |
|
H5015NLTTRANSFORMER MODULE GIGABIT 1PORT |
1,807 | 9.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.697 L x 0.480 W (17.70mm x 12.20mm) | 0.185 (4.70mm) |
|
HM2108NLXFMR CMC MODULE AECQ BATT MNGT |
1,309 | 5.85 |
RFQ |
Datasheet |
Tube | - | Active | - | 135µH | - | - | Surface Mount | 0.335 L x 0.663 W (8.50mm x 16.84mm) | 0.226 (5.75mm) |
|
H1270FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
897 | 10.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515 L x 0.574 W (13.08mm x 14.58mm) | 0.145 (3.68mm) |
|
H1012NLMODULE TRANSFMR SNGL LAN 16P SMD |
423 | 6.01 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.000 L x 0.390 W (25.40mm x 9.91mm) | 0.245 (6.22mm) |
|

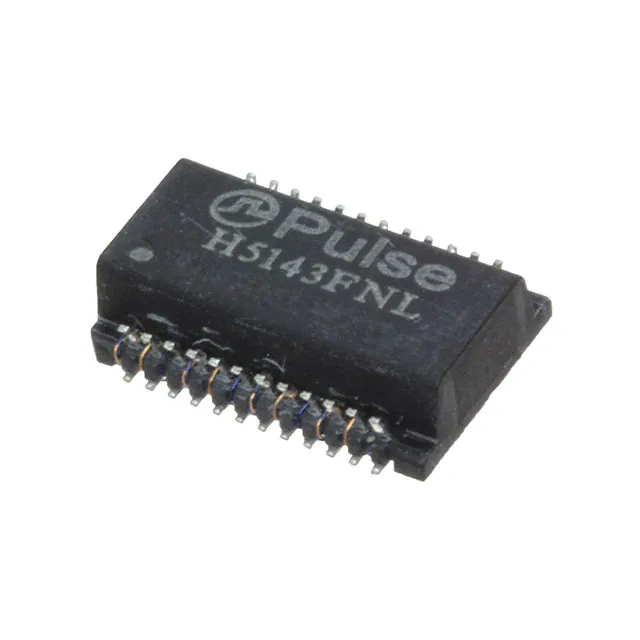

H5143FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,748 | 6.21 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600 L x 0.385 W (15.24mm x 9.78mm) | 0.163 (4.14mm) |
|

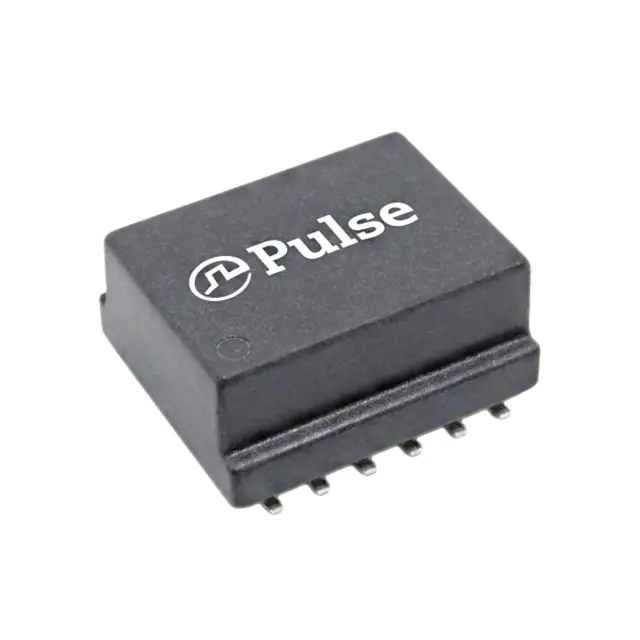

HX1333NLXFRMR MODULE 100B-TX 2 CH SMT |
1,830 | 6.22 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.673 L x 0.581 W (17.10mm x 14.75mm) | 0.331 (8.40mm) |
|
H0013NLMODULE MAGNETIC LAN 1:1 10/100 |
1,099 | 6.34 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.078 (1.98mm) |
|
T1068NLTXFRMR 4PORT 1:2CT 1.2MH SMD |
741 | 10.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:1CT Receiver | Surface Mount | 1.125 L x 0.485 W (28.58mm x 12.32mm) | 0.230 (5.84mm) |
|
H5079NLTMODULE MINI-MAG 1PORT 1000BASE-T |
1,348 | 11.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.785 L x 0.551 W (19.94mm x 14.00mm) | 0.100 (2.54mm) |
|

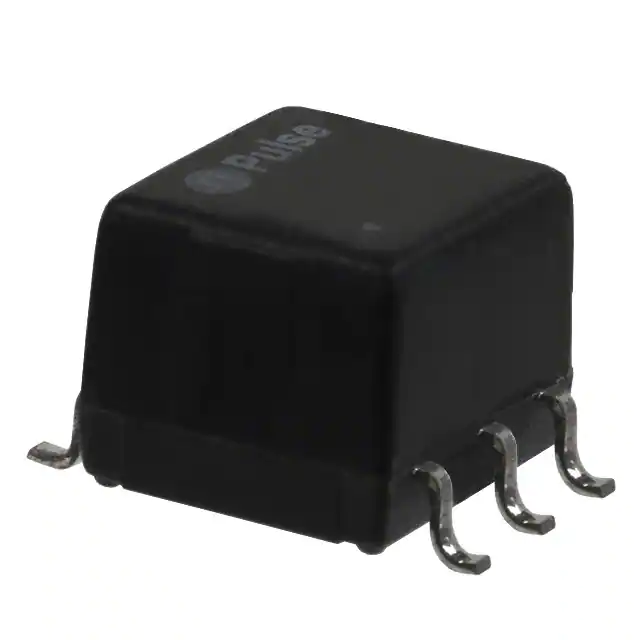

PE-65967NLTRANSFORMER TELECOM SINGLE T3/E4 |
280 | 6.87 |
RFQ |
Datasheet |
Tube | - | Active | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.300 L x 0.275 W (7.62mm x 7.00mm) | 0.245 (6.23mm) |
|

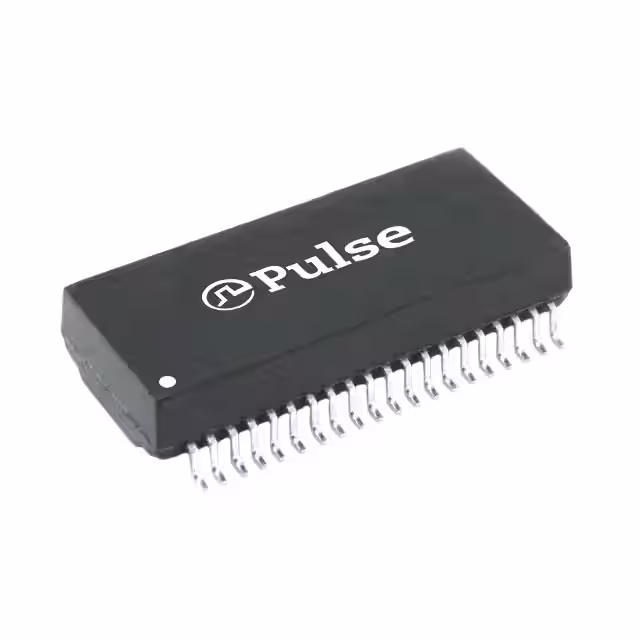

HX1344NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,127 | 7.34 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.106 L x 0.480 W (28.10mm x 12.20mm) | 0.225 (5.72mm) |
|
H6062NLTRANSFORMER MODULE GIGABIT POE |
2,403 | 7.38 |
RFQ |
Datasheet |
Tube | Star Magnetics™ | Active | - | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690 L x 0.480 W (17.53mm x 12.20mm) | 0.227 (5.76mm) |
|

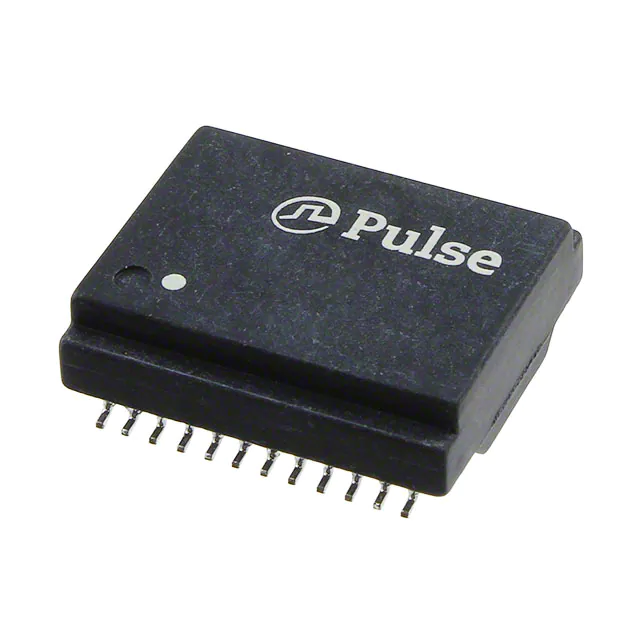

H6062FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
900 | 7.38 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689 L x 0.600 W (17.50mm x 15.24mm) | 0.225 (5.72mm) |
|
|
T3001NLTRANSFORMER TELECOM SINGLE T3/E4 |
547 | 7.44 |
RFQ |
Datasheet |
Tube | - | Active | T3/E3 (Single) | 100µH | - | 1:1 | Surface Mount | 0.300 L x 0.275 W (7.62mm x 7.00mm) | 0.250 (6.35mm) |
|
HX1294NLMODULE XFRMR LAN 10/100 SMD |
2,760 | 7.83 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT | Surface Mount | 0.538 L x 0.599 W (13.67mm x 15.21mm) | 0.241 (6.12mm) |
|
PE-65848NLXFRMR 1CS:1CS FOR ECHELON/NEURON |
3,890 | 8.04 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS | Surface Mount | 0.475 L x 0.475 W (12.06mm x 12.06mm) | 0.340 (8.64mm) |
