| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1094NLTXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH |
797 | 5.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|
H1012NLTXFRMR MODULE 1PORT 1:1 10/100 |
2,400 | 6.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.000 L x 0.390 W (25.40mm x 9.91mm) | 0.245 (6.22mm) |
|
HM2100NLTXFMR CMC MODULE AECQ BATT MNGT |
401 | 6.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.579 L x 0.459 W (14.70mm x 11.65mm) | 0.136 (3.45mm) |
|
HM2112ZNLTXFMR CMC MODULE AECQ BATT MNGT |
3,019 | 6.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.579 L x 0.478 W (14.70mm x 12.15mm) | 0.136 (3.45mm) |
|
HM2106NLXFMR MODULE AECQ BATT MNGT |
959 | 4.42 |
RFQ |
Datasheet |
Tube | - | Active | - | 135µH | - | - | Surface Mount | 0.335 L x 0.663 W (8.50mm x 16.84mm) | 0.226 (5.75mm) |
|
C2267FNLPULSE XFMR 1:1 15UH |
2,770 | 4.72 |
RFQ |
Datasheet |
Tube | - | Active | - | 15µH | - | 1:1 | Surface Mount | 0.386 L x 0.354 W (9.80mm x 9.00mm) | 0.425 (10.80mm) |
|
H5062NLTXFRMR MODULE GIGABIT 1PORT 1:1 |
1,864 | 7.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Star Magnetics™ | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690 L x 0.480 W (17.53mm x 12.20mm) | 0.227 (5.76mm) |
|

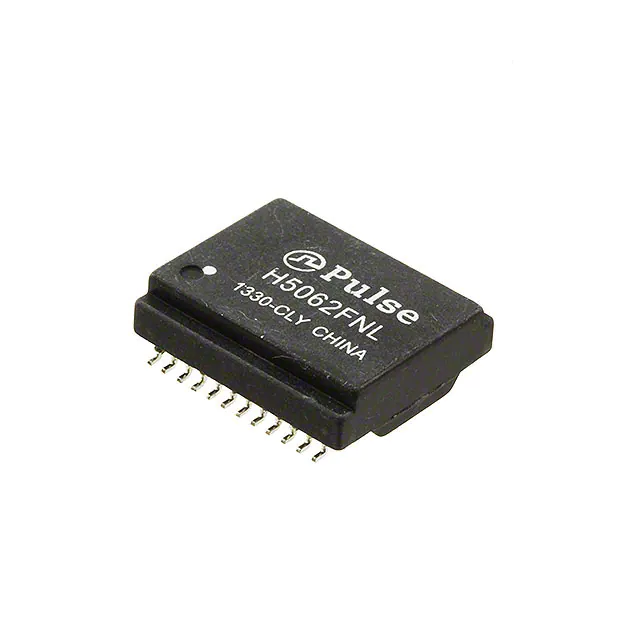

H5062FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
559 | 7.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689 L x 0.600 W (17.50mm x 15.24mm) | 0.225 (5.72mm) |
|

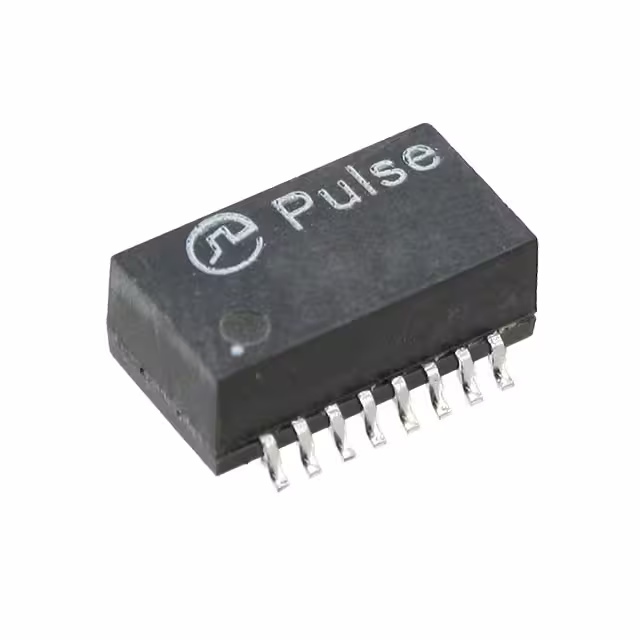

PE-65745NLXFRMR LAN ISOL 1CT:1.414CT 10B-T |
1,161 | 4.90 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.285 W (12.70mm x 7.24mm) | 0.210 (5.33mm) |
|
HX5062FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
892 | 8.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689 L x 0.600 W (17.50mm x 15.24mm) | 0.225 (5.72mm) |
|

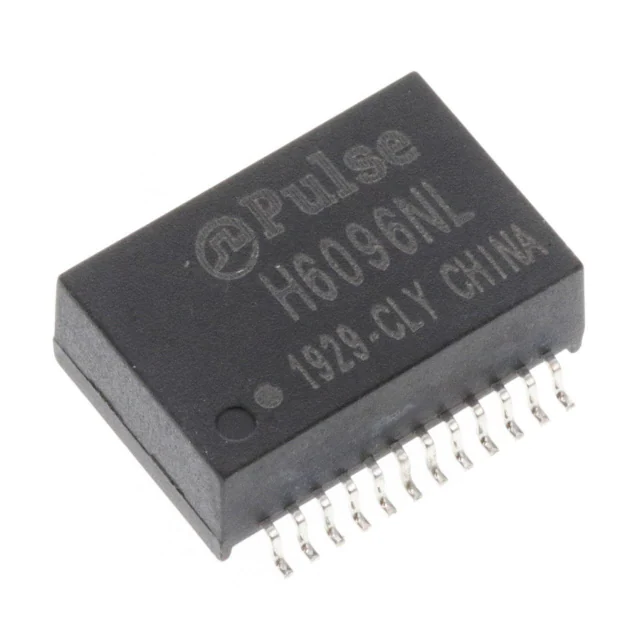

H6096NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,706 | 8.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715 L x 0.480 W (18.16mm x 12.20mm) | 0.260 (6.60mm) |
|
PE-65778NLXFRMR 1CT:1CT 1.20MH T/H |
1,321 | 5.26 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1CT | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
H2006ANLTXFRMR MAGNT MOD 2PORT POE 10/100 |
2,266 | 8.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.537 L x 0.470 W (13.64mm x 11.94mm) | 0.254 (6.45mm) |
|
H1260NLMODULE XFRMR FST ETHR LAN 16SOIC |
122 | 5.38 |
RFQ |
Datasheet |
Tube | - | Active | LAN | - | - | 1CT:1CT | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.240 (6.10mm) |
|
HX1260NLXFRMR MODULE 1PORT 1:1 10/100 |
3,317 | 5.49 |
RFQ |
Datasheet |
Tube | Star Magnetics™ | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.245 (6.22mm) |
|
T1144NLTRANSFORMER TELECOM DUAL T1/E1 |
106 | 5.52 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1CT, 1CT:2.4CT | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.245 (6.22mm) |
|
PE-65728NLTRANSFMR AUI ETHERNET LAN 16SOIC |
998 | 5.52 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500 L x 0.285 W (12.70mm x 7.24mm) | 0.210 (5.33mm) |
|
|
PE-68678NLTRANSFORMER TELECOM DUAL T1/E2 |
765 | 5.52 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|
|
T1094NLTRANSFORMER TELECOM DUAL T1/E2 |
728 | 5.52 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|
|
HX1148NLTXFRMR MODULE 1PORT 1:1 10/100 |
982 | 9.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000 L x 0.390 W (25.40mm x 9.91mm) | 0.245 (6.22mm) |
