| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

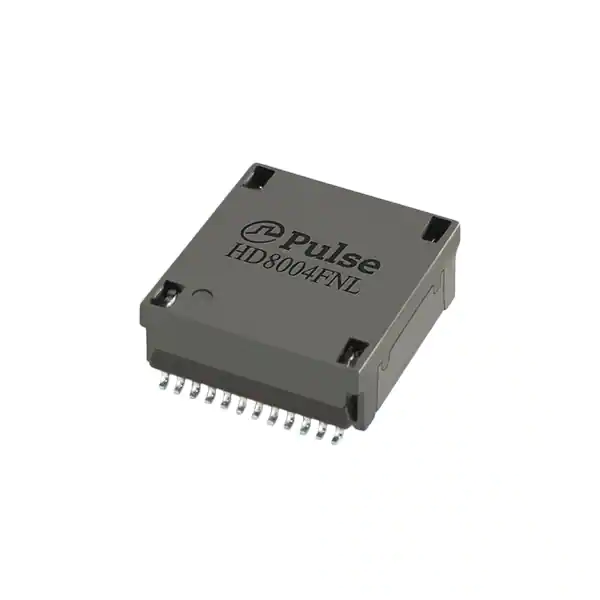

HD8004FNLTTRANSFORMER HDBASE-T 34W |
300 | 9.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | HDBase-T | 180µH | - | 1:1 | Surface Mount | 0.539 L x 0.591 W (13.70mm x 15.00mm) | 0.230 (5.85mm) |
|
HX1148MODULE TRANSFMR SNGL LAN 16P SMD |
115 | 7.67 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000 L x 0.390 W (25.40mm x 9.91mm) | 0.245 (6.22mm) |
|
HMU2102NLXFMR CMC MODULE AECQ BATT MNGT |
232 | 7.74 |
RFQ |
Datasheet |
Tube | - | Active | - | 150µH | - | - | Surface Mount | 0.583 L x 0.461 W (14.81mm x 11.70mm) | 0.192 (4.88mm) |
|
HX1178NLXFRMR MODULE 1PORT 1:1 10/100 |
355 | 8.44 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000 L x 0.390 W (25.40mm x 9.91mm) | 0.245 (6.22mm) |
|
HX5181NLPULSE XFMR 1 CT:1CT TX/RX 350UH |
261 | 8.47 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.545 L x 0.480 W (13.84mm x 12.19mm) | 0.250 (6.35mm) |
|
|
H2017NLTXFRMR MAGNT MOD 4PORT POE 10/100 |
200 | 13.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 1.120 L x 0.480 W (28.45mm x 12.19mm) | 0.290 (7.36mm) |
|
H2006ANLMODULE MAGNETICS POE DUAL VOIP |
544 | 8.87 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.537 L x 0.470 W (13.64mm x 11.94mm) | 0.254 (6.45mm) |
|

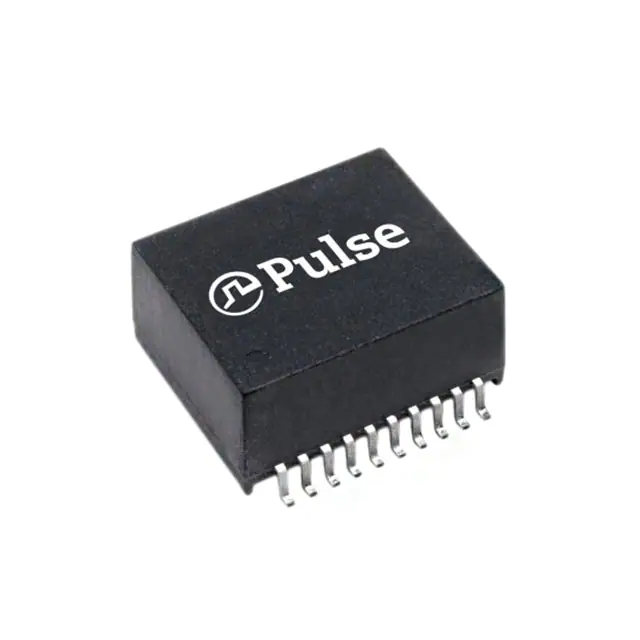

HX1339NLXFRMR MODULE 100B-TX 2 CH SMT |
254 | 9.32 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | - | 0.300 (7.62mm) |
|
|
PE-68828NLXFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH |
390 | 9.84 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:1CT | Surface Mount | 0.675 L x 0.456 W (17.15mm x 11.58mm) | 0.340 (8.64mm) |
|

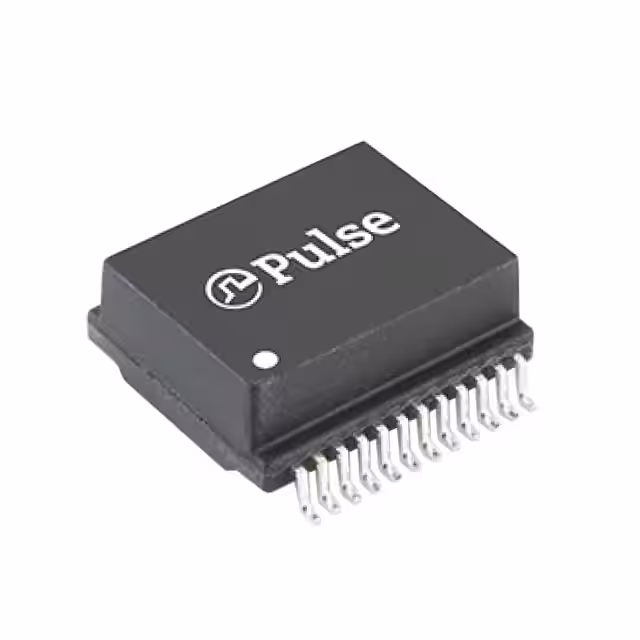

HDX8008NLMDL,SIN, HDBASET, 60W, SMT |
2,013 | 10.07 |
RFQ |
Datasheet |
Tube | - | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | - | 0.225 (5.72mm) |
|

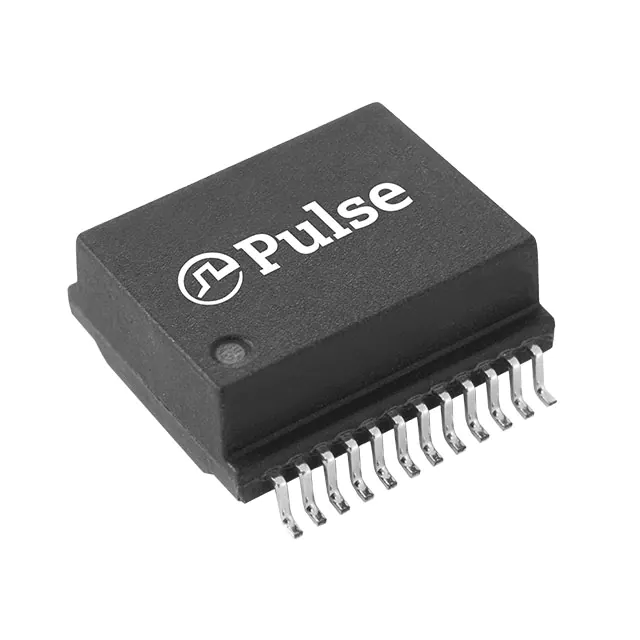

HU4006NLMODULE MAGNETIC SNGL 2.5GB SMT |
226 | 10.61 |
RFQ |
Datasheet |
Tube | - | Active | - | - | - | - | Surface Mount | 0.540 L x 0.480 W (13.72mm x 12.19mm) | 0.226 (5.75mm) |
|
T1124NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
370 | 10.64 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.125 L x 0.485 W (28.58mm x 12.32mm) | 0.230 (5.84mm) |
|
|
TX1341NLXFRMR OCTAL 1:2 1.2MH SMD |
175 | 10.64 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Octal) | 1.2mH | - | 1:2 | Surface Mount | 1.000 L x 0.310 W (25.40mm x 7.87mm) | 0.295 (7.49mm) |
|
H7019FNLTRANSFORMER MODULE 10GBASE-T SMD |
236 | 10.87 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.539 L x 0.591 W (13.70mm x 15.00mm) | 0.230 (5.85mm) |
|

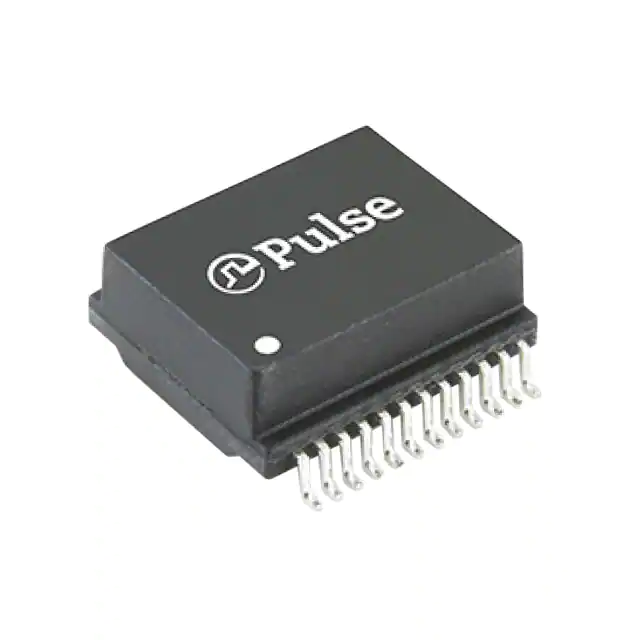

HDX8004NLMDL,SIN, HDBASET, 60W, SMT |
401 | 11.19 |
RFQ |
Datasheet |
Tube | - | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | - | 0.225 (5.72mm) |
|

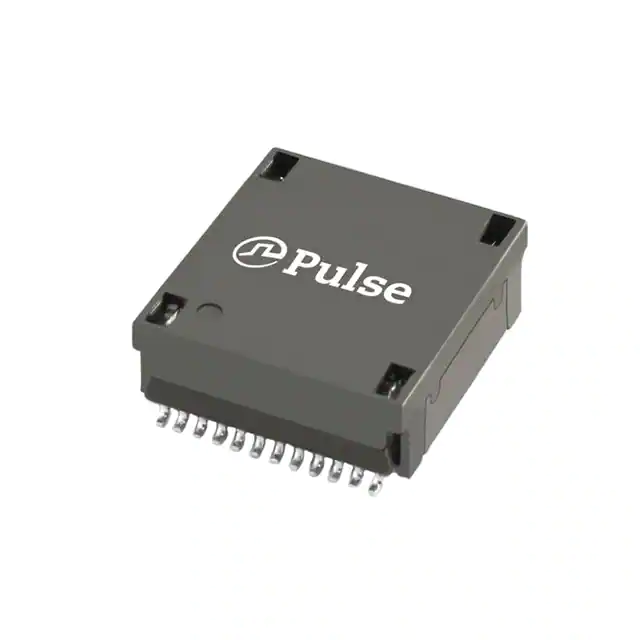

HD8006FNLTRANSFORMER HDBASET 140W |
276 | 11.19 |
RFQ |
Datasheet |
Tube | - | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.698 L x 0.625 W (17.73mm x 15.88mm) | 0.320 (8.12mm) |
|
HX5020FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
717 | 18.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100 L x 0.395 W (27.94mm x 10.03mm) | 0.340 (8.64mm) |
|

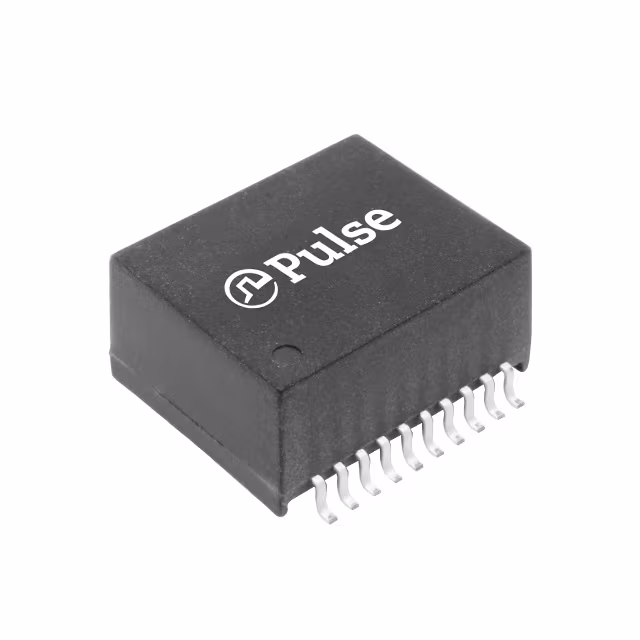

HM1331NLMDL,SIN,100D,1:1,SMT |
100 | 11.70 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.600 W (12.70mm x 15.24mm) | 0.300 (7.62mm) |
|
|
TX1267NLXFRMR 4PORT 1:2 1.2MH SMD |
195 | 11.98 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.125 L x 0.485 W (28.58mm x 12.32mm) | 0.275 (6.99mm) |
|

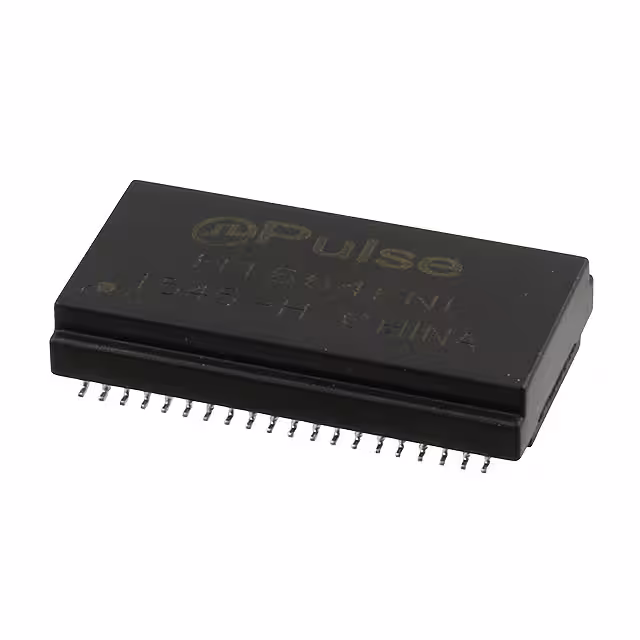

H1664FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
136 | 14.11 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110 L x 0.608 W (28.19mm x 15.44mm) | 0.225 (5.72mm) |
