| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

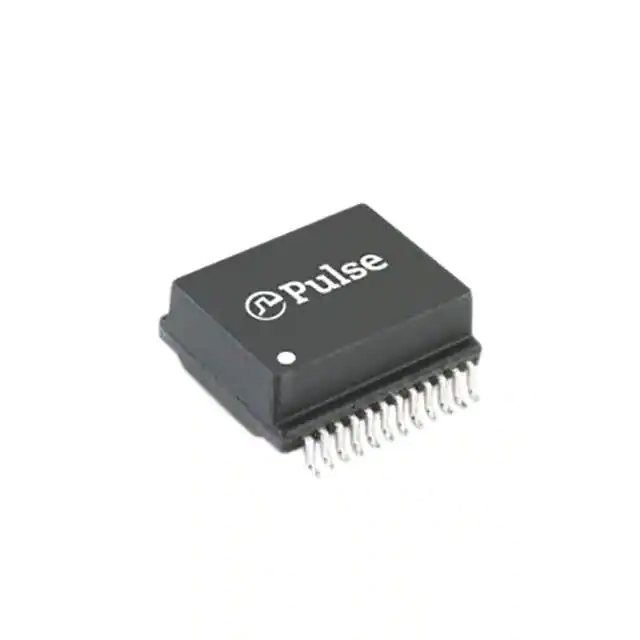

HM7142NLTXFRMR LAN MODULE |
4,200 | 14.98 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | - | Surface Mount | - | - | |
|
PE-65834NLXFRMR T1/CEPT/ISDN 1:1 1.2MH T/H |
462 | 9.51 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Single) | 1.2mH | - | 1:1 | Through Hole | 0.560 L x 0.560 W (14.22mm x 14.22mm) | 0.402 (10.20mm) |
|
HX6101NLTPULSE XFMR 1CT:1CT TX/RX |
475 | 17.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095 L x 0.480 W (27.81mm x 12.19mm) | 0.285 (7.24mm) |
|
H6080FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,025 | 15.80 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095 L x 0.590 W (27.81mm x 14.99mm) | 0.285 (7.24mm) |
|

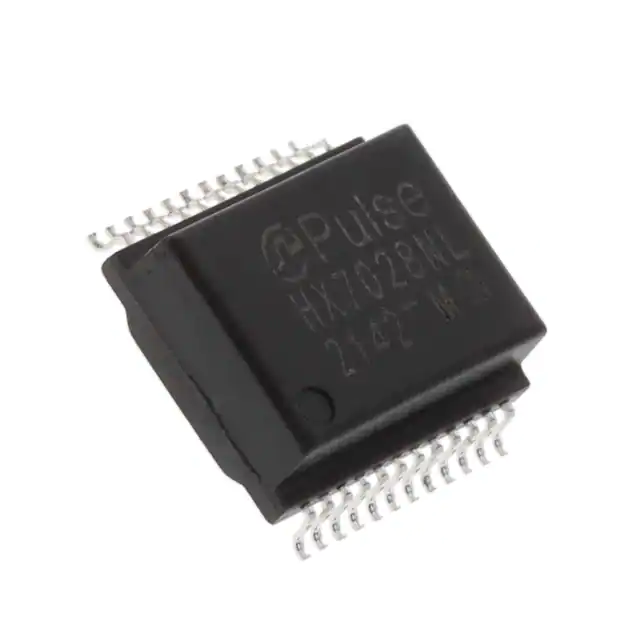

HX7028NLMDL SIN 10G 1:1 GEN2 SM TU |
2,814 | 16.55 |
RFQ |
Datasheet |
Tube | HX7028NL | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.537 L x 0.480 W (13.64mm x 12.19mm) | 0.250 (6.35mm) |
|

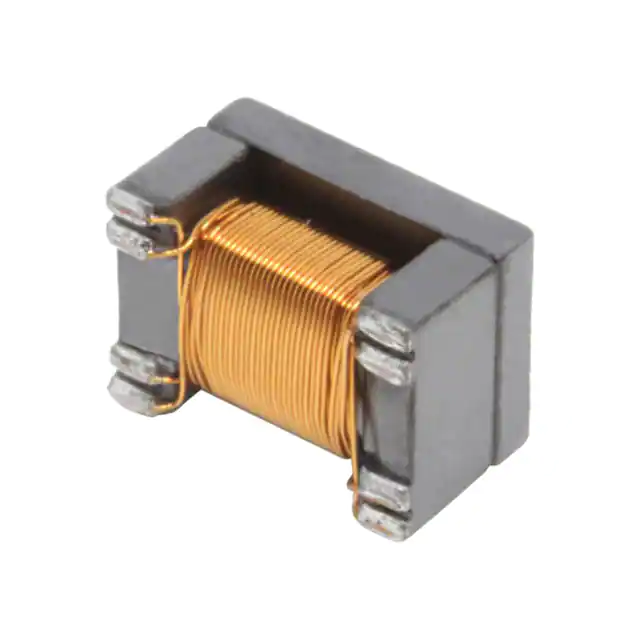

TC1000PTRANSFORMER LAN 1GB PHY POE |
8,000 | 1.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PulseChip™ | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1 | Surface Mount | 0.185 L x 0.134 W (4.70mm x 3.40mm) | 0.118 (3.00mm) |
|

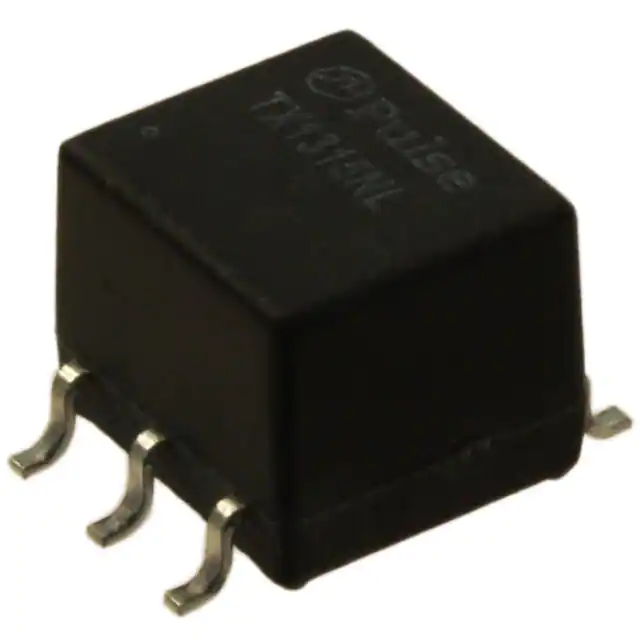

TX1315NLTTRANSFORMER 1CT:1CT 1.2MH SMD |
2,034 | 5.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1CT | Surface Mount | 0.300 L x 0.276 W (7.62mm x 7.00mm) | 0.250 (6.35mm) |
|
|
PE-65457NLTPULSE XFMR 1:1 80UH |
863 | 5.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 80µH | - | 1:1 | Surface Mount | 0.260 L x 0.340 W (6.60mm x 8.64mm) | 0.098 (2.49mm) |
|
|
TX1315NLTRANSFORMER 1CT:1CT 1.2MH SMD |
910 | 5.11 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1CT | Surface Mount | 0.300 L x 0.276 W (7.62mm x 7.00mm) | 0.250 (6.35mm) |
|

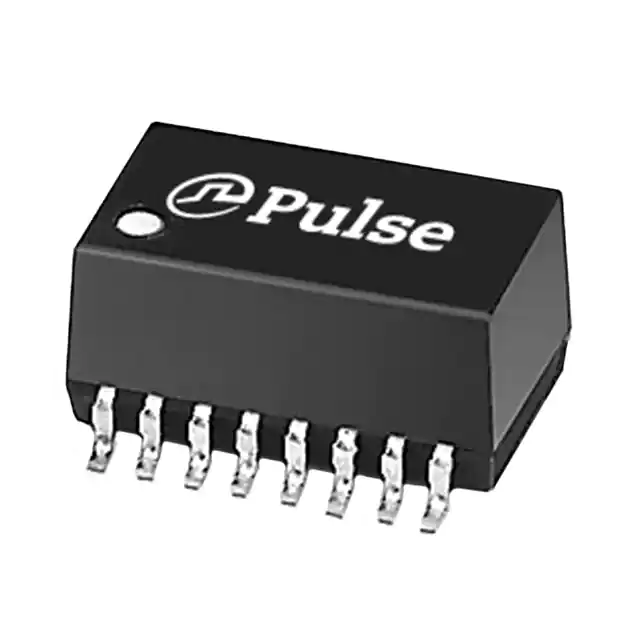

23Z356SMQNLTTRANSFORMER 10BASE-T LAN 16SOIC |
416 | 5.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450 L x 0.265 W (11.43mm x 6.73mm) | 0.215 (5.46mm) |
|
PE-65415NLXFRMR T1/CEPT/ISDN-PRI 1CT:2CT |
519 | 5.20 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Single) | 1.2mH | - | 1CT:2CT | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
|
PE-65771NLXFRMR 1CT:2CT 1.20MH T/H |
2,890 | 5.26 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Single) | 1.2mH | - | 1CT:2CT | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
|
PE-64995NLXFRMR ISDN 1CT:2CT 22MH T/H |
2,056 | 5.27 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1CT:2CT | Through Hole | 0.559 L x 0.559 W (14.20mm x 14.20mm) | 0.402 (10.20mm) |
|
PE-64936NLXFRMR T1/CEPT/ISDN-PRI 1CT:1 |
535 | 5.28 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
|
T9021NLTXFRMR 4PORT 1:2.42 0.6MH SMD |
137 | 31.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Quad) | 600µH | - | 1:2.42 Transmitter, 1:2.42 Receiver | Surface Mount | 1.125 L x 0.485 W (28.58mm x 12.32mm) | 0.285 (7.24mm) |
|
|
PE-64934NLXFRMR T1/CEPT/ISDN-PRI 1:1 |
259 | 5.28 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|

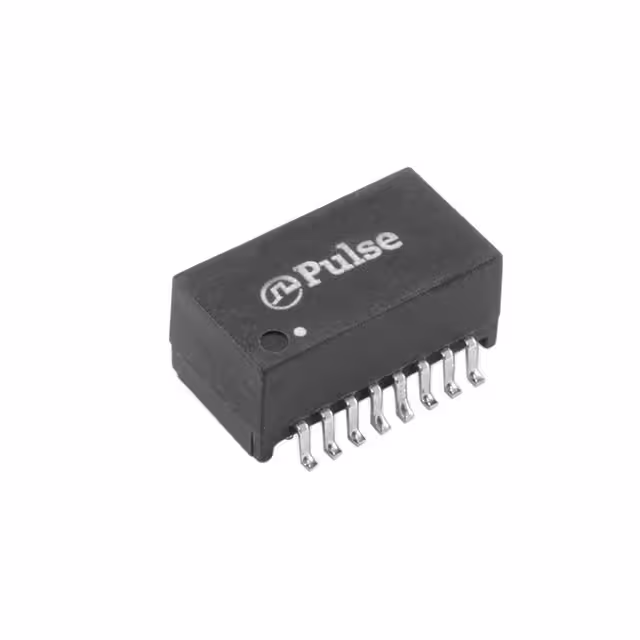

E2467NLTXFRMR ISOL 10BASE-T 1:2 SMD |
599 | 5.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | 20µH, 100µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.358 W (12.70mm x 9.09mm) | 0.241 (6.12mm) |
|
|
H1302FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
410 | 5.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.358 W (12.70mm x 9.09mm) | 0.236 (5.99mm) |
|
HX2260NLTXFRMR MODUL 1PORT POE 1:1 10/100 |
397 | 5.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Star Magnetics™ | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.245 (6.22mm) |
|
PE-65861NLTXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
582 | 5.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
