| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX1188FNLMODULE XFRMR SGL ETHR LAN 16SOIC |
9,301 | 5.78 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500 L x 0.358 W (12.70mm x 9.09mm) | 0.241 (6.12mm) |
|

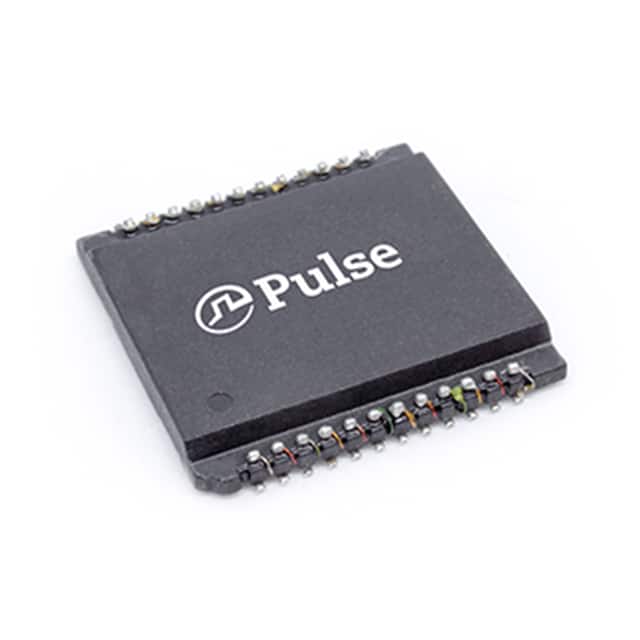

HX5019FNLTPULSE XFMR 1CT:1 TX 1CT:1 RX |
2,800 | 10.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.780 L x 0.750 W (19.81mm x 19.05mm) | 0.100 (2.54mm) |
|

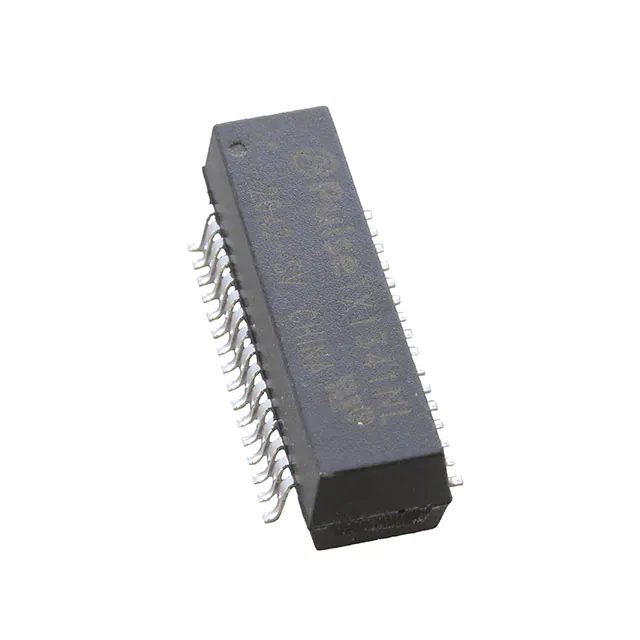

TX1341NLTXFRMR OCTAL 1:2 1.2MH SMD |
3,800 | 10.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Octal) | 1.2mH | - | 1:2 | Surface Mount | 1.000 L x 0.310 W (25.40mm x 7.87mm) | 0.295 (7.49mm) |
|
HX2019FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,497 | 7.51 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.358 W (12.70mm x 9.09mm) | 0.236 (5.99mm) |
|
HX1224CNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,551 | 7.74 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537 L x 0.570 W (13.64mm x 14.48mm) | 0.245 (6.22mm) |
|
HD8008NLMOD,SIN,HDBT,1:1, SMD, NPB |
3,337 | 7.92 |
RFQ |
Datasheet |
Tube | - | Active | HDBase-T | 100µH | - | 1CT:1CT | Surface Mount | 0.539 L x 0.480 W (13.70mm x 12.20mm) | 0.235 (5.97mm) |
|

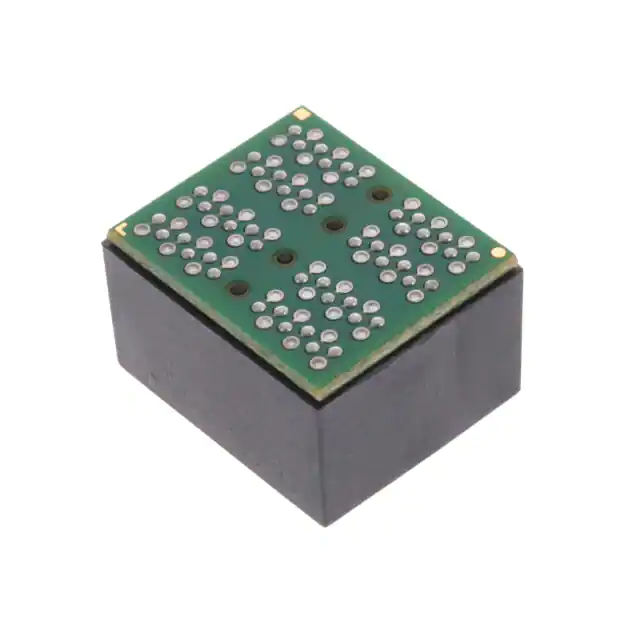

HX5200NLXFRMR MODL 2PORT POE GIGABIT |
3,345 | 15.99 |
RFQ |
Datasheet |
Tray | - | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.580 L x 0.680 W (14.73mm x 17.27mm) | 0.430 (10.92mm) |
|
HM0068ANLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,608 | 8.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.347 W (12.70mm x 8.81mm) | 0.082 (2.08mm) |
|
TX1188NLXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
800 | 5.52 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|
H7008FNLTRANSFORMER MODULE 10GBASE-T |
592 | 9.90 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.591 L x 0.539 W (15.00mm x 13.70mm) | 0.230 (5.85mm) |
|
H5079NLMODULE MINI-MAG 1PORT 1000BASE-T |
3,636 | 11.30 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.785 L x 0.551 W (19.94mm x 14.00mm) | 0.100 (2.54mm) |
|
HX5020NLTTRANSFORMER MODULE GIGABIT 2PORT |
750 | 18.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.100 L x 0.297 W (27.94mm x 7.54mm) | 0.341 (8.66mm) |
|

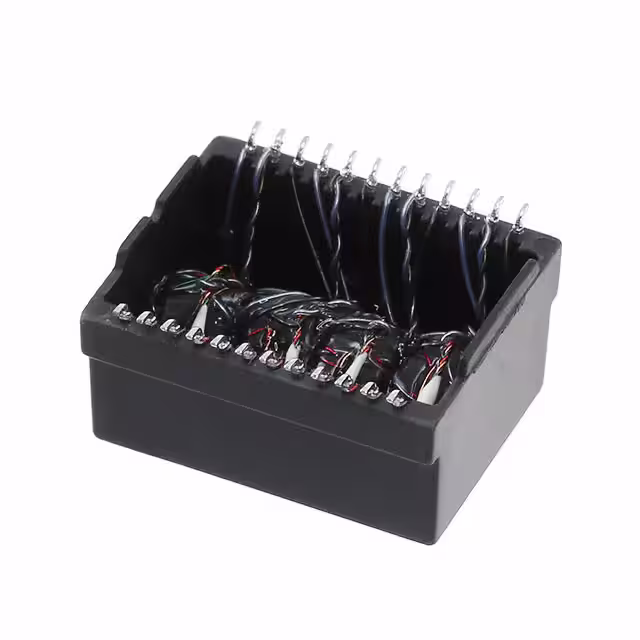

HX5224CNLPULSE XFMR 1 CT:1CT TX/RX 350UH |
254 | 14.85 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.728 L x 0.604 W (18.50mm x 15.34mm) | 0.385 (9.77mm) |
|

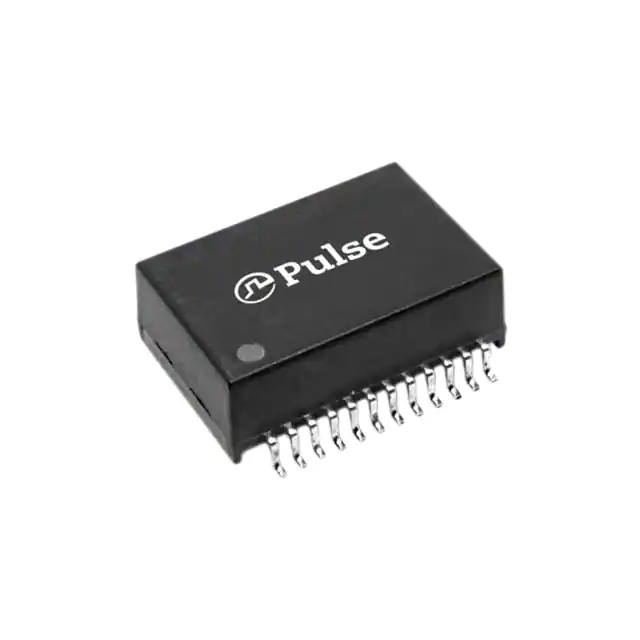

HX4019NLTRANSF MOD 2.5G 4CH 60W POE |
3,728 | 16.43 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.715 L x 0.480 W (18.16mm x 12.20mm) | 0.260 (6.60mm) |
|
|
TX1344NLTXFRMR OCTAL 1:1/1:2 1.2MH SMD |
796 | 10.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | T1/E1 (Octal) | 1.2mH | - | 1:1, 1:2 | Surface Mount | 1.000 L x 0.310 W (25.40mm x 7.87mm) | 0.295 (7.49mm) |
|

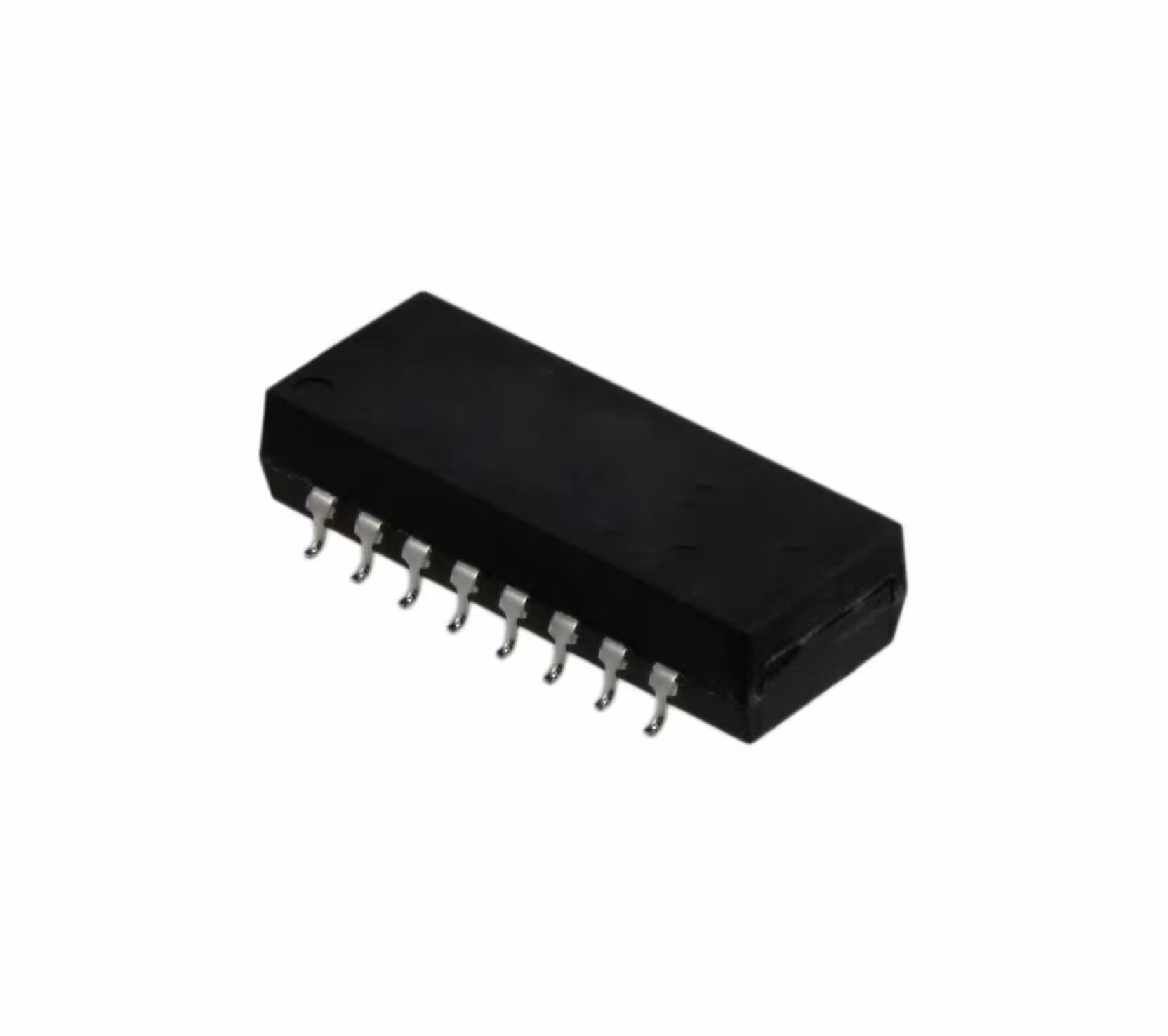

H1081NLXFRMR MODUL 1PORT 1:1.141 10/100 |
2,432 | 7.72 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1.141 Transmitter, 1:1 Receiver | Surface Mount | 1.000 L x 0.395 W (25.40mm x 10.03mm) | 0.230 (5.84mm) |
|
TX1475NLXFRMR OCTAL 1:2/1:1 1.2MH SMD |
230 | 10.64 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Octal) | 1.2mH | - | 1:2, 1:1 | Surface Mount | 1.000 L x 0.310 W (25.40mm x 7.87mm) | 0.295 (7.49mm) |
|
T1212NLXFRMR 1CT:1CT/1CT:2CT 1.20MH SMD |
3,290 | 11.26 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.675 L x 0.456 W (17.15mm x 11.58mm) | 0.340 (8.64mm) |
|

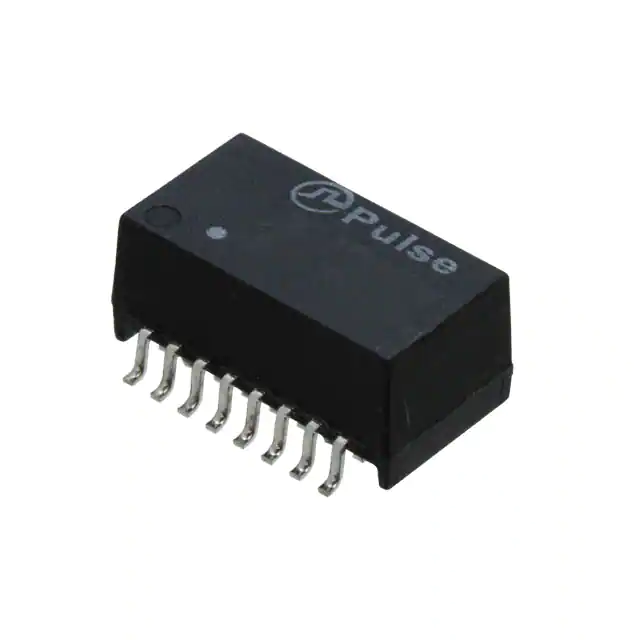

H1197NLTXFRMR MAGNT MOD 1PORT POE 10/100 |
600 | 5.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500 L x 0.265 W (12.70mm x 6.73mm) | 0.245 (6.22mm) |
|

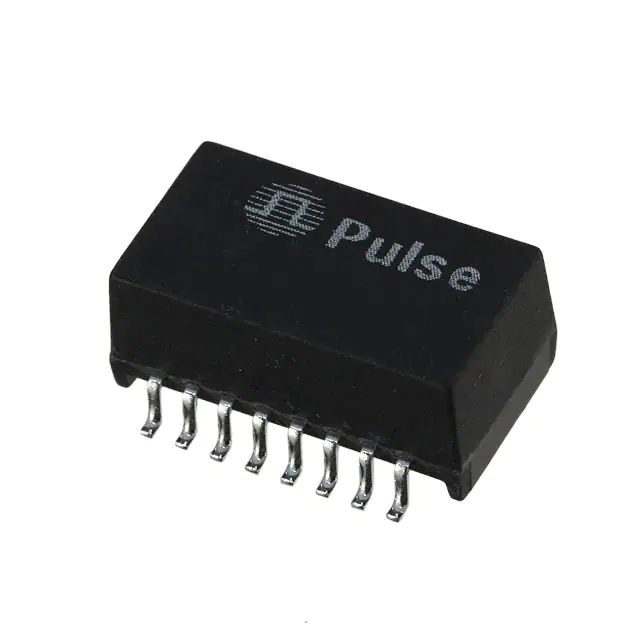

H1183NLTXFRMR MAGNETIC 1PORT 1:1 10/100 |
1,210 | 5.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.245 (6.22mm) |
