| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPI-400-12PWR XFMR LAMINATED 400VA CHAS MT |
3,929 | 162.08 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 6V, Series 12V | Parallel 66.6A, Series 33.3A | Dual, Multiple Taps | Dual | No | 400VA | Chassis Mount | Terminal Block | 104.80mm L x 128.10mm W | 98.20mm | 4000Vrms |
|
|
MPI-400-16PWR XFMR LAMINATED 400VA CHAS MT |
3,457 | 162.08 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 8V, Series 16V | Parallel 50A, Series 25A | Dual, Multiple Taps | Dual | No | 400VA | Chassis Mount | Terminal Block | 104.80mm L x 128.10mm W | 98.20mm | 4000Vrms |
|
|
MPI-400-20PWR XFMR LAMINATED 400VA CHAS MT |
3,495 | 162.08 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 10V, Series 20V | Parallel 40A, Series 20A | Dual, Multiple Taps | Dual | No | 400VA | Chassis Mount | Terminal Block | 104.80mm L x 128.10mm W | 98.20mm | 4000Vrms |
|
56-8PWR XFMR LAMINATED 448VA CHAS MT |
2,453 | 166.42 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 28V, Series 56V | Parallel 16A, Series 8A | Single, Multiple Taps | Dual | Yes | 448VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 127.00mm W | 111.10mm | 1500Vrms |
|
16-25PWR XFMR LAMINATED 400VA CHAS MT |
3,941 | 167.81 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 8V, Series 16V | Parallel 50A, Series 25A | Single, Multiple Taps | Single, Multiple Taps | Yes | 400VA | Chassis Mount | Solder, Quick Connect | 114.30mm L x 136.50mm W | 95.30mm | 1500Vrms |
|

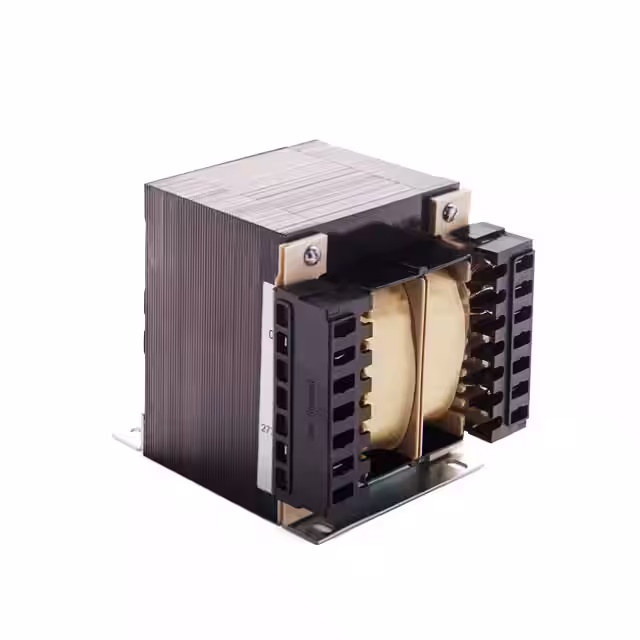

SLT-600PWR XFMR LAMINATED 600VA CHAS MT |
2,404 | 170.91 |
RFQ |
Datasheet |
Bulk | SLT | Active | Laminated Core | 277V | 120V | 5A | Single | Single | Yes | 600VA | Chassis Mount | Terminal Block | 113.28mm L x 129.03mm W | 114.30mm | 4000Vrms |
|
DMTT-300PWR XFMR LAMINATED 300VA CHAS MT |
2,386 | 171.09 |
RFQ |
Datasheet |
Bulk | DMTT | Active | Laminated Core | 200V, 220V, 240V, 400V, 420V, 440V, 460V, 480V | Parallel 12V, Series 24V | Parallel 25A, Series 12.5A | Dual, Multiple Taps | Triple | No | 300VA | Chassis Mount | Terminal Block | 104.80mm L x 128.10mm W | 98.20mm | 4000Vrms |
|
68-8PWR XFMR LAMINATED 544VA CHAS MT |
3,427 | 181.47 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 34V, Series 68V | Parallel 16A, Series 8A | Single, Multiple Taps | Dual | Yes | 544VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 139.70mm W | 111.10mm | 1500Vrms |
|
80-6PWR XFMR LAMINATED 480VA CHAS MT |
3,385 | 190.95 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 40V, Series 80V | Parallel 12A, Series 6A | Single, Multiple Taps | Dual | Yes | 480VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 139.70mm W | 111.10mm | 1500Vrms |
|
24-20PWR XFMR LAMINATED 480VA CHAS MT |
2,141 | 191.48 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 12V, Series 24V | Parallel 40A, Series 20A | Single, Multiple Taps | Dual | Yes | 480VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 120.70mm W | 111.10mm | 1500Vrms |
|

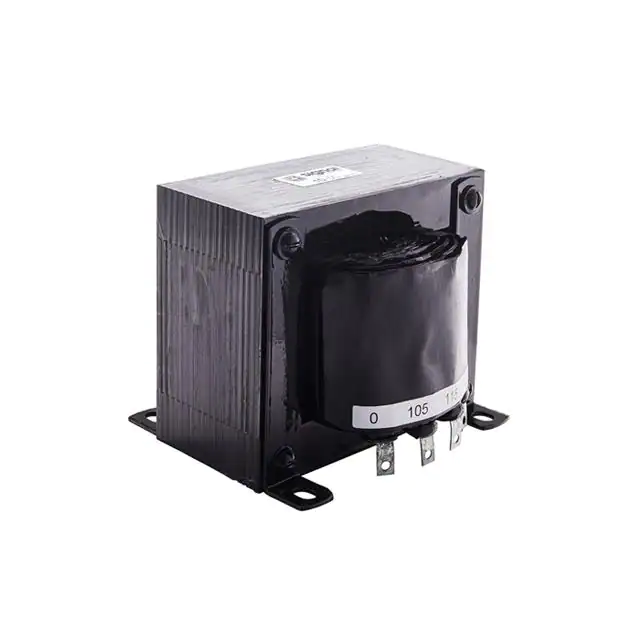

10-50XFRMR LAMINATED 500VA CHAS MOUNT |
3,624 | 203.10 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 5V, Series 10V | Parallel 100A, Series 50A | Single, Multiple Taps | Single, Multiple Taps | Yes | 500VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 139.70mm W | 111.10mm | 1500Vrms |
|
|
DMTT-650PWR XFMR LAMINATED 650VA CHAS MT |
3,297 | 213.41 |
RFQ |
Datasheet |
Bulk | DMTT | Active | Laminated Core | 200V, 220V, 240V, 400V, 420V, 440V, 460V, 480V | Parallel 12V, Series 24V | Parallel 54A, Series 27A | Dual, Multiple Taps | Triple | No | 650VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms |
|
|
MTT-650PWR XFMR LAMINATED 650VA CHAS MT |
2,849 | 213.41 |
RFQ |
Datasheet |
Bulk | MTT | Active | Laminated Core | 100V, 115V, 120V | Parallel 12V, Series 24V | Parallel 54A, Series 27A | Single | Triple | No | 650VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms |
|
|
56-12PWR XFMR LAMINATED 672VA CHAS MT |
2,922 | 216.76 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 28V, Series 56V | Parallel 24A, Series 12A | Single, Multiple Taps | Dual | Yes | 672VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 133.40mm W | 134.90mm | 1500Vrms |
|
MPI-650-12PWR XFMR LAMINATED 650VA CHAS MT |
3,987 | 217.88 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 6V, Series 12V | Parallel 108.4A, Series 54.2A | Dual, Multiple Taps | Dual | No | 650VA | Chassis Mount | Terminal Block | 133.30mm L x 119.40mm W | 117.80mm | 4000Vrms |
|
|
MPI-650-20PWR XFMR LAMINATED 650VA CHAS MT |
2,683 | 217.88 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 10V, Series 20V | Parallel 65A, Series 32.5A | Dual, Multiple Taps | Dual | No | 650VA | Chassis Mount | Terminal Block | 133.30mm L x 119.40mm W | 117.80mm | 4000Vrms |
|
|
MPI-650-28PWR XFMR LAMINATED 650VA CHAS MT |
3,454 | 217.88 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 14V, Series 28V | Parallel 46.4A, Series 23.2A | Dual, Multiple Taps | Dual | No | 650VA | Chassis Mount | Terminal Block | 133.30mm L x 119.40mm W | 117.80mm | 4000Vrms |
|
|
MPI-650-10PWR XFMR LAMINATED 650VA CHAS MT |
2,634 | 221.47 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 5V, Series 10V | Parallel 130A, Series 65A | Dual, Multiple Taps | Dual | No | 650VA | Chassis Mount | Terminal Block | 133.30mm L x 119.40mm W | 117.80mm | 4000Vrms |
|
|
MPI-650-40PWR XFMR LAMINATED 650VA CHAS MT |
2,965 | 221.47 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 20V, Series 40V | Parallel 32.6A, Series 16.3A | Dual, Multiple Taps | Dual | No | 650VA | Chassis Mount | Terminal Block | 133.30mm L x 119.40mm W | 117.80mm | 4000Vrms |
|
M4L-1-10PWR XFMR LAMINATED 1000VA CHAS |
2,923 | 221.80 |
RFQ |
Datasheet |
Bulk | M4L | Active | Laminated Core | 125V, 115V, 105V | 115V | 8.7A | Single, Multiple Taps | Single | No | 1000VA | Chassis Mount | Terminal Block | 124.20mm L x 144.78mm W | 133.40mm | 4000Vrms |
