| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Series.jpg)
|
A41-130-12LPWR XFMR LAMINATED 130VA CHAS MT |
3,074 | 36.41 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 2.6A, Series 1.3A | Dual | Dual | No | 130VA | Chassis Mount | Wire Leads | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
|
|
A41-130-230LPWR XFMR LAMINATED 130VA CHAS MT |
2,511 | 36.41 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.14A, Series 570mA | Dual | Dual | No | 130VA | Chassis Mount | Wire Leads | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
|
|
A41-130-24LPWR XFMR LAMINATED 130VA CHAS MT |
3,332 | 36.41 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 10.8A, Series 5.4A | Dual | Dual | No | 130VA | Chassis Mount | Wire Leads | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
|
A41-175-10PWR XFMR LAMINATED 175VA CHAS MT |
3,774 | 39.55 |
RFQ |
Datasheet |
Bulk | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 35A, Series 17.5A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms |
|
|
A41-175-16LPWR XFMR LAMINATED 175VA CHAS MT |
3,103 | 39.55 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 22A, Series 11A | Dual | Dual | No | 175VA | Chassis Mount | Wire Leads | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms |
|
|
A41-175-20LPWR XFMR LAMINATED 175VA CHAS MT |
2,194 | 39.55 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 17.6A, Series 8.8A | Dual | Dual | No | 175VA | Chassis Mount | Wire Leads | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms |
|
|
A41-175-28LPWR XFMR LAMINATED 175VA CHAS MT |
3,663 | 39.55 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 12.5A, Series 6.25A | Dual | Dual | No | 175VA | Chassis Mount | Wire Leads | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms |
|
|
A41-175-36LPWR XFMR LAMINATED 175VA CHAS MT |
3,731 | 39.55 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 175VA | Chassis Mount | Wire Leads | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms |
|
|
A41-175-10LPWR XFMR LAMINATED 175VA CHAS MT |
3,668 | 39.85 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 35A, Series 17.5A | Dual | Dual | No | 175VA | Chassis Mount | Wire Leads | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms |
|
|
A41-175-12LPWR XFMR LAMINATED 175VA CHAS MT |
3,145 | 39.85 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 28A, Series 14A | Dual | Dual | No | 175VA | Chassis Mount | Wire Leads | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms |
|
10-4XFRMR LAMINATED 40VA CHAS MOUNT |
3,908 | 47.27 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 5V, Series 10V | Parallel 8A, Series 4A | Single, Multiple Taps | Single, Multiple Taps | Yes | 40VA | Chassis Mount | Solder, Quick Connect | 90.50mm L x 60.30mm W | 77.70mm | 1500Vrms |
|
36-2PWR XFMR LAMINATED 72VA CHAS MT |
3,354 | 48.57 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 18V, Series 36V | Parallel 4A, Series 2A | Single, Multiple Taps | Dual | Yes | 72VA | Chassis Mount | Solder, Quick Connect | 85.70mm L x 74.60mm W | 71.40mm | 1500Vrms |
|
12.8-1PWR XFMR LAMINATED 12.8VA CHAS |
3,337 | 51.07 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 6.4V, Series 12.8V | Parallel 2A, Series 1A | Single, Multiple Taps | Single, Multiple Taps | Yes | 12.8VA | Chassis Mount | Solder, Quick Connect | 73.00mm L x 50.80mm W | 58.70mm | 1500Vrms |
|

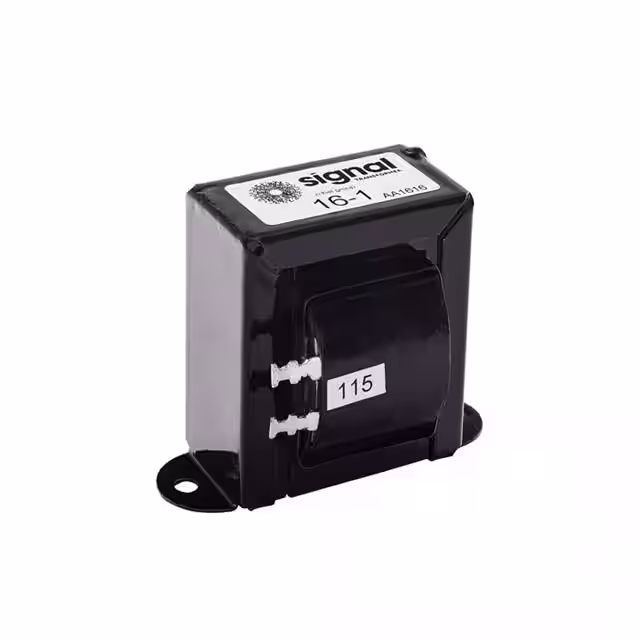

16-1PWR XFMR LAMINATED 16VA CHAS MT |
3,045 | 55.94 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 8V, Series 16V | Parallel 2A, Series 1A | Single, Multiple Taps | Single, Multiple Taps | Yes | 16VA | Chassis Mount | Solder, Quick Connect | 73.00mm L x 50.80mm W | 58.70mm | 1500Vrms |
|
16-6PWR XFMR LAMINATED 96VA CHAS MT |
3,214 | 59.81 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 8V, Series 16V | Parallel 12A, Series 6A | Single, Multiple Taps | Single, Multiple Taps | Yes | 96VA | Chassis Mount | Solder, Quick Connect | 95.30mm L x 79.40mm W | 79.40mm | 1500Vrms |
|
|
36-1PWR XFMR LAMINATED 36VA CHAS MT |
2,583 | 62.69 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Single, Multiple Taps | Dual | Yes | 36VA | Chassis Mount | Solder, Quick Connect | 76.20mm L x 69.90mm W | 63.50mm | 1500Vrms |
|
24-2PWR XFMR LAMINATED 48VA CHAS MT |
3,434 | 63.83 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Single, Multiple Taps | Dual | Yes | 48VA | Chassis Mount | Solder, Quick Connect | 76.20mm L x 73.00mm W | 63.50mm | 1500Vrms |
|
|
16-4PWR XFMR LAMINATED 64VA CHAS MT |
2,359 | 71.45 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 8V, Series 16V | Parallel 8A, Series 4A | Single, Multiple Taps | Single, Multiple Taps | Yes | 64VA | Chassis Mount | Solder, Quick Connect | 85.70mm L x 69.90mm W | 71.40mm | 1500Vrms |
|

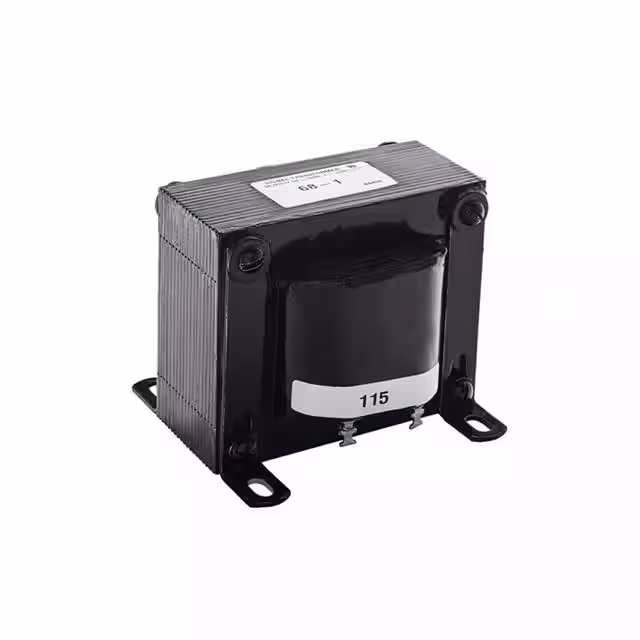

68-1PWR XFMR LAMINATED 68VA CHAS MT |
3,689 | 72.65 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 34V, Series 68V | Parallel 2A, Series 1A | Single, Multiple Taps | Dual | Yes | 68VA | Chassis Mount | Solder, Quick Connect | 85.70mm L x 74.60mm W | 71.40mm | 1500Vrms |
|
12.8-4PWR XFMR LAMINATED 51.2VA CHAS |
3,186 | 72.82 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 6.4V, Series 12.8V | Parallel 8A, Series 4A | Single, Multiple Taps | Single, Multiple Taps | Yes | 51.2VA | Chassis Mount | Solder, Quick Connect | 76.20mm L x 63.50mm W | 63.50mm | 1500Vrms |
