| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DP-241-8-36LPWR XFMR LAMINATED 100VA CHAS MT |
3,198 | 25.98 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 36V | 2.8A | Dual | Single | Yes | 100VA | Chassis Mount | Wire Leads | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
DP-241-8-48LPWR XFMR LAMINATED 100VA CHAS MT |
3,135 | 25.98 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 48V | 2A | Dual | Single | Yes | 100VA | Chassis Mount | Wire Leads | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
DP-241-8-56LPWR XFMR LAMINATED 100VA CHAS MT |
2,081 | 25.98 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 56V | 1.8A | Dual | Single | Yes | 100VA | Chassis Mount | Wire Leads | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
-Series.jpg)
|
A41-80-230LPWR XFMR LAMINATED 80VA CHAS MT |
3,561 | 26.10 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 700mA, Series 350mA | Dual | Dual | No | 80VA | Chassis Mount | Wire Leads | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms |
|
|
A41-80-36LPWR XFMR LAMINATED 80VA CHAS MT |
3,089 | 26.10 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 80VA | Chassis Mount | Wire Leads | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms |
|
MT-8-12PWR XFMR LAMINATED 8VA CHAS MT |
2,147 | 27.36 |
RFQ |
Datasheet |
Bulk | MT | Active | Laminated Core | 115V | 5V, 12V | 4A, 600mA | Single | Dual | Yes | 8VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
A41-80-515PWR XFMR LAMINATED 80VA CHAS MT |
3,890 | 29.68 |
RFQ |
Datasheet |
Bulk | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 15V | Parallel 3.5A, Series 500mA | Dual | Dual | Yes | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms |
|

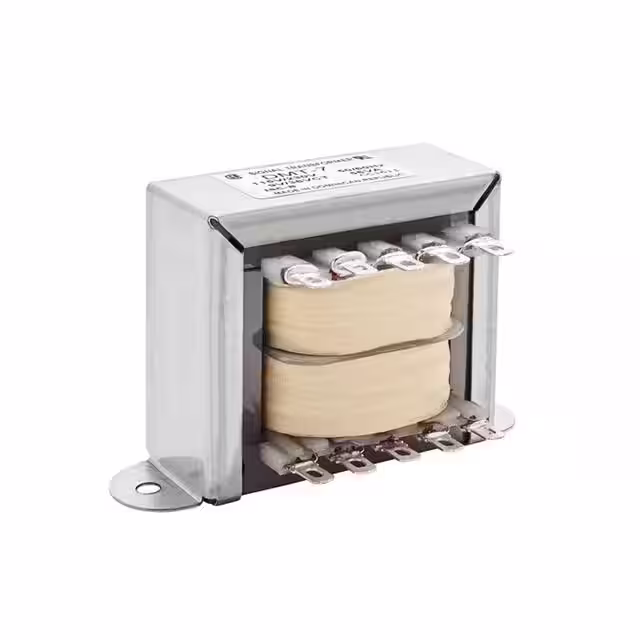

DMT-8-12PWR XFMR LAMINATED 8VA CHAS MT |
2,861 | 30.13 |
RFQ |
Datasheet |
Bulk | DMT | Active | Laminated Core | 115V, 230V | 5V, 12V | 4A, 600mA | Dual | Dual | Yes | 8VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
10-2XFRMR LAMINATED 20VA CHAS MOUNT |
3,486 | 33.02 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Single, Multiple Taps | Single, Multiple Taps | Yes | 20VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 53.90mm W | 69.90mm | 1500Vrms |
|
16-2PWR XFMR LAMINATED 32VA CHAS MT |
3,043 | 36.90 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 8V, Series 16V | Parallel 4A, Series 2A | Single, Multiple Taps | Single, Multiple Taps | Yes | 32VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 57.20mm W | 69.90mm | 1500Vrms |
|

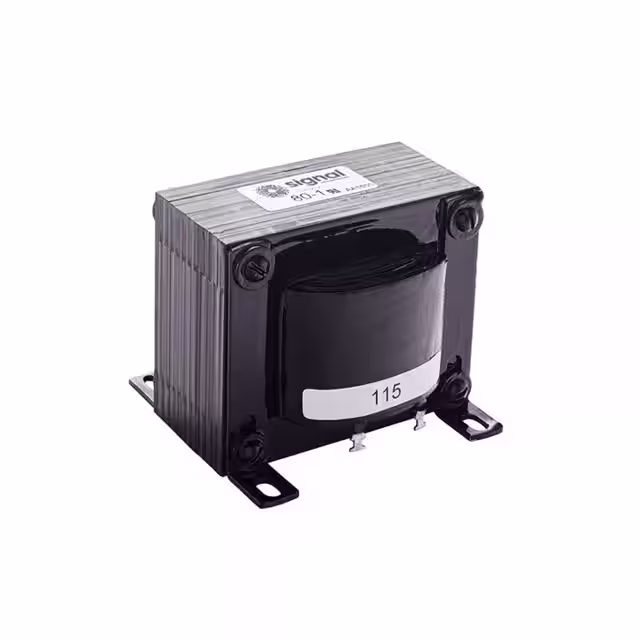

80-4PWR XFMR LAMINATED 320VA CHAS MT |
2,746 | 143.01 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 40V, Series 80V | Parallel 8A, Series 4A | Single, Multiple Taps | Dual | Yes | 320VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 108.00mm W | 111.10mm | 1500Vrms |
|
MPI-250-10PWR XFMR LAMINATED 250VA CHAS MT |
3,131 | 143.47 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 5V, Series 10V | Parallel 50A, Series 25A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 104.80mm L x 104.90mm W | 98.20mm | 4000Vrms |
|
|
MPI-250-12PWR XFMR LAMINATED 250VA CHAS MT |
3,417 | 143.47 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 6V, Series 12V | Parallel 41.7A, Series 20.8A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 104.80mm L x 104.90mm W | 98.20mm | 4000Vrms |
|
|
10-1XFRMR LAMINATED 10VA CHAS MOUNT |
3,220 | 34.45 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 5V, Series 10V | Parallel 2A, Series 1A | Single, Multiple Taps | Single, Multiple Taps | Yes | 10VA | Chassis Mount | Solder, Quick Connect | 73.00mm L x 44.50mm W | 58.70mm | 1500Vrms |
|
A41-130-10PWR XFMR LAMINATED 130VA CHAS MT |
3,481 | 36.13 |
RFQ |
Datasheet |
Bulk | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 26A, Series 13A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
|
|
A41-130-16LPWR XFMR LAMINATED 130VA CHAS MT |
2,614 | 36.13 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 16.2A, Series 8.1A | Dual | Dual | No | 130VA | Chassis Mount | Wire Leads | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
|
|
A41-130-20LPWR XFMR LAMINATED 130VA CHAS MT |
2,626 | 36.13 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 13A, Series 6.5A | Dual | Dual | No | 130VA | Chassis Mount | Wire Leads | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
|
|
A41-130-28LPWR XFMR LAMINATED 130VA CHAS MT |
3,288 | 36.13 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 9.2A, Series 4.6A | Dual | Dual | No | 130VA | Chassis Mount | Wire Leads | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
|
|
A41-130-36LPWR XFMR LAMINATED 130VA CHAS MT |
2,564 | 36.13 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 7.2A, Series 3.6A | Dual | Dual | No | 130VA | Chassis Mount | Wire Leads | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
|
|
A41-130-10LPWR XFMR LAMINATED 130VA CHAS MT |
2,953 | 36.41 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 26A, Series 13A | Dual | Dual | No | 130VA | Chassis Mount | Wire Leads | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
