| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HPI-15PWR XFMR LAMINATED 1500VA CHAS |
2,484 | 422.40 |
RFQ |
Datasheet |
Bulk | HPI | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 13A, Series 6.5A | Dual, Multiple Taps | Dual | No | 1500VA | Chassis Mount | Terminal Block | 179.30mm L x 139.70mm W | 154.90mm | 4000Vrms |
|

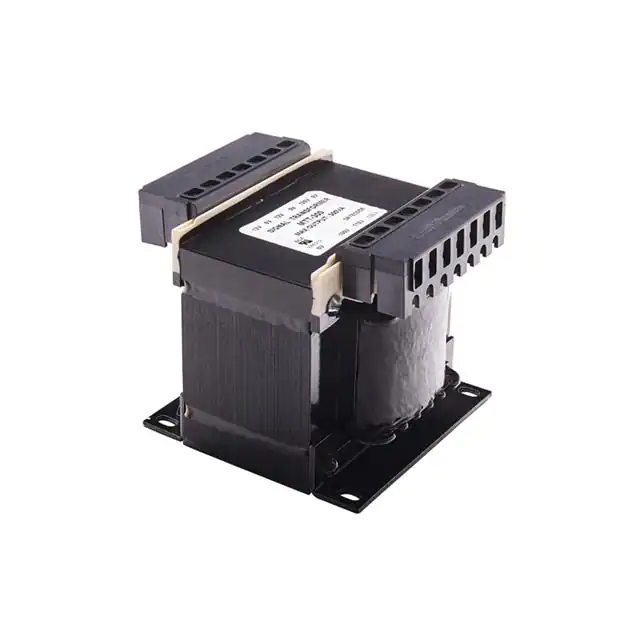

MTT-1000PWR XFMR LAMINATED 1000VA CHAS |
3,278 | 425.18 |
RFQ |
Datasheet |
Bulk | MTT | Active | Laminated Core | 100V, 115V, 120V | Parallel 12V, Series 24V | Parallel 83.3A, Series 41.7A | Single | Triple | No | 1000VA | Chassis Mount | Terminal Block | 179.30mm L x 129.60mm W | 154.90mm | 4000Vrms |
|

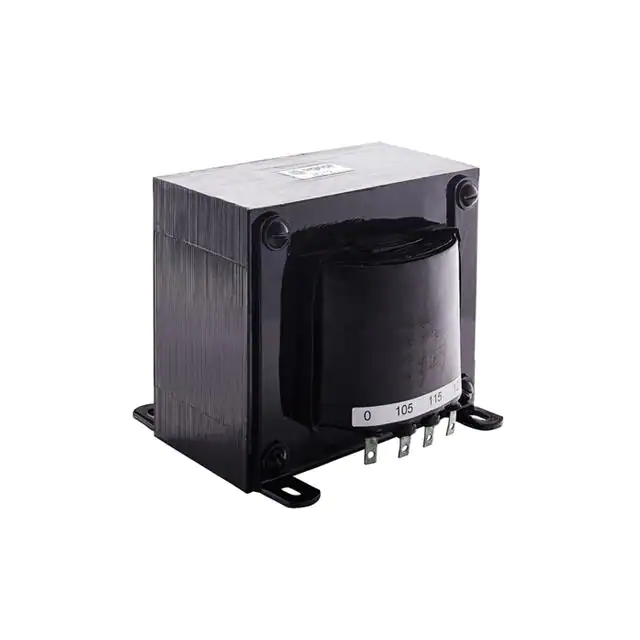

80-25PWR XFMR LAMINATED 2000VA CHAS |
3,542 | 433.05 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 115V, 230V | Parallel 40V, Series 80V | Parallel 50A, Series 25A | Dual | Dual | Yes | 2000VA | Chassis Mount | Solder, Quick Connect | 190.50mm L x 165.10mm W | 158.80mm | 1500Vrms |
|
|
DMTT-1000PWR XFMR LAMINATED 1000VA CHAS |
2,872 | 442.64 |
RFQ |
Datasheet |
Bulk | DMTT | Active | Laminated Core | 200V, 220V, 240V, 400V, 420V, 440V, 460V, 480V | Parallel 12V, Series 24V | Parallel 83.3A, Series 41.7A | Dual, Multiple Taps | Triple | No | 1000VA | Chassis Mount | Terminal Block | 179.30mm L x 129.60mm W | 154.90mm | 4000Vrms |
|

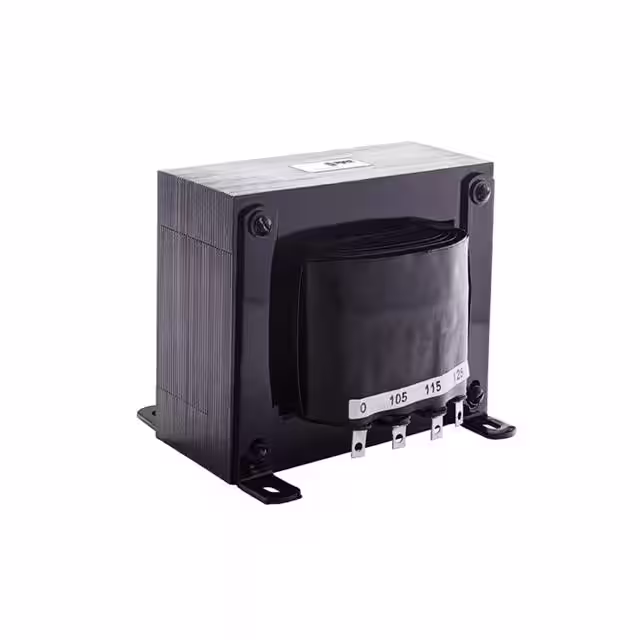

68-25PWR XFMR LAMINATED 1700VA CHAS |
3,870 | 443.65 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V, 230V | Parallel 34V, Series 68V | Parallel 50A, Series 25A | Dual | Dual | Yes | 1700VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 184.20mm W | 134.90mm | 1500Vrms |
|
|
HPI-17PWR XFMR LAMINATED 1750VA CHAS |
2,648 | 464.58 |
RFQ |
Datasheet |
Bulk | HPI | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 15.2A, Series 7.6A | Dual, Multiple Taps | Dual | No | 1750VA | Chassis Mount | Terminal Block | 179.30mm L x 149.70mm W | 154.90mm | 4000Vrms |
|

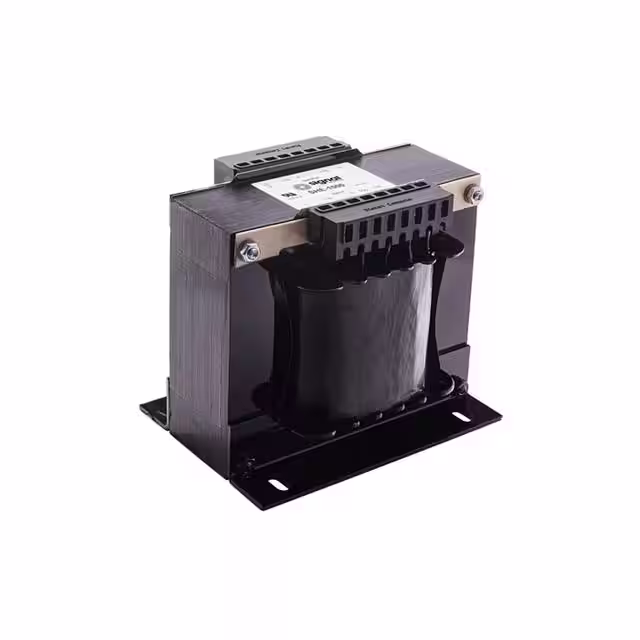

SHE-1000PWR XFMR LAMINATED 1000VA CHAS |
3,690 | 507.44 |
RFQ |
Datasheet |
Bulk | SHE | Active | Laminated Core | 100V, 115V, 215V, 230V | Parallel 115V, Series 230V | Parallel 8.7A, Series 4.3A | Dual, Multiple Taps | Dual | No | 1000VA | Chassis Mount | Terminal Block | 195.60mm L x 139.70mm W | 168.40mm | 4000Vrms |
|
|
SHE-1500PWR XFMR LAMINATED 1500VA CHAS |
2,596 | 594.86 |
RFQ |
Datasheet |
Bulk | SHE | Active | Laminated Core | 100V, 115V, 215V, 230V | Parallel 115V, Series 230V | Parallel 13A, Series 6.5A | Dual, Multiple Taps | Dual | No | 1500VA | Chassis Mount | Terminal Block | 195.60mm L x 152.40mm W | 168.40mm | 4000Vrms |
|

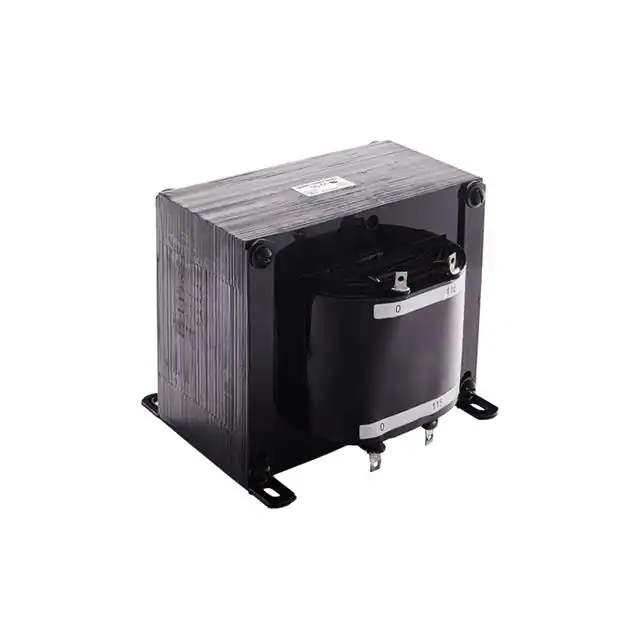

56-50PWR XFMR LAMINATED 288VA CHAS MT |
2,011 | 662.64 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V, 230V | Parallel 28V, Series 56V | Parallel 100A, Series 50A | Dual | Dual | Yes | 288VA | Chassis Mount | Solder, Quick Connect | 190.50mm L x 190.50mm W | 158.80mm | 1500Vrms |
|
SHE-2000PWR XFMR LAMINATED 2000VA CHAS |
2,625 | 737.93 |
RFQ |
Datasheet |
Bulk | SHE | Active | Laminated Core | 100V, 115V, 215V, 230V | Parallel 115V, Series 230V | Parallel 17.4A, Series 8.7A | Dual, Multiple Taps | Dual | No | 2000VA | Chassis Mount | Terminal Block | 195.60mm L x 165.10mm W | 168.40mm | 4000Vrms |
|
|

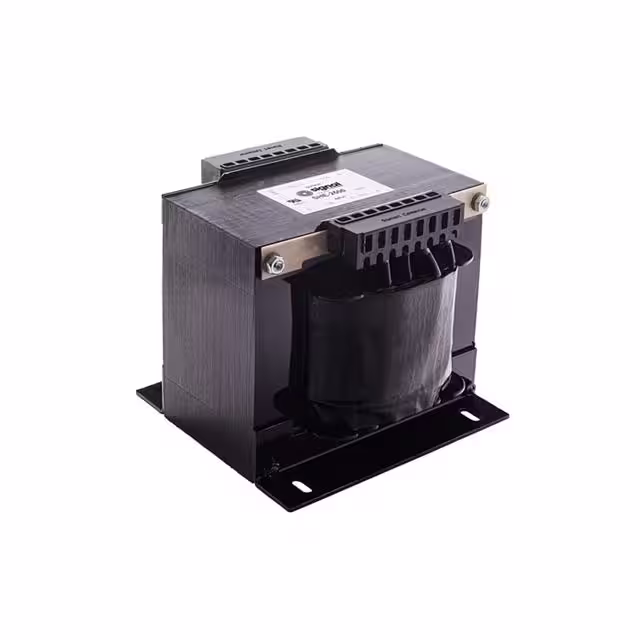

SHE-2500PWR XFMR LAMINATED 2500VA CHAS |
3,186 | 822.75 |
RFQ |
Datasheet |
Bulk | SHE | Active | Laminated Core | 100V, 115V, 215V, 230V | Parallel 115V, Series 230V | Parallel 21.8A, Series 10.9A | Dual, Multiple Taps | Dual | No | 2500VA | Chassis Mount | Terminal Block | 195.60mm L x 177.80mm W | 168.40mm | 4000Vrms |
|
B-2331PWR XFMR 600V TO 12V 3 PHAS |
3,037 | 0.00 |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
