| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M4L-2-10PWR XFMR LAMINATED 1000VA CHAS |
3,718 | 222.20 |
RFQ |
Datasheet |
Bulk | M4L | Active | Laminated Core | 250V, 230V, 210V | 115V | 8.7A | Single, Multiple Taps | Single | No | 1000VA | Chassis Mount | Terminal Block | 124.20mm L x 144.78mm W | 133.40mm | 4000Vrms |
|

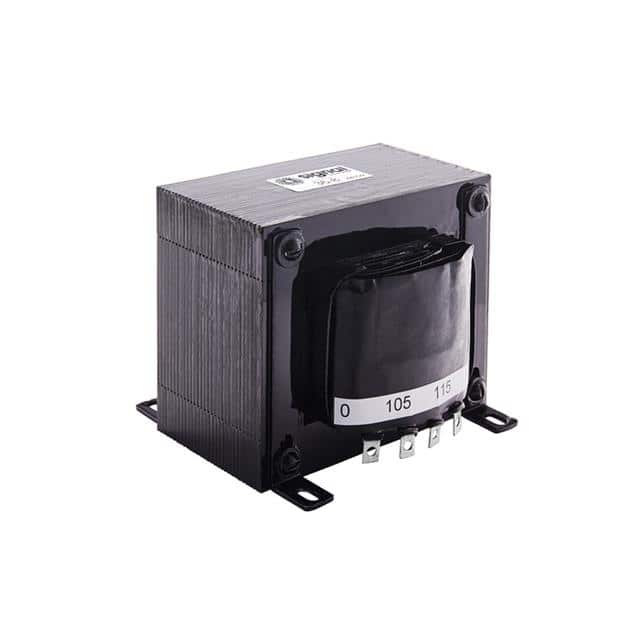

80-8PWR XFMR LAMINATED 640VA CHAS MT |
2,359 | 225.01 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 40V, Series 80V | Parallel 16A, Series 8A | Single, Multiple Taps | Dual | Yes | 640VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 133.40mm W | 134.90mm | 1500Vrms |
|

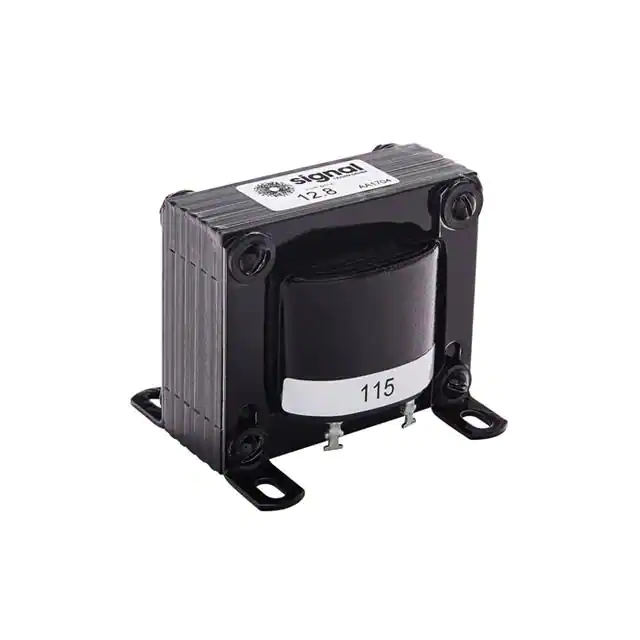

12.8-50PWR XFMR LAMINATED 640VA CHAS MT |
3,763 | 229.07 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 6.4V, Series 12.8V | Parallel 100A, Series 50A | Single, Multiple Taps | Single, Multiple Taps | Yes | 640VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 152.40mm W | 111.10mm | 1500Vrms |
|

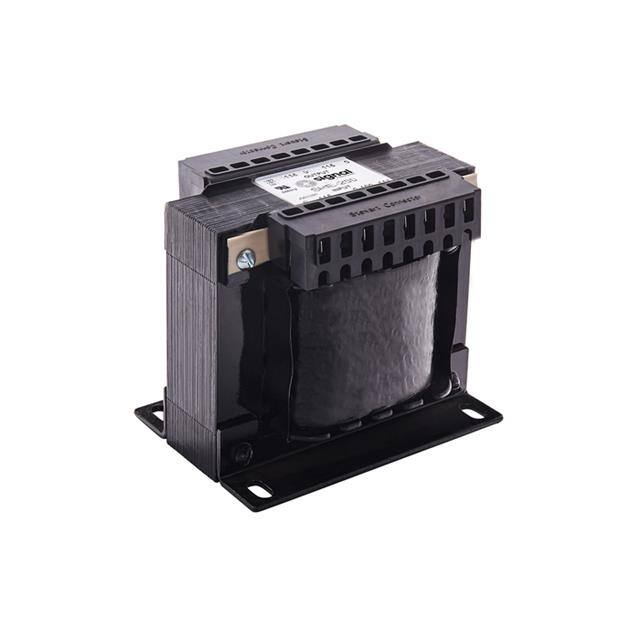

SHE-250PWR XFMR LAMINATED 250VA CHAS MT |
2,528 | 229.37 |
RFQ |
Datasheet |
Bulk | SHE | Active | Laminated Core | 100V, 115V, 215V, 230V | Parallel 115V, Series 230V | Parallel 2.2A, Series 1.1A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 137.20mm L x 101.60mm W | 120.70mm | 4000Vrms |
|
36-20PWR XFMR LAMINATED 720VA CHAS MT |
2,695 | 246.54 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 18V, Series 36V | Parallel 40A, Series 20A | Single, Multiple Taps | Dual | Yes | 720VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 136.50mm W | 134.90mm | 1500Vrms |
|

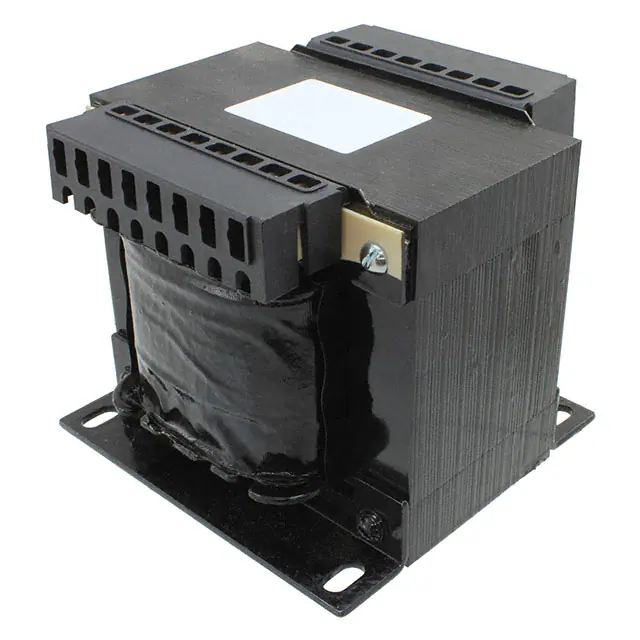

MPI-900-10PWR XFMR LAMINATED 900VA CHAS MT |
2,506 | 259.70 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 5V, Series 10V | Parallel 180A, Series 90A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms |
|
|
MPI-900-12PWR XFMR LAMINATED 900VA CHAS MT |
2,289 | 259.70 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 6V, Series 12V | Parallel 150A, Series 75A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms |
|
|
MPI-900-20PWR XFMR LAMINATED 900VA CHAS MT |
3,927 | 259.70 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 10V, Series 20V | Parallel 90A, Series 45A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms |
|
|
MPI-900-28PWR XFMR LAMINATED 900VA CHAS MT |
2,768 | 259.70 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 14V, Series 28V | Parallel 64.2A, Series 32.1A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms |
|
|
MPI-900-40PWR XFMR LAMINATED 900VA CHAS MT |
2,058 | 259.70 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 20V, Series 40V | Parallel 45A, Series 22.5A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms |
|
80-12PWR XFMR LAMINATED 960VA CHAS MT |
3,095 | 279.44 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 40V, Series 80V | Parallel 24A, Series 12A | Single, Multiple Taps | Dual | Yes | 960VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 152.40mm W | 134.90mm | 1500Vrms |
|
36-25PWR XFMR LAMINATED 900VA CHAS MT |
3,625 | 281.11 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 18V, Series 36V | Parallel 50A, Series 25A | Single, Multiple Taps | Dual | Yes | 900VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 146.10mm W | 134.90mm | 1500Vrms |
|
68-12PWR XFMR LAMINATED 816VA CHAS MT |
2,376 | 282.50 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 34V, Series 68V | Parallel 24A, Series 12A | Single, Multiple Taps | Dual | Yes | 816VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 146.10mm W | 134.90mm | 1500Vrms |
|

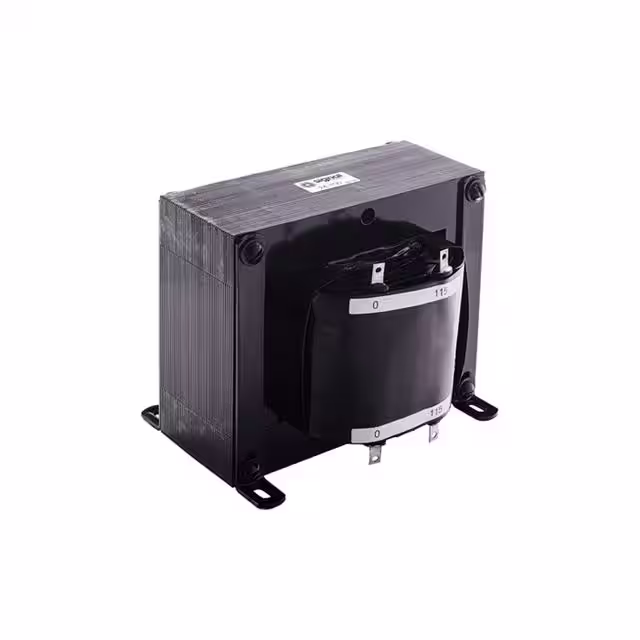

24-50PWR XFMR LAMINATED 1200VA CHAS |
2,261 | 297.45 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 12V, Series 24V | Parallel 100A, Series 50A | Single, Multiple Taps | Dual | Yes | 1200VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 158.80mm W | 134.90mm | 1500Vrms |
|

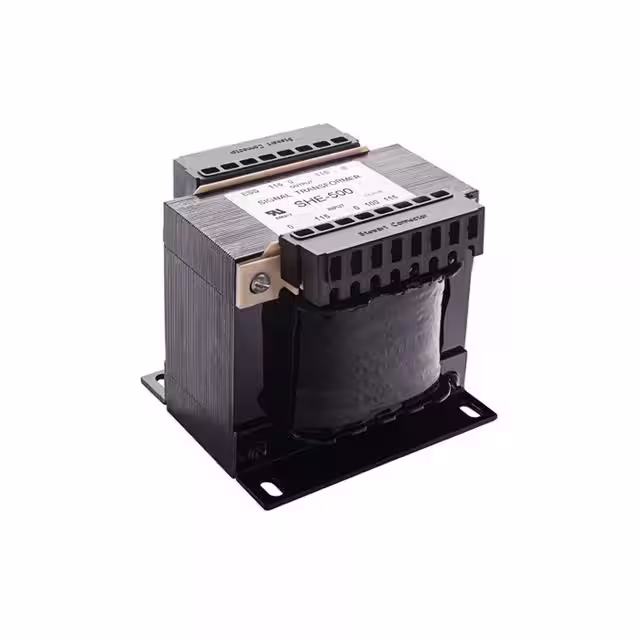

SHE-500PWR XFMR LAMINATED 500VA CHAS MT |
3,973 | 303.20 |
RFQ |
Datasheet |
Bulk | SHE | Active | Laminated Core | 100V, 115V, 215V, 230V | Parallel 115V, Series 230V | Parallel 4.4A, Series 2.2A | Dual, Multiple Taps | Dual | No | 500VA | Chassis Mount | Terminal Block | 137.20mm L x 127.00mm W | 120.70mm | 4000Vrms |
|
10-100PWR XFMR LAMINATED 1000VA CHAS |
3,959 | 317.58 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 5V, Series 10V | Parallel 200A, Series 100A | Single, Multiple Taps | Single, Multiple Taps | Yes | 1000VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 184.20mm W | 134.90mm | 1500Vrms |
|
16-50PWR XFMR LAMINATED 800VA CHAS MT |
2,791 | 336.23 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 8V, Series 16V | Parallel 100A, Series 50A | Single, Multiple Taps | Single, Multiple Taps | Yes | 800VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 146.10mm W | 134.90mm | 1500Vrms |
|
|
12.8-100PWR XFMR LAMINATED 1280VA CHAS |
3,077 | 354.09 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 6.4V, Series 12.8V | Parallel 200A, Series 100A | Single, Multiple Taps | Single, Multiple Taps | Yes | 1280VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 184.20mm W | 134.90mm | 1500Vrms |
|
|
SHE-750PWR XFMR LAMINATED 750VA CHAS MT |
2,667 | 363.64 |
RFQ |
Datasheet |
Bulk | SHE | Active | Laminated Core | 100V, 115V, 215V, 230V | Parallel 115V, Series 230V | Parallel 6.6A, Series 3.3A | Dual, Multiple Taps | Dual | No | 750VA | Chassis Mount | Terminal Block | 137.20mm L x 152.40mm W | 120.70mm | 4000Vrms |
|
56-25PWR XFMR LAMINATED 1400VA CHAS |
3,413 | 382.16 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 28V, Series 56V | Parallel 50A, Series 25A | Single, Multiple Taps | Dual | Yes | 1400VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 181.00mm W | 134.90mm | 1500Vrms |
