| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6N139-X009TOPTOISO 5.3KV DARL W/BASE 8SMD |
994 | 1.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 500% @ 1.6mA | - | 600ns, 1.5µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
SFH6345-X007TOPTOISOLATOR 5.3KV TRANS 8SMD |
916 | 2.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 300ns, 300ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6345-X009TOPTOISOLATOR 5.3KV TRANS 8SMD |
2,411 | 2.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 300ns, 300ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
SFH640-3X019TOPTOISO 5.3KV TRANS W/BASE 6SMD |
490 | 2.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 6µs | 2.5µs, 5.5µs | DC | Transistor with Base | 300V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6345-X019TOPTOISOLATOR 5.3KV TRANS 8SMD |
500 | 2.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 300ns, 300ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
TCMT4600T0OPTOISO 3.75KV 4CH TRANS 16SOP |
3,427 | 2.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 3750Vrms | 80% @ 5mA | 300% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | AC, DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 300mV | -40°C ~ 100°C | Surface Mount |
|
|
SFH6326-X017TOPTOISOLATR 5.3KV 2CH TRANS 8SMD |
644 | 2.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | 19% @ 16mA | - | 200ns, 500ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
VOW135-X017TOPTOISO 5.3KV TRANS W/BASE 8SMD |
356 | 3.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 7% @ 16mA | - | 200ns, 1.3µs | - | DC | Transistor with Base | 25V | 8mA | 1.38V | 25 mA | - | -40°C ~ 100°C | Surface Mount |
|
SFH636-X007TOPTOISO 4.42KV TRANS 6SMD |
975 | 3.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4420Vrms | 19% @ 16mA | - | 300ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|

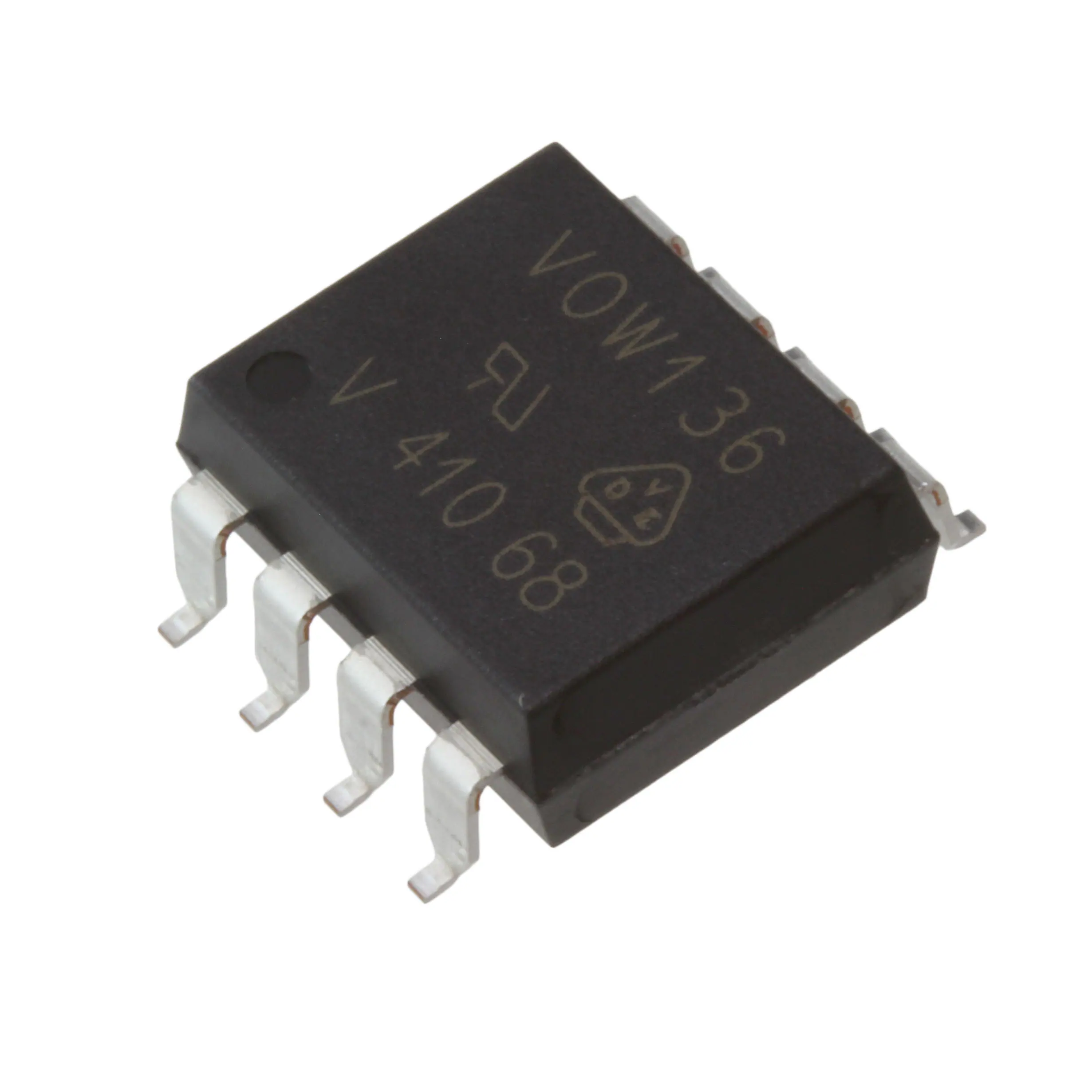

VOW136-X017TOPTOISO 5.3KV TRANS W/BASE 8SMD |
748 | 3.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 600ns | - | DC | Transistor with Base | 25V | 8mA | 1.38V | 25 mA | - | -40°C ~ 100°C | Surface Mount |
|
CNY65AYSTOPTOISOLATOR 13.9KV TRANS 4-SMD |
172 | 3.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 13900VDC | 50% @ 5mA | 150% @ 5mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.32V | 75 mA | 300mV | -55°C ~ 85°C | Surface Mount |
|
|
IL300-X007TOPTOISO 5.3KV PHVOLT 8SMD |
2,843 | 4.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
VOS617A-7X001TOPTOISOLATOR 3.75KV TRANS 4SSOP |
3,413 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.18V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOS618A-3TOPTOISOLATOR 3.75KV TRANS 4-SSOP |
2,263 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 1mA | 200% @ 1mA | 5µs, 8µs | 5µs, 7µs | DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
TCMT1103OPTOISOLATOR 3.75KV TRANS 4-SOP |
3,575 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 10mA | 200% @ 10mA | 9.5µs, 8.5µs | 5.5µs, 7µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 300mV | -40°C ~ 100°C | Surface Mount |
|
|
TCMT1107OPTOISOLATOR 3.75KV TRANS 4-SOP |
2,149 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | 9.5µs, 8.5µs | 5.5µs, 7µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 300mV | -40°C ~ 100°C | Surface Mount |
|
|
TCMT1109OPTOISOLATOR 3.75KV TRANS 4-SOP |
2,019 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 9.5µs, 8.5µs | 5.5µs, 7µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 300mV | -40°C ~ 100°C | Surface Mount |
|
VOL618A-3X001TOPTOISOLATOR 5KV TRANS 4-LSOP |
3,262 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 1mA | 200% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
TCMD1000OPTOISO 3.75KV DARLINGTON 4-SOP |
3,033 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 600% @ 1mA | - | -, 250µs | 300µs, - | DC | Darlington | 35V | 80mA | 1.25V | 60 mA | 1V | -40°C ~ 100°C | Surface Mount |
|
|
TCMT1600OPTOISOLATOR 3.75KV TRANS 4-SOP |
2,631 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 80% @ 5mA | 300% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | AC, DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 300mV | -40°C ~ 100°C | Surface Mount |
