| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

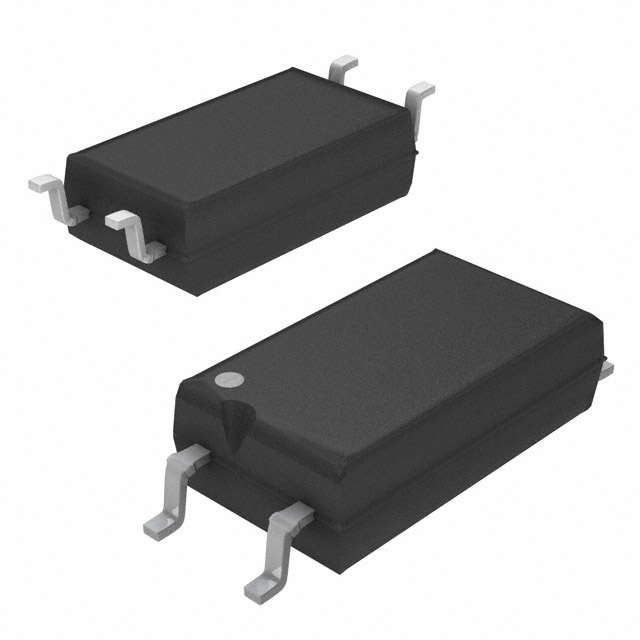

VOL617A-3X001TOPTOISOLATOR 5KV TRANS 4-LSOP |
3,321 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 5mA | 200% @ 5mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
VOS617A-4TOPTOISOLATOR 3.75KV TRANS 4SSOP |
2,796 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 160% @ 5mA | 320% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.18V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|

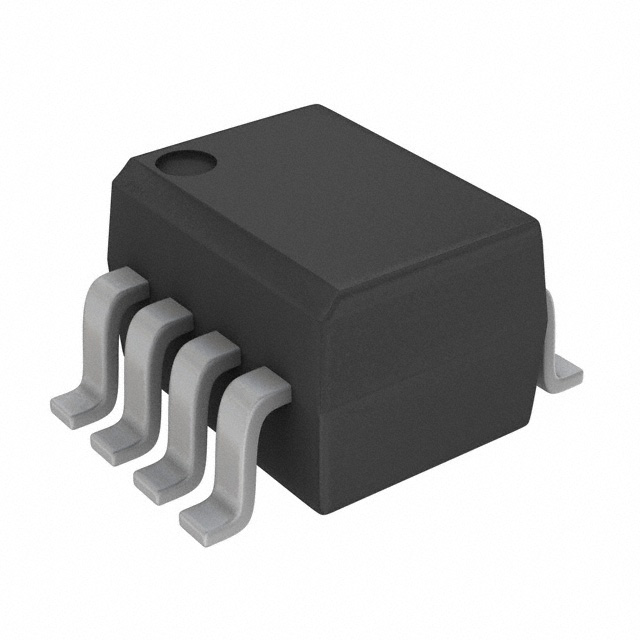

VOD213TOPTOISOLATOR 4KV 2CH TRANS 8SOIC |
458 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 100% @ 10mA | - | 5µs, 4µs | 5µs, 4µs | DC | Transistor | 70V | 50mA | 1.2V | 30 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
VOL618A-3TOPTOISOLATOR 5KV TRANS 4-LSOP |
3,042 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 1mA | 200% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
TCMT1104OPTOISOLATOR 3.75KV TRANS 4-SOP |
2,513 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 160% @ 10mA | 320% @ 10mA | 9.5µs, 8.5µs | 5.5µs, 7µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 300mV | -40°C ~ 100°C | Surface Mount |
|
|
VOS618A-3X001TOPTOISOLATOR 3.75KV TRANS 4-SSOP |
3,440 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 1mA | 200% @ 1mA | 5µs, 8µs | 5µs, 7µs | DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOS628A-3TOPTOISOLATOR 3.75KV TRANS 4-SSOP |
3,659 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 1mA | 200% @ 1mA | 5µs, 8µs | 5µs, 7µs | AC, DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | -40°C ~ 110°C | Surface Mount |
|
SFH690ABTOPTOISOLATOR 3.75KV TRANS 4-SOP |
2,904 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 300% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
TCLT1007OPTOISOLATR 5KV TRANSISTOR 4-SOP |
2,239 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
TCLT1003OPTOISOLATR 5KV TRANSISTOR 4-SOP |
3,424 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
TCLT1600OPTOISOLATR 5KV TRANSISTOR 4-SOP |
3,286 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 80% @ 5mA | 300% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH690ATOPTOISOLATOR 3.75KV TRANS 4-SOP |
3,722 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 150% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
SFH6206-2TOPTOISOLATOR 5.3KV TRANS 4-SMD |
2,927 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 63% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6206-3TOPTOISOLATOR 5.3KV TRANS 4-SMD |
3,897 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH691ATOPTOISOLATOR 3.75KV TRANS 4-SOP |
3,382 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 300% @ 5mA | 5µs, 3µs | 3µs, 4µs | AC, DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
ILD207TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
3,108 | 1.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6286-3TOPTOISOLATOR 5.3KV TRANS 4-SMD |
3,891 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 1mA | 320% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | AC, DC | Transistor | 55V | 50mA | 1.1V | 50 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
ILD1207TOPTOISO 4KV 2CH TRANS 8SOIC |
2,085 | 1.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | - | DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
SFH619A-X007TOPTOISOLATOR 5.3KV DARL 4SMD |
3,103 | 1.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 1000% @ 1mA | - | 4.5µs, 29µs | 3.5µs, 14.5µs | DC | Darlington | 300V | 125mA | 1.2V | 60 mA | 1.2V | -55°C ~ 100°C | Surface Mount |
|
|
ILD256TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
2,720 | 1.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 20% @ 10mA | - | - | - | AC, DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | -55°C ~ 100°C | Surface Mount |
