| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL211ATOPTOISO 4KV TRANS W/BASE 8SOIC |
2,368 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4000Vrms | 20% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 30V | - | 1.3V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
VOD207TOPTOISOLATOR 4KV 2CH TRANS 8SOIC |
3,229 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | 5µs, 4µs | DC | Transistor | 70V | 50mA | 1.2V | 30 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
VOD205TOPTOISOLATOR 4KV 2CH TRANS 8SOIC |
3,041 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 40% @ 10mA | 80% @ 10mA | 5µs, 4µs | 5µs, 4µs | DC | Transistor | 70V | 50mA | 1.2V | 30 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
IL217ATOPTOISO 4KV TRANS W/BASE 8SOIC |
3,515 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4000Vrms | 100% @ 1mA | - | 3µs, 3µs | - | DC | Transistor with Base | 30V | - | 1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
VO615AOPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,467 | 0.40 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
VO617A-3X016OPTOISOLATOR 5.3KV TRANS 4-DIP |
3,200 | 0.40 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 5mA | 200% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 80V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
VOM452TOPTOISOLATOR 3.75KV TRANS 5-SOP |
2,168 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 20% @ 16mA | 50% @ 16mA | 200ns, 500ns | - | DC | Transistor | 25V | 8mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
CNY17-3.OPTOISO 5KV TRANS W/BASE 6DIP |
3,268 | 0.66 |
RFQ |
Datasheet |
Tube | - | Not For New Designs | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17-4OPTOISO 5KV TRANS W/BASE 6DIP |
2,946 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17F-4OPTOISOLTR 5KV TRANSISTOR 6-DIP |
2,279 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17F-1OPTOISOLTR 5KV TRANSISTOR 6-DIP |
956 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
SFH6156-1OPTOISOLATOR 5.3KV TRANS 4SMD |
2,556 | 0.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH617A-2X006OPTOISOLATOR 5.3KV TRANS 4DIP |
3,023 | 1.03 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
CNY74-2HOPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
2,895 | 1.04 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | - | 1.3V | 60 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
|
SFH610A-2OPTOISOLATOR 5.3KV TRANS 4-DIP |
3,406 | 1.04 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|

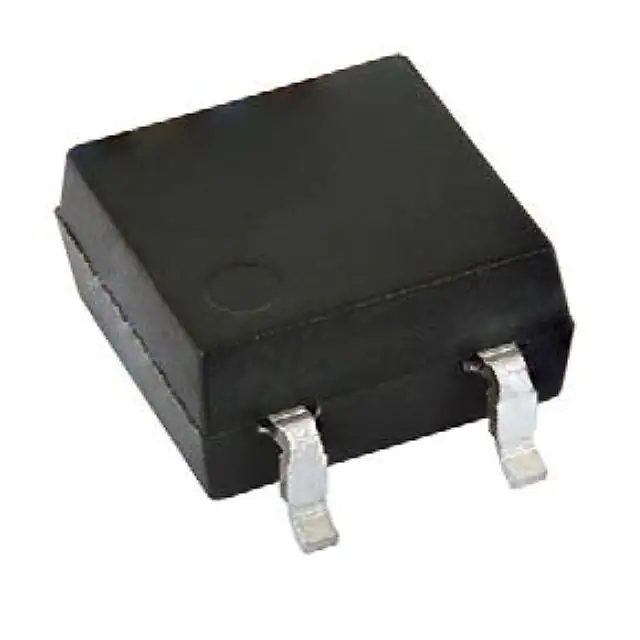

VOMA618A-3X001TOPTOCOUPLER-PHOTO-TRANSISTOR DET |
3,931 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | VOMA618A | Active | 1 | 3750Vrms | 100% @ 1mA | 200% @ 1mA | 6.8µs, 2.3µs | 1.8µs, 1.7µs | DC | Transistor | 80V | 50mA | 1.28V | 20 mA | 400mV | -40°C ~ 110°C | Surface Mount |
|
|

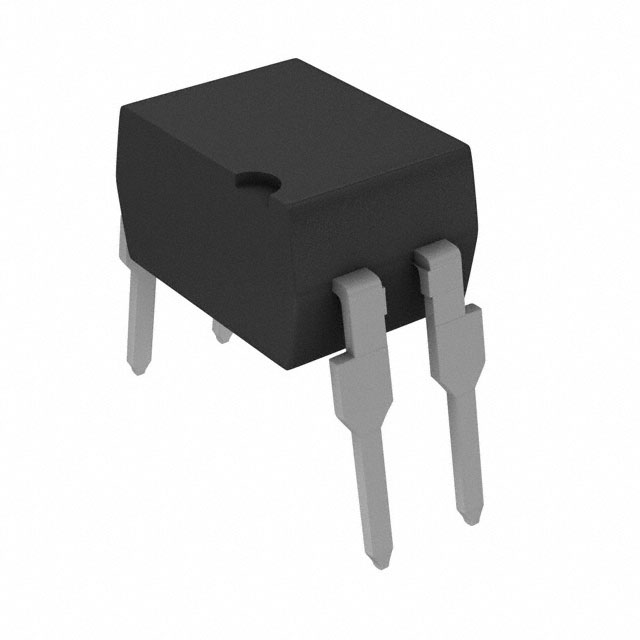

VO618A-4OPTOISOLATOR 5.3KV TRANS 4-DIP |
3,672 | 0.54 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 1mA | 320% @ 1mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
VO618AOPTOISOLATOR 5.3KV TRANS 4-DIP |
3,494 | 0.55 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 50% @ 1mA | 600% @ 1mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
TCET1107OPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,455 | 0.55 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -40°C ~ 100°C | Through Hole |
|
4N26OPTOISO 5KV TRANS W/BASE 6DIP |
2,401 | 0.61 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.3V | 60 mA | 500mV | -55°C ~ 100°C | Through Hole |
