| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ILD223TOPTOISO 4KV 2CH DARLINGTON 8SOIC |
2,203 | 1.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 500% @ 1mA | - | 15µs, 30µs (Min) | - | DC | Darlington | 30V | - | 1.3V (Max) | - | 1V | -55°C ~ 100°C | Surface Mount |
|
|
SFH6319TOPTOISO 4KV TRANS W/BASE 8SOIC |
2,856 | 1.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4000Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 600ns, 1.5µs | - | DC | Transistor with Base | 18V | 60mA | 1.4V | 20 mA | - | -55°C ~ 100°C | Surface Mount |
|
VOMA617A-X001TSINGLE CHANNEL, 80V, SOP-4 PHOTO |
3,489 | 2.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | VOMA617A | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 4.9µs, 3.3µs | 2.3µs, 3.2µs | DC | Transistor | 80V | 50mA | 1.33V | 20 mA | 400mV | -40°C ~ 110°C | Surface Mount |
|
TCMD4000OPTOISO 3.75KV 4CH DARLNG 16-SOP |
3,405 | 2.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 3750Vrms | 600% @ 1mA | - | -, 250µs | 300µs, - | DC | Darlington | 35V | 80mA | 1.25V | 60 mA | 1V | -40°C ~ 100°C | Surface Mount |
|
CNY64STOPTOISOLATOR 8.2KV TRANS 4-SMD |
3,194 | 2.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 8200Vrms | 50% @ 5mA | 300% @ 5mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.32V | 75 mA | 300mV | -55°C ~ 85°C | Surface Mount |
|
CNY65STOPTOISOLATOR 13.9KV TRANS 4-SMD |
3,545 | 2.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 13900VDC | 50% @ 5mA | 300% @ 5mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.32V | 75 mA | 300mV | -55°C ~ 85°C | Surface Mount |
|
CNY65AGRSTOPTOISOLATOR 13.9KV TRANS 4-SMD |
2,143 | 3.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 13900VDC | 100% @ 5mA | 300% @ 5mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.32V | 75 mA | 300mV | -55°C ~ 85°C | Surface Mount |
|
ILD755-2OPTOISO 5.3KV 2CH DARLNG 8-DIP |
3,508 | 4.87 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 1000% @ 1mA | - | - | 70µs, 70µs | AC, DC | Darlington | 60V | - | 1.2V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
IL300-DEFG-X007OPTOISO 5.3KV PHVOLT 8SMD |
3,834 | 5.06 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
IL300-F-X009TOPTOISO 5.3KV PHVOLT 8SMD |
2,699 | 11.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|

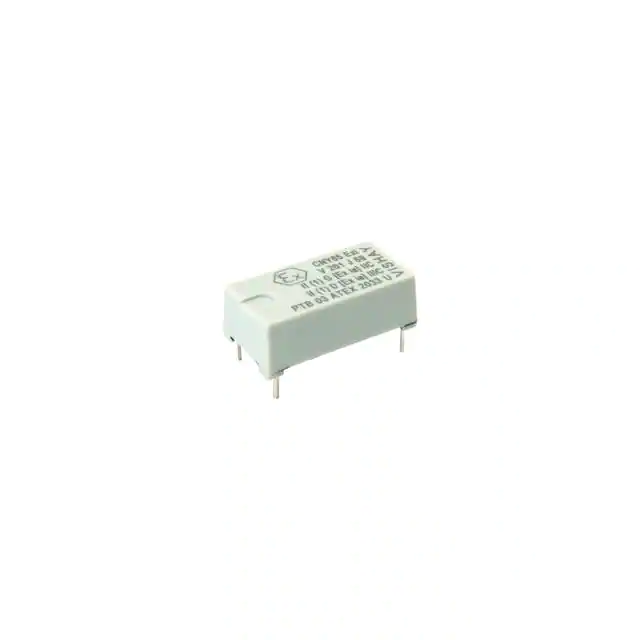

CNY65EXIOPTOISOLATOR 11.6KV TRANS 4-DIP |
2,419 | 6.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 11600VDC | 50% @ 5mA | 300% @ 5mA | 5µs, 3µs | 2.4µs, 2.4µs | DC | Transistor | 32V | 50mA | 1.25V | 75 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
IL300-EF-X007OPTOISO 5.3KV PHVOLT 8SMD |
3,678 | 6.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
IL300-EFOPTOISO 5.3KV LINEAR PHVOLT 8DIP |
3,133 | 6.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
|
IL300-EOPTOISO 5.3KV LINEAR PHVOLT 8DIP |
3,757 | 11.41 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
|
IL300-F-X007OPTOISO 5.3KV PHVOLT 8SMD |
2,890 | 11.42 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
VO617A-3X017TOPTOISOLATOR 5.3KV TRANS 4-SMD |
2,591 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 5mA | 200% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 80V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
VOL617A-4TOPTOISOLATOR 5KV TRANS 4-LSOP |
3,016 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 160% @ 5mA | 320% @ 5mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOL617A-4X001TOPTOISOLATOR 5KV TRANS 4-LSOP |
3,993 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 160% @ 5mA | 320% @ 5mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
VOM617A-4TOPTOISOLATOR 3.75KV TRANS 4-SOP |
2,655 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 160% @ 5mA | 320% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
VOS617A-3TOPTOISOLATOR 3.75KV TRANS 4-SSOP |
2,506 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 200% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.18V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
