| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ILQ55-X009TOPTOISO 5.3KV 4CH DARL 16SMD |
2,707 | 4.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 5300Vrms | 100% @ 10mA | - | - | 10µs, 35µs | DC | Darlington | 55V | 125mA | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
IL300-DEFG-X007TOPTOISO 5.3KV PHVOLT 8SMD |
3,680 | 5.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
CNY64BOPTOISOLATOR 8.2KV TRANS 4-DIP |
4,000 | 2.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 8200Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.25V | 75 mA | 300mV | -55°C ~ 85°C | Through Hole |
|
|
CNY65BOPTOISOLATOR 13.9KV TRANS 4-DIP |
2,574 | 2.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 13900VDC | 100% @ 10mA | 200% @ 10mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.25V | 75 mA | 300mV | -55°C ~ 85°C | Through Hole |
|
ILQ1OPTOISO 5.3KV 4CH TRANS 16-DIP |
2,643 | 2.72 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 20% @ 10mA | 300% @ 10mA | 700ns, 1.4µs | 1.9µs, 1.4µs | DC | Transistor | 50V | 50mA | 1.25V | 60 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
SFH636OPTOISO 4.42KV TRANS 6DIP |
3,956 | 3.08 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4420Vrms | 19% @ 16mA | - | 300ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
ILQ621GBOPTOISO 5.3KV 4CH TRANS 16-DIP |
400 | 3.12 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
ILQ621GB-X001OPTOISO 5.3KV 4CH TRANS 16DIP |
2,988 | 3.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
ILQ615-4X009OPTOISO 5.3KV 4CH TRANS 16SMD |
166 | 3.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 160% @ 320mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
ILQ621OPTOISO 5.3KV 4CH TRANS 16-DIP |
3,548 | 3.45 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
ILQ615-3OPTOISO 5.3KV 4CH TRANS 16DIP |
2,564 | 3.45 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
|
ILQ32OPTOISO 5.3KV 4CH DARL 16DIP |
271 | 3.59 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 500% @ 10mA | - | 15µs, 30µs | - | DC | Darlington | 30V | 125mA | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
CNY66BOPTOISOLATOR 13.9KV TRANS 4-DIP |
2,177 | 3.61 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 13900VDC | 100% @ 10mA | 200% @ 10mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.25V | 75 mA | 300mV | -55°C ~ 85°C | Through Hole |
|
|
ILQ74OPTOISO 5.3KV 4CH TRANS 16DIP |
371 | 3.90 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 12.5% @ 16mA | - | 3µs, 3µs | - | DC | Transistor | 20V | - | 1.3V | 60 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
|
ILQ620GBOPTOISO 5.3KV 4CH TRANS 16-DIP |
3,190 | 4.22 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 20µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
IL300OPTOISO 5.3KV LINEAR PHVOLT 8DIP |
2,523 | 4.84 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
|
IL300-DEFGOPTOISO 5.3KV LINEAR PHVOLT 8DIP |
524 | 5.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|

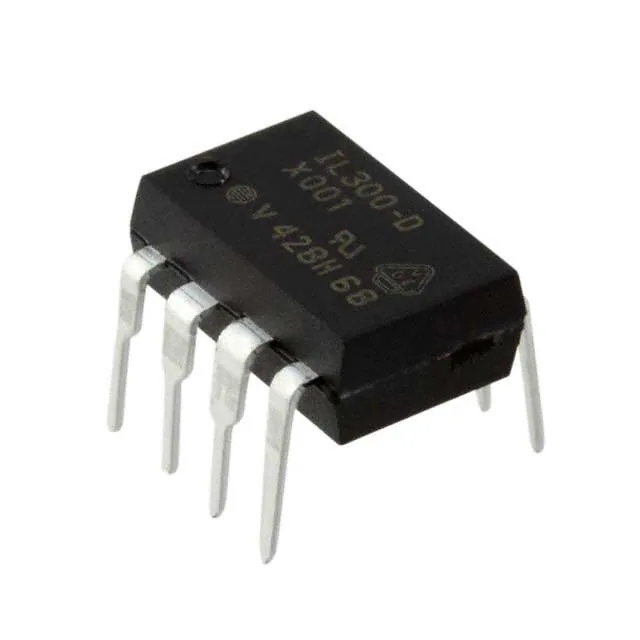

IL300-DEFG-X001OPTOISO 5.3KV PHVOLT 8DIP |
2,329 | 5.06 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
|
IL300-DEFG-X006OPTOISO 5.3KV PHVOLT 8DIP |
2,079 | 5.06 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|

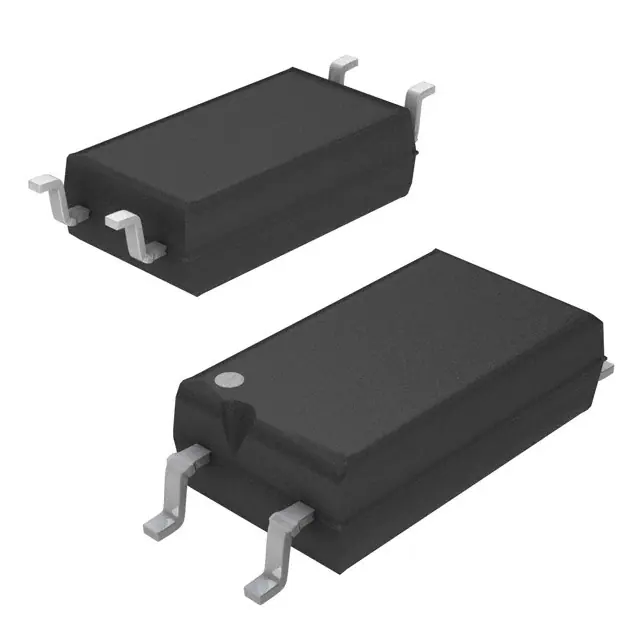

VOL617A-8X001TOPTOISOLATOR 5KV TRANS |
3,152 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
