| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH6186-5X001TOPTOISOLATOR 5.3KV TRANS 4SMD |
2,590 | 1.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 250% @ 1mA | 500% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6206-1TOPTOISOLATOR 5.3KV TRANS 4-SMD |
850 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 40% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6106-1X001TOPTOISOLATOR 5.3KV TRANS 4SMD |
975 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6106-4X001TOPTOISOLATOR 5.3KV TRANS 4SMD |
790 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
IL212ATOPTOISO 4KV TRANS W/BASE 8SOIC |
363 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4000Vrms | 50% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 30V | - | 1.3V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
VOD217TOPTOISOLATOR 4KV 2CH TRANS 8SOIC |
589 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 100% @ 1mA | - | 5µs, 4µs | 5µs, 4µs | DC | Transistor | 70V | 50mA | 1.2V | 30 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
SFH6206-3X001TOPTOISOLATOR 5.3KV TRANS 4SMD |
260 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH610A-3X007TOPTOISOLATOR 5.3KV TRANS 4SMD |
732 | 1.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
MOC8101-X017TOPTOISO 5.3KV TRANSISTOR 6SMD |
505 | 1.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 50% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 30V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
H11AA1-X007TOPTOISO 5.3KV TRANS W/BASE 6SMD |
992 | 1.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 20% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | - | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH601-3X007TOPTOISO 5.3KV TRANS W/BASE 6SMD |
379 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 100V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
6N135-X007TOPTOISO 5.3KV TRANS W/BASE 8DIP |
328 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 7% @ 16mA | - | 300ns, 300ns | - | DC | Transistor with Base | 15V | 8mA | 1.33V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
6N136-X007TOPTOISO 5.3KV TRANS W/BASE 8SMD |
945 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 200ns | - | DC | Transistor with Base | 15V | 8mA | 1.33V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
SFH6136-X009TOPTOISO 5.3KV TRANS W/BASE 8SMD |
914 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 200ns | - | DC | Transistor with Base | 25V | 8mA | 1.6V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
6N136-X009TOPTOISO 5.3KV TRANS W/BASE 8SMD |
422 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 200ns | - | DC | Transistor with Base | 15V | 8mA | 1.33V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
ILD615-2X009TOPTOISO 5.3KV 2CH TRANS 8SMD |
598 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
6N139-X017TOPTOISO 5.3KV DARL W/BASE 8SMD |
683 | 1.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 500% @ 1.6mA | - | 600ns, 1.5µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
ILD615-4X009TOPTOISO 5.3KV 2CH TRANS 8SMD |
486 | 1.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
SFH6315TOPTOISO 4KV TRANS W/BASE 8SOIC |
3,722 | 1.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4000Vrms | 7% @ 16mA | 50% @ 16mA | 500ns, 500ns | - | DC | Transistor with Base | 25V | 8mA | 1.6V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|

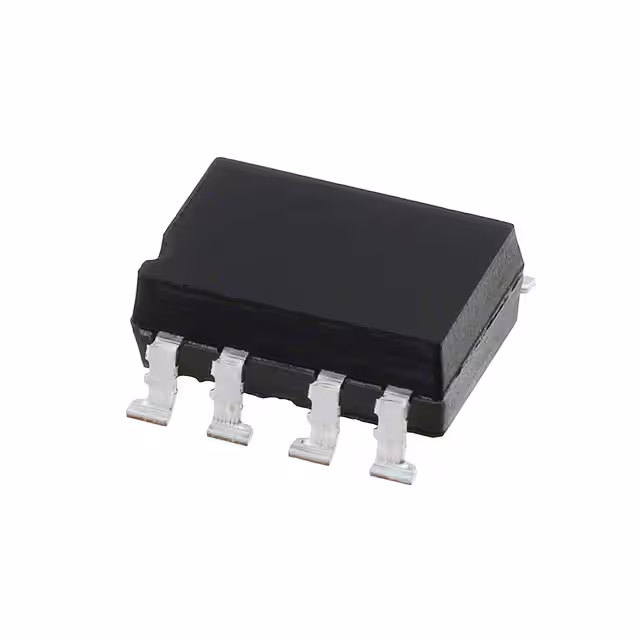

ILD2-X009TOPTOISO 5.3KV 2CH TRANS 8SMD |
100 | 1.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | 100% @ 10mA | 500% @ 10mA | 1.2µs, 2.3µs | 2.6µs, 2.2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
