| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCET1109OPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,746 | 0.60 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -40°C ~ 100°C | Through Hole |
|
CNY75GCOPTOISO 5KV TRANS W/BASE 6DIP |
194 | 0.66 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 7µs, 5µs | 4.2µs, 4.7µs | DC | Transistor with Base | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
|
4N25VOPTOISO 5KV TRANS W/BASE 6DIP |
881 | 0.66 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 20% @ 10mA | - | 11µs, 7µs | 7µs, 6.7µs | DC | Transistor with Base | 32V | 50mA | 1.2V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
CQY80NGOPTOISO 5KV TRANS W/BASE 6DIP |
847 | 0.66 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 50% @ 10mA | - | 11µs, 7µs | 7µs, 6.7µs | DC | Transistor with Base | 32V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
TCDT1101GOPTOISOLATOR 5KV TRANS 6DIP |
943 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 11µs, 7µs | 7µs, 6.7µs | DC | Transistor | 32V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
CNY17-1X007OPTOISO 5KV TRANS W/BASE 6SMD |
460 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
CNY17F-4X007OPTOISOLTR 5KV TRANSISTOR 6-SMD |
417 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|

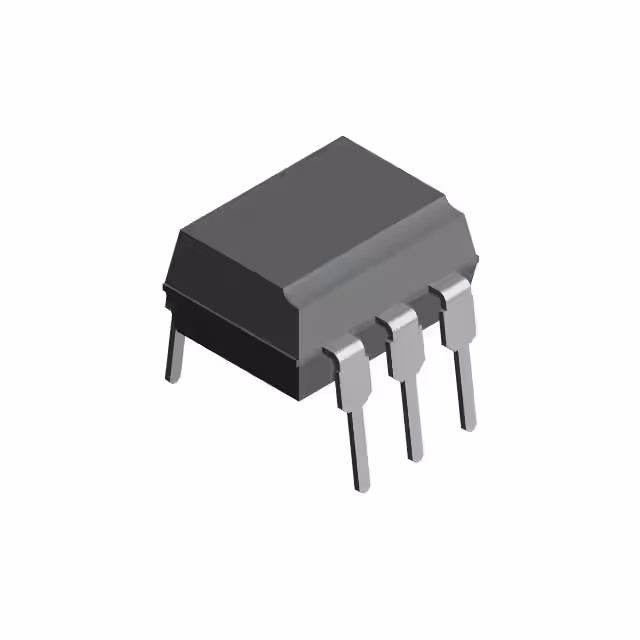

CNY117-4OPTOISO 5KV TRANS W/BASE 6DIP |
284 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
TCDT1124GOPTOISOLATOR 5KV TRANS 6DIP |
906 | 0.72 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 4µs, 4.7µs | 4µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
TCDT1124OPTOISOLATOR 5KV TRANS 6DIP |
423 | 0.72 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 4µs, 4.7µs | 4µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
4N25-X009OPTOISO 5KV TRANS W/BASE 6SMD |
745 | 0.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.36V | 60 mA | 500mV | -55°C ~ 100°C | Surface Mount |
|
SFH615AA-X007OPTOISOLATOR 5.3KV TRANS 4SMD |
734 | 0.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 2µs, 25µs | - | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH615A-1OPTOISOLATOR 5.3KV TRANS 4-DIP |
374 | 0.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 18µs | 2µs, 11µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
SFH610A-4OPTOISOLATOR 5.3KV TRANS 4-DIP |
115 | 1.04 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
MOC8104OPTOISOLATOR 5.3KV TRANS 6-DIP |
159 | 1.42 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 256% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 30V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
CNY64AYSTOPTOISOLATOR 8.2KV TRANS 4-SMD |
522 | 3.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 8200Vrms | 50% @ 5mA | 150% @ 5mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.32V | 75 mA | 300mV | -55°C ~ 85°C | Surface Mount |
|

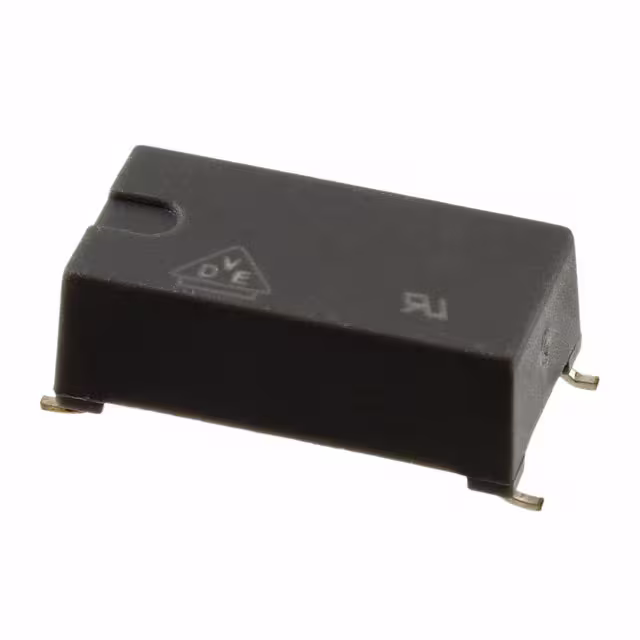

CNY65ABSTOPTOISOLATOR 13.9KV TRANS 4-SMD |
551 | 3.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 13900VDC | 80% @ 5mA | 240% @ 5mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.32V | 75 mA | 300mV | -55°C ~ 85°C | Surface Mount |
|
TCET4100OPTOISOLTR 5KV 4CH TRANS 16-DIP |
610 | 1.82 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
SFH640-2OPTOISO 5.3KV TRANS W/BASE 6DIP |
178 | 1.85 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 5µs, 6µs | 2.5µs, 5.5µs | DC | Transistor with Base | 300V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
6N139-X009OPTOISO 5.3KV DARL W/BASE 8SMD |
3,496 | 1.91 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 500% @ 1.6mA | - | 600ns, 1.5µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
