| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VO615A-6X017TOPTOISOLATR 5KV TRANSISTOR 4-SMD |
800 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 5mA | 300% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
VO615A-1X019TOPTOISOLATR 5KV TRANSISTOR 4-SMD |
289 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
TCLT1004OPTOISOLATOR 5KV TRANS SOP-4L |
782 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
VO615A-1X009TOPTOISOLATR 5KV TRANSISTOR 4-SMD |
856 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
VOS628A-X001TOPTOISOLATOR 3.75KV TRANS 4-SSOP |
736 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 1mA | 600% @ 1mA | 5µs, 8µs | 5µs, 7µs | AC, DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VO610A-3X009TOPTOISOLATR 5KV TRANSISTOR 4-SMD |
521 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|

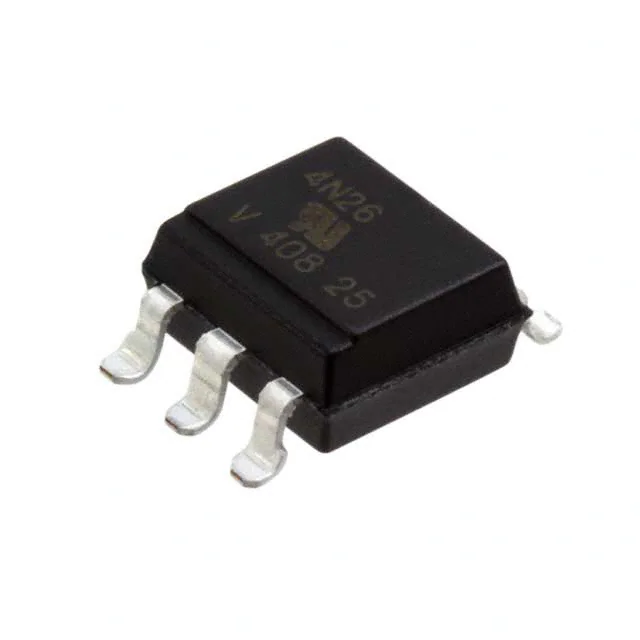

4N26-X009TOPTOISO 5KV TRANS W/BASE 6SMD |
703 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.36V | 60 mA | 500mV | -55°C ~ 100°C | Surface Mount |
|
|
4N25-X007TOPTOISO 5KV TRANS W/BASE 6SMD |
666 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.36V | 60 mA | 500mV | -55°C ~ 100°C | Surface Mount |
|
4N25-X009TOPTOISO 5KV TRANS W/BASE 6SMD |
170 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.36V | 60 mA | 500mV | -55°C ~ 100°C | Surface Mount |
|
CNY17-4X009TOPTOISO 5KV TRANS W/BASE 6SMD |
870 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17-4X007TOPTOISO 5KV TRANS W/BASE 6SMD |
763 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
CNY17F-3X009TOPTOISOLTR 5KV TRANSISTOR 6-SMD |
488 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
CNY17-1X007TOPTOISO 5KV TRANS W/BASE 6SMD |
450 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17F-2X007TOPTOISOLTR 5KV TRANSISTOR 6-SMD |
222 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
SFH690AT3OPTOISOLATOR 3.75KV TRANS 4SOP |
176 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 150% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
TCLT1014OPTOISOLATOR 5KV TRANS SOP-6L4 |
123 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
4N35-X017TOPTOISO 5KV TRANS W/BASE 6SMD |
2,553 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
CNY17F-3X017TOPTOISOLTR 5KV TRANSISTOR 6-SMD |
995 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
SFH1690CTOPTOISOLATOR 3.75KV TRANS 4SOP |
791 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 200% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17-3X017TOPTOISO 5KV TRANS W/BASE 6SMD |
3,370 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
